Nissan Frontier D40. Manual - part 80

BRC-18

< FUNCTION DIAGNOSIS >

[TYPE 1]

EBD

EBD

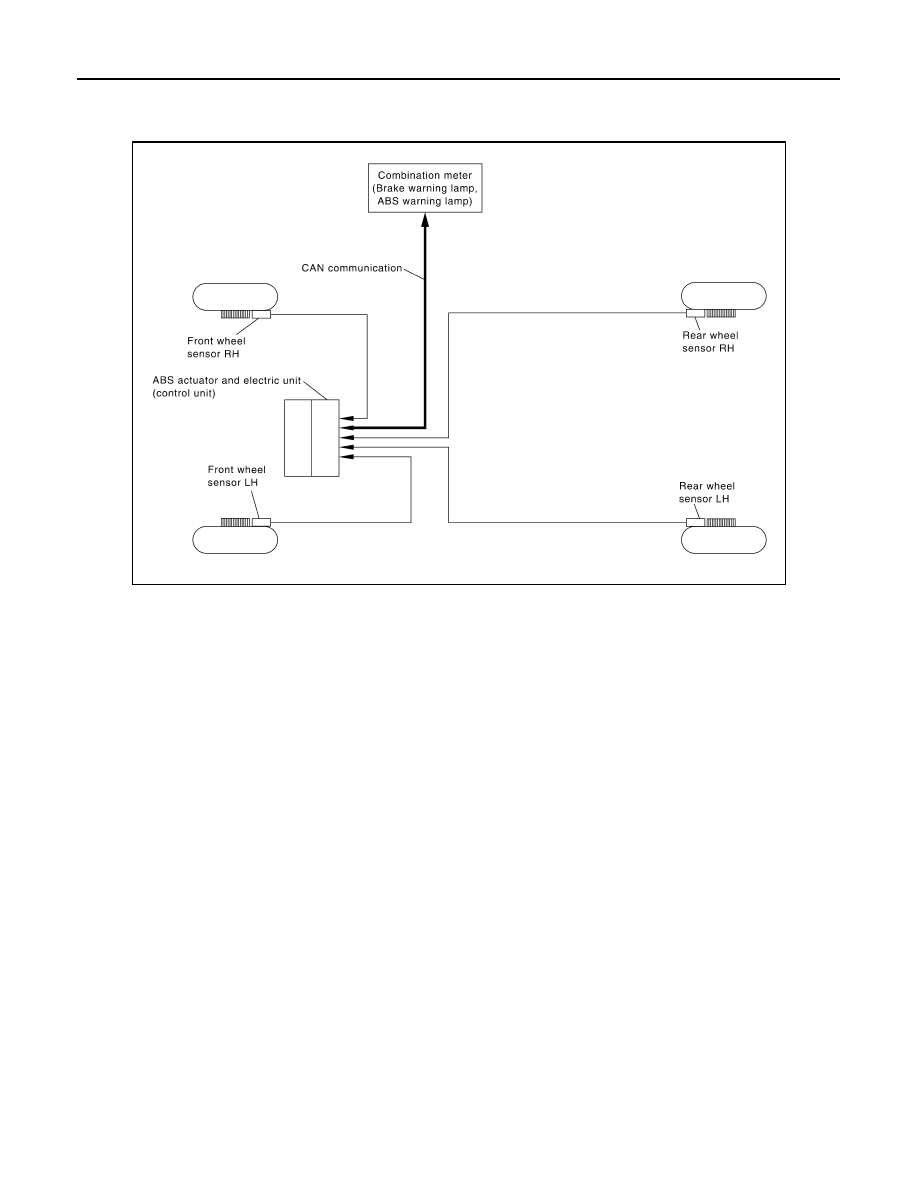

System Diagram

INFOID:0000000005275043

System Description

INFOID:0000000005275044

• Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects

subtle slippages between the front and rear wheels during braking. Then it electronically controls the rear
braking force (brake fluid pressure) to reduce rear wheel slippage. Accordingly, it improves vehicle stability.

• Electrical system diagnosis by CONSULT-III is available.

AWFIA0014GB

EBD

BRC-19

< FUNCTION DIAGNOSIS >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

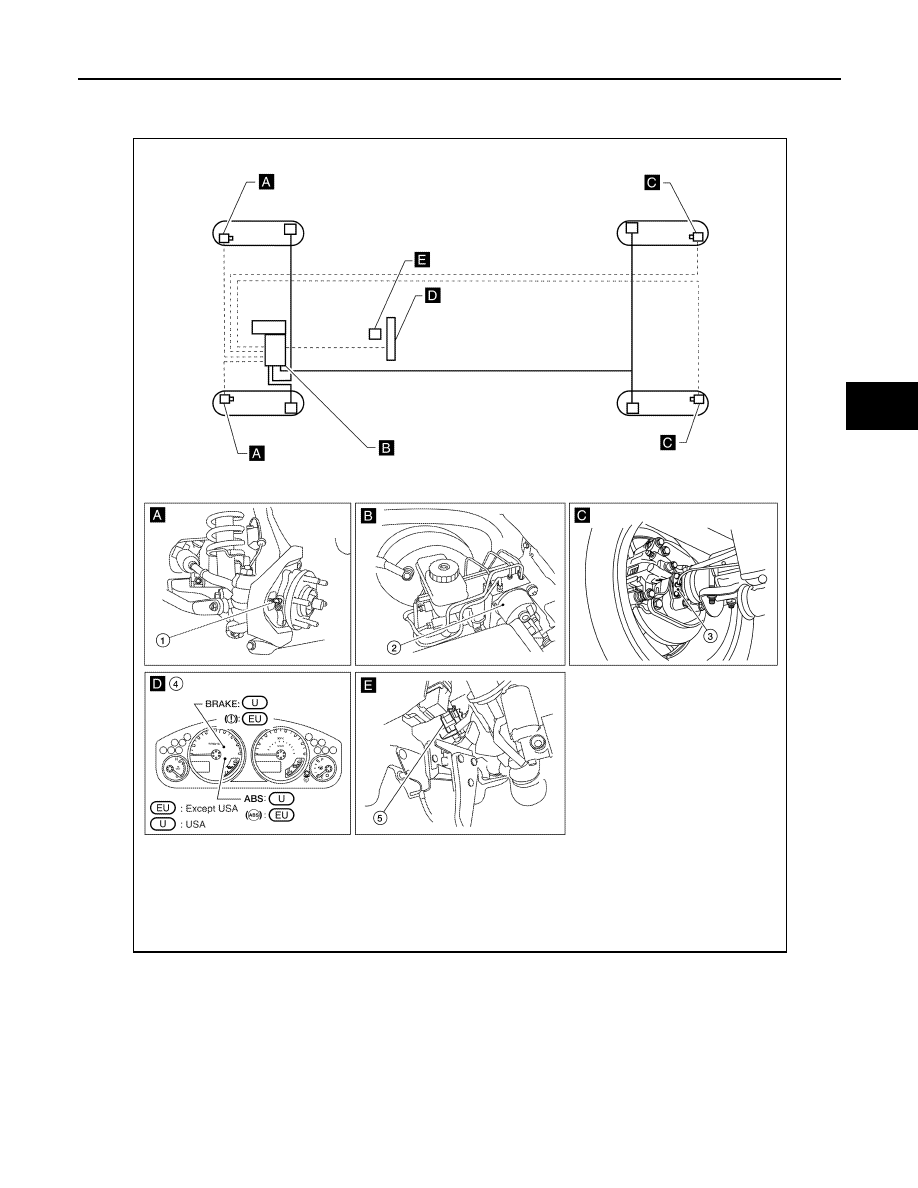

Component Parts Location

INFOID:0000000005548999

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

ABS actuator and electric unit (con-
trol unit) E125

3.

Rear wheel sensor LH C11
Rear wheel sensor RH C10

4.

Combination meter M24

5.

Stop lamp switch (with M/T) E38
Stop lamp switch (with A/T) E39

AWFIA0587GB

BRC-20

< FUNCTION DIAGNOSIS >

[TYPE 1]

EBD

Component Description

INFOID:0000000005549000

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-34, "Description"

Motor

Actuator relay

BRC-43, "Description"

Solenoid valve

BRC-39, "Description"

Wheel sensor

BRC-25, "Description"

Stop lamp switch

—

ABS warning lamp

BRC-46, "Description"

Brake warning lamp

BRC-47, "Description"

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL

UNIT)]

BRC-21

< FUNCTION DIAGNOSIS >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]

CONSULT-III Function (ABS)

INFOID:0000000005275047

FUNCTION

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

SELF DIAGNOSTIC RESULT MODE

Operation Procedure

1.

Before performing the self-diagnosis, start engine and drive vehicle at 30 km/h (19 MPH) or more for
approximately 1 minute.

How to Erase Self-diagnosis Results

1.

After erasing DTC memory, start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately
1 minute as the final inspection, and make sure that the ABS warning lamp and brake warning lamp turn
OFF.

CAUTION:

If memory cannot be erased, perform applicable diagnosis.
NOTE:
• When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning lamp

and brake warning lamp will not turn OFF even when the system is normal unless the vehicle is driving
at approximately 30 km/h (19 MPH) or more for approximately 1 minute.

• Brake warning lamp will turn ON in case of parking brake operation (when switch is ON) or of brake fluid

level switch operation (when brake fluid is insufficient).

Display Item List

Refer to

BRC-57, "DTC No. Index"

.

DATA MONITOR MODE

Display Item List

Diagnostic test mode

Function

Ecu Identification

ABS actuator and electric unit (control unit) part number can be read.

Self Diagnostic Result

Self-diagnostic results can be read and erased quickly.

Data Monitor

Input/Output data in the ABS actuator and electric unit (control unit) can be read.

Active Test

Diagnostic test mode is which CONSULT-III drives some actuators apart from the ABS actuator
and electric unit (control unit) and also shifts some parameters in a specified range.

Function Test

Other results or histories, etc. that are recorded in ECU are displayed.

Work support

This mode enables a technician to adjust some devices faster and more accurately.

CAN Diag Support Mntr

The results of transmit/receive diagnosis of CAN communication can be read.

Item

(Unit)

Data monitor item selection

Remarks

ECU INPUT

SIGNALS

MAIN

SIGNALS

SELECTION

FROM MENU

FR LH SENSOR
 (km/h, mph)

×

×

×

Wheel speed calculated by front LH
wheel sensor signal is displayed.

FR RH SENSOR
 (km/h, mph)

×

×

×

Wheel speed calculated by front RH
wheel sensor signal is displayed.

RR LH SENSOR
 (km/h, mph)

×

×

×

Wheel speed calculated by rear LH
wheel sensor signal is displayed.

RR RH SENSOR
 (km/h, mph)

×

×

×

Wheel speed calculated by rear RH
wheel sensor signal is displayed.

FR RH IN SOL
(On/Off)

–

×

×

Front RH IN ABS solenoid (On/Off)
status is displayed.
