System Diagram

INFOID:0000000005275039

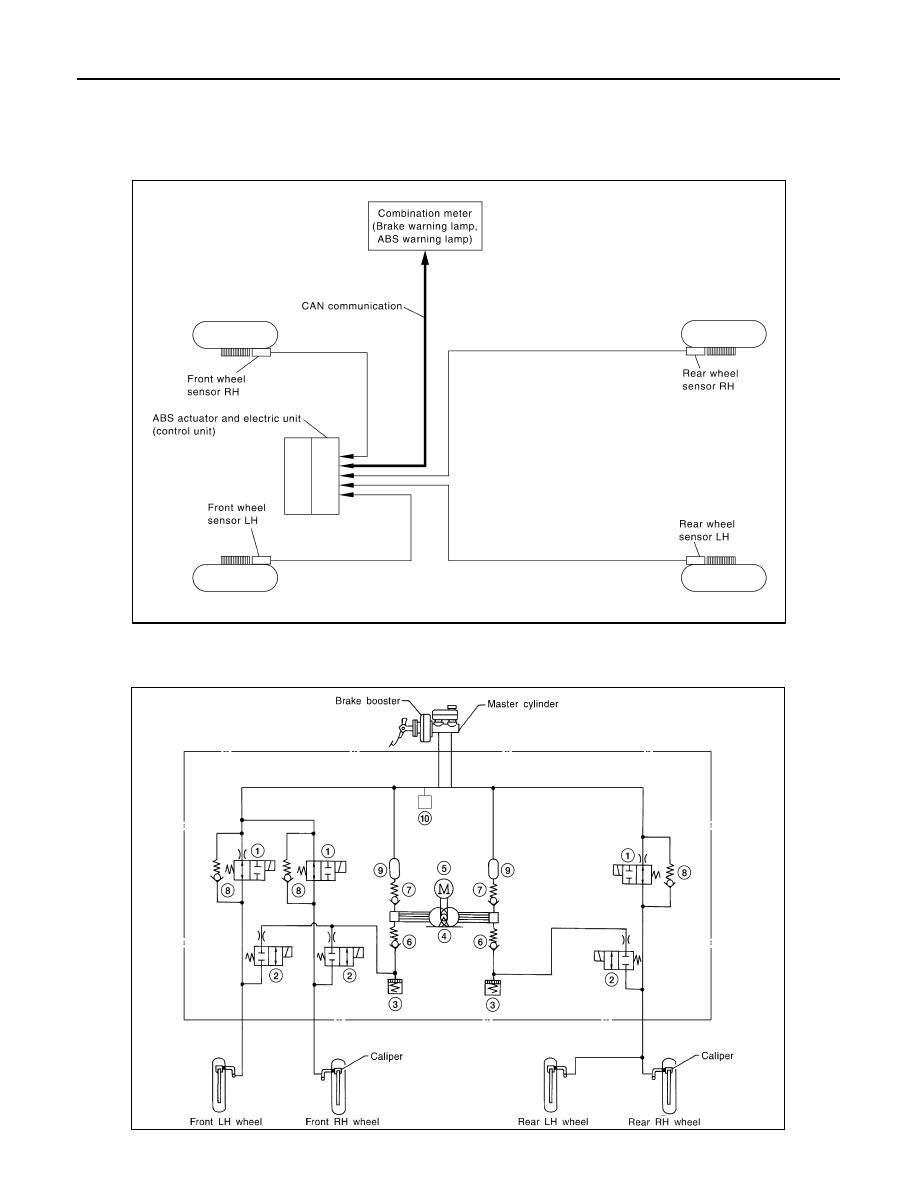

HYDRAULIC CIRCUIT DIAGRAM

AWFIA0014GB

WFIA0369E

ABS

BRC-15

< FUNCTION DIAGNOSIS >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

System Description

INFOID:0000000005275040

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-
verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT-III is available.

1.

Inlet solenoid valve

2.

Outlet solenoid valve

3.

Reservoir

4.

Pump

5.

Motor

6.

Inlet valve

7.

Outlet valve

8.

Bypass check valve

9.

Damper

10. Pressure switch

BRC-16

< FUNCTION DIAGNOSIS >

[TYPE 1]

ABS

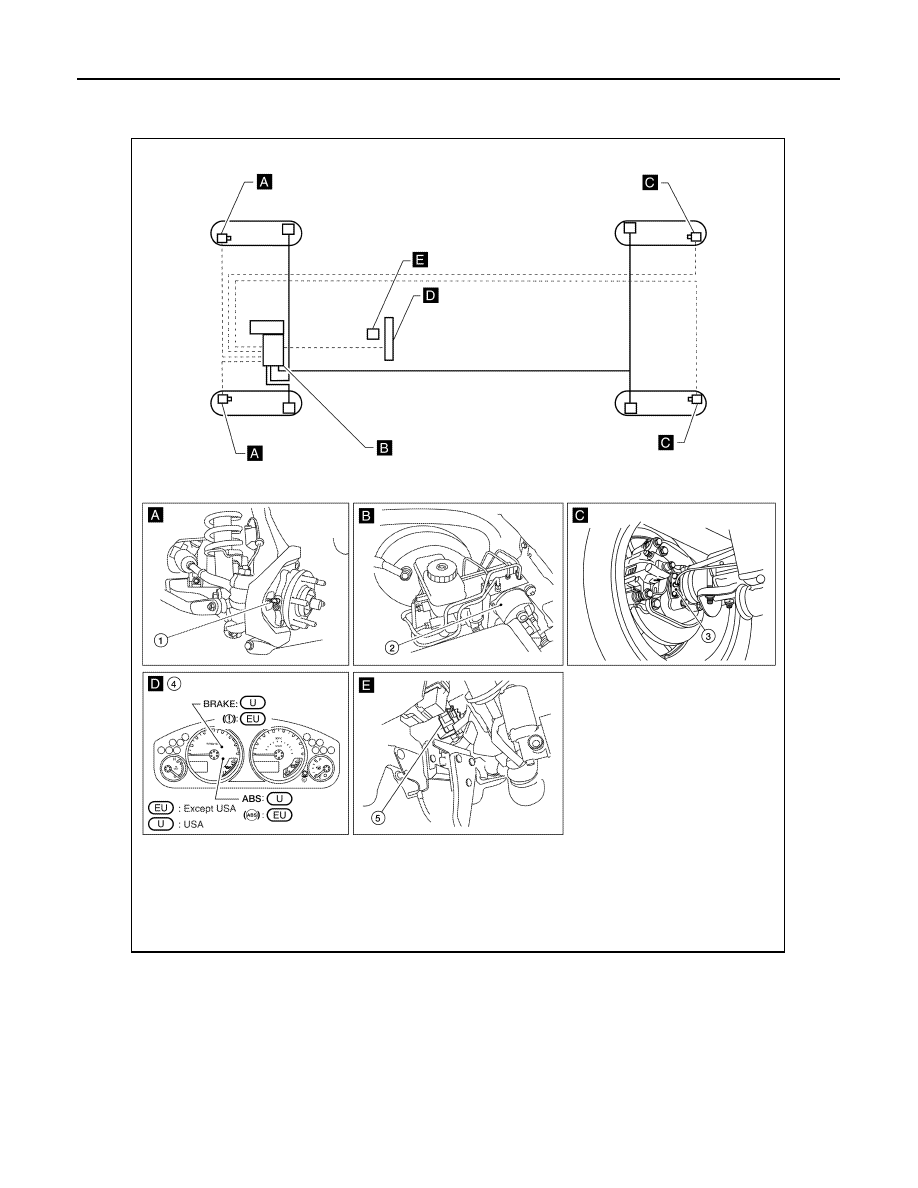

Component Parts Location

INFOID:0000000005275041

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

ABS actuator and electric unit (con-
trol unit) E125

3.

Rear wheel sensor LH C11
Rear wheel sensor RH C10

4.

Combination meter M24

5.

Stop lamp switch (with M/T) E38
Stop lamp switch (with A/T) E39

AWFIA0587GB

ABS

BRC-17

< FUNCTION DIAGNOSIS >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000005275042

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-34, "Description"

Motor

Actuator relay

BRC-43, "Description"

Solenoid valve

BRC-39, "Description"

Wheel sensor

BRC-25, "Description"

Stop lamp switch

—

ABS warning lamp

BRC-46, "Description"

Brake warning lamp

BRC-47, "Description"
