POWER SUPPLY AND GROUND CIRCUIT

BCM (BODY CONTROL MODULE) : Diagnosis Procedure

INFOID:0000000004495949

1.

 CHECK FUSE AND FUSIBLE LINK

Check if the following BCM fuse or fusible link are blown.

Is the fuse or fusible link blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check voltage between BCM harness connector and ground.

Is the measurement normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

BCM (BODY CONTROL MODULE) : Special Repair Requirement

INFOID:0000000004495950

1.

 REQUIRED WORK WHEN REPLACING BCM

Initialize control unit. Refer to

BCS-6, "CONFIGURATION (BCM) : Special Repair Requirement"

.

>> Work End.

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) : Di-
agnosis Procedure

INFOID:0000000004495951

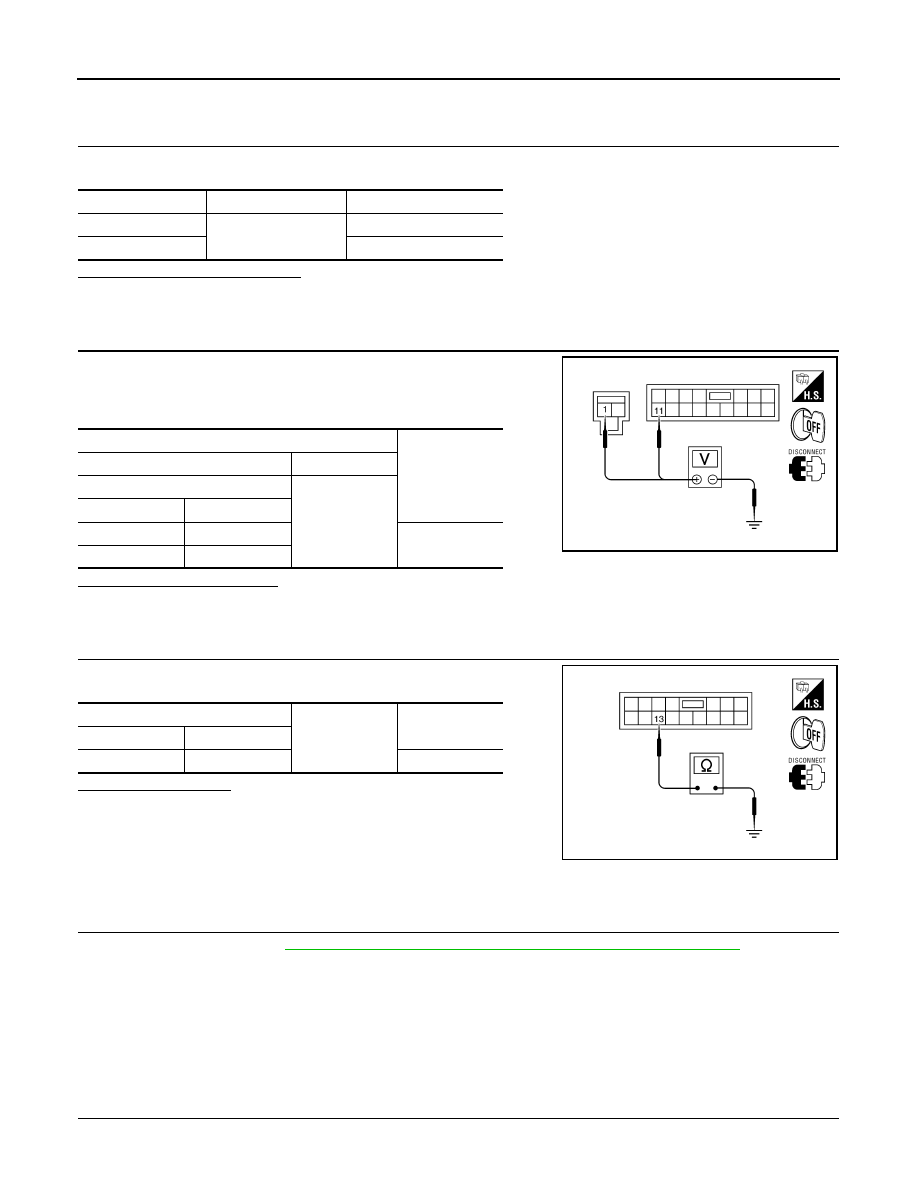

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following IPDM E/R fuses or fusible link are not blown.

Terminal No.

Signal name

Fuse and fusible link No.

1

Battery power supply

H

11

10

Terminals

Voltage

(Approx.)

(+)

(

−)

BCM

Ground

Connector

Terminal

M16

1

Battery voltage

M17

11

ALCIA0025ZZ

BCM

Ground

Continuity

Connector

Terminal

M17

13

Yes

ALCIA0024ZZ

MWI

POWER SUPPLY AND GROUND CIRCUIT

MWI-45

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

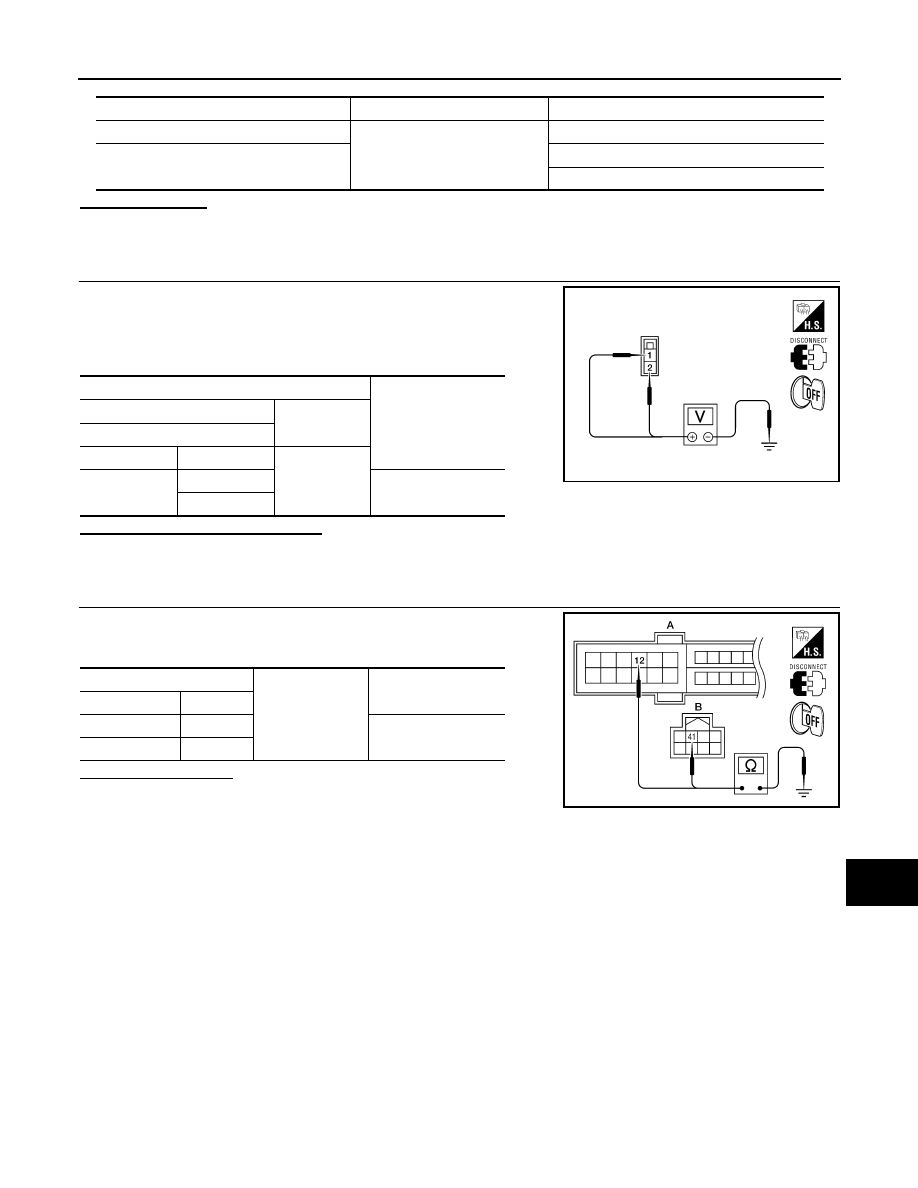

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R connectors.

3. Check voltage between IPDM E/R harness connector and

ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

 CHECK GROUND CIRCUIT

Check continuity between IPDM E/R harness connectors and

ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair harness or connector.

Terminal No.

Signal name

Fuses and fusible link No.

1, 2

Battery power supply

B, D

—

42

43

Terminals

Voltage (V)

(Approx.)

(+)

(

−)

IPDM E/R

Connector

Terminal

Ground

E16

1

Battery voltage

2

ALCIA0033ZZ

IPDM E/R

Ground

Continuity

Connector

Terminal

A: E18

12

Yes

B: E17

41

ALCIA0034ZZ

MWI-46

< COMPONENT DIAGNOSIS >

FUEL LEVEL SENSOR SIGNAL CIRCUIT

FUEL LEVEL SENSOR SIGNAL CIRCUIT

Description

INFOID:0000000004204094

The fuel level sensor unit and fuel pump detects the approximate fuel level in the fuel tank and transmits the

fuel level signal to the combination meter.

Component Function Check

INFOID:0000000004204095

1.

COMBINATION METER INPUT SIGNAL

1. Select “METER/M&A” on CONSULT-III.

2. Using “FUEL METER” of “DATA MONITOR”, compare the value of DATA MONITOR with fuel gauge

pointer of combination meter.

Does the data monitor value approximately match the fuel gauge indication?

YES

>> Inspection End.

NO

>> Replace combination meter. Refer to

MWI-176, "Removal and Installation"

.

Diagnosis Procedure

INFOID:0000000004204096

1.

CHECK HARNESS CONNECTOR

1. Turn ignition switch OFF.

2. Check combination meter and fuel level sensor unit terminals (meter-side and harness-side) for poor con-

nection.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace terminals or connectors.

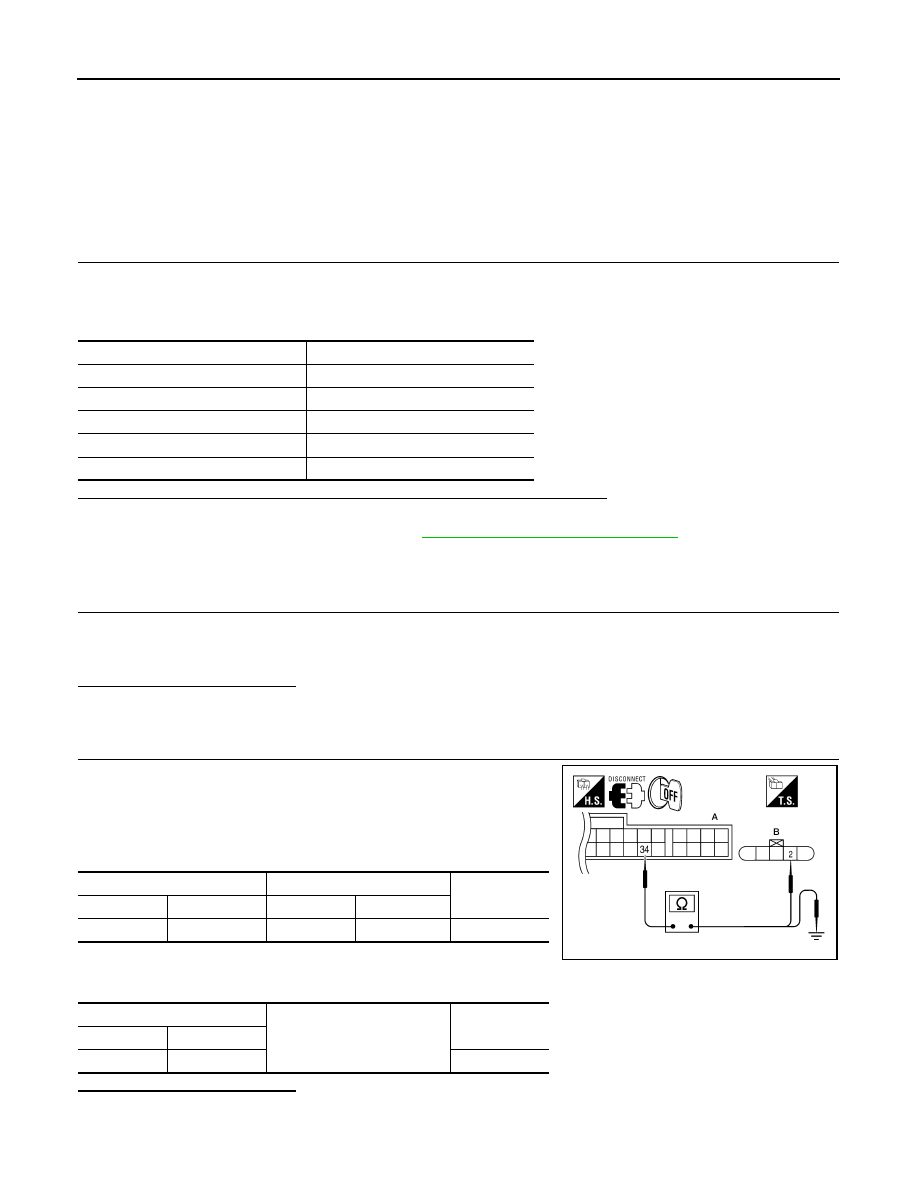

2.

CHECK FUEL LEVEL SENSOR UNIT CIRCUIT

1. Disconnect combination meter connector and fuel level sensor

unit connector.

2. Check continuity between combination meter harness connector

(A) and fuel level sensor unit and fuel pump harness connector

(B).

3. Check continuity between combination meter harness connector

(A) and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

Fuel gauge pointer

Reference value of data monitor [lit.]

Full

Approx. 68

3/4

Approx. 56

1/2

Approx. 38

1/4

Approx. 22

Empty

Approx. 4

A

B

Continuity

Connector

Terminal

Connector

Terminal

M24

34

B42

2

Yes

A

Ground

Continuity

Connector

Terminal

M24

34

No

AWNIA0014ZZ

MWI

FUEL LEVEL SENSOR SIGNAL CIRCUIT

MWI-47

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

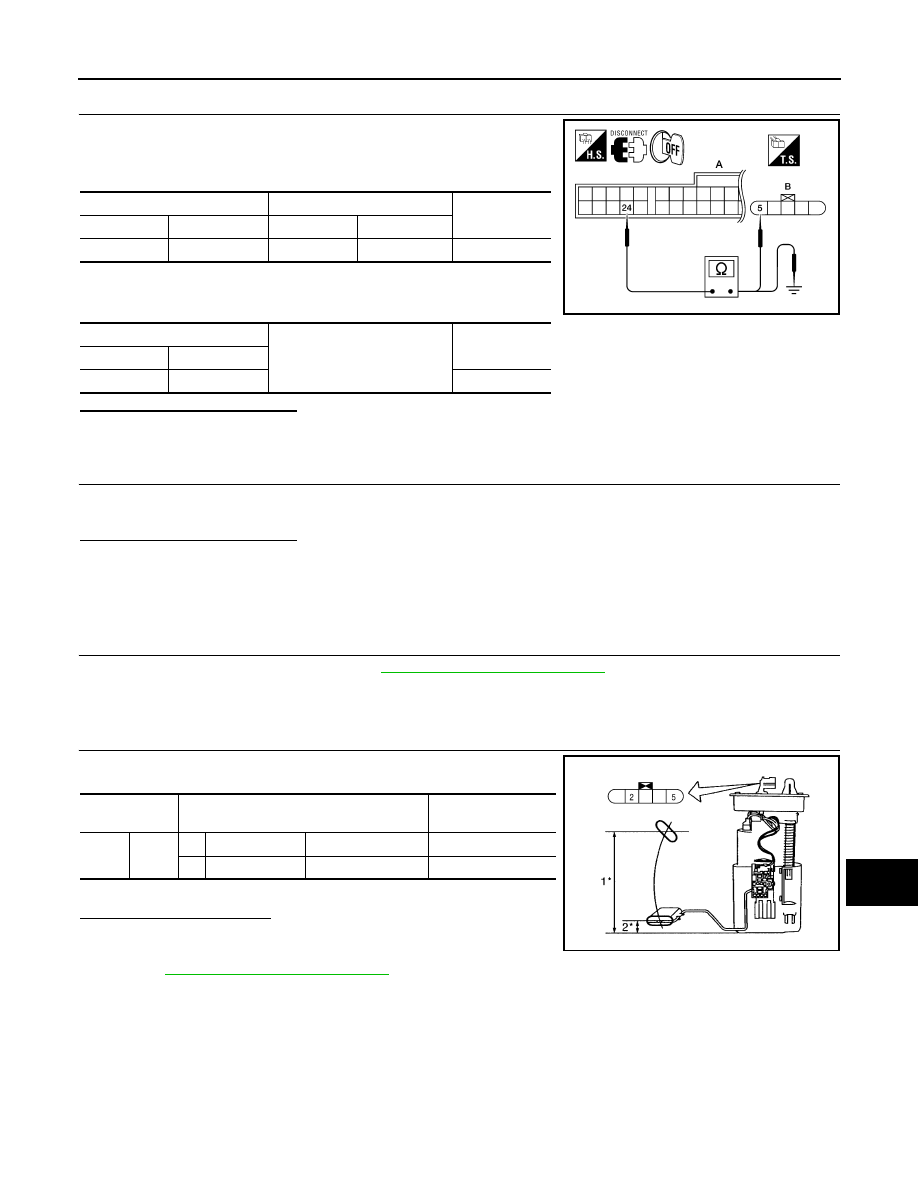

3.

CHECK FUEL LEVEL SENSOR UNIT GROUND CIRCUIT

1. Check continuity between combination meter harness connector

(A) and fuel level sensor unit and fuel pump harness connector

(B).

2. Check continuity between combination meter harness connector

(A) and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair harness or connector.

4.

CHECK INSTALLATION CONDITION

Check fuel level sensor unit installation, and check whether the float arm interferes or binds with any of the

internal components in the fuel tank.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> Install the fuel level sensor unit properly.

Component Inspection

INFOID:0000000004204097

1.

REMOVE FUEL LEVEL SENSOR UNIT

Remove the fuel level sensor unit. Refer to

FL-6, "Removal and Installation"

.

>> GO TO 2

2.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP

Check the resistance between terminals 2 and 5.

1* and 2*: When float arm is in contact with stopper.

Is inspection result normal?

YES

>> Inspection End.

NO

>> Replace fuel level sensor unit and fuel pump. Refer to

FL-6, "Removal and Installation"

.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M24

24

B42

5

Yes

A

Ground

Continuity

Connector

Terminal

M24

24

No

AWNIA0015ZZ

Terminal

Float position

mm (in)

Resistance value

(Approx.)

2

5

1*

Full (1)

155.4 (6.1)

6

Ω

2*

Empty (2)

22.9 (0.9)

80

Ω
