LAN

LAN-5

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DLC BRANCH LINE CIRCUIT  .........................

163

Diagnosis Procedure .............................................

163

M&A BRANCH LINE CIRCUIT  ........................

164

Diagnosis Procedure .............................................

164

STRG BRANCH LINE CIRCUIT .......................

165

Diagnosis Procedure .............................................

165

ABS BRANCH LINE CIRCUIT  .........................

166

Diagnosis Procedure .............................................

166

TCM BRANCH LINE CIRCUIT .........................

167

Diagnosis Procedure .............................................

167

IPDM-E BRANCH LINE CIRCUIT  ....................

168

Diagnosis Procedure .............................................

168

CAN COMMUNICATION CIRCUIT  ..................

169

Diagnosis Procedure .............................................

169

CAN SYSTEM (TYPE 12)

COMPONENT DIAGNOSIS .......................

171

MAIN LINE BETWEEN DLC AND ABS CIR-
CUIT ..................................................................

171

Diagnosis Procedure .............................................

171

ECM BRANCH LINE CIRCUIT .........................

172

Diagnosis Procedure .............................................

172

A-BAG BRANCH LINE CIRCUIT ....................

173

Diagnosis Procedure  .............................................

173

AV BRANCH LINE CIRCUIT  ..........................

174

Diagnosis Procedure  .............................................

174

BCM BRANCH LINE CIRCUIT  .......................

175

Diagnosis Procedure  .............................................

175

DLC BRANCH LINE CIRCUIT  ........................

176

Diagnosis Procedure  .............................................

176

M&A BRANCH LINE CIRCUIT  .......................

177

Diagnosis Procedure  .............................................

177

STRG BRANCH LINE CIRCUIT  .....................

178

Diagnosis Procedure  .............................................

178

ABS BRANCH LINE CIRCUIT ........................

179

Diagnosis Procedure  .............................................

179

TCM BRANCH LINE CIRCUIT ........................

180

Diagnosis Procedure  .............................................

180

IPDM-E BRANCH LINE CIRCUIT ...................

181

Diagnosis Procedure  .............................................

181

CAN COMMUNICATION CIRCUIT  .................

182

Diagnosis Procedure  .............................................

182

LAN-6

< PRECAUTION >

[CAN FUNDAMENTAL]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precautions for Trouble Diagnosis

INFOID:0000000004203842

CAUTION:

• Never apply 7.0 V or more to the measurement terminal.

• Use a tester with open terminal voltage of 7.0 V or less.

• Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when

checking the harness.

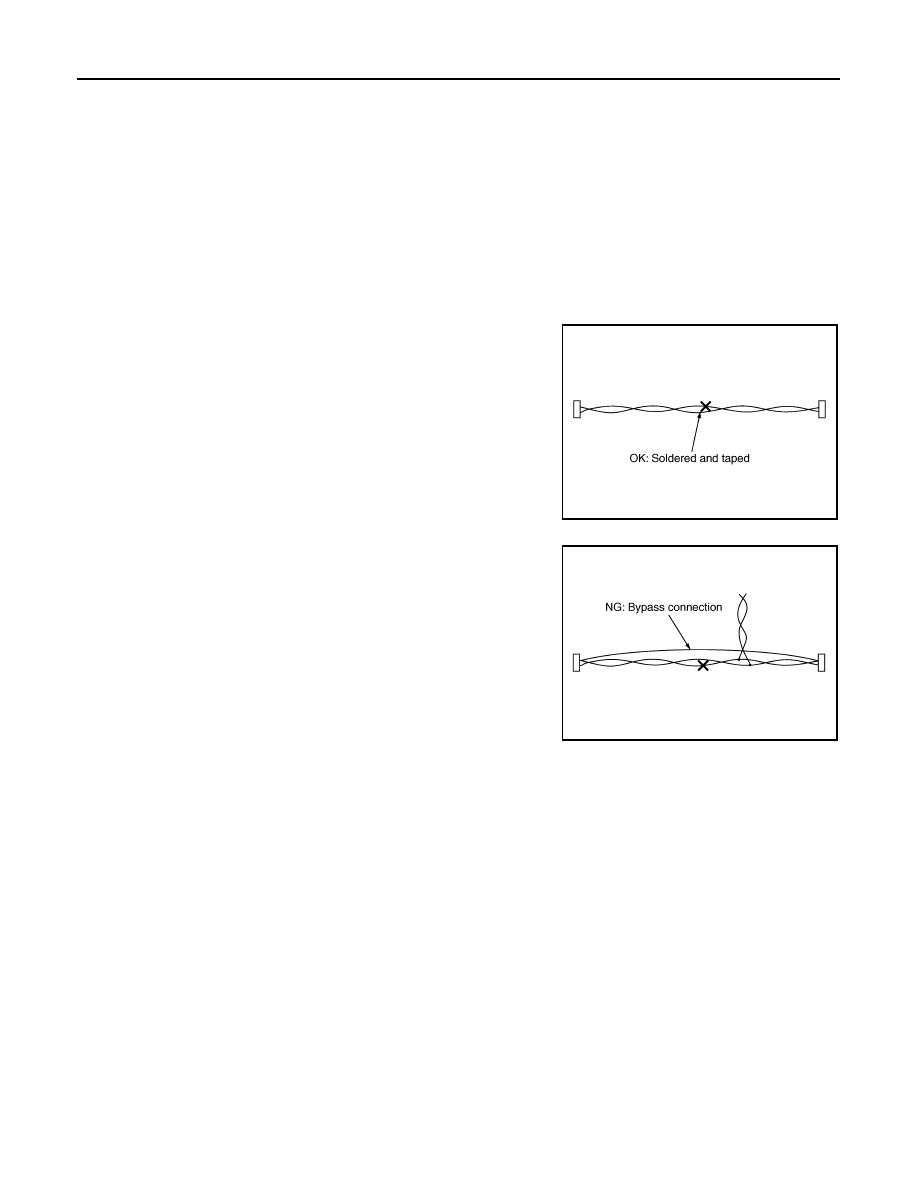

Precautions for Harness Repair

INFOID:0000000004203843

• Solder the repaired area and wrap tape around the soldered area.

NOTE:

A fray of twisted lines must be within 110 mm (4.33 in).

• Bypass connection is never allowed at the repaired area.

NOTE:

Bypass connection may cause CAN communication error. The

spliced wire becomes separated and the characteristics of twisted

line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8766E

SKIB8767E

LAN

CAN COMMUNICATION SYSTEM

LAN-7

< FUNCTION DIAGNOSIS >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

FUNCTION DIAGNOSIS

CAN COMMUNICATION SYSTEM

System Description

INFOID:0000000004203844

• CAN communication is a multiplex communication system. This enables the system to transmit and receive

large quantities of data at high speed by connecting control units with two communication lines (CAN-H and

CAN-L).

• Control units on the CAN network transmit signals using the CAN communication control circuit. They

receive only necessary signals from other control units to operate various functions.

• CAN communication lines adopt twisted-pair line style (two lines twisted) for noise immunity.

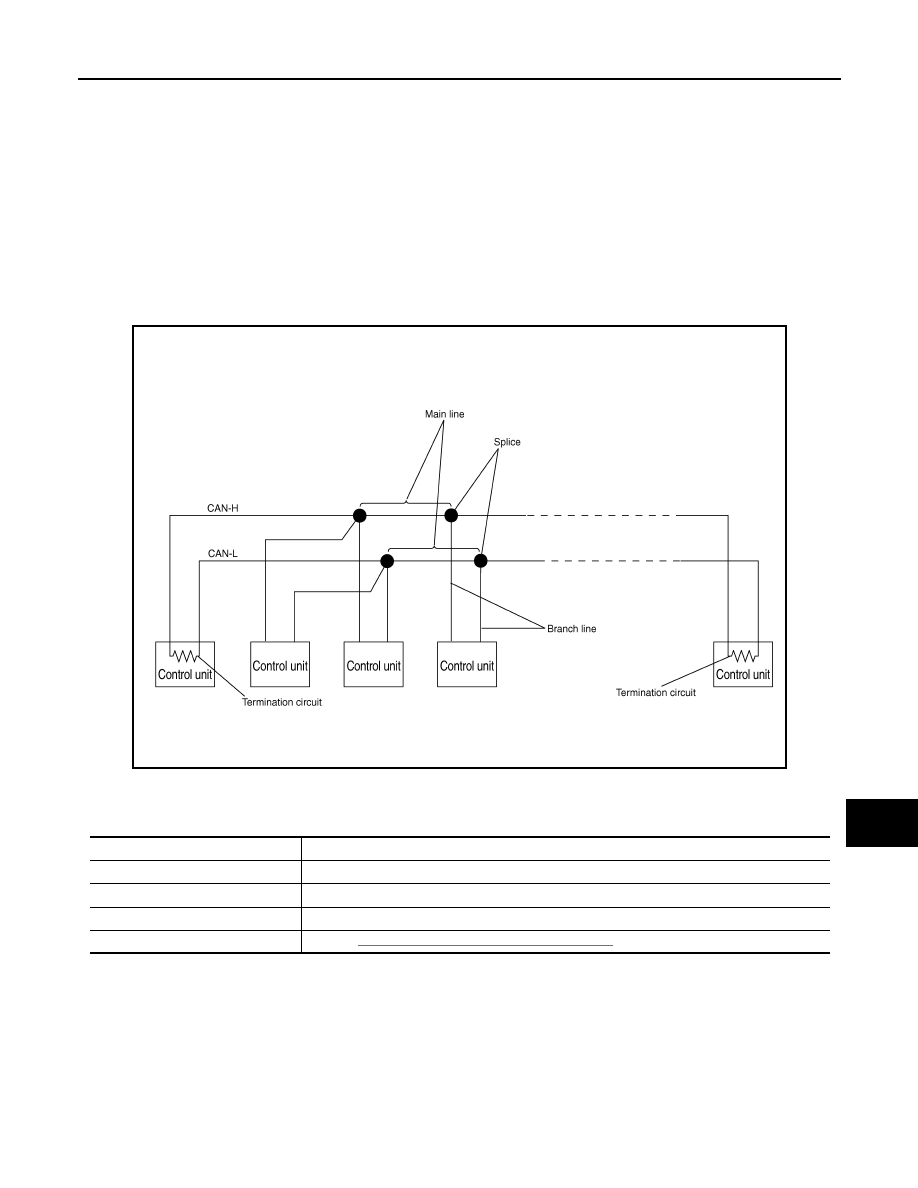

System Diagram

INFOID:0000000004203845

Each control unit passes an electric current to the termination circuits when transmitting CAN communication

signal. The termination circuits produce an electrical potential difference between CAN-H and CAN-L. CAN

communication system transmits and receives CAN communication signals by the potential difference.

SKIB8887E

Component

Description

Main line

CAN communication line between splices

Branch line

CAN communication line between splice and a control unit

Splice

A point connecting a branch line with a main line

Termination circuit

Refer to

LAN-8, "CAN Communication Control Circuit"

.

LAN-8

< FUNCTION DIAGNOSIS >

[CAN FUNDAMENTAL]

CAN COMMUNICATION SYSTEM

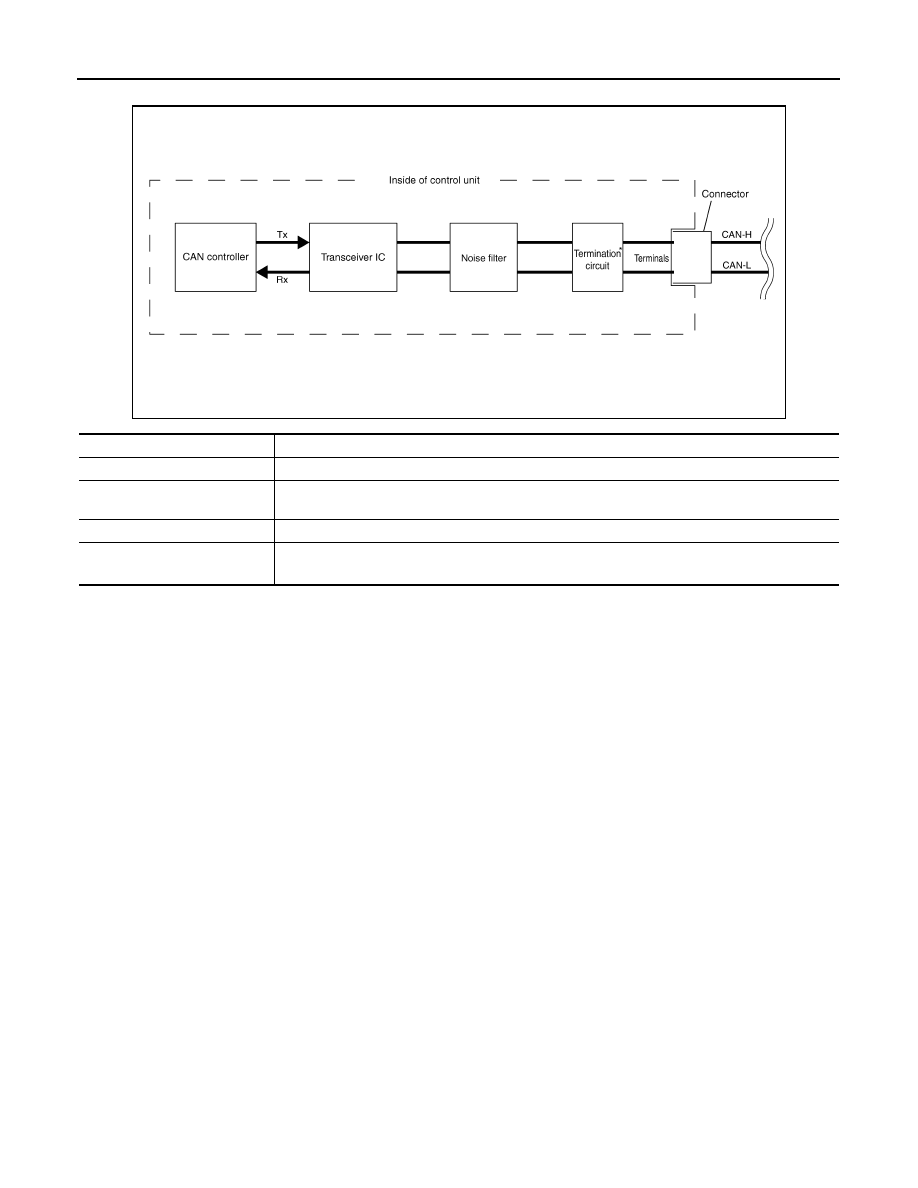

CAN Communication Control Circuit

INFOID:0000000004203846

*: These are the only control units wired with both ends of CAN communication system.

SKIB8713E

Component

System description

CAN controller

It controls CAN communication signal transmission and reception, error detection, etc.

Transceiver IC

It converts digital signal into CAN communication signal, and CAN communication signal into digital
signal.

Noise filter

It eliminates noise of CAN communication signal.

Termination circuit

*

(Resistance of approx. 120

Ω)

It produces potential difference.
