INSTRUMENT PANEL ASSEMBLY

IP-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

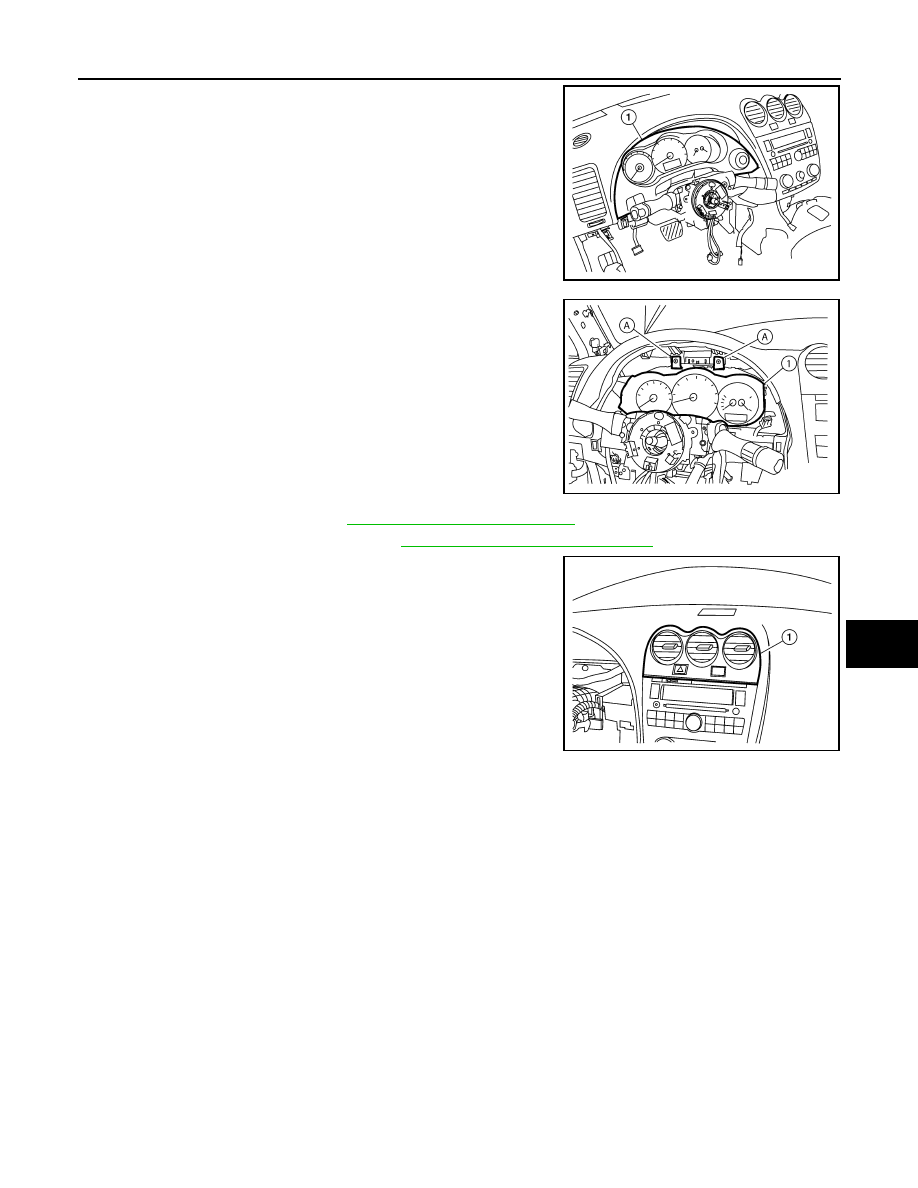

18. Remove the cluster lid A (1).

19. Remove the combination meter screws (A), then remove the

combination meter (1).

• Disconnect the harness connector.

20. Remove the spiral cable. Refer to

SR-8, "Removal and Installation"

.

21. Remove the combination switch. Refer to

WW-121, "Removal and Installation"

.

22. Remove the center ventilator grilles (1).

ALJIA0026ZZ

ALJIA0027ZZ

ALJIA0029ZZ

IP-16

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

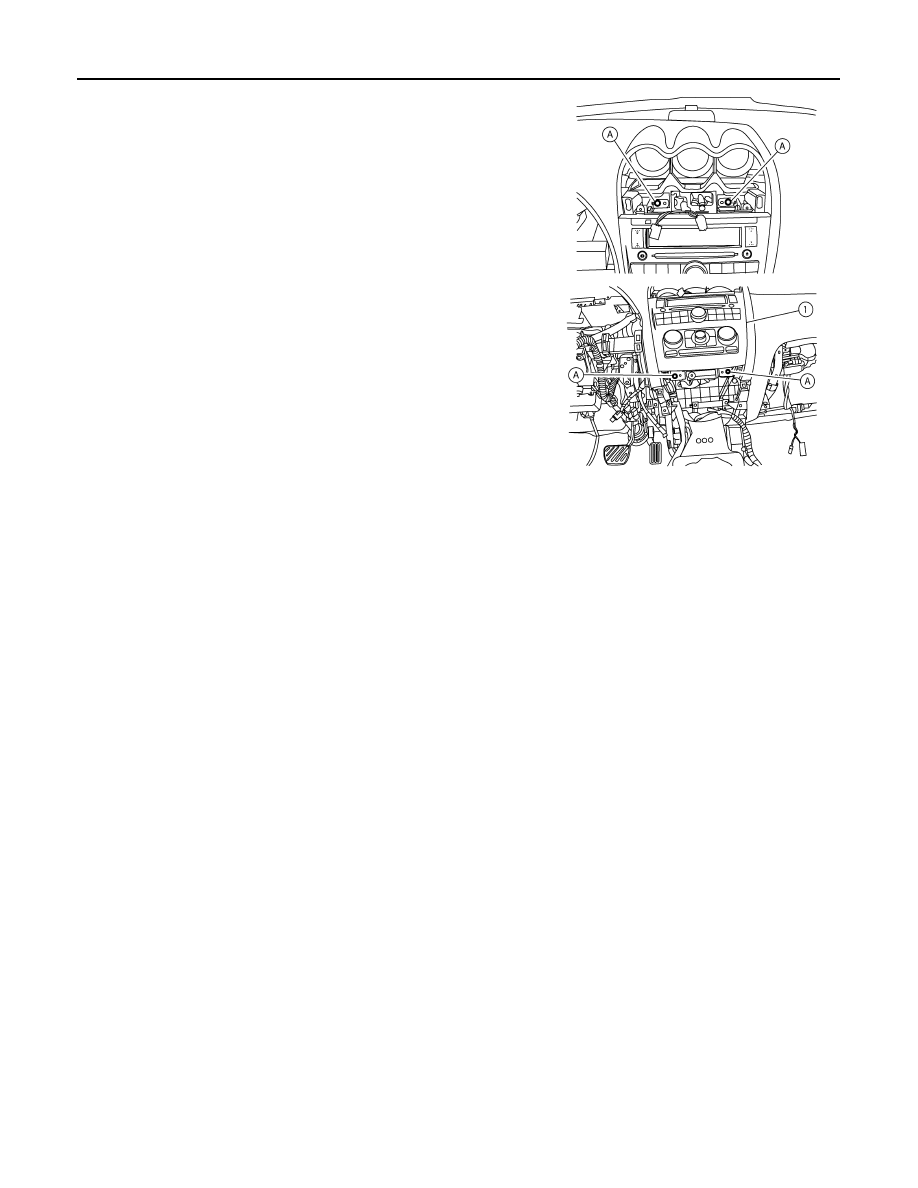

23. Remove the cluster lid C assembly upper and lower screws (A),

then remove the cluster lid C assembly (1).

• Disconnect the harness connectors.

24. Remove both tweeter speaker grilles and disconnect the harness connectors.
25. Remove the passenger air bag bolt (A).

26. Remove the remaining instrument panel screws (A).

27. Disconnect the audio harness connector located near the RH A-pillar.
28. Lift the instrument panel high enough in order to disconnect all the necessary harness connectors, then

remove the instrument panel.

INSTALLATION

Installation is in the reverse order of removal.

• If replacing the Instrument panel transfer all the necessary parts to the new instrument panel.

CENTER CONSOLE ASSEMBLY

IP-17

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

DISASSEMBLY AND ASSEMBLY

CENTER CONSOLE ASSEMBLY

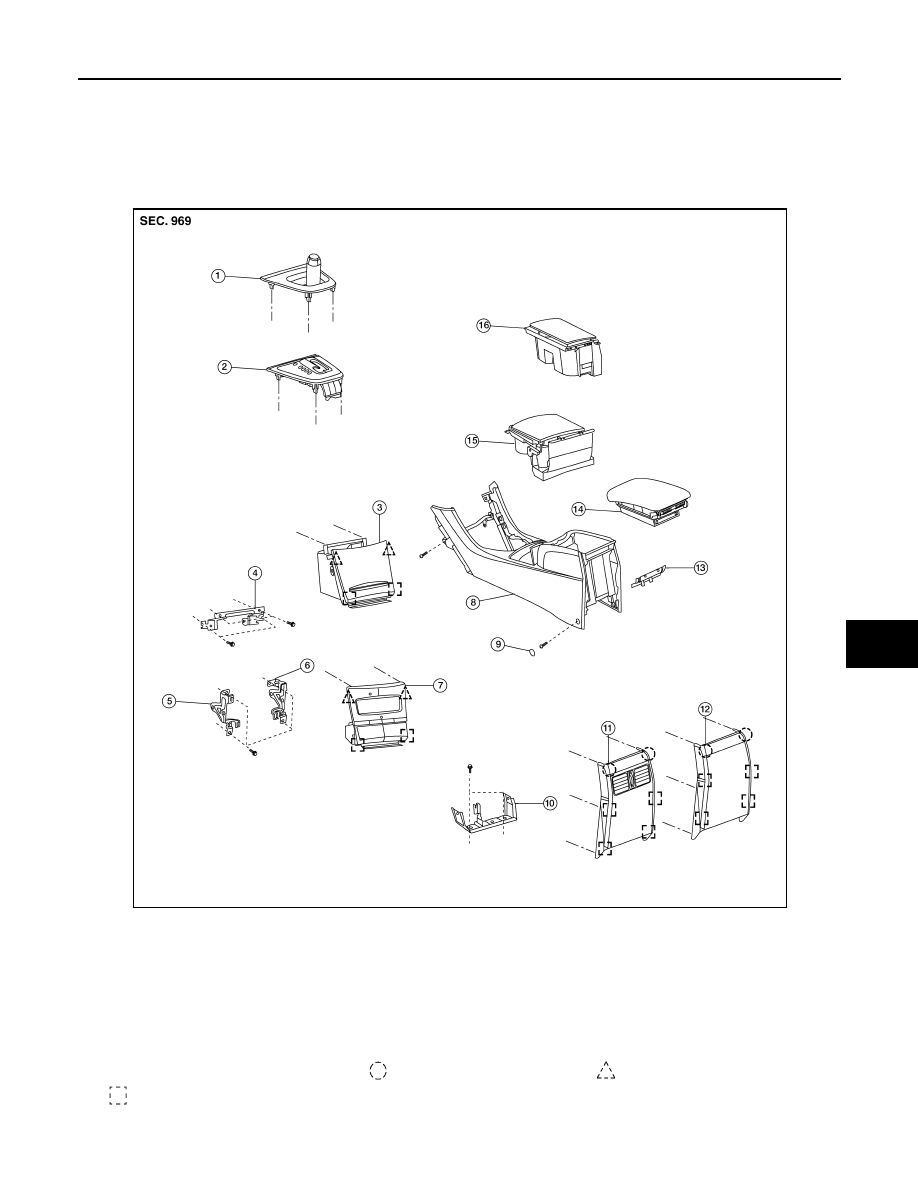

Exploded View

INFOID:0000000004205590

1.

M/T finisher

2.

CVT finisher

3.

Storage bin (if equipped)

4.

CD changer console bracket (if
equipped)

5.

CD changer bracket LH (if
equipped)

6.

CD changer bracket RH (if
equipped)

7.

CD changer finisher (if equipped)

8.

Console

9.

Console screw cover (LH)

10. Console floor bracket

11. Console rear finisher (with rear

duct)

12. Console rear finisher (without

rear duct)

13. Console lid assembly bracket

14. Console lid assembly

15. Cup holder CVT

16. Cup holder M/T

Clip

Pawl

Metal clip

ALJIA0032ZZ

IP-18

< DISASSEMBLY AND ASSEMBLY >

CENTER CONSOLE ASSEMBLY

Disassembly and Assembly

INFOID:0000000004205591

DISASSEMBLY

1. Remove the console assembly. Refer to

IP-12, "Removal and Installation"

.

2. Remove the cup holder screws and then remove the cup holder assembly.
3. Remove the console lid screws and remove the console lid.
4. Remove the console rear finisher.
5. Remove the console lid assembly bracket.
6. Remove the power socket from the console. Refer to

PWO-5, "Removal and Installation"

.

ASSEMBLY

Assembly is in the reverse order of disassembly.
