ON-VEHICLE REPAIR

INSTRUMENT PANEL ASSEMBLY

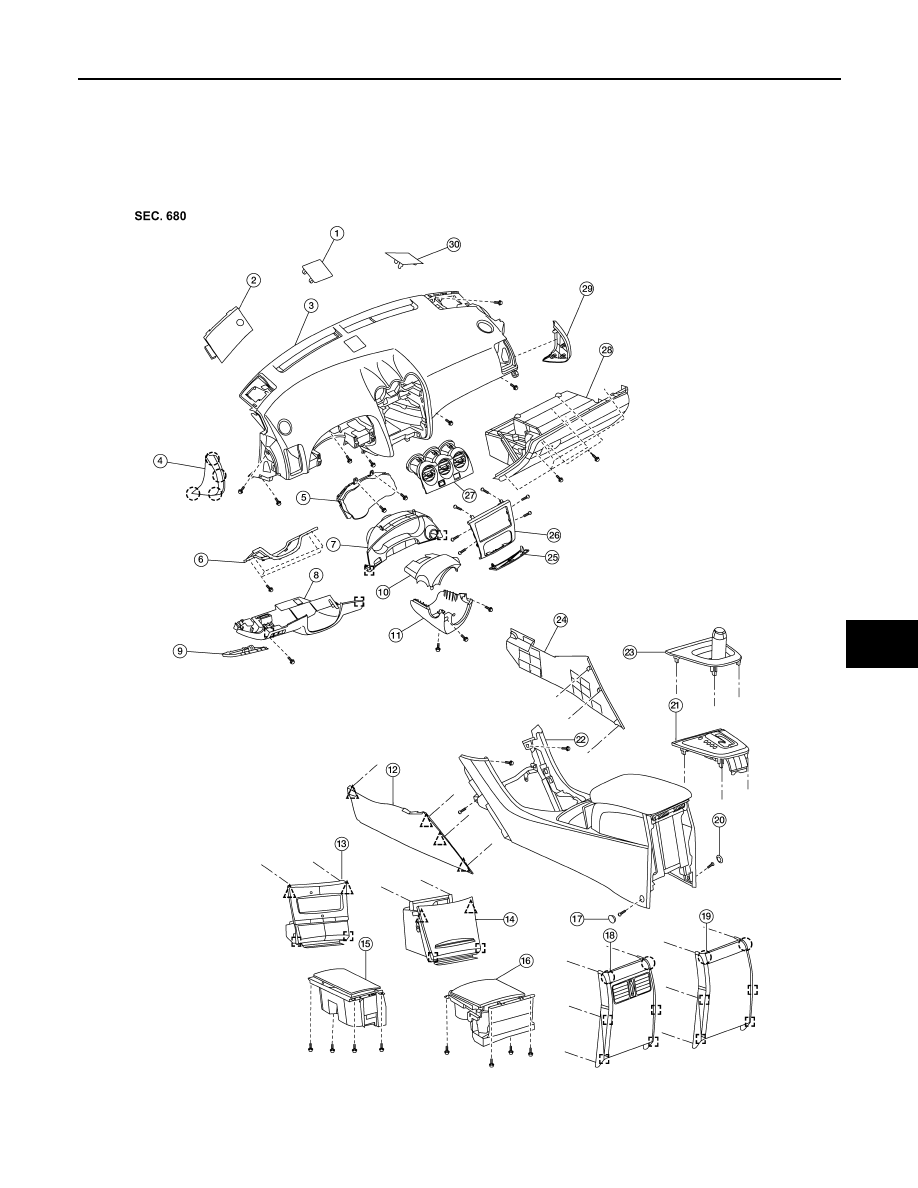

Exploded View

INFOID:0000000004205588

ALJIA0016ZZ

IP-12

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

Removal and Installation

INFOID:0000000004205589

CAUTION:

• Disconnect both battery terminals.

• Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

• Be careful not to scratch instrument panel pad and other parts.

REMOVAL

1. Disconnect both battery terminals.
2. Remove the A-pillar finishers. Refer to

INT-15, "Removal and Installation"

.

3. Put selector lever in the drive (D) position, then remove selector lever knob (CVT Models only). Refer to

TM-255, "Removal and Installation"

.

4. Put the shift lever in neutral, then remove shift lever knob. (M/T Models only) Refer to

TM-21, "Removal

and Installation"

.

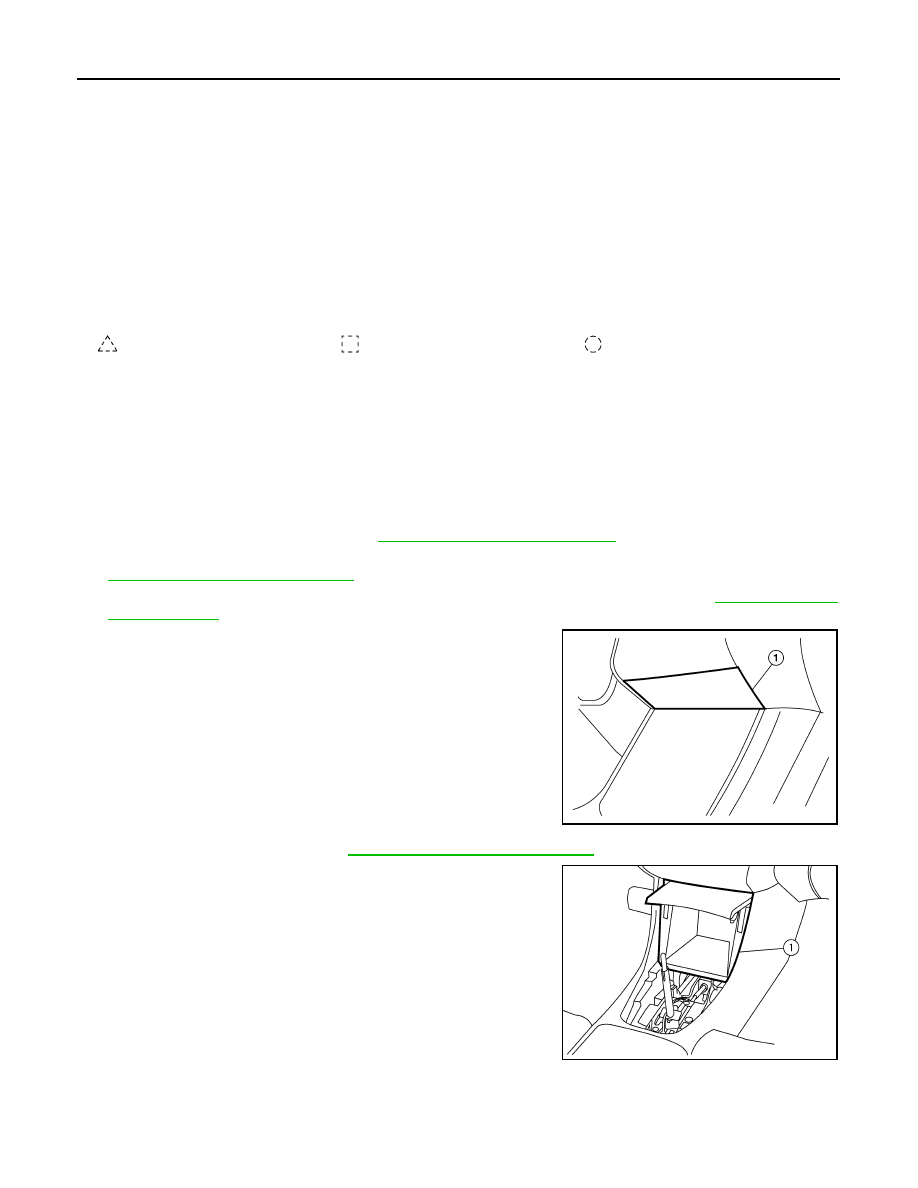

5. Remove the cluster lid D (1).

6. Remove console finisher. Refer to

TM-255, "Removal and Installation"

.

7. Remove the storage bin (1) or CD changer finisher (if equipped).

1.

Center speaker grille

2.

Tweeter speaker grille (LH)

3.

Instrument panel

4.

Instrument side mask (LH)

5.

Combination meter

6.

Lower knee protector (LH)

7.

Cluster lid A

8.

Instrument lower cover (LH)

9.

Fuse block cover

10. Steering column cover upper

11. Steering column cover lower

12. Console side finisher (LH)

13. CD changer finisher (if equipped)

14. Storage bin (if equipped)

15. Cup holder M/T

16. Cup holder CVT

17. Console screw cover (LH)

18. Console rear finisher (if equipped

with rear duct)

19. Console rear finisher (without rear

duct)

20. Console screw cover (RH)

21. CVT finisher

22. Console

23. M/T finisher

24. Console side finisher (RH)

25. Cluster lid D

26. Cluster lid C

27. Center ventilator grilles

28. Glove box assembly

29. Instrument side mask (RH)

30. Tweeter speaker grille (RH)

Clip

Metal clip

Pawl

ALJIA0036ZZ

ALJIA0017ZZ

INSTRUMENT PANEL ASSEMBLY

IP-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

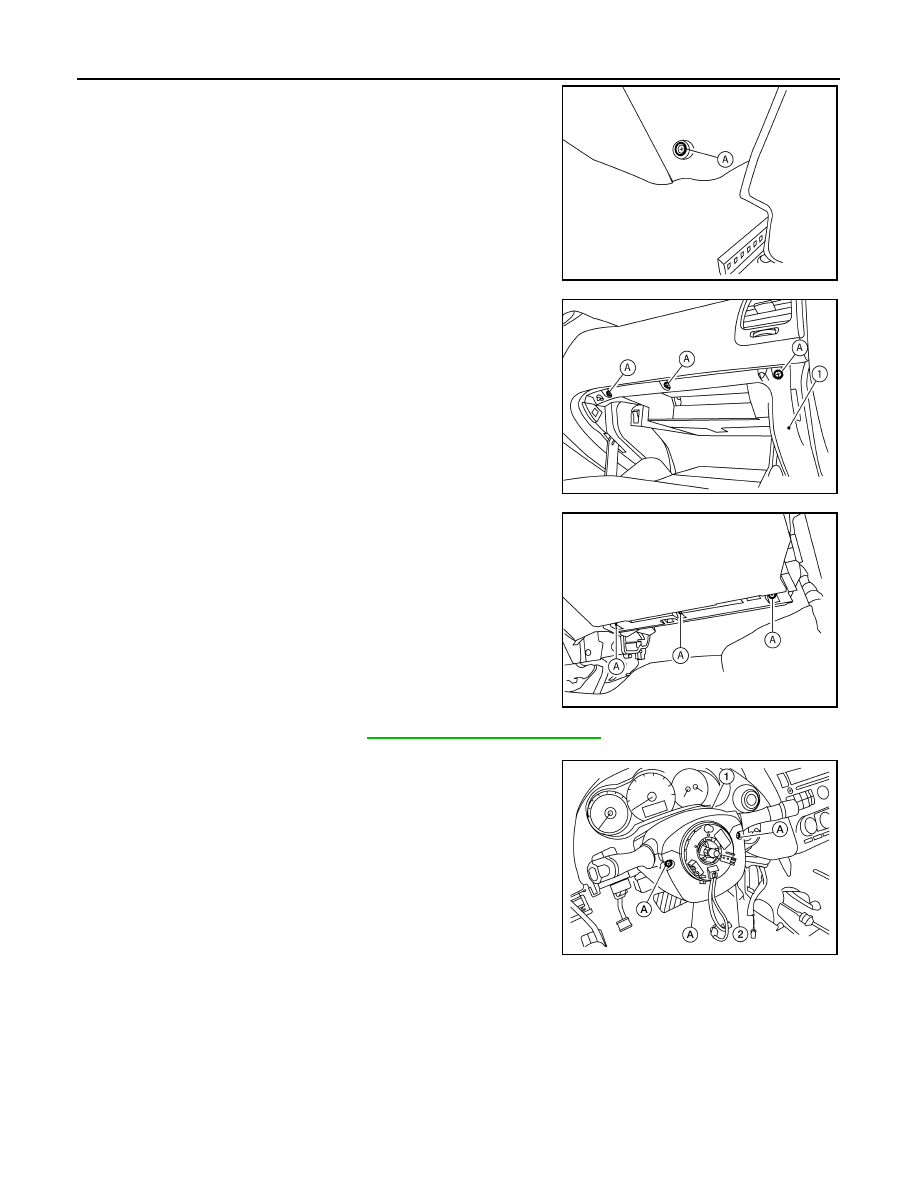

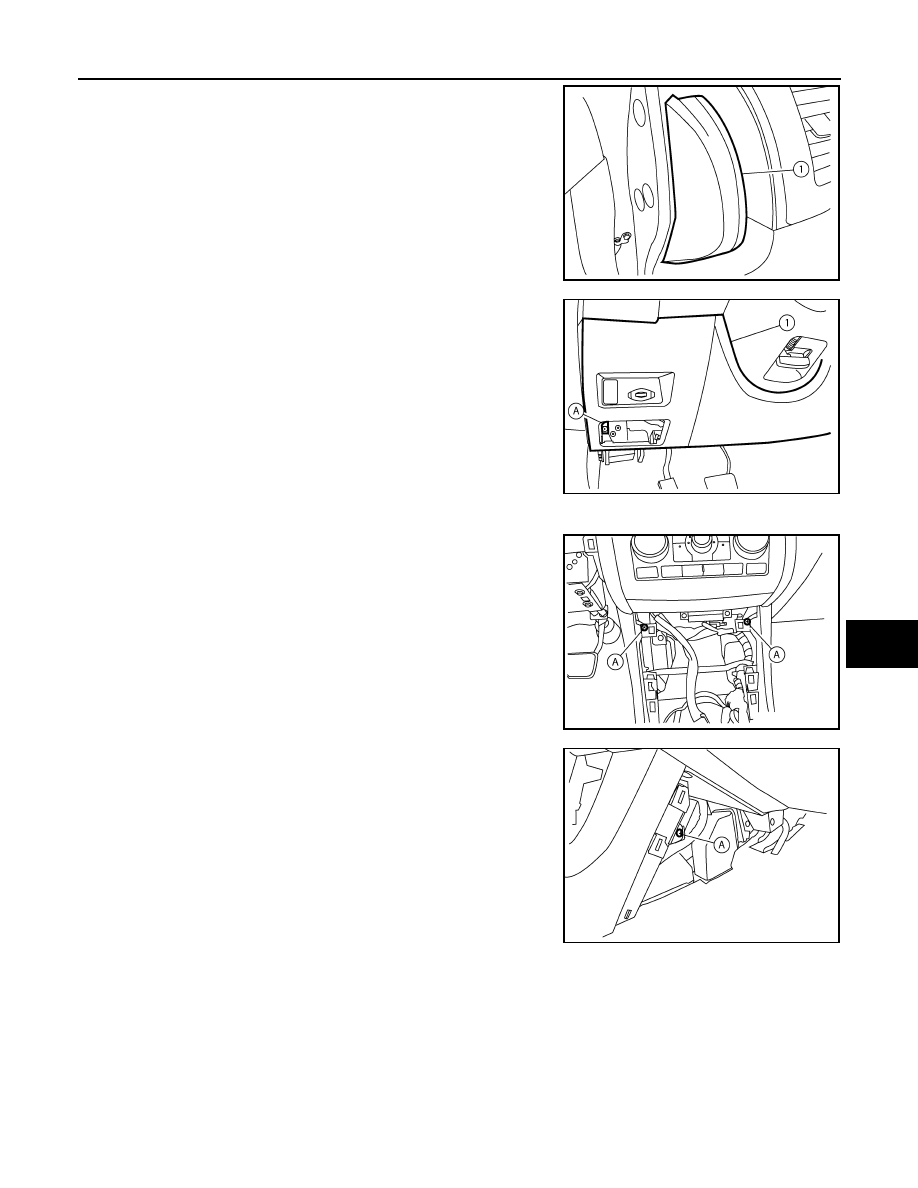

8. Remove both instrument side masks (1).

9. Open the fuse block cover, remove the instrument lower cover

screw (A), then remove the instrument lower cover (1).

• Disconnect the harness connectors.

• Disconnect the aspirator tube.

10. Remove both the console side finishers.
11. Remove the console upper screws (A).

12. Remove the console side screws (A).

ALJIA0018ZZ

ALJIA0019ZZ

ALJIA0022ZZ

ALJIA0023ZZ

IP-14

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

13. Remove both the console rear screw covers, then remove the

rear screws (A), then remove the console assembly.

14. Open the glove box door (1), remove the glove box assembly

screws (A).

15. Remove the glove box assembly lower screws (A), then remove

the glove box assembly.

16. Remove the steering wheel. Refer to

ST-13, "Removal and Installation"

.

17. Remove the steering column screws (A), then remove both the

steering wheel column upper (1) and lower (2) covers.

ALJIA0024ZZ

ALJIA0020ZZ

ALJIA0021ZZ
