P0335 CKP SENSOR (POS)

EC-1293

< COMPONENT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and let it idle for at least 5 seconds.

If engine does not start, crank engine for at least 2 seconds.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-1293, "Diagnosis Procedure"

.

NO

>> INSPECTION END

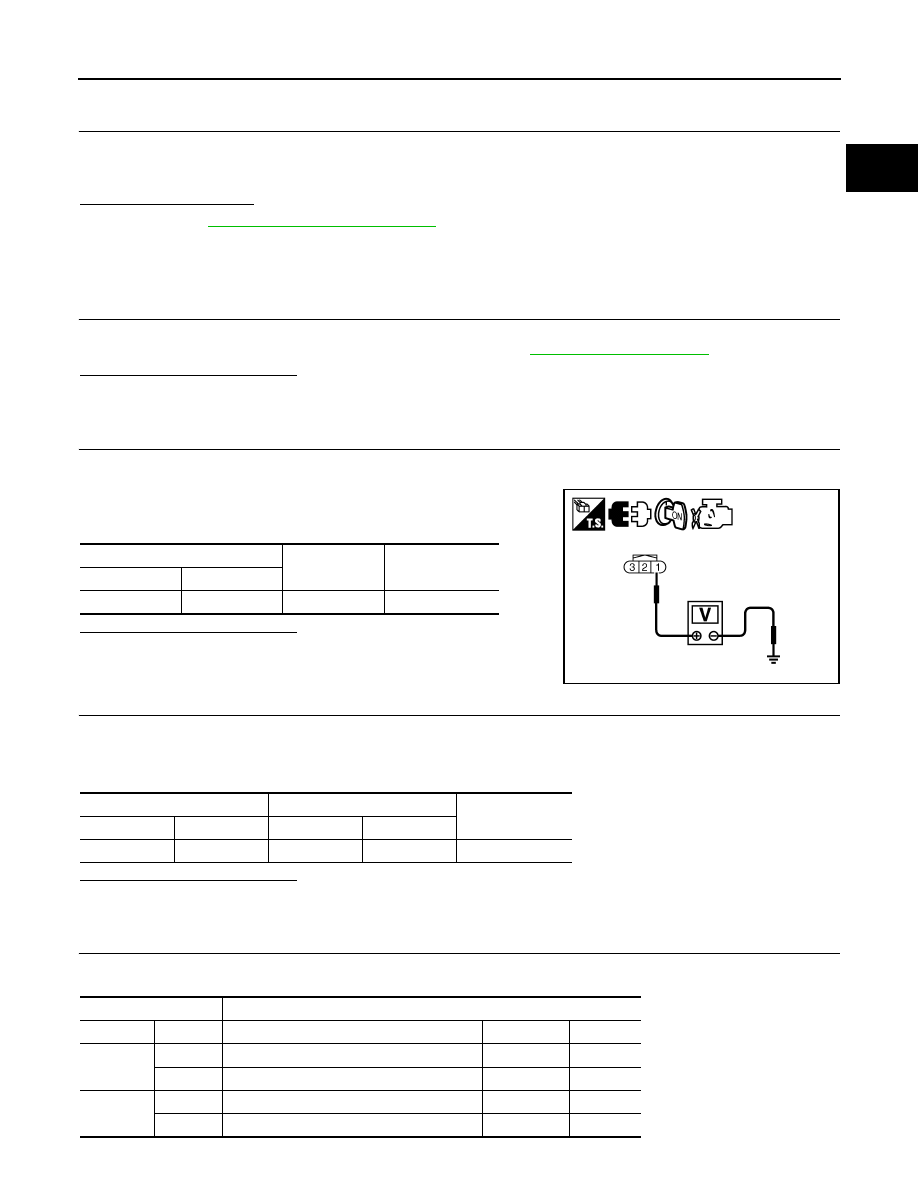

Diagnosis Procedure

INFOID:0000000004362142

1.

CHECK GROUND CONNECTION

1. Turn ignition switch OFF.

2. Check ground connection E9. Refer to Ground Inspection in

GI-45, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY CIRCUIT-I

1. Disconnect crankshaft position (CKP) sensor (POS) harness connector.

2. Turn ignition switch ON.

3. Check the voltage between CKP sensor (POS) harness connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> GO TO 3.

3.

CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY CIRCUIT-II

1. Turn ignition switch ON.

2. Disconnect ECM harness connector.

3. Check the continuity between CKP sensor (POS) harness connector and ECM harness connector.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit.

4.

CHECK SENSOR POWER SUPPLY CIRCUIT

Check harness for short to power and short to ground, between the following terminals.

CKP sensor (POS)

Ground

Voltage (V)

Connector

Terminal

F30

1

Ground

Approx. 5

PBIB3312E

CKP sensor (POS)

ECM

Continuity

Connector

Terminal

Connector

Terminal

F30

1

F13

76

Existed

ECM

Sensor

Connector

Terminal

Name

Connector

Terminal

F13

72

Refrigerant pressure sensor

E219

1

76

CKP sensor (POS)

F30

1

E10

87

APP sensor

E40

6

91

EVAP control system pressure sensor

B41

3

EC-1294

< COMPONENT DIAGNOSIS >

[VQ35DE]

P0335 CKP SENSOR (POS)

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair short to ground or short to power in harness or connectors.

5.

CHECK COMPONENTS

Check the following.

• EVAP control system pressure sensor (Refer to

EC-1334, "Component Inspection"

.)

• Refrigerant pressure sensor (Refer to

EC-1503, "Diagnosis Procedure"

.)

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace malfunctioning components.

6.

CHECK APP SENSOR

Refer to

EC-1450, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 12.

NO

>> GO TO 7.

7.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1. Replace accelerator pedal assembly.

2. Refer to

EC-1450, "Special Repair Requirement"

.

>> INSPECTION END

8.

CHECK CKP SENSOR (POS) GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between CKP sensor (POS) harness connector and ECM harness connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

9.

CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Check the continuity between CKP sensor (POS) harness connector and ECM harness connector.

2. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

10.

CHECK CRANKSHAFT POSITION SENSOR (POS)

Refer to

EC-1295, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Replace crankshaft position sensor (POS).

11.

CHECK GEAR TOOTH

CKP sensor (POS)

ECM

Continuity

Connector

Terminal

Connector

Terminal

F30

2

F13

60

Existed

CKP sensor (POS)

ECM

Continuity

Connector

Terminal

Connector

Terminal

F30

3

F13

65

Existed

P0335 CKP SENSOR (POS)

EC-1295

< COMPONENT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Visually check for chipping signal plate gear tooth.
Is the inspection result normal?

YES

>> GO TO 12.

NO

>> Replace the signal plate.

12.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

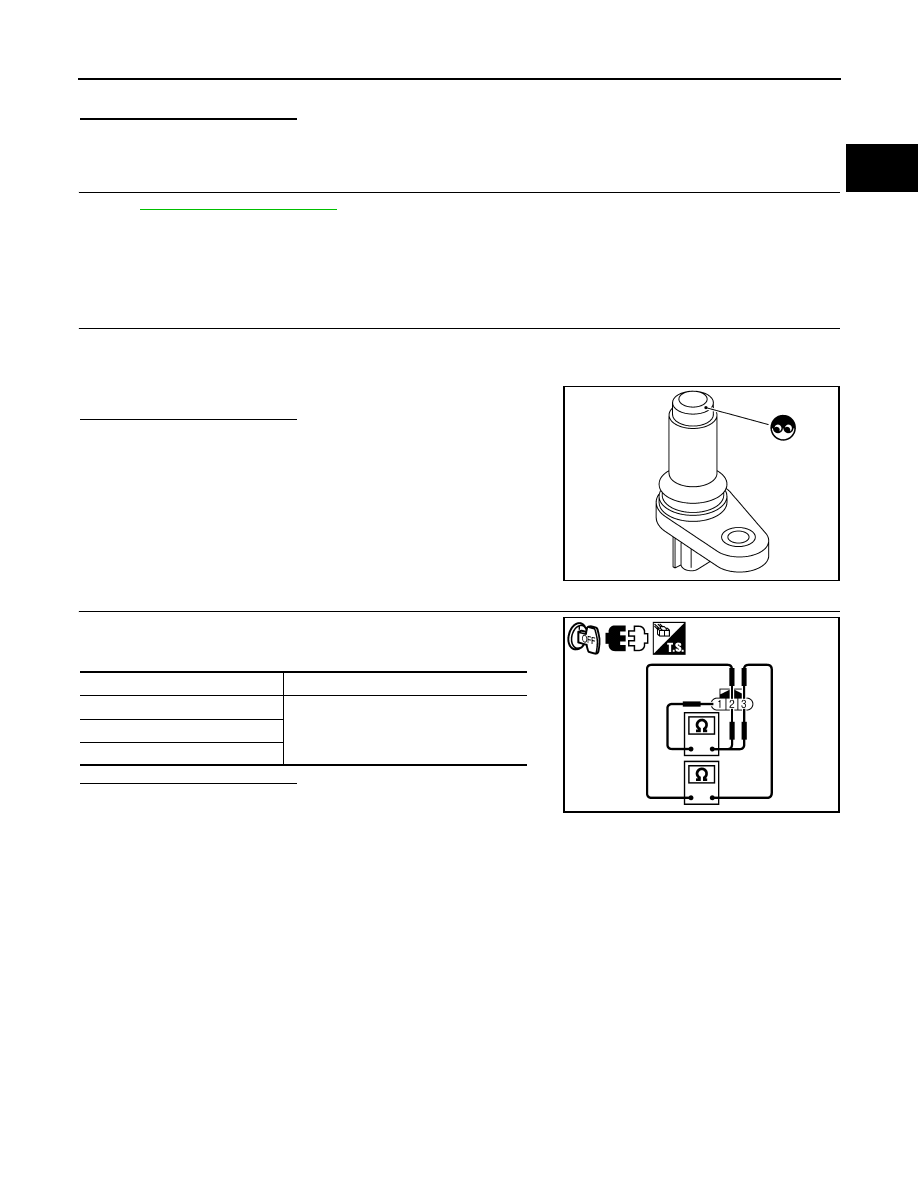

Component Inspection

INFOID:0000000004362143

1.

CHECK CRANKSHAFT POSITION SENSOR (POS)-I

1. Loosen the fixing bolt of the sensor.

2. Disconnect crankshaft position sensor (POS) harness connector.

3. Remove the sensor.

4. Visually check the sensor for chipping.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace crankshaft position sensor (POS)

2.

CHECK CRANKSHAFT POSITION SENSOR (POS)-II

Check resistance crankshaft position sensor (POS) terminals as per

the following.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace crankshaft position sensor (POS)

JMBIA0063ZZ

Terminal No. (Polarity)

Resistance

1 (+) - 2 (-)

Except 0 or

∞ Ω [at 25°C (77°F)]

1 (+) - 3 (-)

2 (+) - 3 (-)

PBIA9584J

EC-1296

< COMPONENT DIAGNOSIS >

[VQ35DE]

P0340, P0345 CMP SENSOR (PHASE)

P0340, P0345 CMP SENSOR (PHASE)

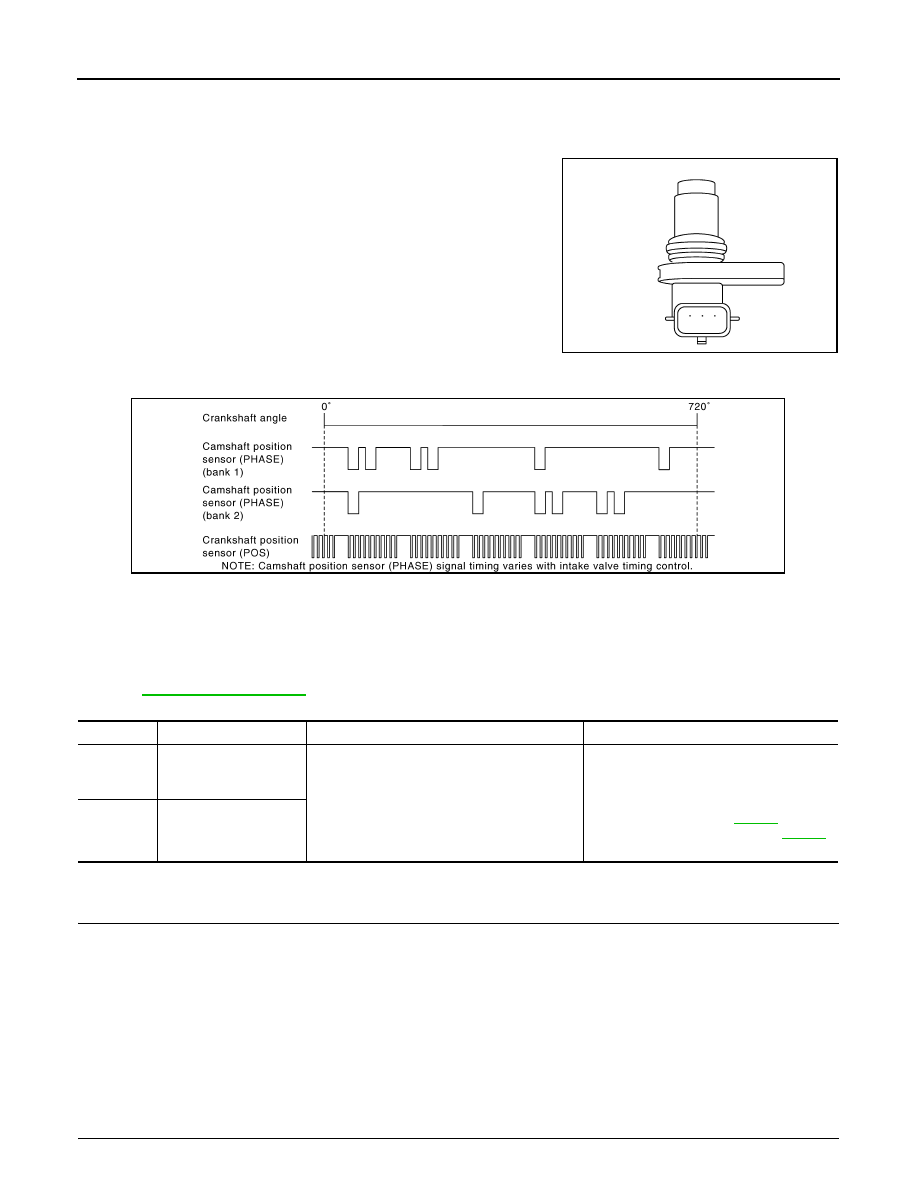

Description

INFOID:0000000004362144

The camshaft position sensor (PHASE) senses the protrusion of

camshaft (INT) to identify a particular cylinder. The camshaft position

sensor (PHASE) senses the piston position.

When the crankshaft position sensor (POS) system becomes inoper-

ative, the camshaft position sensor (PHASE) provides various con-

trols of engine parts instead, utilizing timing of cylinder identification

signals.

The sensor consists of a permanent magnet and Hall IC.

When engine is running, the high and low parts of the teeth cause

the gap with the sensor to change.

The changing gap causes the magnetic field near the sensor to

change.

Due to the changing magnetic field, the voltage from the sensor changes.

ECM receives the signals as shown in the figure.

DTC Logic

INFOID:0000000004362145

DTC DETECTION LOGIC

NOTE:

If DTC P0340 or P0345 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.

Refer to

EC-1379, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10.5 V with igni-

tion switch ON.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE-I

JMBIA0064ZZ

JMBIA0001GB

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0340

Camshaft position sen-
sor (PHASE) (bank 1)
circuit

• The cylinder No. signal is not sent to ECM for

the first few seconds during engine cranking.

• The cylinder No. signal is not sent to ECM

during engine running.

• The cylinder No. signal is not in the normal

pattern during engine running.

• Harness or connectors

(The sensor circuit is open or shorted.)

• Camshaft position sensor (PHASE)
• Camshaft (INT)
• Starter motor (Refer to

STR-32

.)

• Starting system circuit (Refer to

STR-32

.)

• Dead (Weak) battery

P0345

Camshaft position sen-
sor (PHASE) (bank 2)
circuit
