EVAPORATIVE EMISSION SYSTEM

EC-1121

< FUNCTION DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

JMBIA1832GB

ALBIA0102ZZ

EC-1122

< FUNCTION DIAGNOSIS >

[VQ35DE]

EVAPORATIVE EMISSION SYSTEM

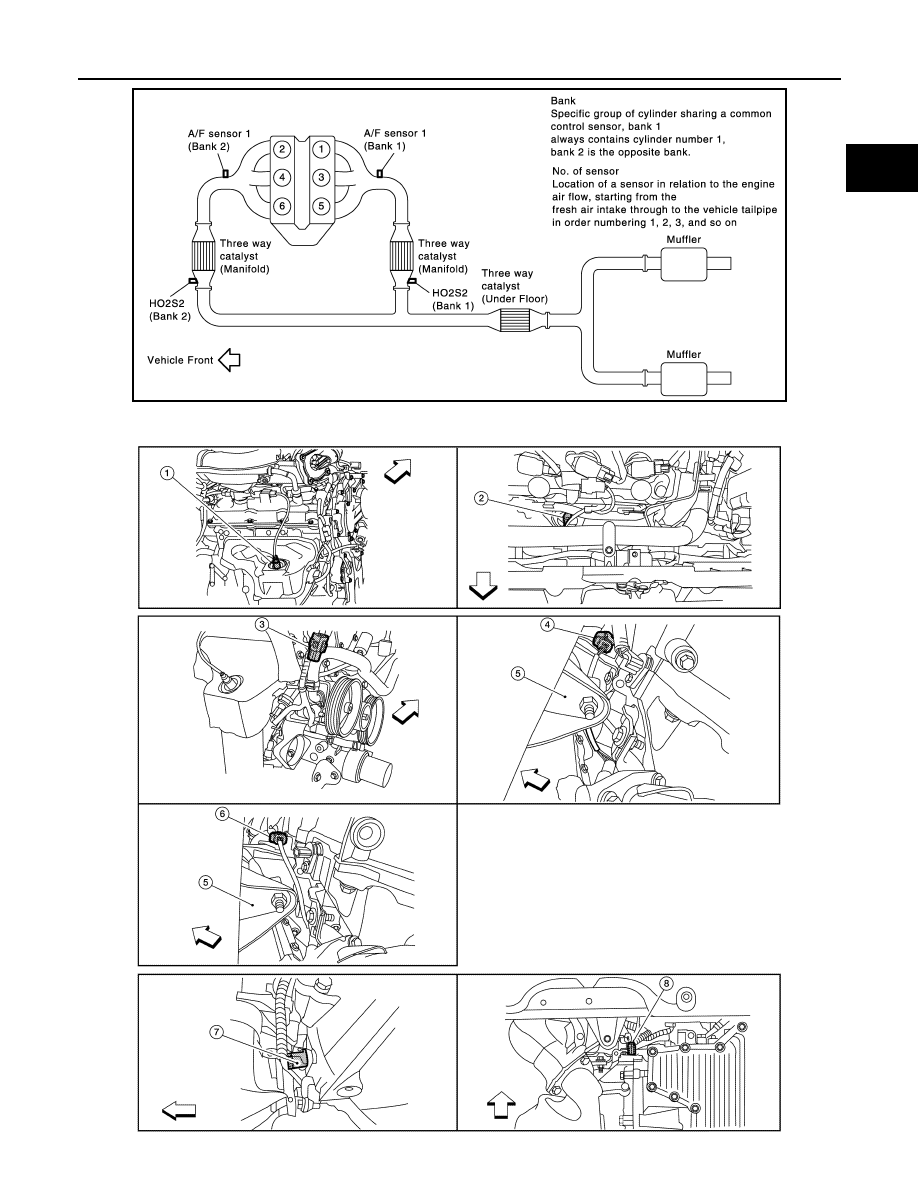

1.

A/F sensor 1 (bank 1)

2.

A/F sensor 1 (bank 2)

3.

HO2S2 (bank 1) harness connector

4.

HO2S2 (bank 2) harness connector
(CVT models)

5.

Front engine mount

6.

HO2S2 (bank 2) harness connector
(M/T models)

7.

Crankshaft position sensor (POS)
(M/T models)

8.

Crankshaft position sensor (POS)
(CVT models)

: Vehicle front

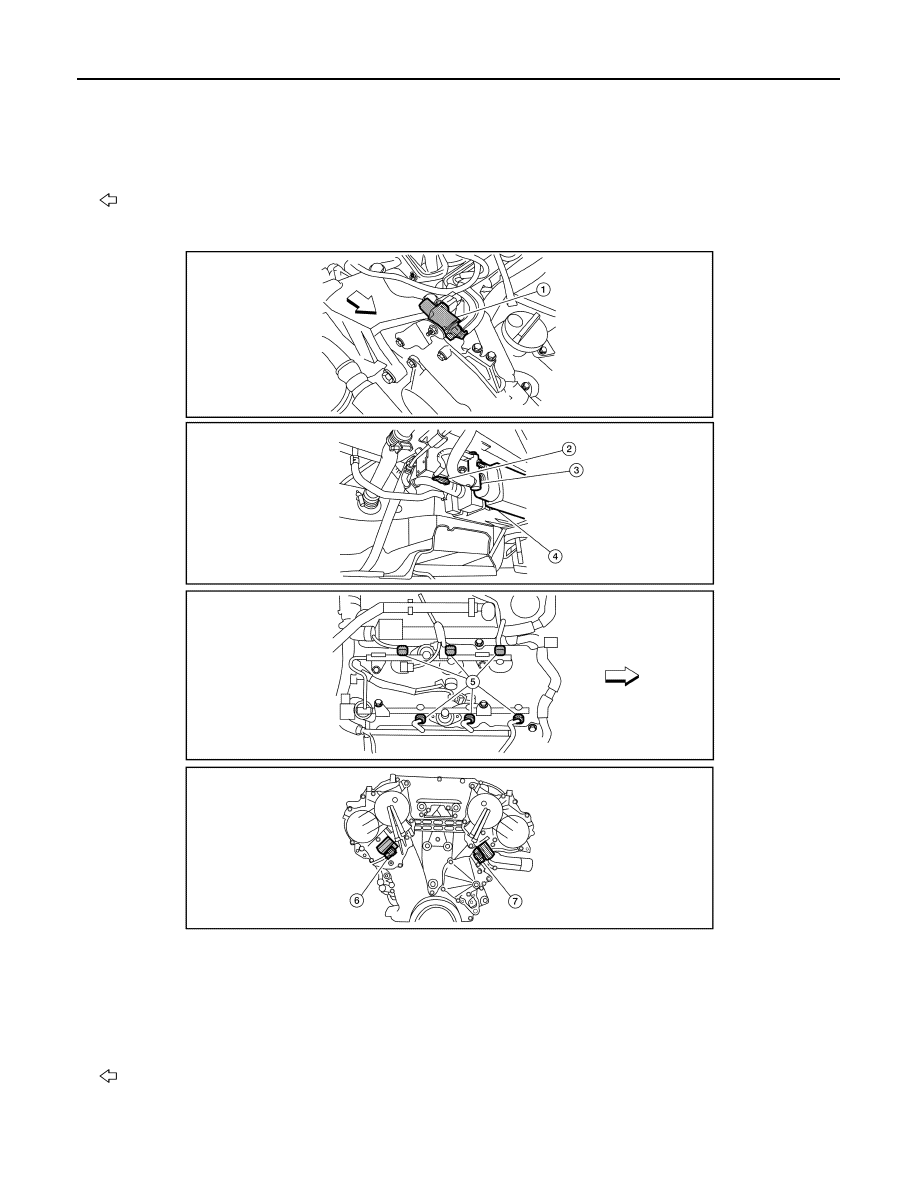

1.

Electronic controlled engine mount
control solenoid valve

2.

EVAP control system pressure sen-
sor

3.

EVAP canister vent control valve

4.

EVAP canister

5.

Injector harness connector

6.

Intake valve timing control solenoid
valve (bank 1)

7.

Intake valve timing control solenoid
valve (bank 2)
: Vehicle front

ALBIA0103ZZ

EVAPORATIVE EMISSION SYSTEM

EC-1123

< FUNCTION DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

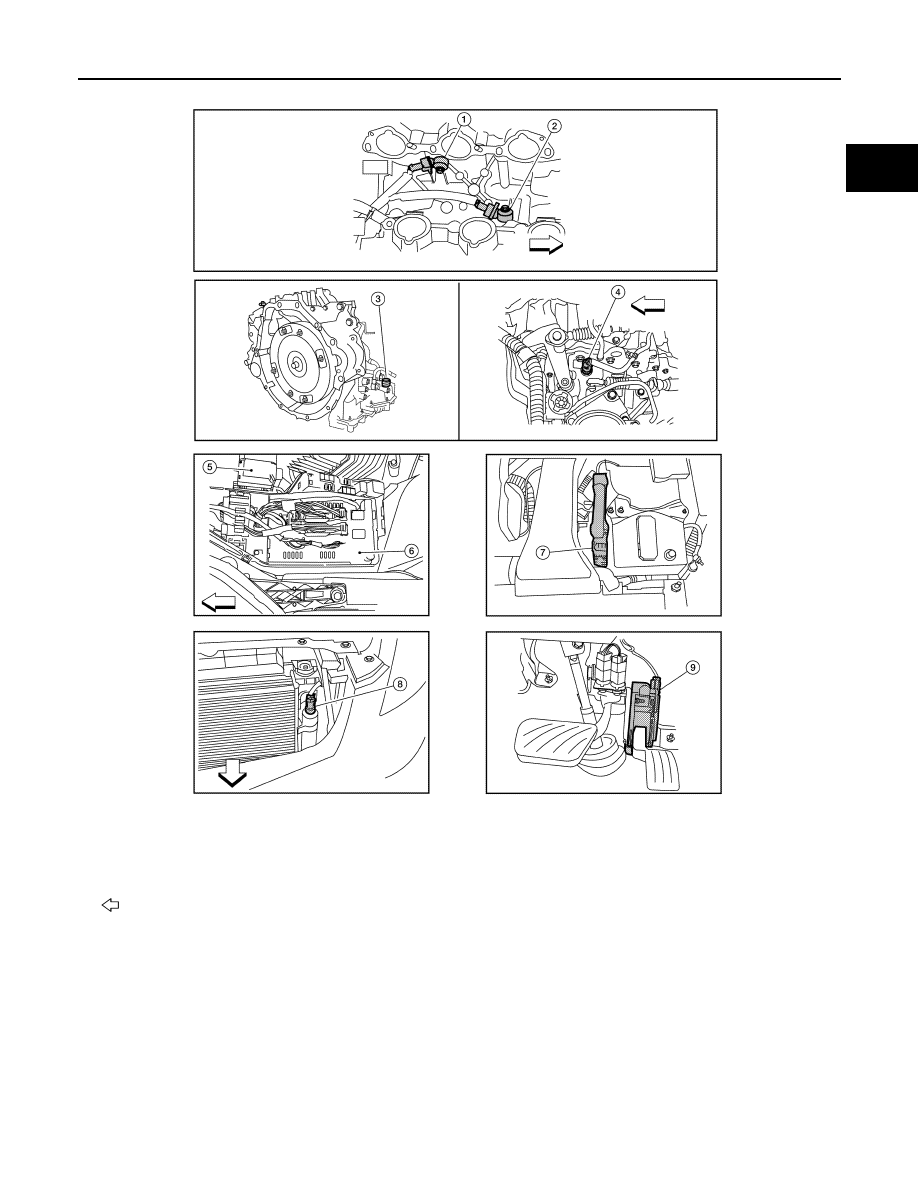

1.

Knock sensor (bank 2)

2.

Knock sensor (bank 1)

3.

PNP switch (CVT models)

4.

PNP switch (M/T models)

5.

Battery

6.

IPDM E/R

7.

ECM

8.

Refrigerant pressure sensor
(shown with front grill removed)

9.

Accelerator pedal

: Vehicle front

ALBIA0104ZZ

EC-1124

< FUNCTION DIAGNOSIS >

[VQ35DE]

EVAPORATIVE EMISSION SYSTEM

Component Description

INFOID:0000000004361993

1.

ASCD brake switch

2.

Stop lamp switch

3.

Brake pedal

4.

ASCD steering switch

5.

ASCD clutch switch (M/T models)

6.

Clutch pedal

ALBIA0105ZZ

Component

Reference

A/F sensor 1

EC-1225, "Description"

Accelerator pedal position sensor

EC-1448, "Description"

Camshaft position sensor (PHASE)

EC-1296, "Description"

Crankshaft position sensor (POS)

EC-1292, "Description"

Engine coolant temperature sensor

EC-1210, "Description"

EVAP canister purge volume control solenoid valve

EC-1316, "Description"

EVAP control system pressure sensor

EC-1332, "Description"

Fuel tank temperature sensor

EC-1274, "Description"
