COOLING FAN CONTROL

EC-85

< FUNCTION DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Engine coolant temperature sensor

EC-184, "Description"

Refrigerant pressure sensor

EC-482, "Description"

Component

Reference

EC-86

< FUNCTION DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

EVAPORATIVE EMISSION SYSTEM

EVAPORATIVE EMISSION SYSTEM

System Diagram

INFOID:0000000004349168

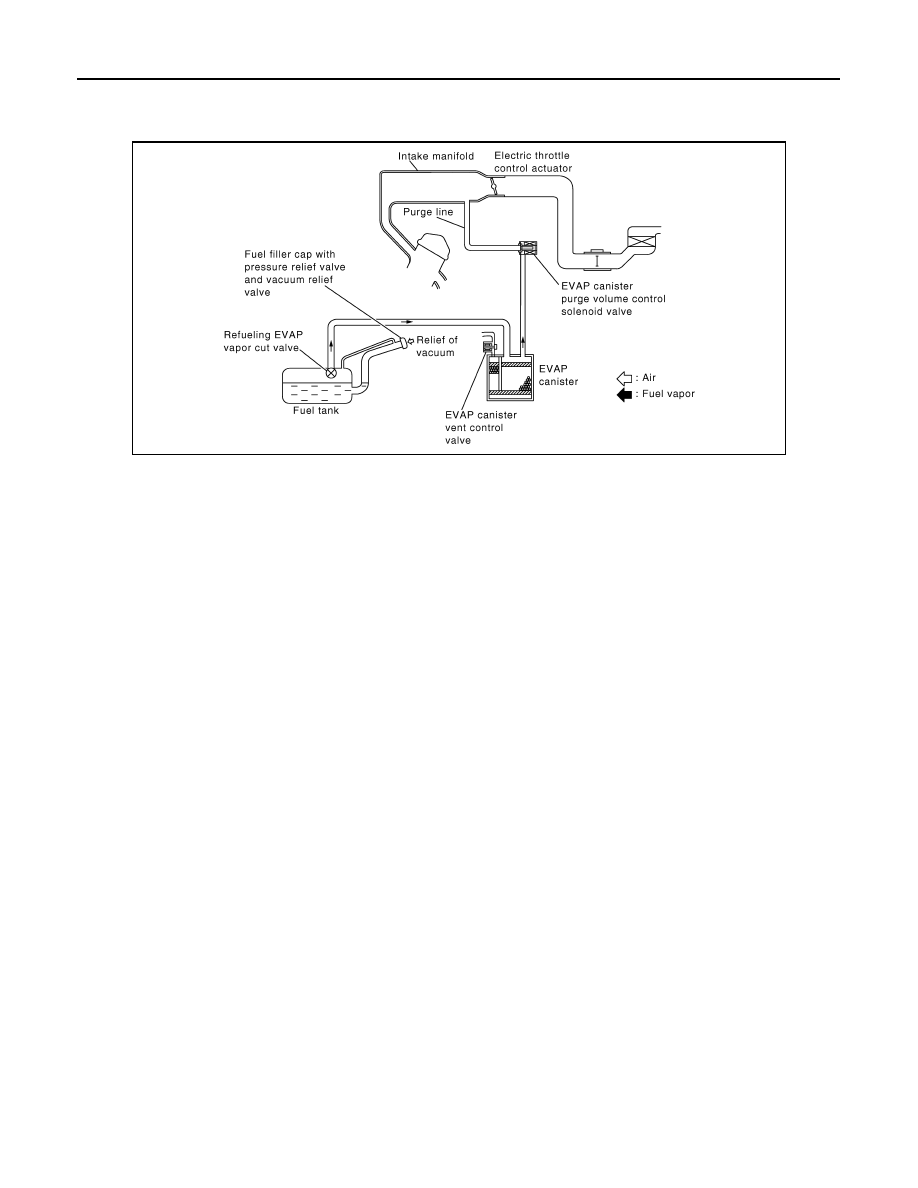

EVAPORATIVE EMISSION LINE DRAWING

PBIB1631E

EVAPORATIVE EMISSION SYSTEM

EC-87

< FUNCTION DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

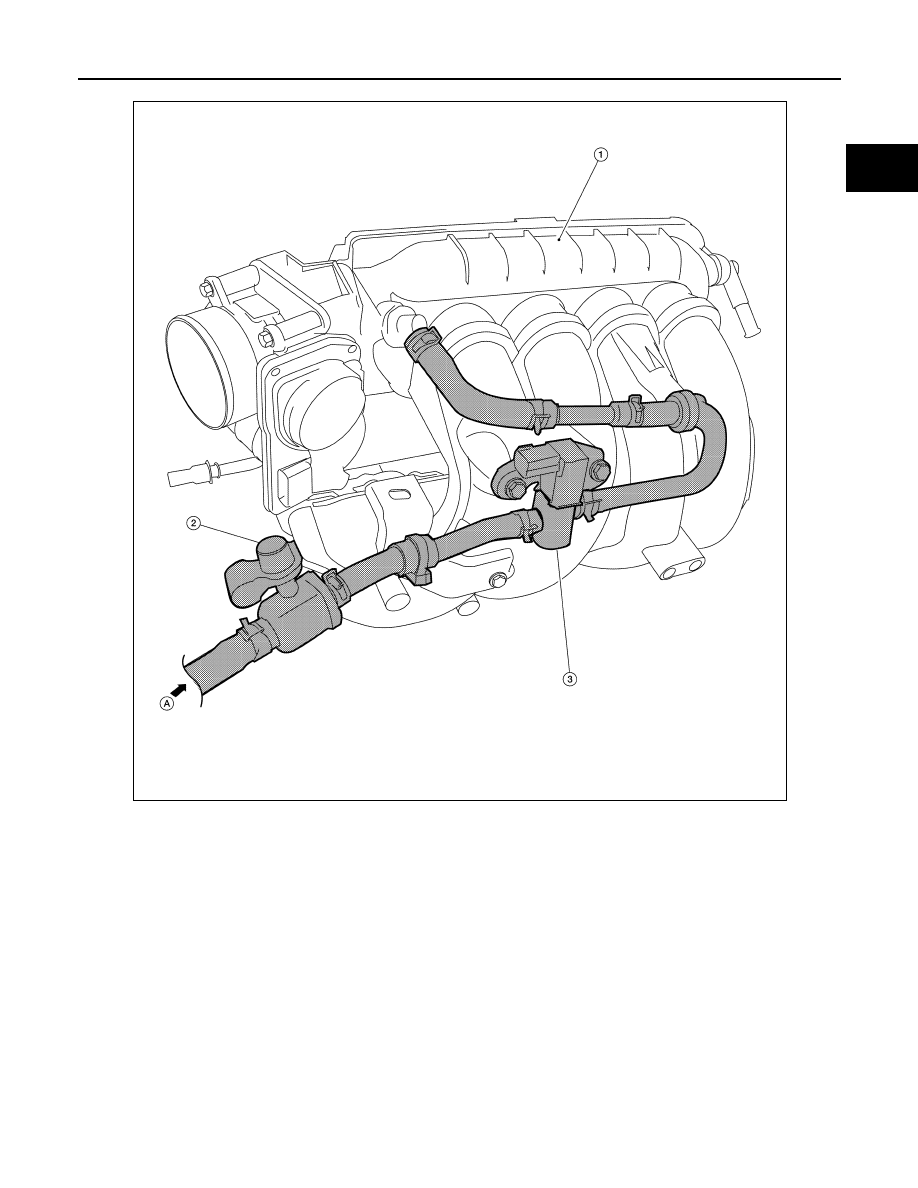

1.

Intake manifold collector

2.

EVAP service port

3.

EVAP canister purge volume control
solenoid valve

 A.  From next figure

ALBIA0085ZZ

EC-88

< FUNCTION DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

EVAPORATIVE EMISSION SYSTEM

NOTE:

Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

System Description

INFOID:0000000004349169

INPUT/OUTPUT SIGNAL CHART

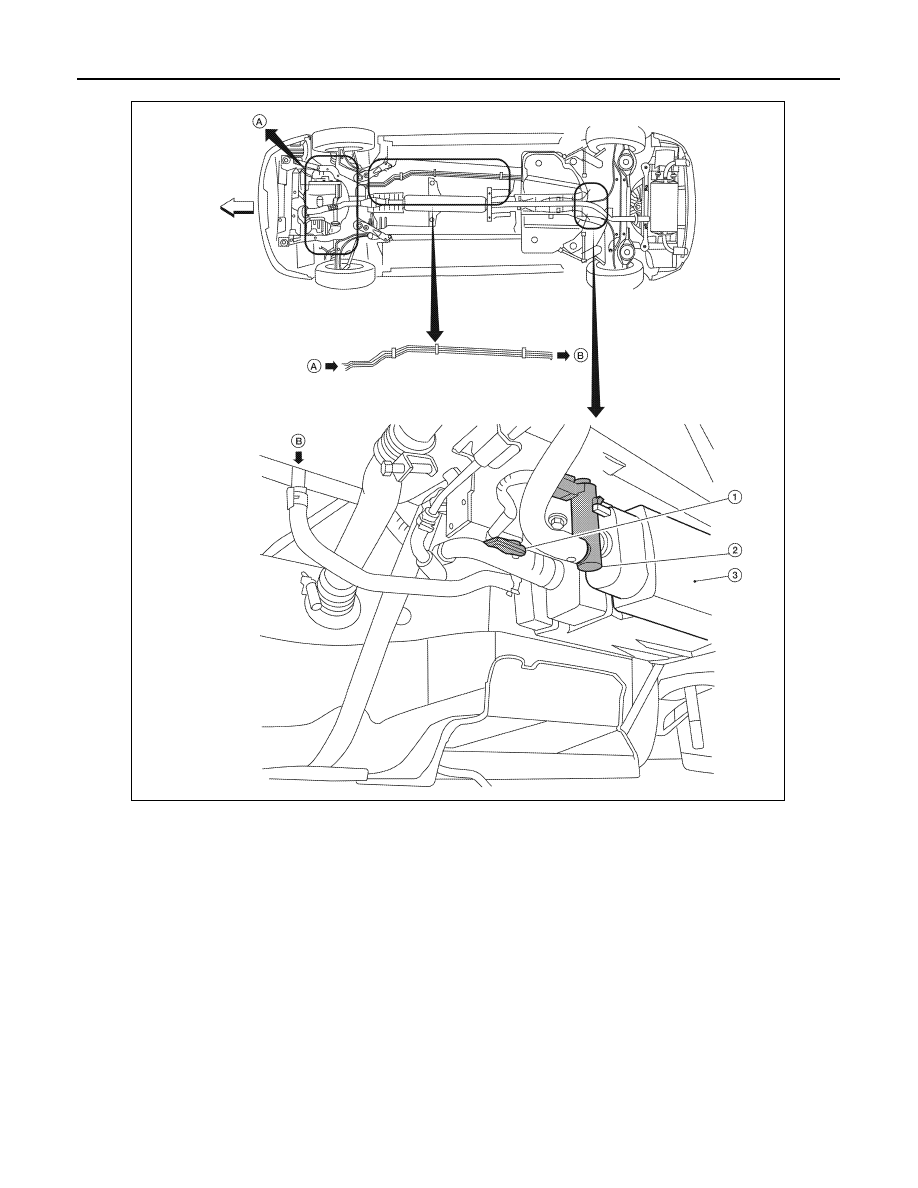

1.

EVAP control system pressure sensor 2.

EVAP canister vent control valve

3.

EVAP canister

 A. To previous figure

AWBIA0114ZZ
