COOLING FAN CONTROL

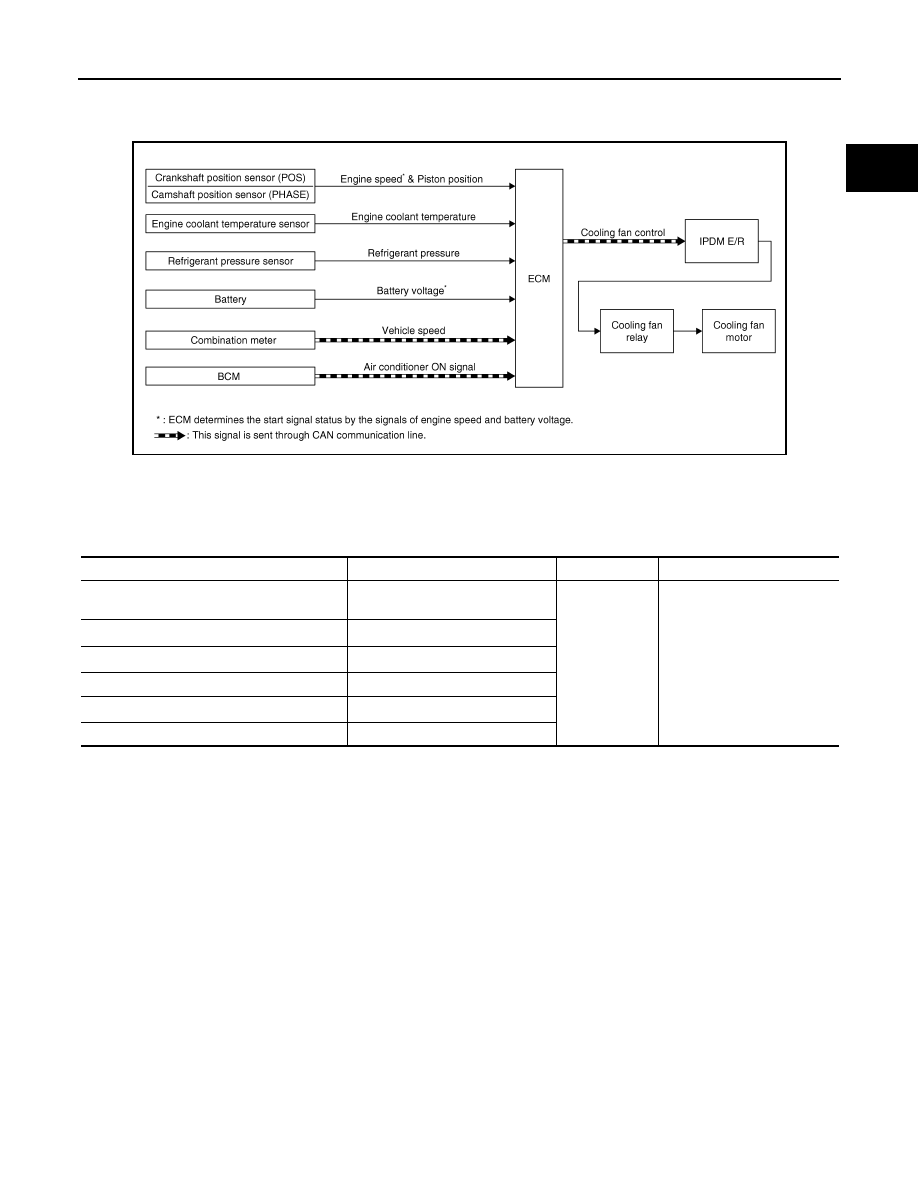

System Diagram

INFOID:0000000004349164

System Description

INFOID:0000000004349165

INPUT/OUTPUT SIGNAL CHART

*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to ECM through CAN communication line.

SYSTEM DESCRIPTION

ECM controls cooling fan speed corresponding to vehicle speed, engine coolant temperature, refrigerant pres-

sure, air conditioner ON signal. Then control system has 4-step control [HIGH/MID/LOW/OFF].

JMBIA0177GB

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

1

Cooling fan
control

IPDM E/R
↓
Cooling fan relay
↓
Cooling fan motor

Battery

Battery voltage*

1

Combination meter

Vehicle speed*

2

Engine coolant temperature sensor

Engine coolant temperature

BCM

Air conditioner ON signal*

2

Refrigerant pressure sensor

Refrigerant pressure

EC-78

< FUNCTION DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

COOLING FAN CONTROL

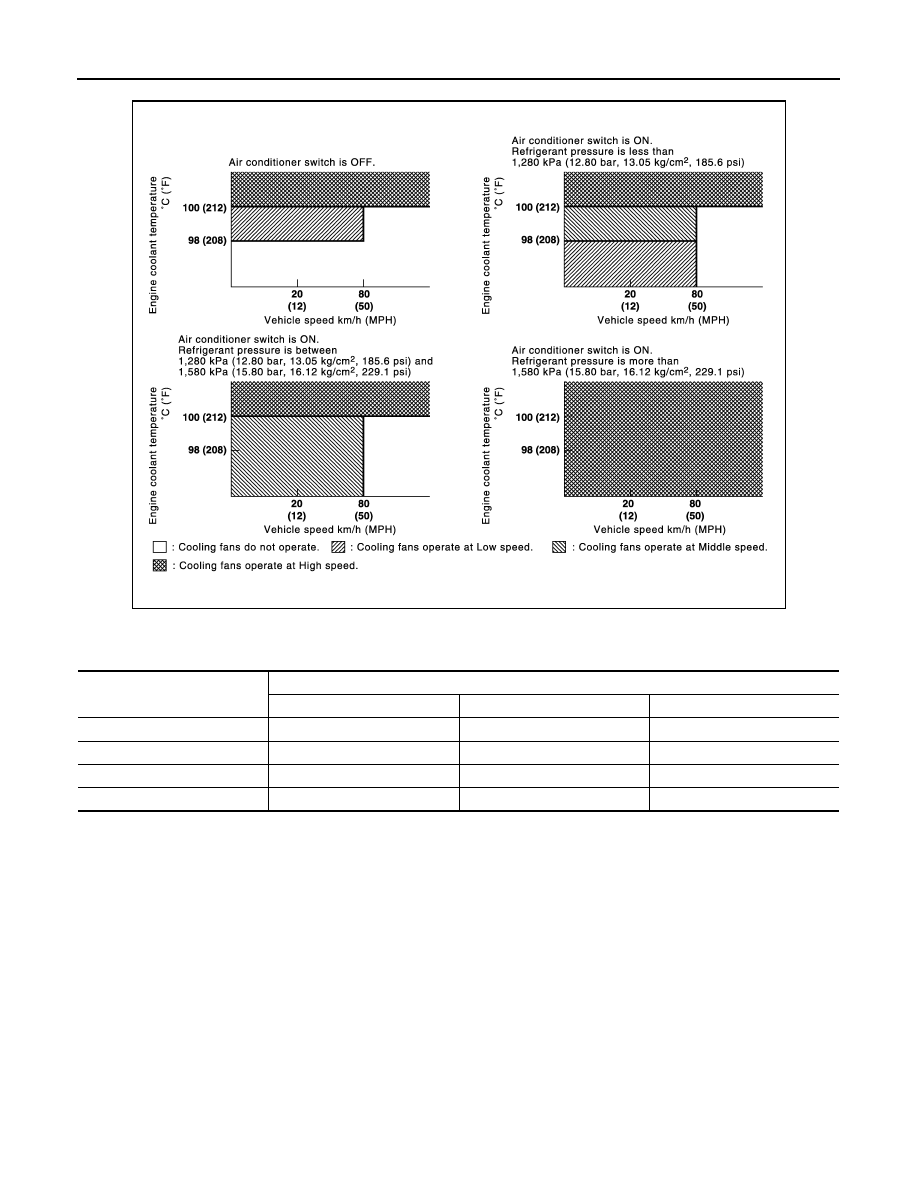

Cooling Fan Operation

Cooling Fan Relay Operation

The ECM controls cooling fan relays through CAN communication line.

JMBIA1928GB

Cooling fan speed

Cooling fan relay

1

2

3

Stop (OFF)

OFF

OFF

OFF

Low (LOW)

ON

OFF

OFF

Middle (MID)

OFF

ON

OFF

High (HI)

OFF

ON

ON

COOLING FAN CONTROL

EC-79

< FUNCTION DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Parts Location

INFOID:0000000004349166

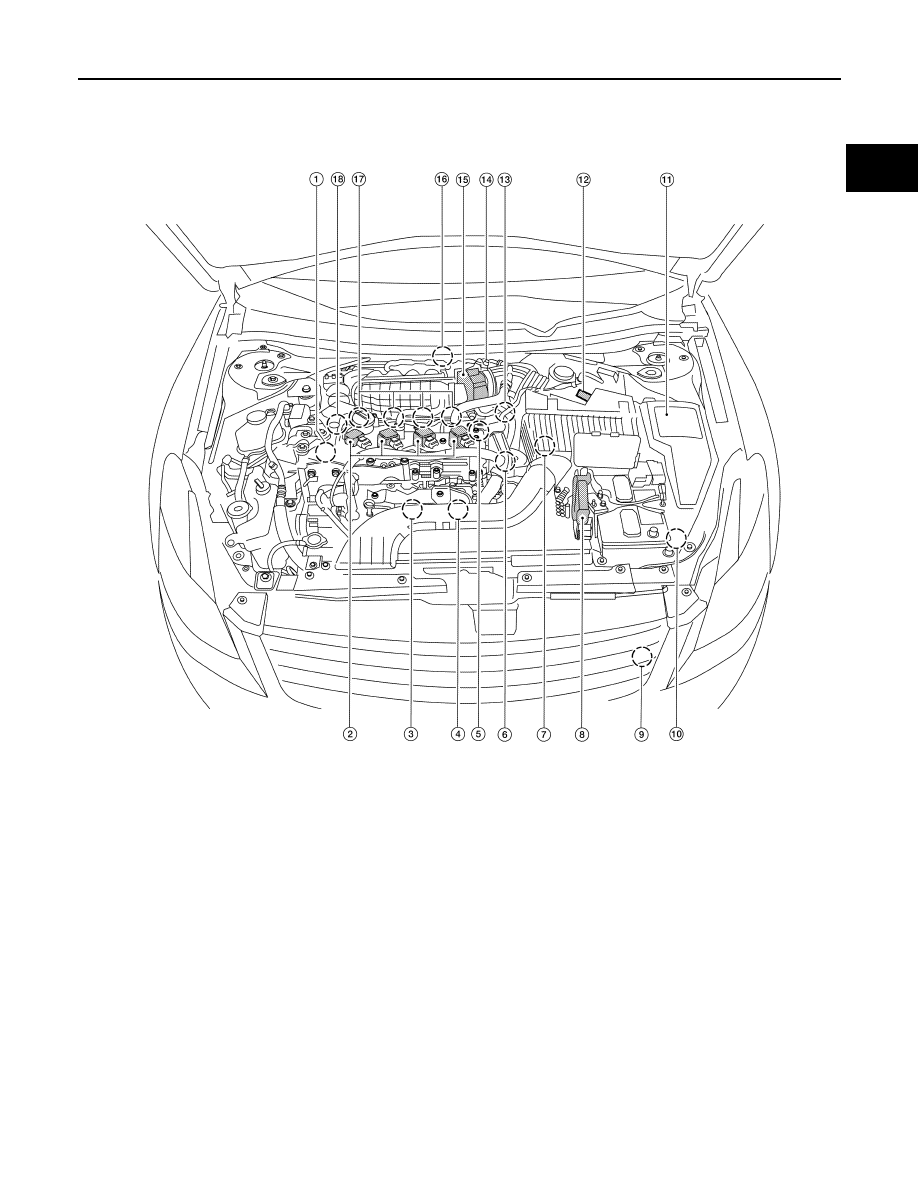

1.

Intake valve timing control solenoid
valve

2.

Ignition coil (with power transistor)
and spark plug

3.

Knock sensor,
Crankshaft position sensor (POS)

4.

Air fuel ratio (A/F) sensor 1

5.

Camshaft position sensor (PHASE)

6.

Engine coolant temperature sensor

7.

Park/neutral position (PNP) switch

8.

ECM

9.

Refrigerant pressure sensor

10. Battery current sensor

11. IPDM E/R

12. Mass air flow sensor (with intake

temperature sensor)

13. Tumble control valve actuator

14. EVAP service port

15. Electric throttle control actuator

(with built in throttle position sensor
and throttle control motor)

16. EVAP canister purge volume control

solenoid valve

17. Fuel injector

18. Power steering pressure sensor

ALBIA0046ZZ

EC-80

< FUNCTION DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

COOLING FAN CONTROL

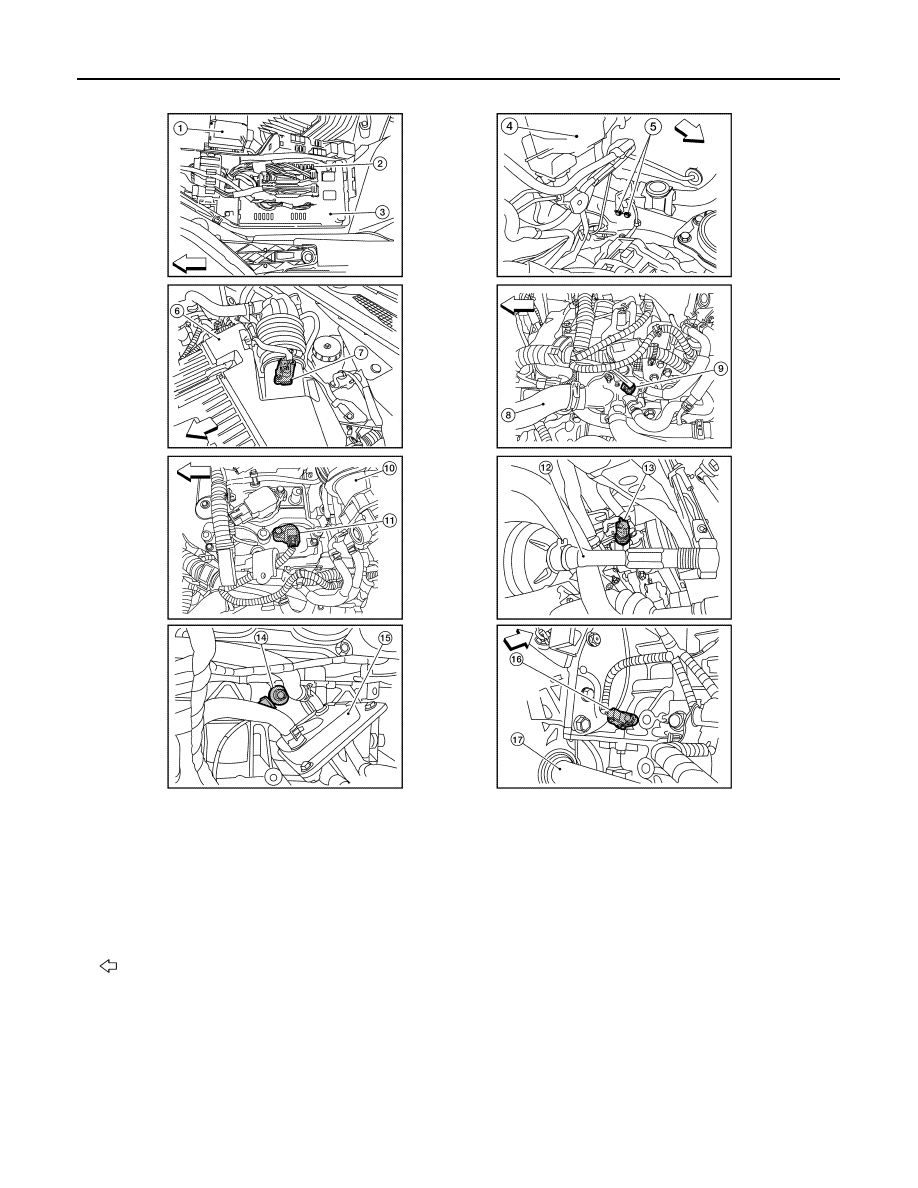

1.
