CL-6

< ON-VEHICLE MAINTENANCE >

CLUTCH PEDAL

ON-VEHICLE MAINTENANCE

CLUTCH PEDAL

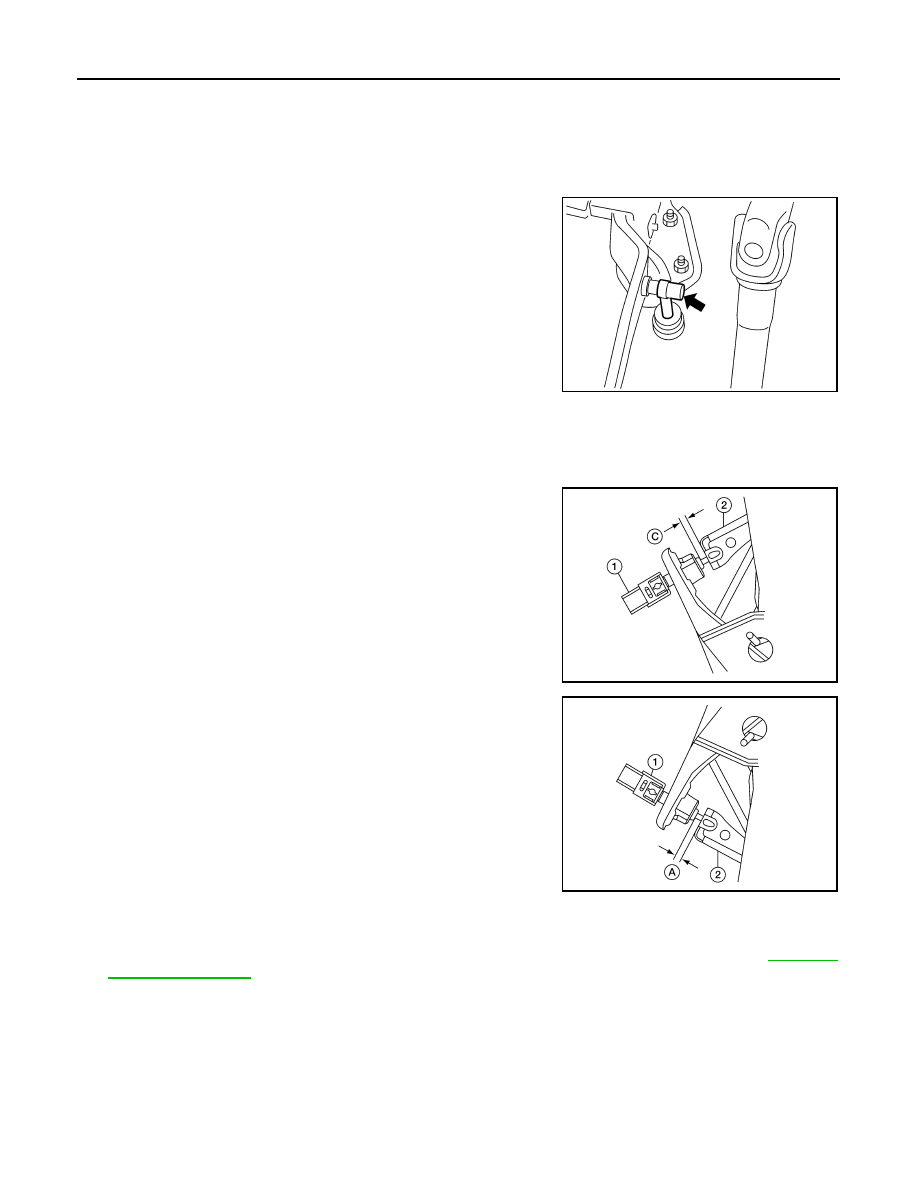

Inspection and Adjustment

INFOID:0000000004499028

1. Check to see if the master cylinder rod end moves freely. It

should not be bound by the clutch pedal.

• If the rod end does not move freely, remove the rod end and

check for deformation or damage on the rod end. Leave the

rod end removed for step 2.

2. Check the clutch pedal stroke for free range of movement.
a. With the master cylinder rod end removed, manually move the

clutch pedal up and down to determine if it moves freely.

b. If any sticking is noted, replace the clutch pedal assembly.

Reverify that the master cylinder rod end moves freely.

3. Inspect the ASCD switch position.
a. If the rod end does not move freely, check that the ASCD switch is not applying pressure to the clutch

pedal causing the rod end to bind. To adjust, disconnect the ASCD switch electrical connector and turn

the ASCD switch.

b. Connect the ASCD switch electrical connector.
4. Adjust clutch interlock switch (1) position so that clearance

between clutch pedal (2) and thread end of clutch interlock

switch (1), with clutch pedal fully depressed, is within specifica-

tion (C).

5. Adjust ASCD clutch switch (1) position so that clearance

between clutch pedal (2) and thread end of ASCD clutch switch

(1), with clutch pedal fully released, is within specification (A).

6. Check the clutch hydraulic system components (clutch master cylinder, CSC) for sticking or binding.
a. If any sticking or binding is noted, repair or replace the related parts as necessary.
b. If any hydraulic system repair was necessary, bleed the clutch hydraulic system. Refer to

CL-7, "Air

Bleeding Procedure"

.

NOTE:

Do not use a vacuum assist or any other type of power bleeder on this system. Use of a vacuum assist or

power bleeder will not purge all of the air from the system.

Clearance C

: 0.74 - 1.96 mm (0.0291 - 0.0772 in)

PCIB1491E

ALDIA0022ZZ

Clearance A

: 0.74 - 1.96 mm (0.0291 - 0.0772 in)

ALDIA0023ZZ

CLUTCH FLUID

CL-7

< ON-VEHICLE MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

CLUTCH FLUID

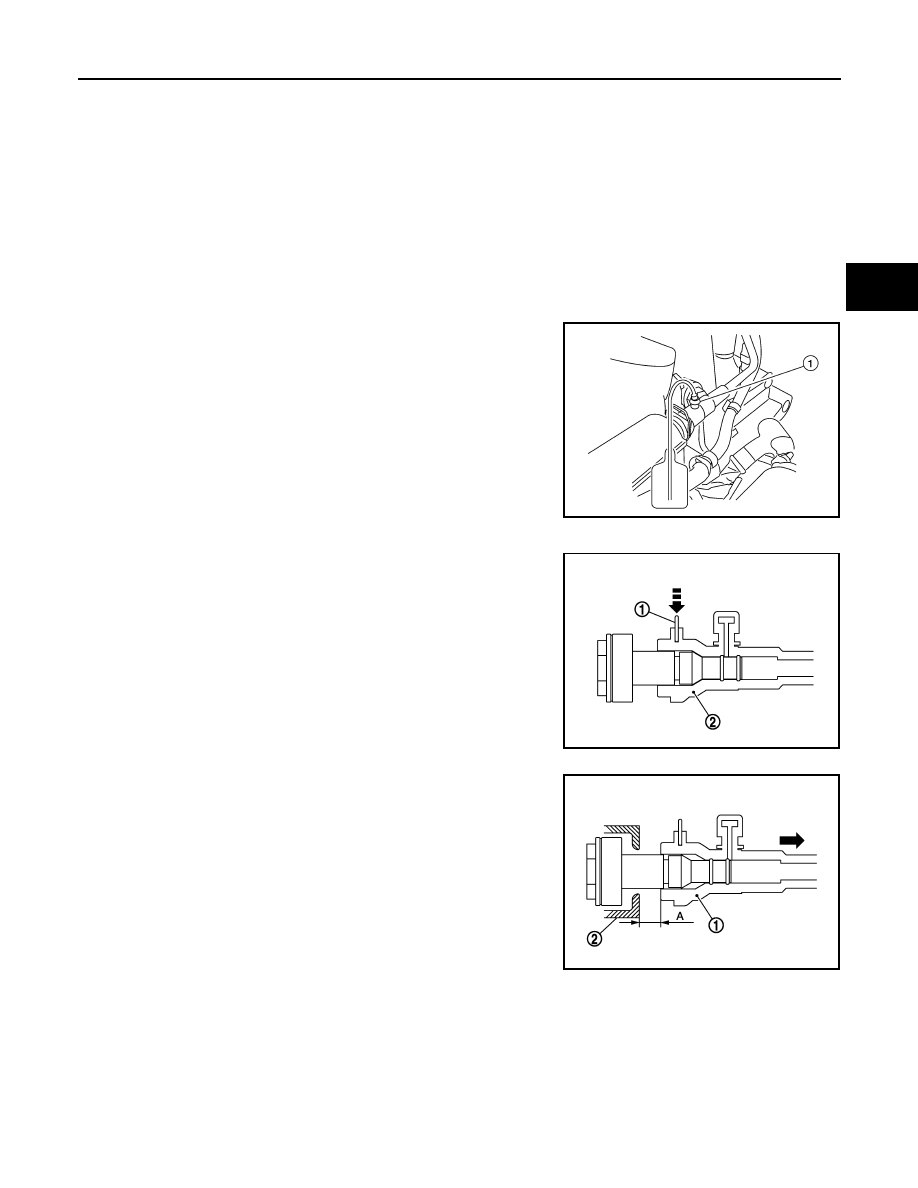

Air Bleeding Procedure

INFOID:0000000004499029

CAUTION:

Do not spill clutch fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected

area with water.

NOTE:

• Do not use a vacuum assist or any other type of power bleeder on this system. Use of vacuum assist or

power bleeder will not purge all the air from the system.

• Carefully monitor clutch fluid level in reservoir tank during bleeding operation.

• First bleed the air from the bleeding connector on the CSC and then from the air bleed connector valve.
1. Fill master cylinder reservoir tank with new clutch fluid.
2. Connect a transparent vinyl tube and container to the bleeding

connector (1) on the CSC.

3. Depress and release the clutch pedal slowly and fully 15 times

at an interval of two to three seconds and release the clutch

pedal.

4. Bleed the air from the clutch system according to the following:

1. Push in the lock pin (1) of the bleeding connector (2), and

hold it in.

CAUTION:

Hold the lock pin in to prevent the bleeding connector

from separating when fluid pressure is applied.

2. Slide the bleeding connector (1) away from the transaxle

housing (2) to the specified distance (A) to allow air to bleed

from the clutch system.

3. Depress the clutch pedal and hold it down.

CAUTION:

Hold the clutch pedal down to prevent air from getting

back into the clutch system.

5. Return the bleeding connector and lock pin to their original positions.
6. Release the clutch pedal and wait for five seconds.
7. Repeat steps 3 through 6 until no air bubbles can be observed in the clutch fluid.

LCIA0409E

JPDIB0041ZZ

Dimension (A)

: 10 mm (0.39 in)

JPDIB0042ZZ

CL-8

< ON-VEHICLE MAINTENANCE >

CLUTCH FLUID

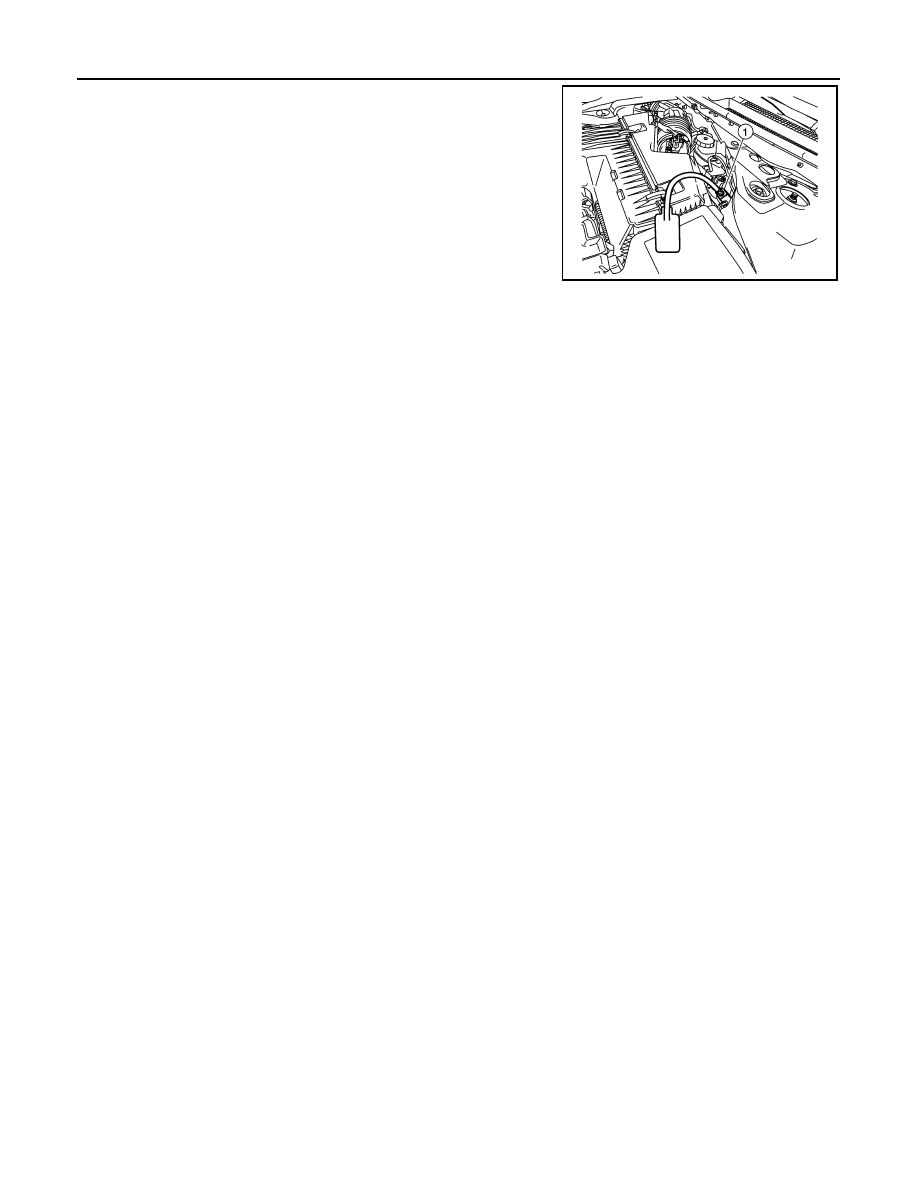

8. Connect a transparent vinyl tube and container to the air bleed

connector valve (1).

9. Fully depress the clutch pedal several times.
10. With clutch pedal depressed, open the air bleed connector

valve.

11. Close the air bleed connector valve.
12. Release the clutch pedal and wait for five seconds.
13. Repeat steps 9 through 12 until no air bubble can be observed

in the clutch fluid.

14. Check clutch fluid level in reservoir tank.

ALDIA0015ZZ

CLUTCH PEDAL

CL-9

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

ON-VEHICLE REPAIR

CLUTCH PEDAL

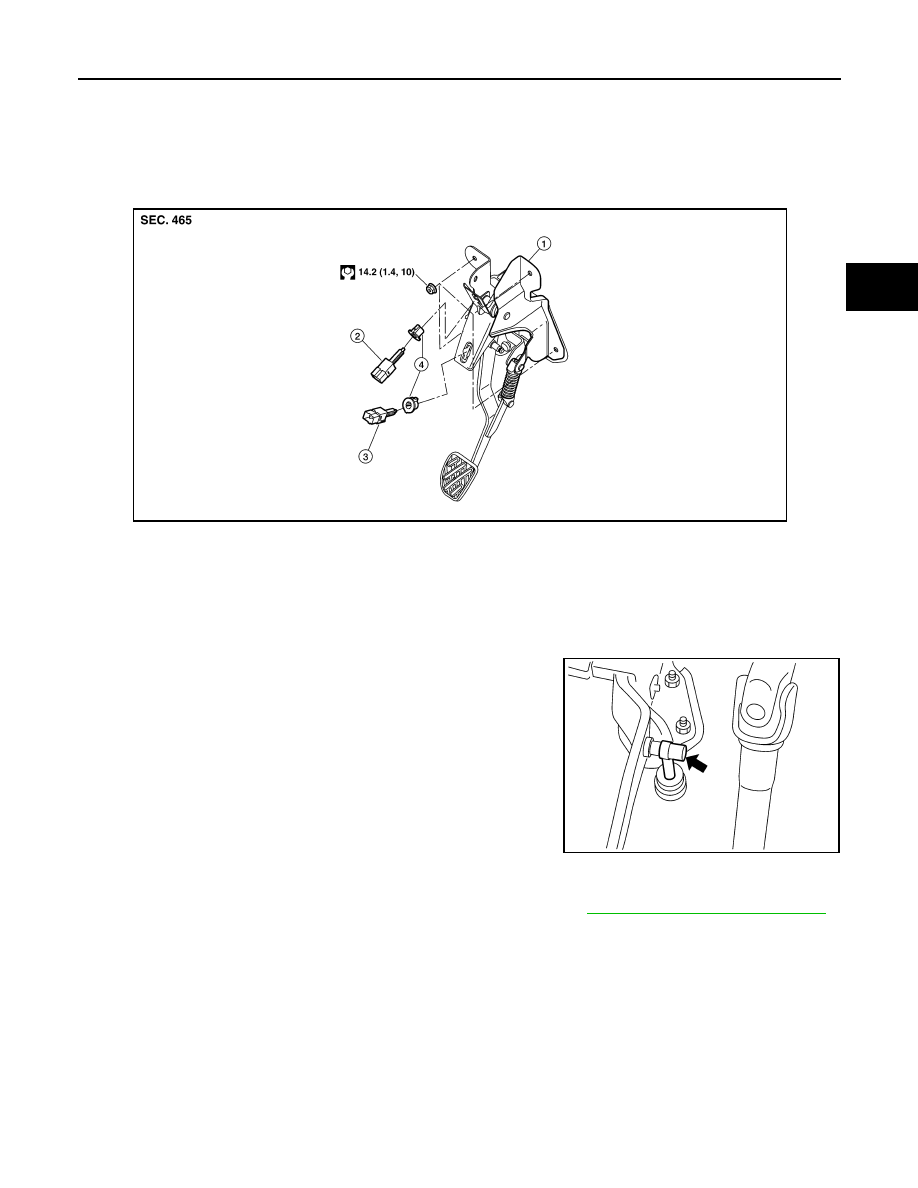

Exploded View

INFOID:0000000004499030

Removal and Installation

INFOID:0000000004499031

REMOVAL

1. Disconnect master cylinder rod end from clutch pedal lever.
2. Disconnect the ASCD clutch switch and clutch interlock switch

harness connectors.

3. Remove clutch pedal assembly nuts and then remove clutch

pedal assembly.

INSTALLATION

Installation is in the reverse order of removal.

• After installing the clutch switches, adjust the switch positions. Refer to

CL-6, "Inspection and Adjustment"

.

Inspection

INFOID:0000000004499032

• After removal, check clutch pedal for bend, damage or a cracked weld. If bend, damage or a cracked weld is

found, replace clutch pedal assembly.

1.

Clutch pedal assembly

2.

Clutch interlock switch

3.

ASCD clutch switch

4.

Lock nut
