P0715 INPUT SPEED SENSOR (PRI SPEED SENSOR)

YES

>> GO TO 7.

NO

>> Repair or replace damaged parts.

7.

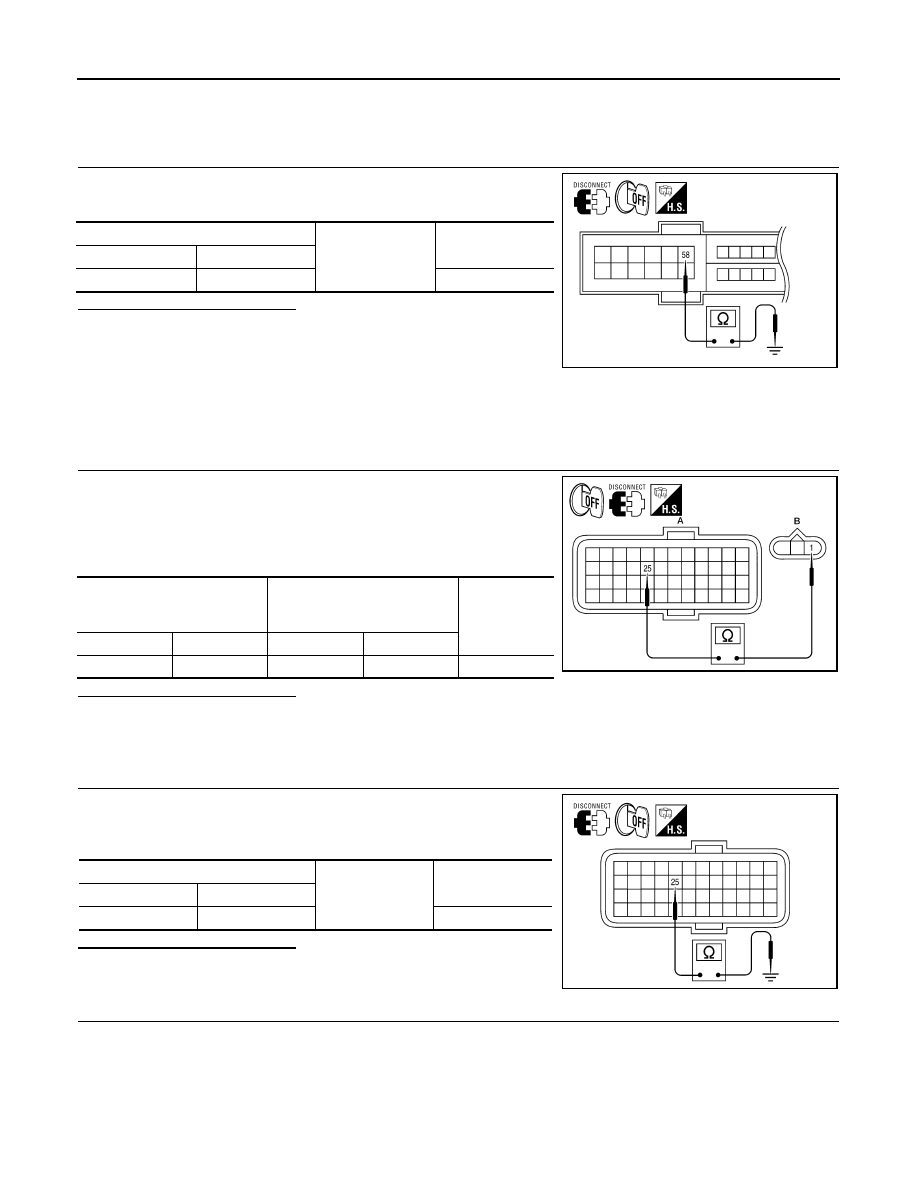

CHECK HARNESS BETWEEN IPDM E/R AND INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)

(POWER) (PART 2)
Check continuity between IPDM E/R harness connector F10 termi-

nal 58 and ground.

Is the inspection result normal?

YES

>> Check the following.

• Harness for short or open between ignition switch and

IPDM E/R

• 10A fuse (No. 34, located in IPDM E/R)

• Ignition switch

NO

>> Repair or replace damaged parts.

8.

CHECK HARNESS BETWEEN TCM AND INPUT SPEED SENSOR (PRIMARY SPEED SENSOR) (SEN-

SOR GROUND) (PART 1)
1. Turn ignition switch OFF.

2. Disconnect TCM connector.

3. Check continuity between TCM harness connector F16 terminal

25 (A) and input speed sensor (primary speed sensor) harness

connector F8 (B) terminal 1.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace damaged parts.

9.

CHECK HARNESS BETWEEN TCM AND INPUT SPEED SENSOR (PRIMARY SPEED SENSOR) (SEN-

SOR GROUND) (PART 2)
1. Disconnect CVT unit harness connector.

2. Check continuity between TCM harness connector F16 terminal

25 and ground.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Repair or replace damaged parts.

10.

CHECK CVT UNIT CIRCUIT

IPDM E/R harness connector

Ground

Continuity

Connector

Terminal

F10

58

Not existed

AWDIA0113ZZ

TCM harness connector

Input speed sensor (primary

speed sensor) harness connec-

tor

Continuity

Connector

Terminal

Connector

Terminal

F16 (A)

25

F8 (B)

1

Existed

AWDIA0173ZZ

TCM harness connector

Ground

Continuity

Connector

Terminal

F16

25

Not existed

AWDIA0174ZZ

P0715 INPUT SPEED SENSOR (PRI SPEED SENSOR)

TM-317

< COMPONENT DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

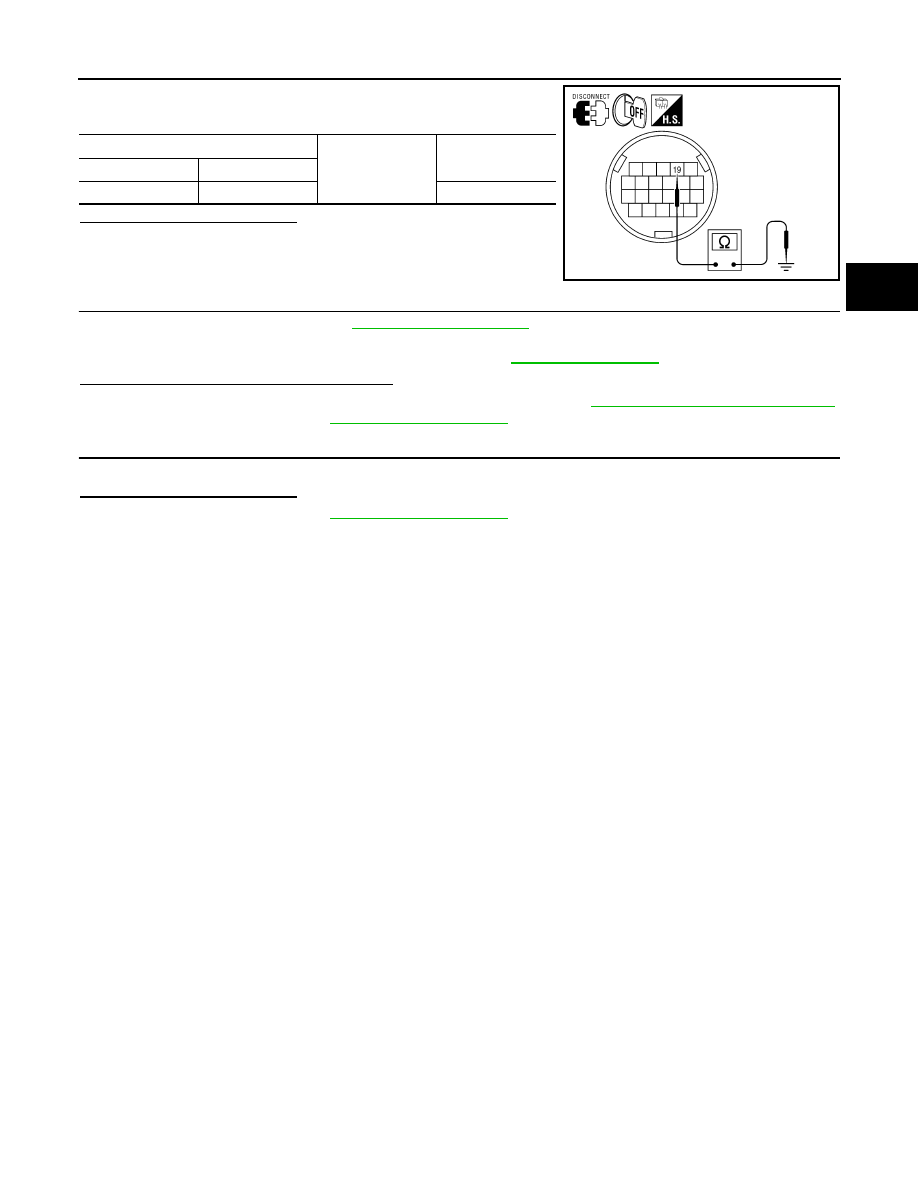

Check continuity between CVT unit harness connector F46 terminal

19 and ground.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Repair or replace damaged parts.

11.

CHECK TCM

1. Replace same type TCM. Refer to

TM-430, "Exploded View"

.

2. Connect each connector.

3. Perform “DTC CONFIRMATION PROCEDURE”. Refer to

TM-313, "DTC Logic"

.

Is “P0715 INPUT SPD SEN/CIRC” detected?

YES

>> Replace input speed sensor (primary speed sensor). Refer to

TM-437, "Removal and Installation"

.

NO

>> Replace TCM. Refer to

TM-430, "Exploded View"

.

12.

DETECT MALFUNCTIONING ITEMS

Check TCM connector pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?

YES

>> Replace TCM. Refer to

TM-430, "Exploded View"

.

NO

>> Repair or replace damaged parts.

CVT unit harness connector

Ground

Continuity

Connector

Terminal

F46

19

Not existed

AWDIA0175ZZ

TM-318

< COMPONENT DIAGNOSIS >

[CVT: RE0F10A]

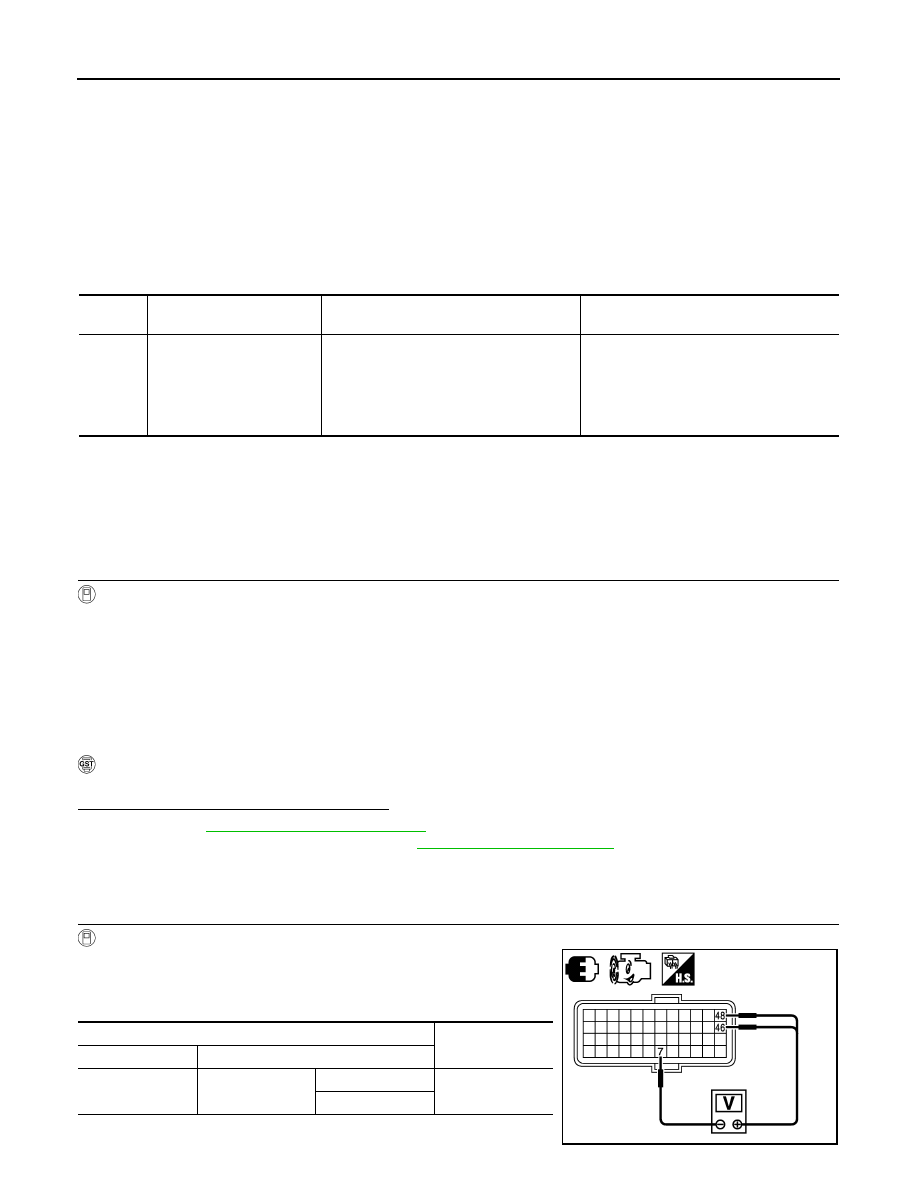

P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)

P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)

Description

INFOID:0000000004201883

The vehicle speed sensor CVT [output speed sensor (secondary speed sensor)] detects the revolution of the

CVT output shaft and emits a pulse signal. The pulse signal is transmitted to the TCM, which converts it into

vehicle speed.

DTC Logic

INFOID:0000000004201884

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

CAUTION:

Always drive vehicle at a safe speed.

NOTE:

If “DTC CONFIRMATION PROCEDURE” has been previously performed, always turn ignition switch OFF.

Then wait at least 10 seconds before performing the next test.

1.

CHECK DTC DETECTION

With CONSULT-III

1. Turn ignition switch ON.

2. Select “DATA MONITOR”.

3. Start engine and maintain the following conditions for at least 12 consecutive seconds.

With GST

Follow the procedure “With CONSULT-III”.
Is “P0720 VEH SPD SEN/CIR AT” detected?

YES

>> Go to

TM-318, "Diagnosis Procedure"

.

NO

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

Diagnosis Procedure

INFOID:0000000004201885

1.

CHECK OUTPUT SPEED SENSOR (SECONDARY SPEED SENSOR)

With CONSULT-III

1. Start engine.

2. Check voltage between TCM harness connector F16 terminal 7,

46 and 7, 48.

DTC

Item

(CONSULT-III screen term)

Malfunction is detected when...

Possible cause

P0720

VEH SPD SEN/CIR AT

• Signal from vehicle speed sensor CVT

[output speed sensor (secondary speed
sensor)] not input due to open or short cir-
cuit.

• An unexpected signal input during running

.

• Harness or connectors

(Sensor circuit is open or shorted.)

• Output speed sensor (secondary speed

sensor)

ACC PEDAL OPEN

: More than 1.0/8

RANGE

: “D” position

Driving location

: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.

TCM harness connector

Voltage (Approx.)

Connector

Terminal

F16

7

46

Battery voltage

48

JPDIA0982ZZ

P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)

TM-319

< COMPONENT DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

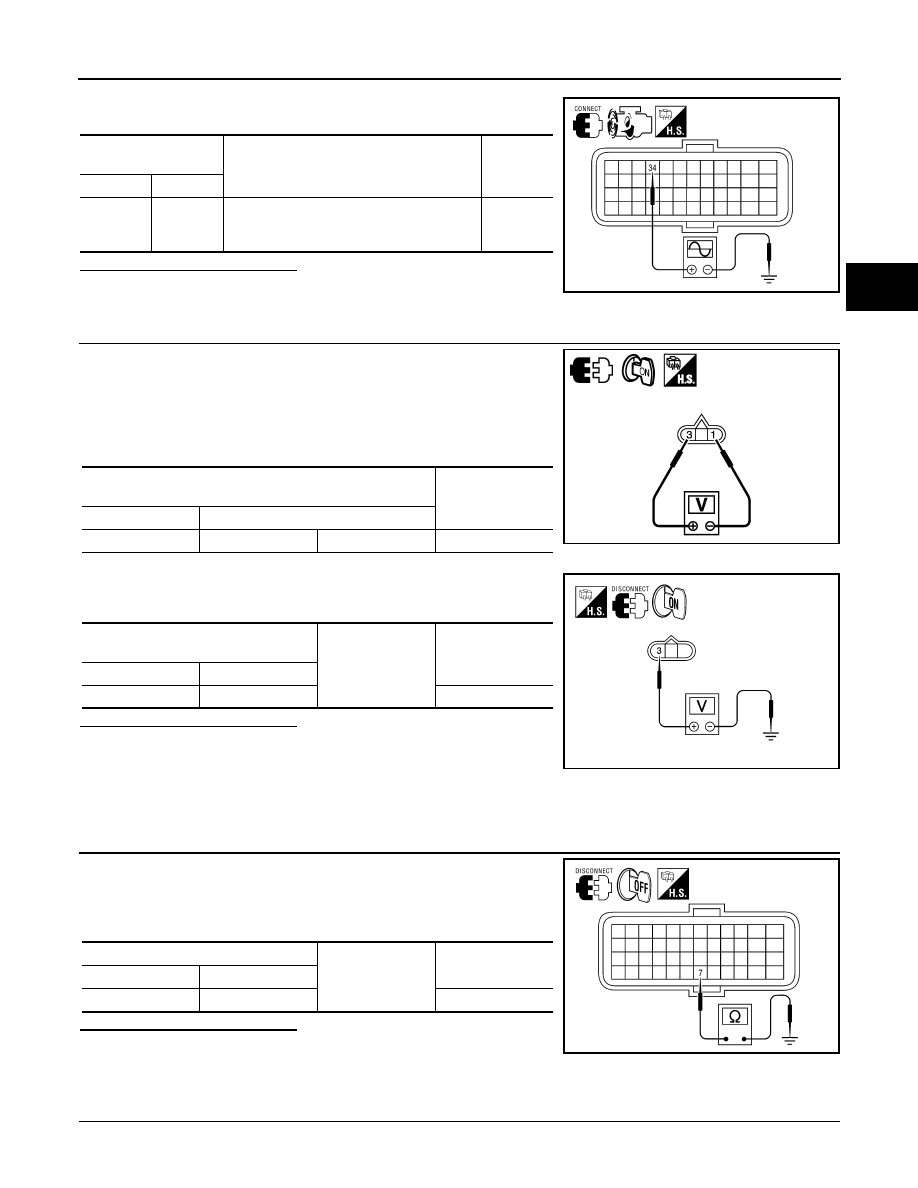

3. If OK, check pulse when vehicle cruises.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> GO TO 2.

2.

CHECK POWER AND SENSOR GROUND

1. Turn ignition switch OFF.

2. Disconnect output speed sensor (secondary speed sensor) har-

ness connector.

3. Turn ignition switch ON.

4. Check voltage between output speed sensor (secondary speed

sensor) harness connector F23 terminal 1 and 3.

5. Check voltage between output speed sensor (secondary speed

sensor) harness connector F23 terminal 3 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO-1 >> Battery voltage is not supplied between terminals 1 and

3, terminals 3 and ground: GO TO 6.

NO-2 >> Battery voltage is not supplied between terminals 1 and 3 only: GO TO 8.

3.

CHECK HARNESS BETWEEN TCM AND OUTPUT SPEED SENSOR (SECONDARY SPEED SENSOR)

(SENSOR GROUND)

1. Turn ignition switch OFF.

2. Disconnect TCM harness connector.

3. Check continuity between TCM harness connector F16 terminal

7 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

CHECK HARNESS BETWEEN TCM AND OUTPUT SPEED SENSOR (SECONDARY SPEED SENSOR)

(PART 1)

TCM harness connec-

tor

Condition

Data (Ap-

prox.)

Connector

Terminal

F16

34

When running at 20 km/h (12 MPH) in “D”
position, use the CONSULT-III pulse fre-
quency measuring function.

480 Hz

AWDIA0106ZZ

Output speed sensor (secondary speed sensor) harness con-

nector

Voltage (Approx.)

Connector

Terminal

F23

1

3

Battery voltage

JPDIA0983ZZ

Output speed sensor (secondary speed

sensor) harness connector

Ground

Voltage (Approx.)

Connector

Terminal

F23

3

Battery voltage

AWDIA0108ZZ

TCM harness connector

Ground

Continuity

Connector

Terminal

F16

7

Not existed

AWDIA0109ZZ
