TM-308

< COMPONENT DIAGNOSIS >

[CVT: RE0F10A]

P0705 PARK/NEUTRAL POSITION SWITCH

• Ignition switch

2.

CHECK HARNESS BETWEEN TCM AND PNP SWITCH (PART 1)

1. Turn ignition switch OFF.

2. Disconnect TCM connector.

3. Check continuity between TCM harness connector F16 (A) ter-

minal 1, 2, 3, 4, 11 and PNP switch harness connector F25 (B)

terminal 5, 6, 7, 8, 4.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace damaged parts.

3.

CHECK HARNESS BETWEEN TCM AND PNP SWITCH (PART 2)

Check continuity between TCM harness connector F16 terminal 1, 2,

3, 4, 11 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

CHECK CVT POSITION

1. Remove control cable from manual lever. Refer to

TM-433, "Exploded View"

.

2. Check continuity PNP switch connector terminals. Refer to

TM-308, "Component Inspection (Park/Neutral

Position Switch)"

Is the inspection result normal?

YES

>> Adjust CVT position. Refer to

TM-429, "Inspection and Adjustment"

.

NO

>> GO TO 5.

5.

DETECT MALFUNCTIONING ITEMS

Check TCM connector pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?

YES

>> Replace TCM. Refer to

TM-430, "Exploded View"

.

NO

>> Repair or replace damaged parts.

Component Inspection (Park/Neutral Position Switch)

INFOID:0000000004201875

1.

CHECK PNP SWITCH

1. Adjust PNP switch position. Refer to

TM-429, "Inspection and Adjustment"

.

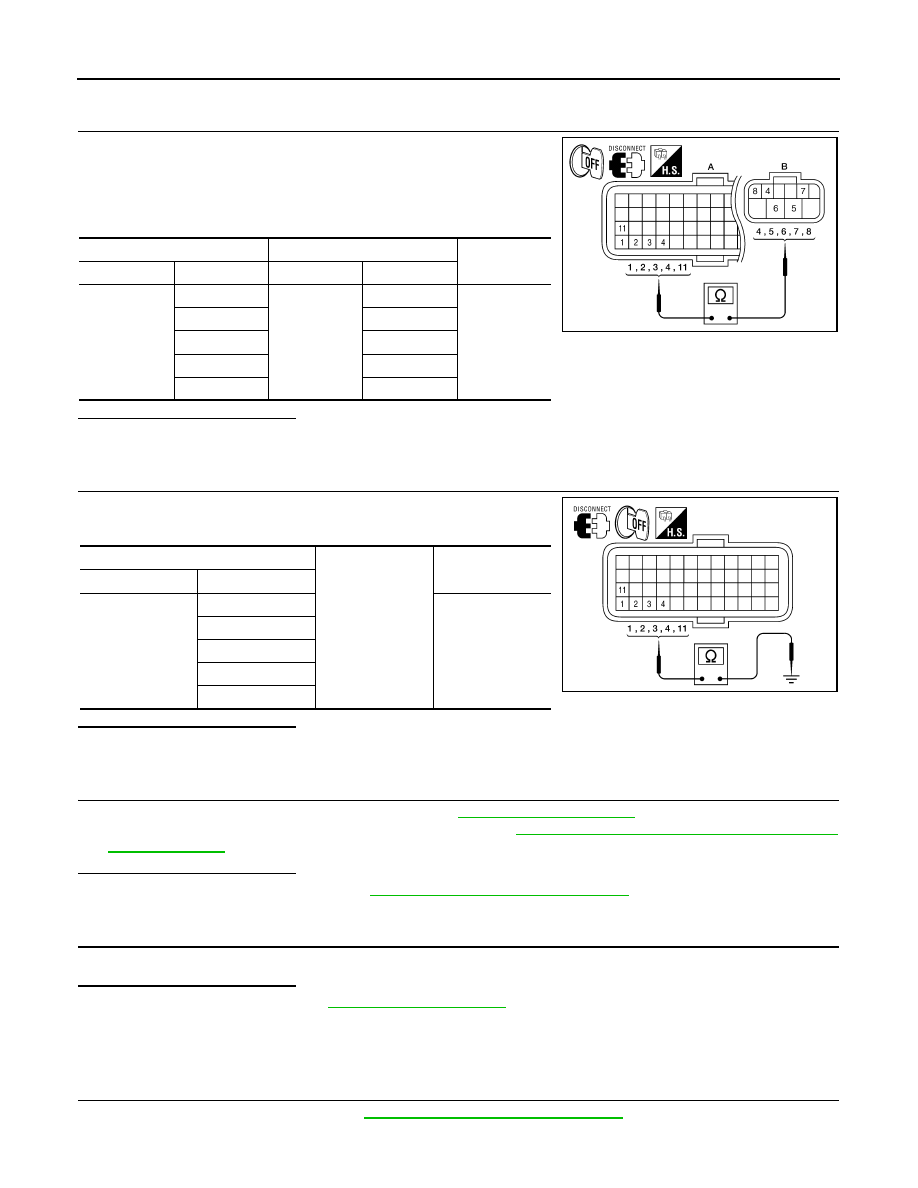

TCM harness connector

PNP switch harness connector

Continuity

Connector

Terminal

Connector

Terminal

F16 (A)

1

F25 (B)

5

Existed

2

6

3

7

4

8

11

4

AWDIA0169ZZ

TCM harness connector

Ground

Continuity

Connector

Terminal

F16

1

Not existed

2

3

4

11

AWDIA0093ZZ

P0705 PARK/NEUTRAL POSITION SWITCH

TM-309

< COMPONENT DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

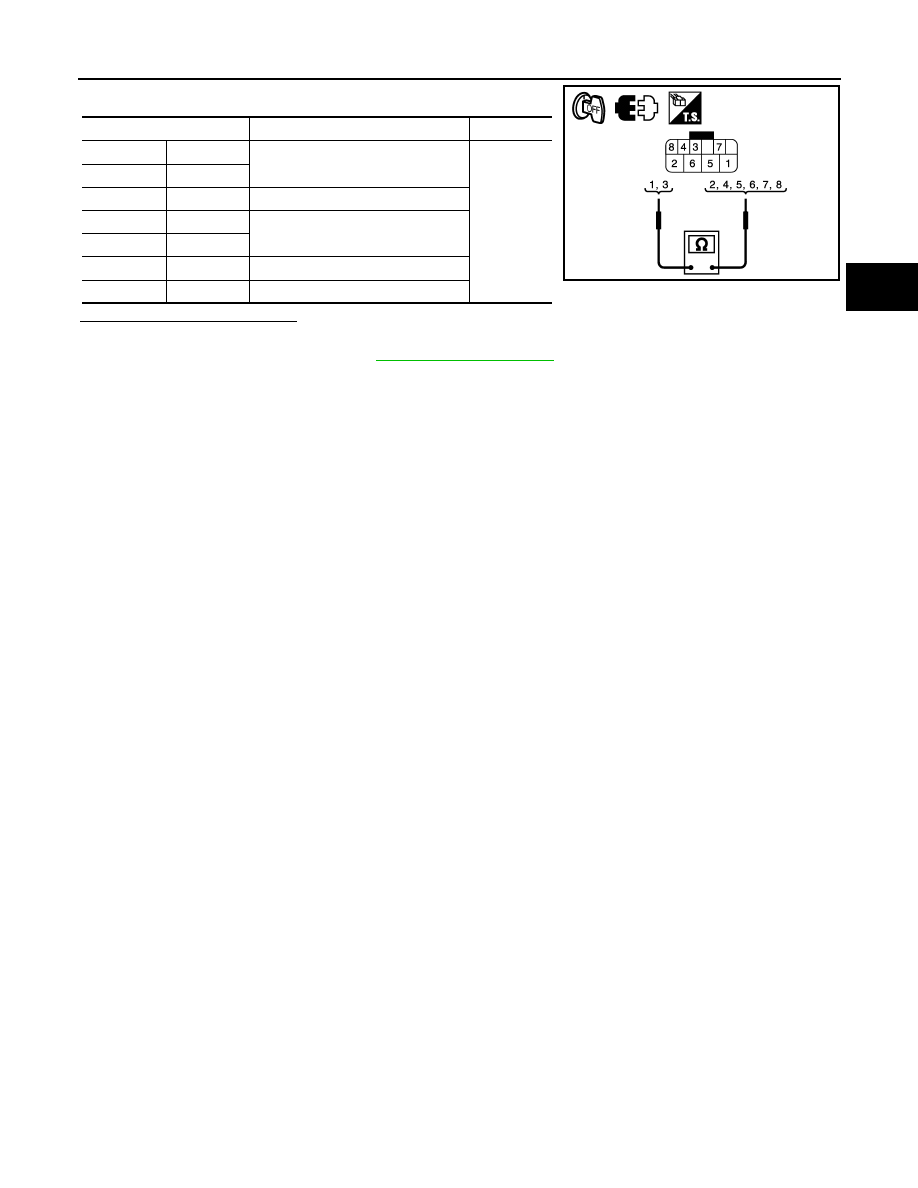

2. Check continuity between PNP switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace PNP switch. Refer to

TM-436, "Exploded View"

.

PNP switch terminal

Condition

Continuity

1

2

Manual lever in “P” position

Existed

3

4

3

5

Manual lever in “R” position

1

2

Manual lever in “N” position

3

6

3

7

Manual lever in “D” position

3

8

Manual lever in “L” position

JPDIA0987GB

TM-310

< COMPONENT DIAGNOSIS >

[CVT: RE0F10A]

P0710 CVT FLUID TEMPERATURE SENSOR

P0710 CVT FLUID TEMPERATURE SENSOR

Description

INFOID:0000000004201876

The CVT fluid temperature sensor detects the CVT fluid temperature and sends a signal to the TCM.

DTC Logic

INFOID:0000000004201877

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

CAUTION:

Always drive vehicle at a safe speed.

NOTE:

If “DTC CONFIRMATION PROCEDURE” has been previously performed, always turn ignition switch OFF.

Then wait at least 10 seconds before performing the next test.

1.

CHECK DTC DETECTION (PART 1)

With CONSULT-III

1. Turn ignition switch ON.

2. Select “DATA MONITOR”.

3. Check that output voltage of CVT fluid temperature sensor is within the range specified below.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO-1 (“ATF TEMP SEN” indicates 0.15 or less.)>>Refer to

TM-310, "Diagnosis Procedure"

.

NO-2 (“ATF TEMP SEN” indicates 2.04 or more.)>>GO TO 2.

2.

CHECK DTC DETECTION (PART 2)

With CONSULT-III

1. Turn ignition switch ON.

2. Select “DATA MONITOR”.

3. Start engine and maintain the following conditions for at least 14 minutes.

With GST

Follow the procedure “With CONSULT-III”.
Is “P0710 ATF TEMP SEN/CIRC” detected?

YES

>> Go to

TM-310, "Diagnosis Procedure"

.

NO

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

Diagnosis Procedure

INFOID:0000000004201878

1.

CHECK CVT FLUID TEMPERATURE SENSOR CIRCUIT

DTC

Item

(CONSULT-III screen term)

Malfunction is detected when...

Possible cause

P0710

ATF TEMP SEN/CIRC

During running, the CVT fluid temperature
sensor signal voltage is excessively high or
low.

• Harness or connectors

(Sensor circuit is open or shorted.)

• CVT fluid temperature sensor

ATF TEMP SEN

: 0.16 – 2.03 V

RANGE

: “D” position

VEHICLE SPEED

: 10 km/h (6 MPH) or more

P0710 CVT FLUID TEMPERATURE SENSOR

TM-311

< COMPONENT DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

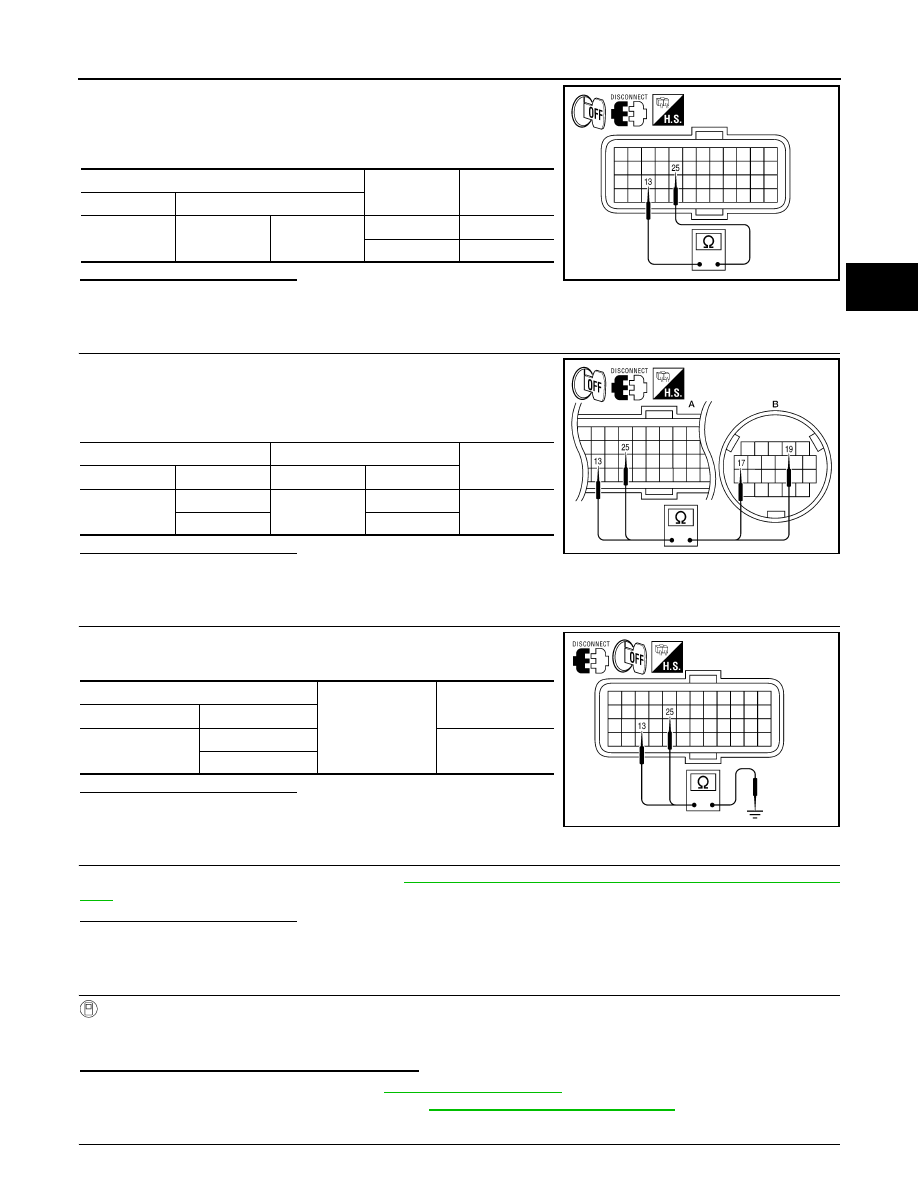

1. Turn ignition switch OFF.

2. Disconnect TCM connector.

3. Check resistance between TCM harness connector F16 terminal

13, 25.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 2.

2.

CHECK HARNESS BETWEEN TCM AND CVT UNIT (CVT TEMPERATURE SENSOR) (PART 1)

1. Disconnect CVT unit connector.

2. Check continuity between TCM harness connector F16 (A) ter-

minal 13, 25 and CVT unit harness connector F46 (B) terminal

17, 19.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace damaged parts.

3.

CHECK HARNESS BETWEEN TCM AND CVT UNIT (CVT TEMPERATURE SENSOR) (PART 2)

Check continuity between TCM harness connector F16 terminal 13,

25 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

CHECK CVT FLUID TEMPERATURE SENSOR

Check CVT fluid temperature sensor. Refer to

TM-312, "Component Inspection (CVT Fluid Temperature Sen-

sor)"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

CHECK DTC

With CONSULT-III

1. Turn ignition switch ON.

2. Perform “SELF-DIAG RESULTS” mode for “TRANSMISSION”.
Is only “P0710 ATF TEMP SEN/CIRC” detected?

YES

>> Replace control valve. Refer to

TM-447, "Exploded View"

.

NO

>> Replace transaxle assembly. Refer to

TM-447, "Removal and Installation"

.

6.

DETECT MALFUNCTIONING ITEMS

TCM harness connector

Temperature

°C (°F)

Resistance

(Approx.)

Connector

Terminal

F16

13

25

20 (68)

6.5 k

Ω

80 (176)

0.9 k

Ω

AWDIA0095ZZ

TCM harness connector

CVT unit harness connector

Continuity

Connector

Terminal

Connector

Terminal

F16 (A)

13

F46 (B)

17

Existed

25

19

AWDIA0096ZZ

TCM harness connector

Ground

Continuity

Connector

Terminal

F16

13

Not existed

25

AWDIA0097ZZ
