TM-92

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

MECHANICAL SYSTEM

MECHANICAL SYSTEM

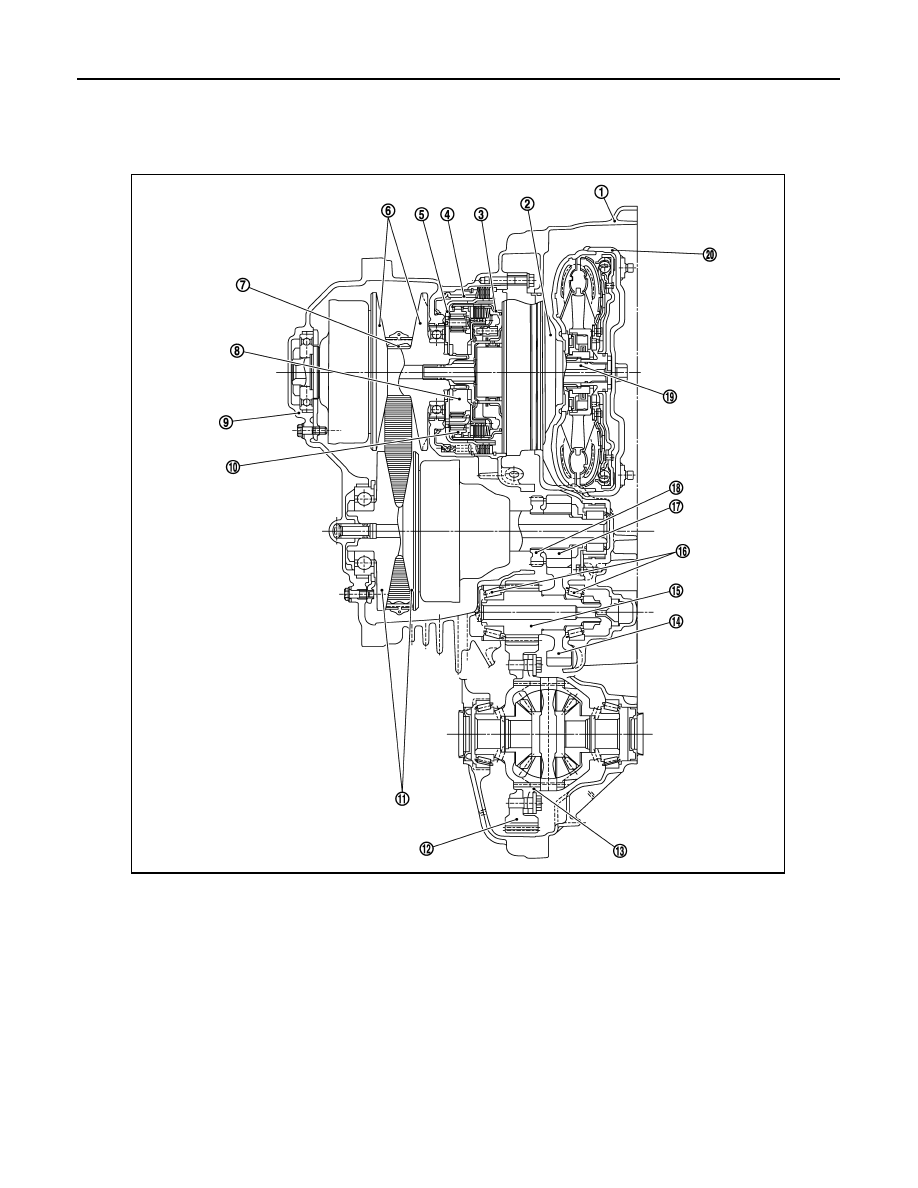

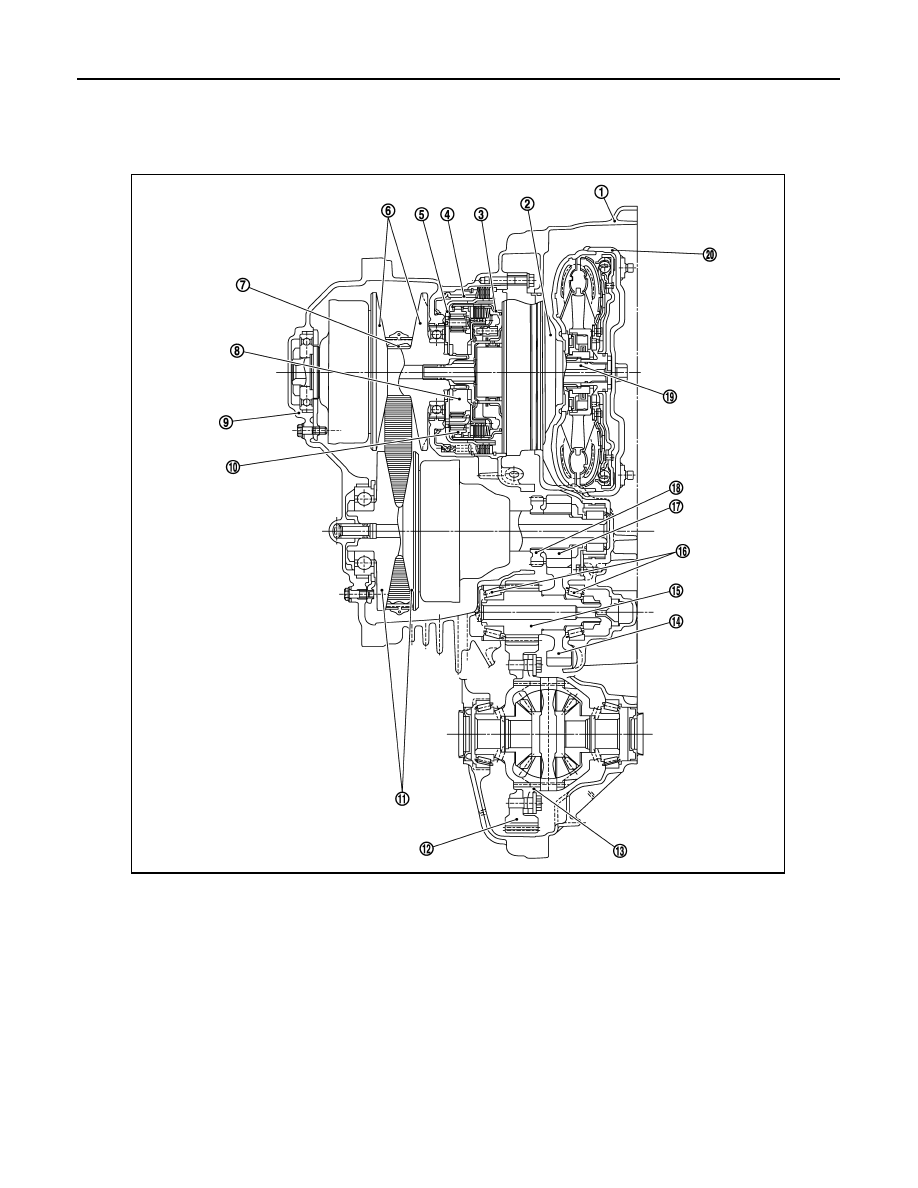

Cross-Sectional View

INFOID:0000000004201631

1.

Converter housing

2.

Oil pump

3.

Forward clutch

4.

Reverse brake

5.

Planetary carrier

6.

Primary pulley

7.

Steel belt

8.

Sun gear

9.

Side cover

10. Internal gear

11. Secondary pulley

12. Final gear

13. Differential case

14. Idler gear

15. Reduction gear

16. Taper roller bearing

17. Output gear

18. Parking gear

19. Input shaft

20. Torque converter

SCIA7859E

MECHANICAL SYSTEM

TM-93

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

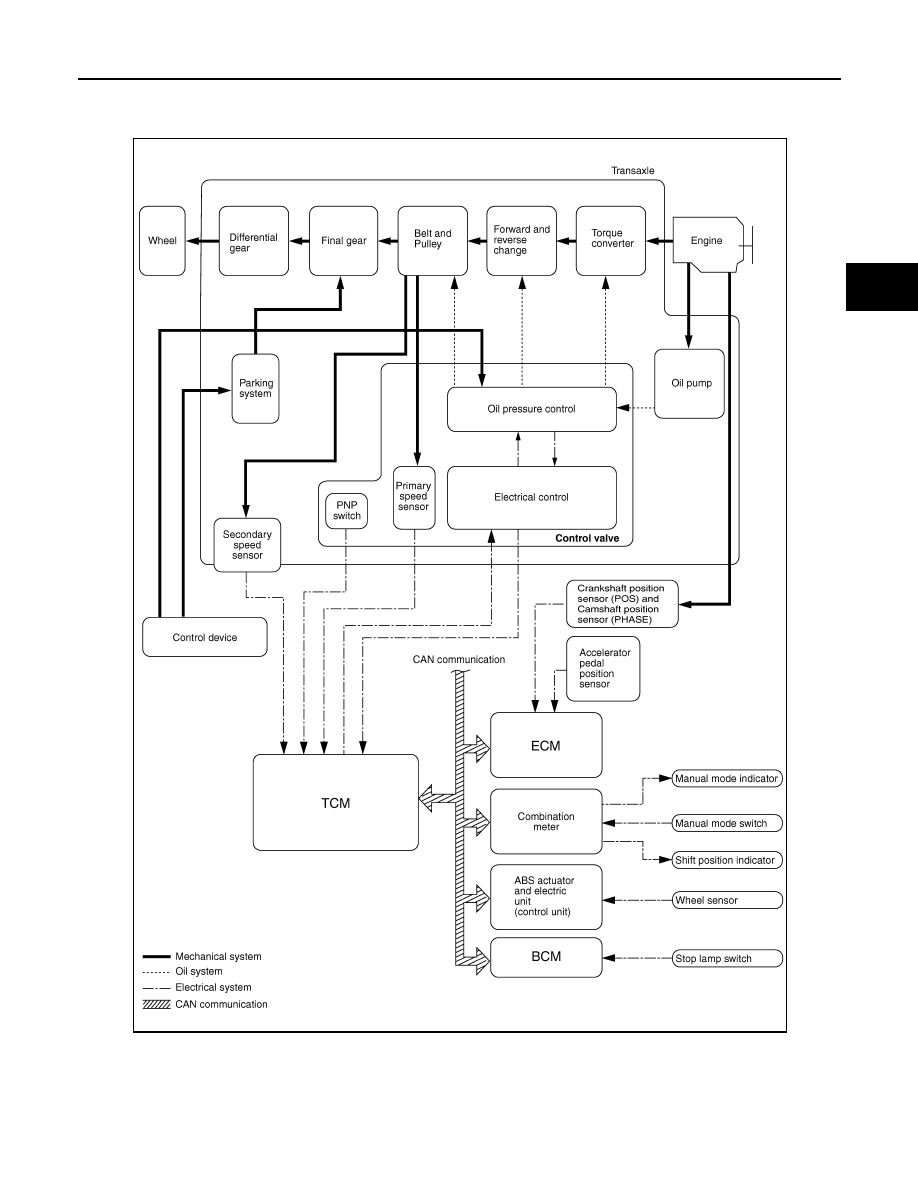

System Diagram

INFOID:0000000004201632

System Description

INFOID:0000000004201633

Transmits the power from the engine to the drive wheel.

JSDIA0074GB

TM-94

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

MECHANICAL SYSTEM

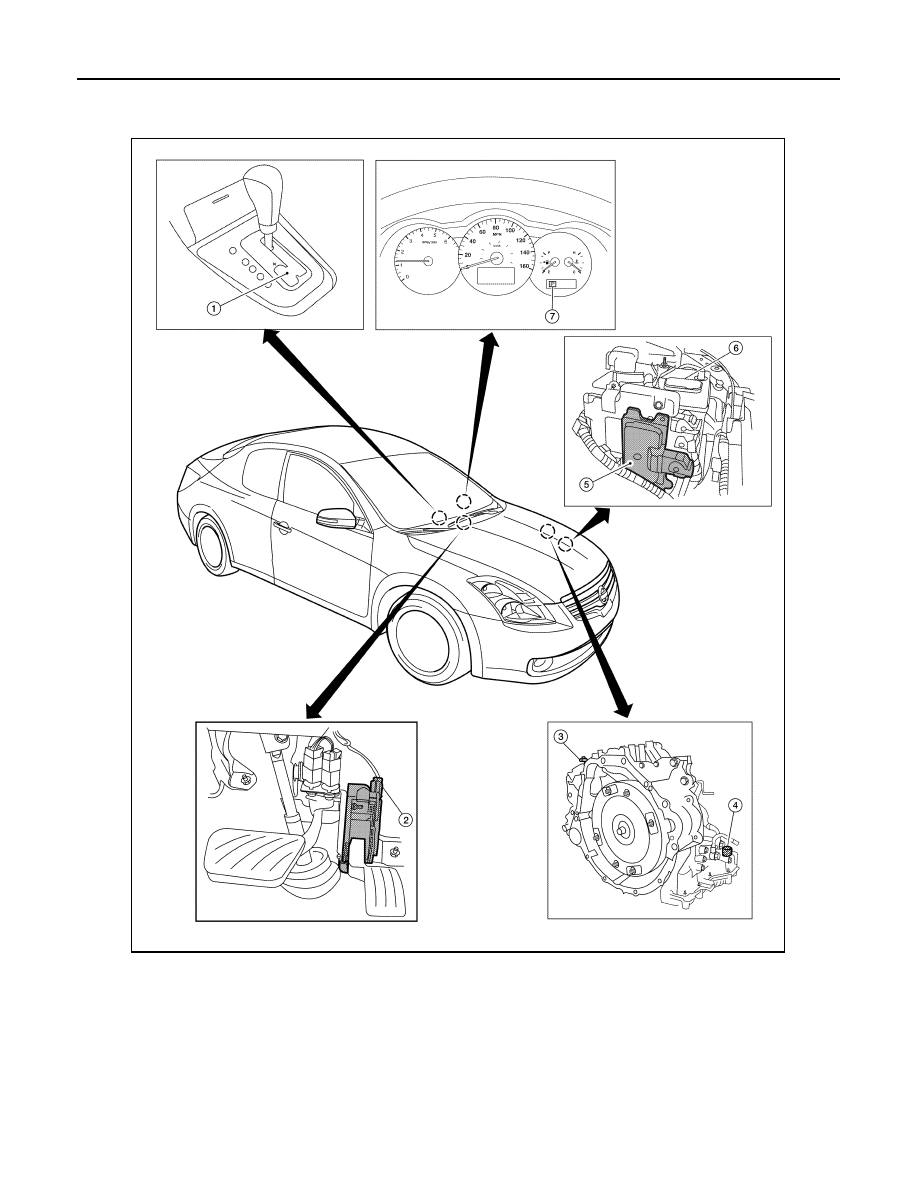

Component Parts Location - Coupe

INFOID:0000000004201634

1.

Control device assembly (Manual
mode select switch and manual
mode position select switch)

2.

Accelerator pedal position (APP)
sensor

3.

Secondary speed sensor

4.

CVT unit harness connector

5.

TCM

6.

Battery

7.

Shift position indicator
Manual mode indicator

AWDIA0166ZZ

MECHANICAL SYSTEM

TM-95

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

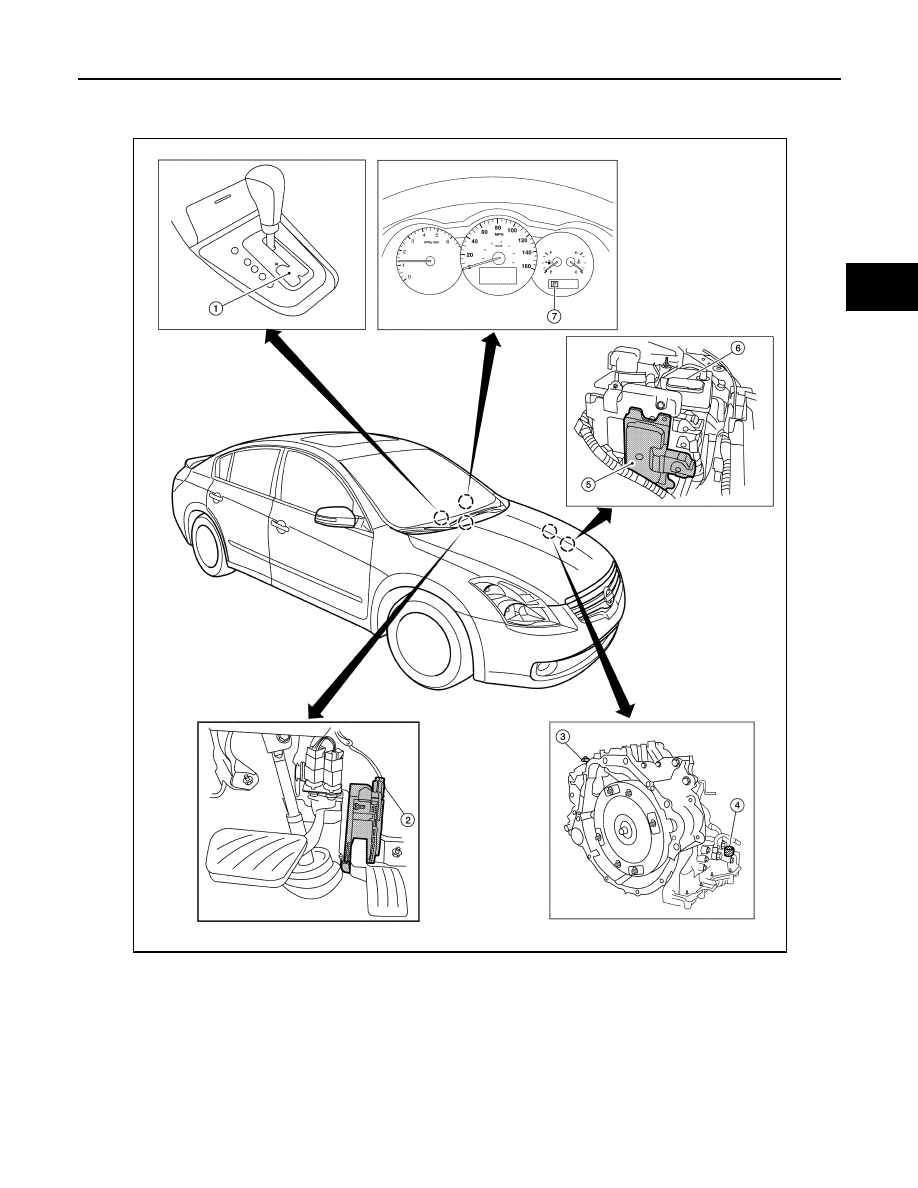

Component Parts Location - Sedan

INFOID:0000000004201635

Component Description

INFOID:0000000004201636

1.

Control device assembly (Manual
mode select switch and manual
mode position select switch)

2.

Accelerator pedal position (APP)
sensor

3.

Secondary speed sensor

4.

CVT unit harness connector

5.

TCM

6.

Battery

7.

Shift position indicator
Manual mode indicator

AWIIA0001ZZ
