TM-84

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52A]

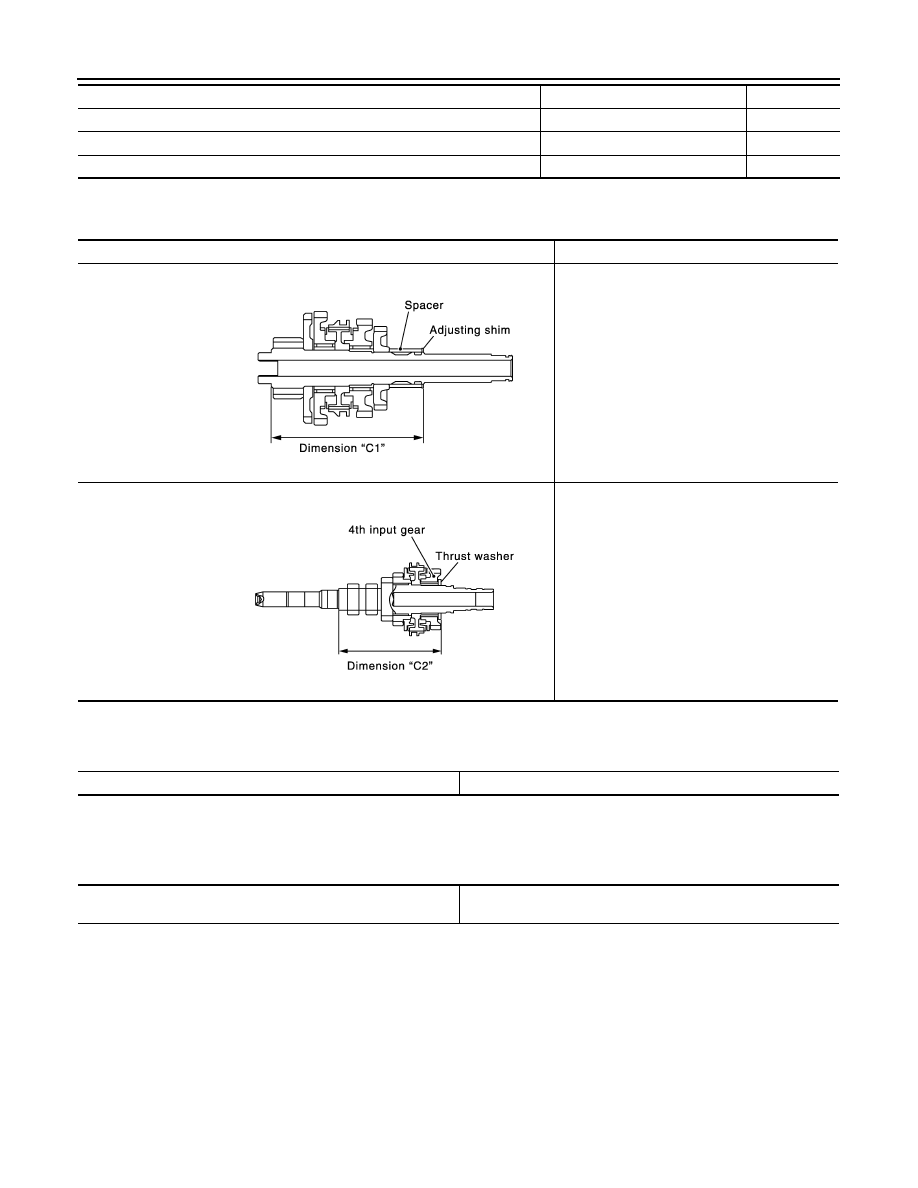

SERVICE DATA AND SPECIFICATIONS (SDS)

Dimension

INFOID:0000000004201622

Unit: mm (in)

Differential Side Bearing Preload

INFOID:0000000004201623

Unit: mm (in)

*: Install shims which are “deflection of differential case” + “L” in thickness.

Differential Side Gear Clearance

INFOID:0000000004201624

Unit: mm (in)

5th

0.95 - 1.4 (0.037 - 0.055)

0.7 (0.028)

6th

0.95 - 1.4 (0.037 - 0.055)

0.7 (0.028)

Reverse

0.95 - 1.4 (0.037 - 0.055)

0.7 (0.028)

Measurement point

Standard value

Limit value

Measurement point

Standard value

Mainshaft:
Dimension “C1”

173.85 - 173.95 (6.844 - 6.848)

Input shaft:
Dimension “C2”

154.7 - 154.8 (6.091 - 6.094)

SCIA1009E

SCIA1008E

Differential side bearing preload: L*

0.15 - 0.21 (0.0059 - 0.0083)

Allowable clearance between side gear and differential case with
thrust washer

0.1 - 0.2 (0.004 - 0.008)

DIAGNOSIS AND REPAIR WORKFLOW

TM-85

< BASIC INSPECTION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

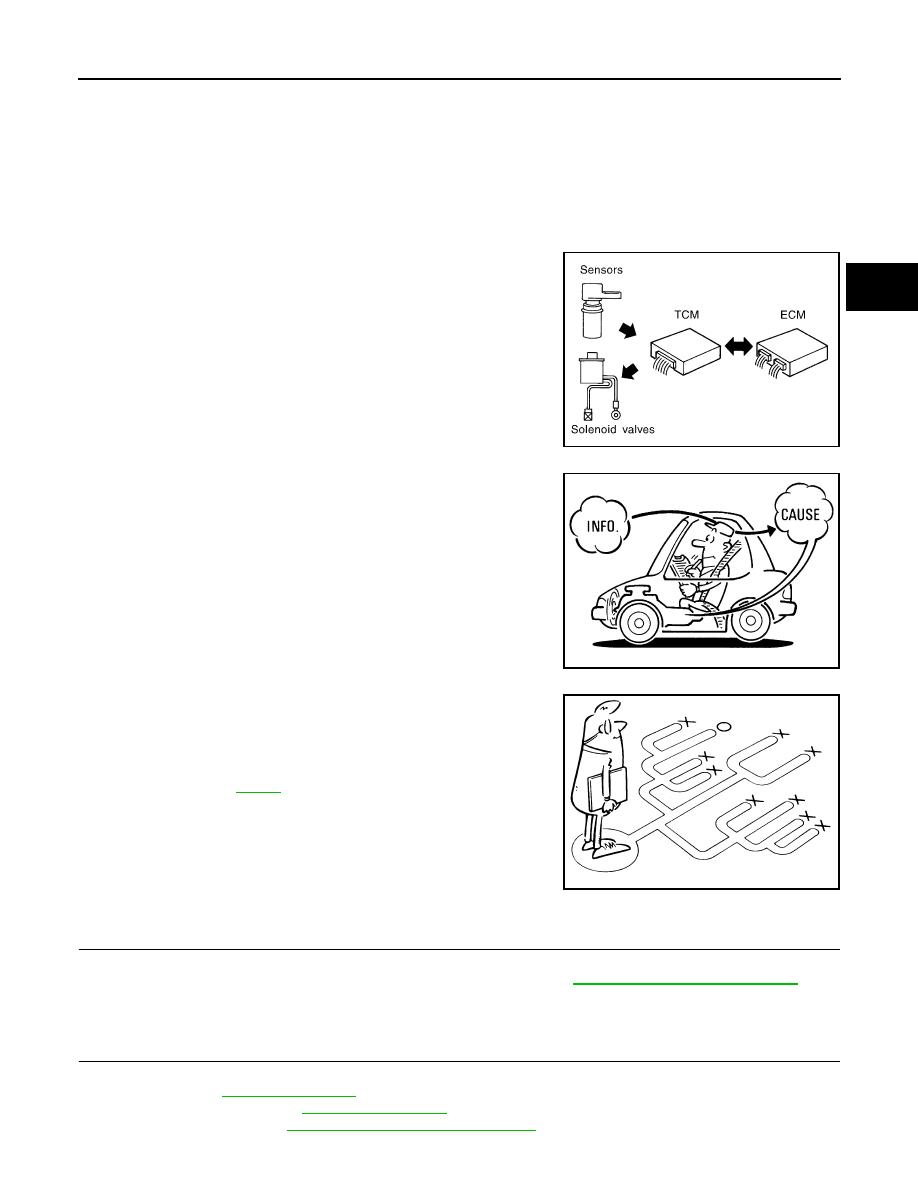

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000004201625

INTRODUCTION

The TCM receives a signal from the vehicle speed sensor, PNP switch and provides shift control or lock-up

control via CVT solenoid valves.

The TCM also communicates with the ECM by means of a signal

sent from sensing elements used with the OBD-related parts of the

CVT system for malfunction-diagnostic purposes. The TCM is capa-

ble of diagnosing malfunctioning parts while the ECM can store mal-

functions in its memory.

Input and output signals must always be correct and stable in the

operation of the CVT system. The CVT system must be in good

operating condition and be free of valve seizure, solenoid valve mal-

function, etc.

It is much more difficult to diagnose an error that occurs intermit-

tently rather than continuously. Most intermittent errors are caused

by poor electric connections or improper wiring. In this case, careful

checking of suspected circuits may help prevent the replacement of

good parts.

A visual check only may not find the cause of the errors. A road test

with CONSULT-III (or GST) or a circuit tester connected should be

performed. Follow the “DETAILED FLOW”.

Before undertaking actual checks, take a few minutes to talk with a

customer who approaches with a driveability complaint. The cus-

tomer can supply good information about such errors, especially

intermittent ones. Find out what symptoms are present and under

what conditions they occur. A “Diagnostic Work Sheet” as shown on

the example (Refer to

TM-86

) should be used.

Start your diagnosis by looking for “conventional” errors first. This will

help troubleshoot driveability errors on an electronically controlled

engine vehicle.

Also check related Service bulletins.

DETAILED FLOW

1.

COLLECT THE INFORMATION FROM THE CUSTOMER

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred) using diagnosis worksheet. Refer to

TM-86, "Diagnostic Work Sheet"

.

>> GO TO 2.

2.

CHECK SYMPTOM 1

Check the following items based on the information obtained from the customer.

• Fail-safe. Refer to

TM-219, "Fail-safe"

.

• CVT fluid inspection. Refer to

TM-240, "Inspection"

.

• Line pressure test. Refer to

TM-247, "Inspection and Judgment"

.

SAT631IB

SAT632I

SEF234G

TM-86

< BASIC INSPECTION >

[CVT: RE0F09B]

DIAGNOSIS AND REPAIR WORKFLOW

• Stall test. Refer to

TM-245, "Inspection and Judgment"

.

>> GO TO 3.

3.

CHECK DTC

1. Check DTC.

2. Perform the following procedure if DTC is detected.

• Record DTC.

• Erase DTC. Refer to

TM-117, "Diagnosis Description"

.

Is any DTC detected?

YES

>> GO TO 4.

NO

>> GO TO 6.

4.

PERFORM DIAGNOSTIC PROCEDURE

Perform “Diagnostic Procedure” for the displayed DTC.

>> GO TO 5.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform “DTC CONFIRMATION PROCEDURE” for the displayed DTC.
Is DTC detected?

YES

>> GO TO 4.

NO

>> GO TO 6.

6.

CHECK SYMPTOM 2

Try to confirm the symptom described by the customer.
Is any malfunction present?

YES

>> GO TO 7.

NO

>> INSPECTION END

7.

RODE TEST

1. Perform “RODE TEST”. Refer to

TM-249, "Description"

.

>> GO TO 8.

8.

CHECK SYMPTOM 3

Try to confirm the symptom described by the customer.
Is any malfunction present?

YES

>> GO TO 2.

NO

>> INSPECTION END

Diagnostic Work Sheet

INFOID:0000000004201626

INFORMATION FROM CUSTOMER

KEY POINTS

• WHAT..... Vehicle & CVT model

• WHEN..... Date, Frequencies

• WHERE..... Road conditions

• HOW..... Operating conditions, Symptoms

Customer name MR/MS

Model & Year

VIN

Trans. Model

Engine

Mileage

malfunction Date

Manuf. Date

In Service Date

Frequency

†

 Continuous † Intermittent ( times a day)

DIAGNOSIS AND REPAIR WORKFLOW

TM-87

< BASIC INSPECTION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DIAGNOSTIC WORK SHEET

Symptoms

†

 Vehicle does not move. († Any position † Particular position)

†

 No shift

†

 Lock-up malfunction

†

 Shift shock or slip († N

→ D † N → R † Lock-up † Any drive position)

†

 Noise or vibration

†

 No pattern select

†

 Others

(

)

Malfunction indicator lamp (MIL)

†

 Continuously lit

†

 Not lit

1

†

 Read the item on cautions concerning fail-safe and understand the customer's complaint.

TM-219

2

†

 CVT fluid inspection, stall test and line pressure test

—

†

 CVT fluid inspection

TM-240

†

 Leak (Repair leak location.)

†

 State

†

 Amount

†

 Stall test

TM-245

,

TM-247

†

 Torque converter one-way clutch

†

 Reverse brake

†

 Forward clutch

†

 Steel belt

†

 Engine

†

 Line pressure low

†

 Primary pulley

†

 Secondary pulley

†

 Line pressure inspection - Suspected part:

3

†

 Perform self-diagnosis.

TM-119

 Enter checks for detected items.

4

†

 Perform road test.

TM-249

4-1.

Check before engine is started

TM-249

4-2.

Check at idle

TM-250

4-3.

Cruise test

TM-251

5

†

 Inspect each system for items found to be NG in the self-diagnosis and repair or replace the malfunctioning parts.

6

†

 Perform all road tests and enter the checks again for the required items.

TM-249

7

†

 For any remaining NG items, perform the “diagnosis procedure” and repair or replace the malfunctioning parts.

8

†

 Erase the results of the self-diagnosis from the TCM and  the ECM.

—
