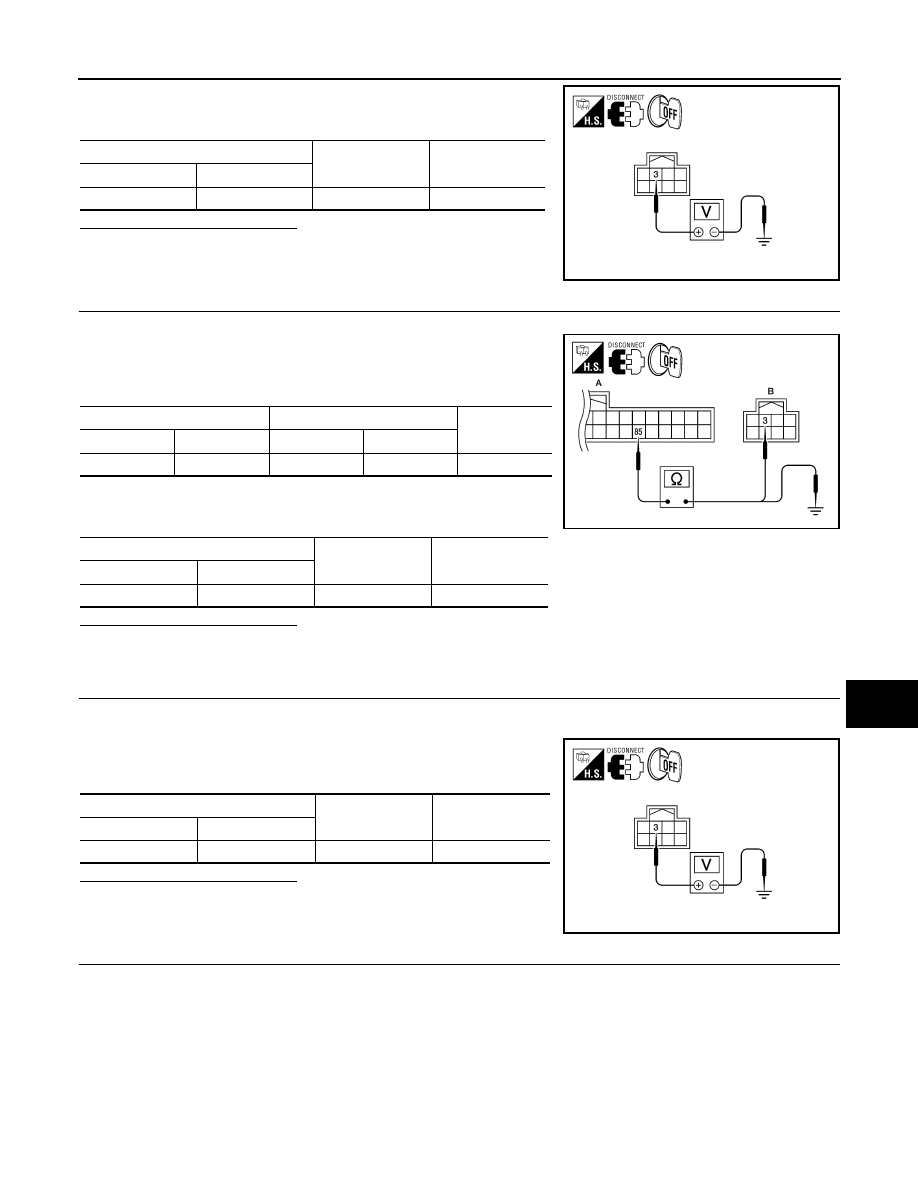

SEC-42 < COMPONENT DIAGNOSIS > [COUPE] B2108 STEERING LOCK RELAY B2108 STEERING LOCK RELAY Description INFOID:0000000004206101 The steering lock relay ON signal is transmitted to IPDM E/R by BCM via CAN communication. IPDM E/R turns the steering lock relay ON and transmits the release of the steering to BCM. DTC Logic INFOID:0000000004206102 DTC DETECTION LOGIC NOTE: • If DTC B2108 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to . • If DTC B2108 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to . DTC CONFIRMATION PROCEDURE 1. PERFORM DTC CONFIRMATION PROCEDURE 1. Press the push-button ignition switch under the following conditions and wait for at least 1 second. - CVT selector lever is in the P position - Do not depress the brake pedal. 2. Check “Self diagnostic result” with CONSULT-III. YES >> Refer to . NO >> Inspection End. Diagnosis Procedure INFOID:0000000004206103 1. CHECK FUSE 1. Turn ignition switch OFF. 2. Check 10A fuse (No. 40, located in IPDM E/R). YES >> Replace IPDM E/R. Refer to PCS-48, "Removal and Installation" NO >> Check the following. • Harness for open or short between IPDM E/R and battery • Fuse DTC No. Trouble diagnosis name DTC detecting condition Possible cause B2108 STRG LCK RELAY IPDM E/R detects that the relay is stuck at ON po- • IPDM E/R |
