Nissan Altima L32. Manual - part 1222

SEC-38

< COMPONENT DIAGNOSIS >

[COUPE]

B2013 ID DISCORD, IMMU-STRG

B2013 ID DISCORD, IMMU-STRG

Description

INFOID:0000000004206023

BCM performs the ID verification with the steering lock unit and releases the steering lock if both BCM and

steering lock unit ID are same. BCM starts the communication with the steering lock unit when Intelligent Key

is carried into the passenger compartment and the push-button ignition switch is pressed.

DTC Logic

INFOID:0000000004206024

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Lock steering.

2. Press the push-button ignition switch

3. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-38, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000004206025

1.

PERFORM INITIALIZATION

Perform initialization with CONSULT-III. Re-register all Intelligent Keys.

For initialization and registration of Intelligent Key. Refer to “CONSULT-III Operation Manual”.
Can the system be initialized and can steering lock be released with re-registered Intelligent Key?

YES

>> Steering lock unit was unregistered.

NO

>> Replace steering wheel lock unit.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2013

ID DISCORD, IMMU-
STRG

The ID verification results between BCM and steer-
ing control unit are NG. The registration is neces-
sary.

• Steering wheel lock unit

B2014 CHAIN OF STRG-IMMU

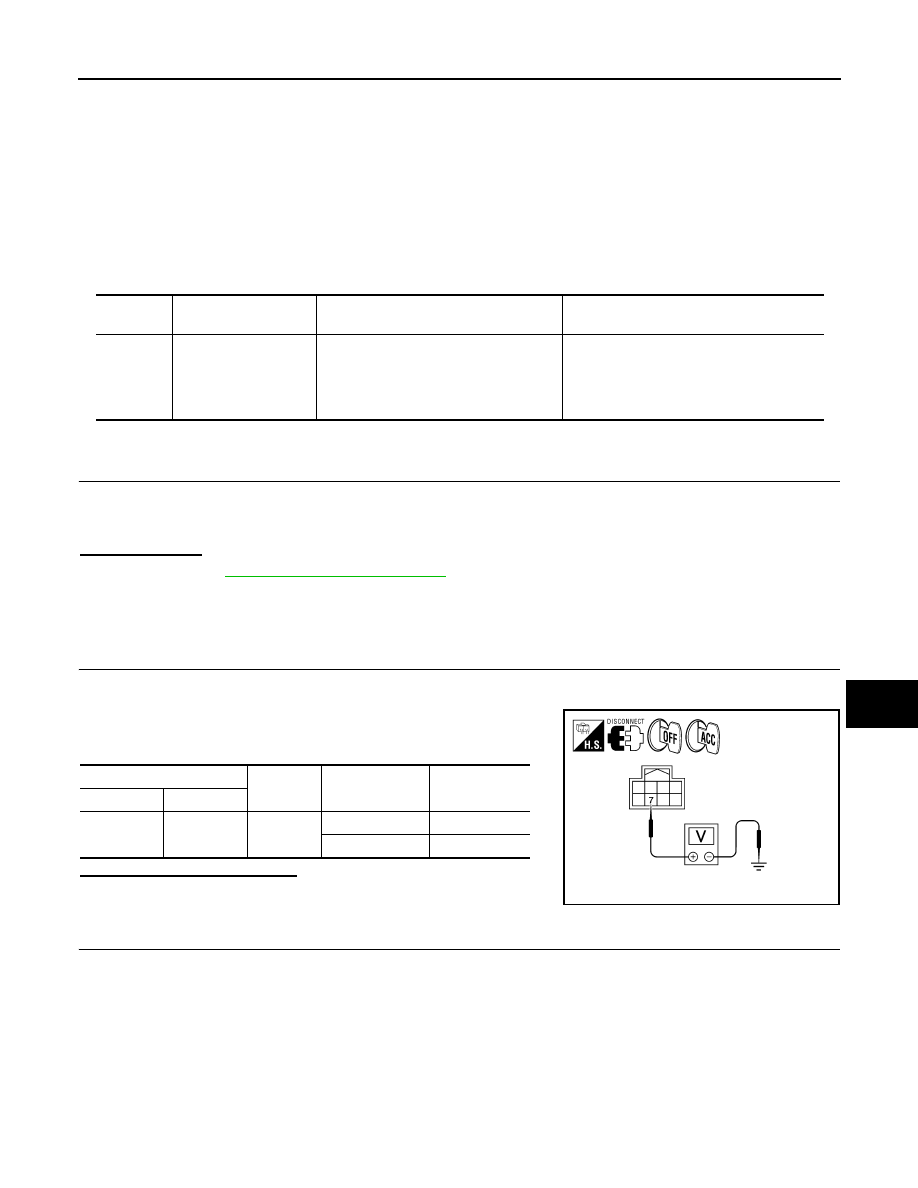

SEC-39

< COMPONENT DIAGNOSIS >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2014 CHAIN OF STRG-IMMU

Description

INFOID:0000000004206026

BCM performs the ID verification with the steering lock unit to release the steering. BCM starts the communi-

cation with the steering lock unit when Intelligent Key is carried into the passenger compartment and the push-

button ignition switch is pressed.

DTC Logic

INFOID:0000000004206027

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Lock steering.

2. Press the push-button ignition switch.

3. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-39, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000004206028

1.

CHECK STEERING LOCK UNIT POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect steering lock unit harness connector.

3. Check voltage between steering lock unit harness connector

and ground while turning ignition switch from OFF to ACC.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> GO TO 2

2.

CHECK STEERING LOCK UNIT POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM harness connector.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2014

CHAIN OF STRG-
IMMU

Inactive communication between steering
control unit and BCM

• Harness or connectors

(steering lock unit circuit is open or short-
ed)

• Steering lock unit
• BCM

Steering lock unit

Ground

Ignition switch

position

Voltage [V]

Connector

Terminal

M32

7

Ground

OFF

→ ACC

Battery voltage

OFF or ON

0

ALKIA1348ZZ

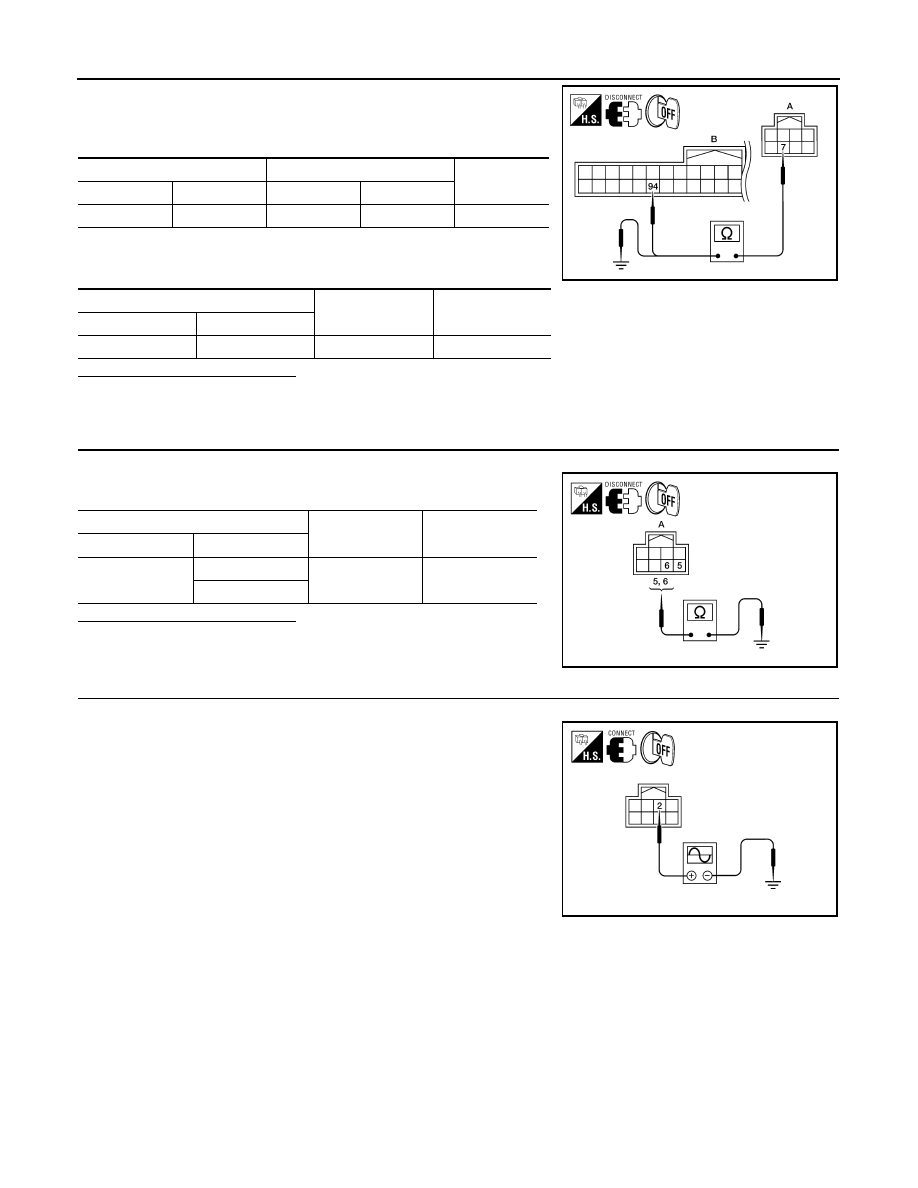

SEC-40

< COMPONENT DIAGNOSIS >

[COUPE]

B2014 CHAIN OF STRG-IMMU

3. Check continuity between steering lock unit harness connector

M32 (A) terminal 7 and BCM harness connector M19 (B) termi-

nal 94.

4. Check continuity between steering lock unit harness connector

M32 (A) terminal 7 and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Repair harness or connector.

3.

CHECK STEERING LOCK UNIT GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between steering lock unit and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair harness or connector.

4.

CHECK STEERING LOCK UNIT COMMUNICATION SIGNAL

1. Connect steering lock unit harness connector.

2. Using an oscilloscope, read voltage signal between steering

lock unit harness connector and ground.

Steering lock unit

BCM

Continuity

Connector

Terminal

connector

Terminal

A:  M32

7

B:  M19

94

Yes

Steering lock unit

Ground

Continuity

Connector

Terminal

A: M32

7

Ground

No

ALKIA0433ZZ

Steering lock unit

Ground

Continuity

Connector

Terminal

M32

5

Ground

Yes

6

ALKIA0434ZZ

ALKIA0435ZZ

B2014 CHAIN OF STRG-IMMU

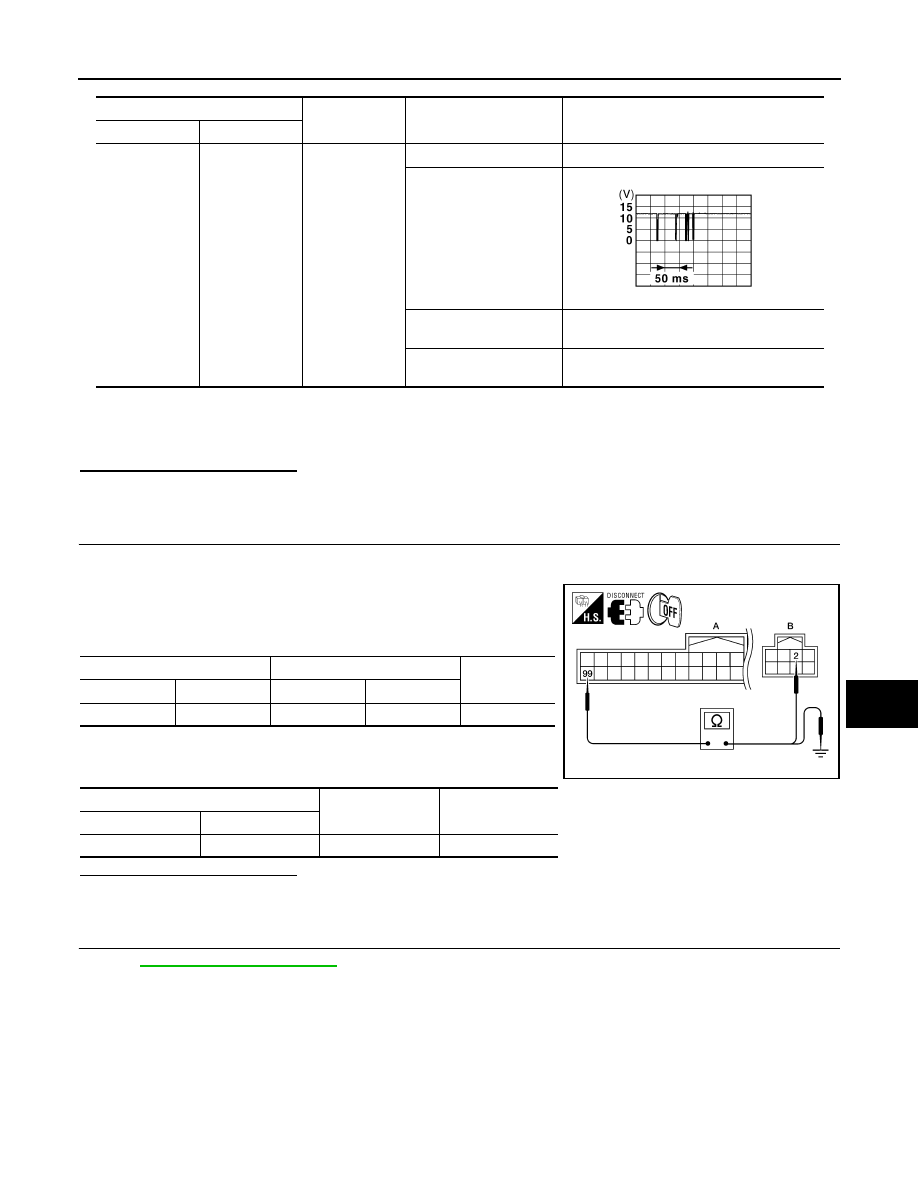

SEC-41

< COMPONENT DIAGNOSIS >

[COUPE]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Is the inspection result normal?

YES

>> Replace steering lock unit.

NO

>> GO TO 5

5.

CHECK STEERING LOCK UNIT COMMUNICATION CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM harness connector.

3. Check continuity between BCM harness connector M19 (A) ter-

minal 99 and steering lock unit harness connector M32 (B) ter-

minal 2.

4. Check continuity between BCM harness connector M19 (A) ter-

minal 99 and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Repair harness or connector.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> Inspection End.

Steering lock unit

Ground

Steering lock unit condi-

tion

Value

Connector

Terminal

M32

2

Ground

Lock

Battery voltage

Lock or unlock

For 15 seconds after un-

lock

Battery voltage

15 seconds or later after

unlock.

0 V

Steering is locked

: Opening the door when ignition switch is ON to OFF.

Steering is unlocked

: Ignition switch is OFF to ACC.

JMKIA0066GB

BCM

Steering lock unit

Continuity

Connector

Terminal

connector

Terminal

A: M19

99

B: M32

2

Yes

BCM

Ground

Continuity

Connector

Terminal

A: M19

99

Ground

No

ALKIA0436ZZ
