AUDIO ANTENNA (SEDAN)

AUDIO ANTENNA (SEDAN)

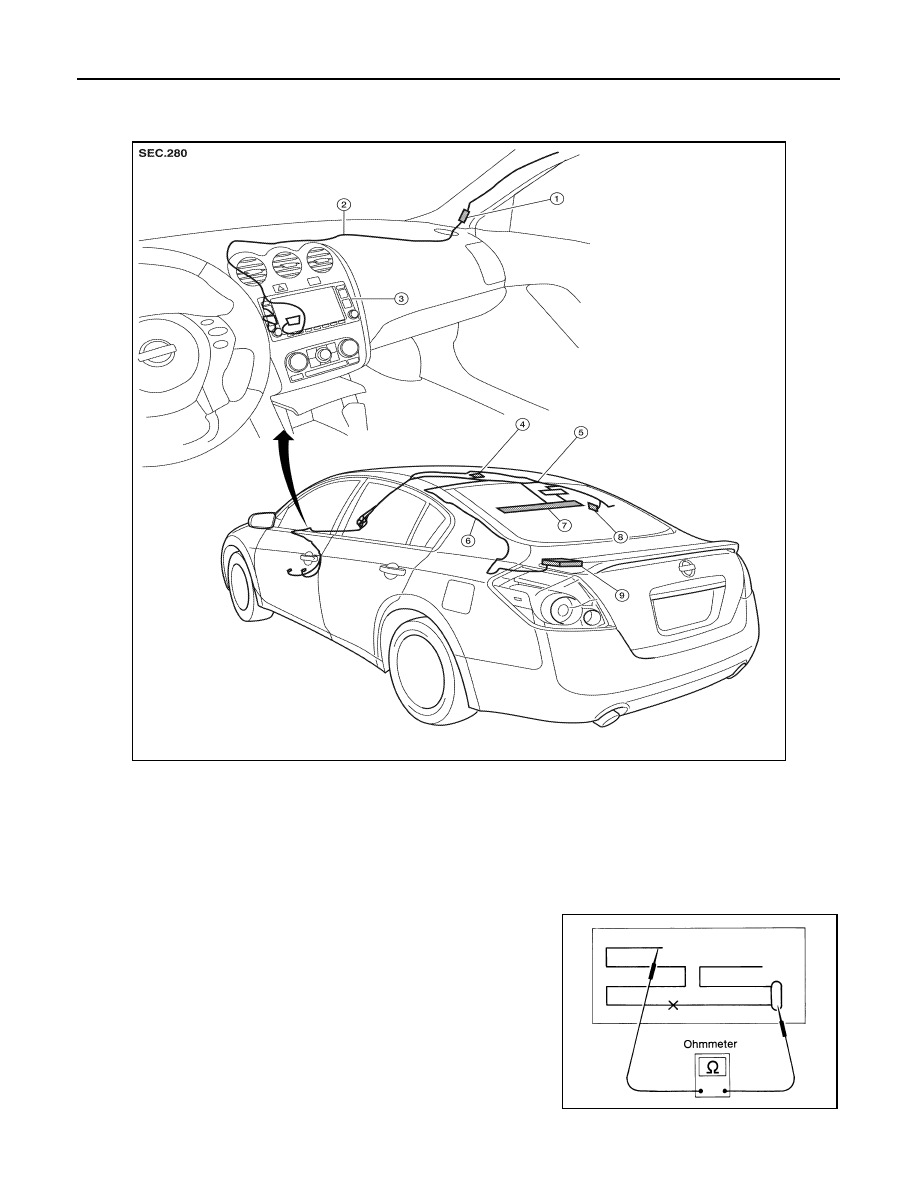

Location of Antenna

INFOID:0000000004206706

Window Antenna Repair

INFOID:0000000004206707

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

AWNIA1817ZZ

1.

In-line connectors M87, M501

2.

AV control unit harness

3.

AV control unit

4.

Satellite antenna

5.

AV control unit antenna feeder

6.

Satellite radio antenna feeder

7.

Window Antenna

8.

Antenna amp.

9.

Satellite radio tuner

SEL250I

AV

AUDIO ANTENNA (SEDAN)

AV-453

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

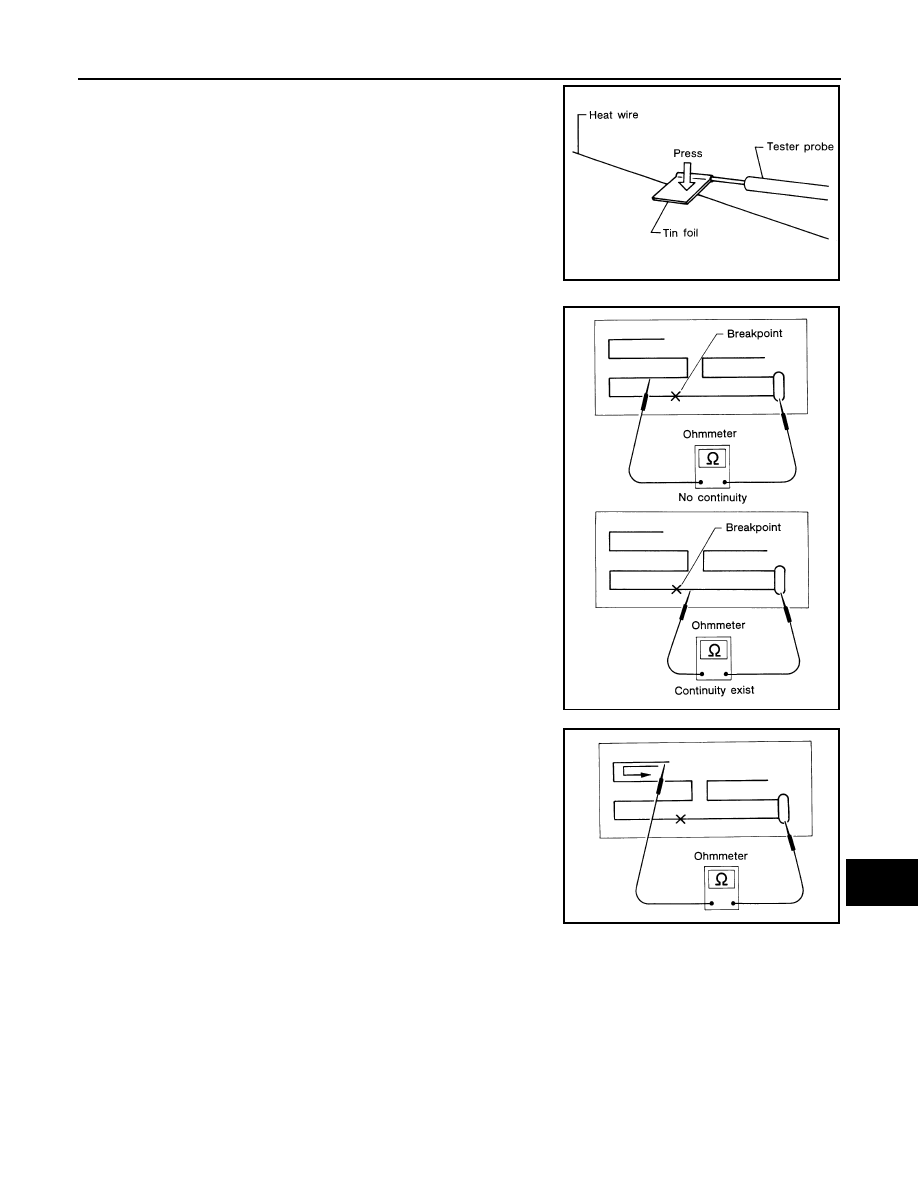

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

REPAIR EQUIPMENT

• Conductive silver composition (DuPont No. 4817 or equivalent)

• Ruler 30 cm (11.8 in) long

• Drawing pen

• Heat gun

• Alcohol

• Cloth

REPAIRING PROCEDURE

SEL122R

SEL252I

SEL253I

AV-454

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

AUDIO ANTENNA (SEDAN)

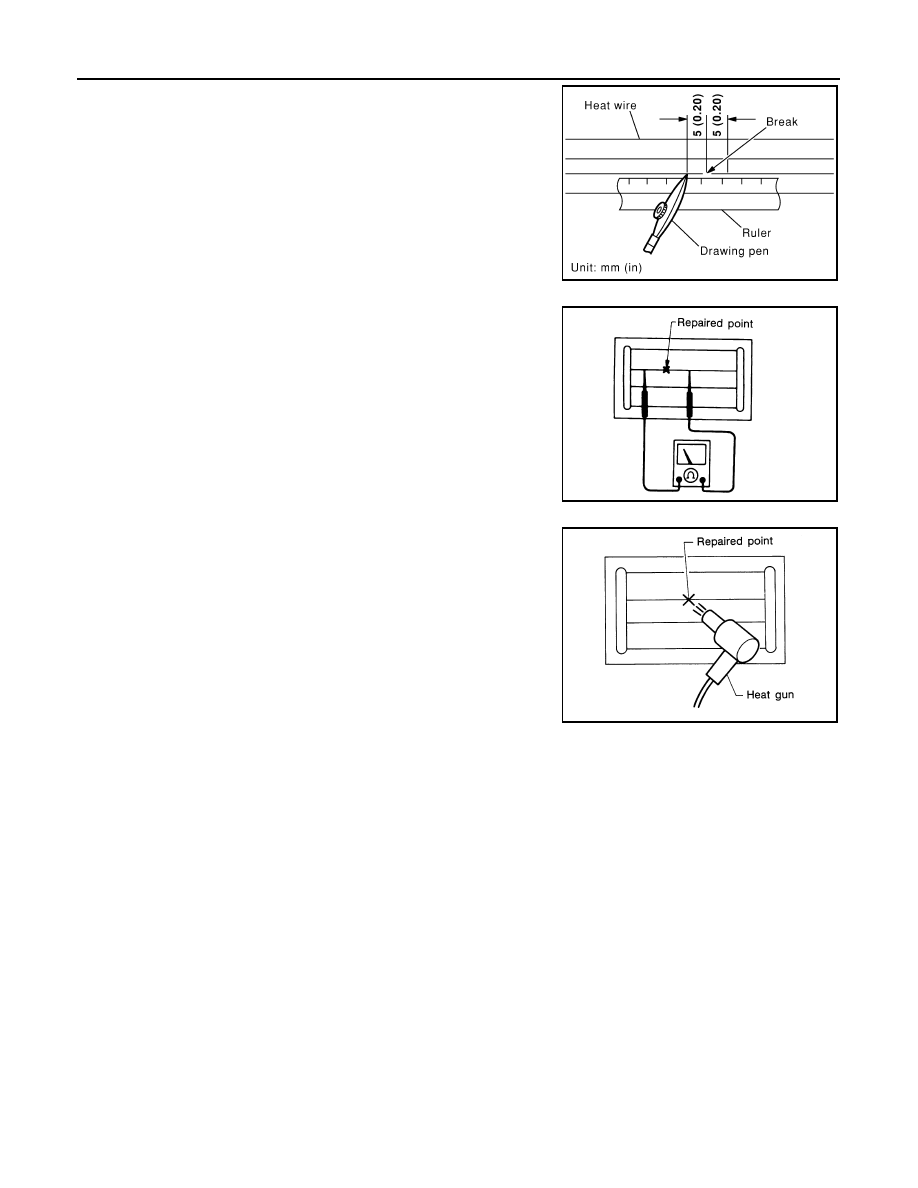

1. Wipe broken heat wire and its surrounding area clean with a

cloth dampened in alcohol.

2. Apply a small amount of conductive silver composition to tip of

drawing pen.

Shake silver composition container before use.

3. Place ruler on glass along broken line. Deposit conductive silver

composition on break with drawing pen. Slightly overlap existing

heat wire on both sides [preferably 5 mm (0.20 in)] of the break.

4. After repair has been completed, check repaired wire for conti-

nuity. This check should be conducted 10 minutes after silver

composition is deposited.

Do not touch repaired area while test is being conducted.

5. Apply a constant stream of hot air directly to the repaired area

for approximately 20 minutes with a heat gun. A minimum dis-

tance of 3 cm (1.2 in) should be kept between repaired area and

hot air outlet.

If a heat gun is not available, let the repaired area dry for 24

hours.

PIIA0215E

SEL012D

SEL013D

AV

ANTENNA AMP.

AV-455

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA AMP.

Removal and Installation - Coupe

INFOID:0000000004206708

REMOVAL

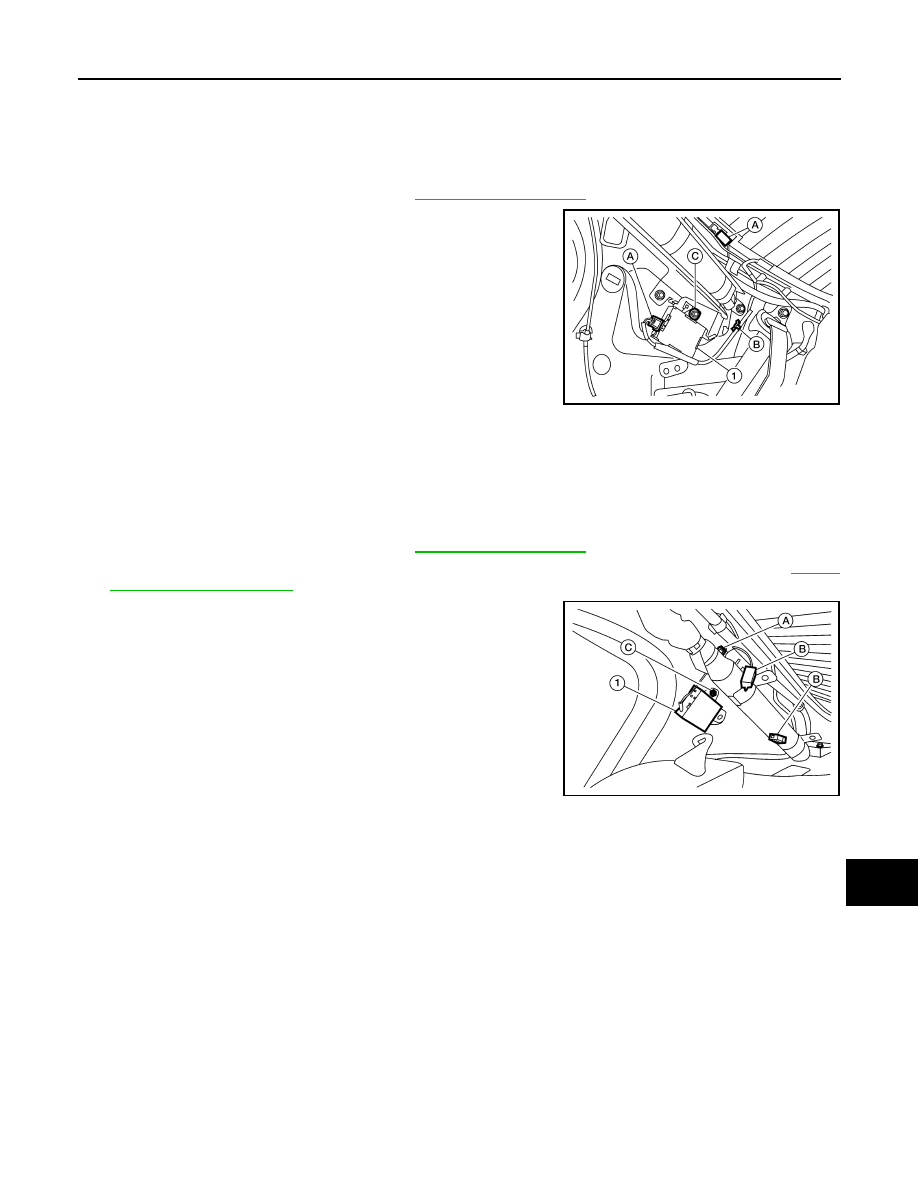

1. Remove the rear pillar finisher RH. Refer to

INT-20, "Exploded View"

.

2. Detach the antenna amp harness clip (B), disconnect the

antenna amp connectors (A), remove the antenna amp screw

(C) and remove the antenna amp (1).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation - Sedan

INFOID:0000000004206709

REMOVAL

1. Remove the rear pillar finisher RH. Refer to

INT-42, "Exploded View"

.

2. Partially remove the side curtain air bag module RH to gain access to the antenna amp. Refer to

SR-12,

"Removal and Installation"

.

3. Detach the antenna amp harness clip (A), disconnect the

antenna amp connectors (B), remove the antenna amp screw

(C) and remove the antenna amp (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0917ZZ
