< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000004206703

REMOVAL

1. Remove the driver airbag module. Refer to

SR-5, "Removal and Installation"

.

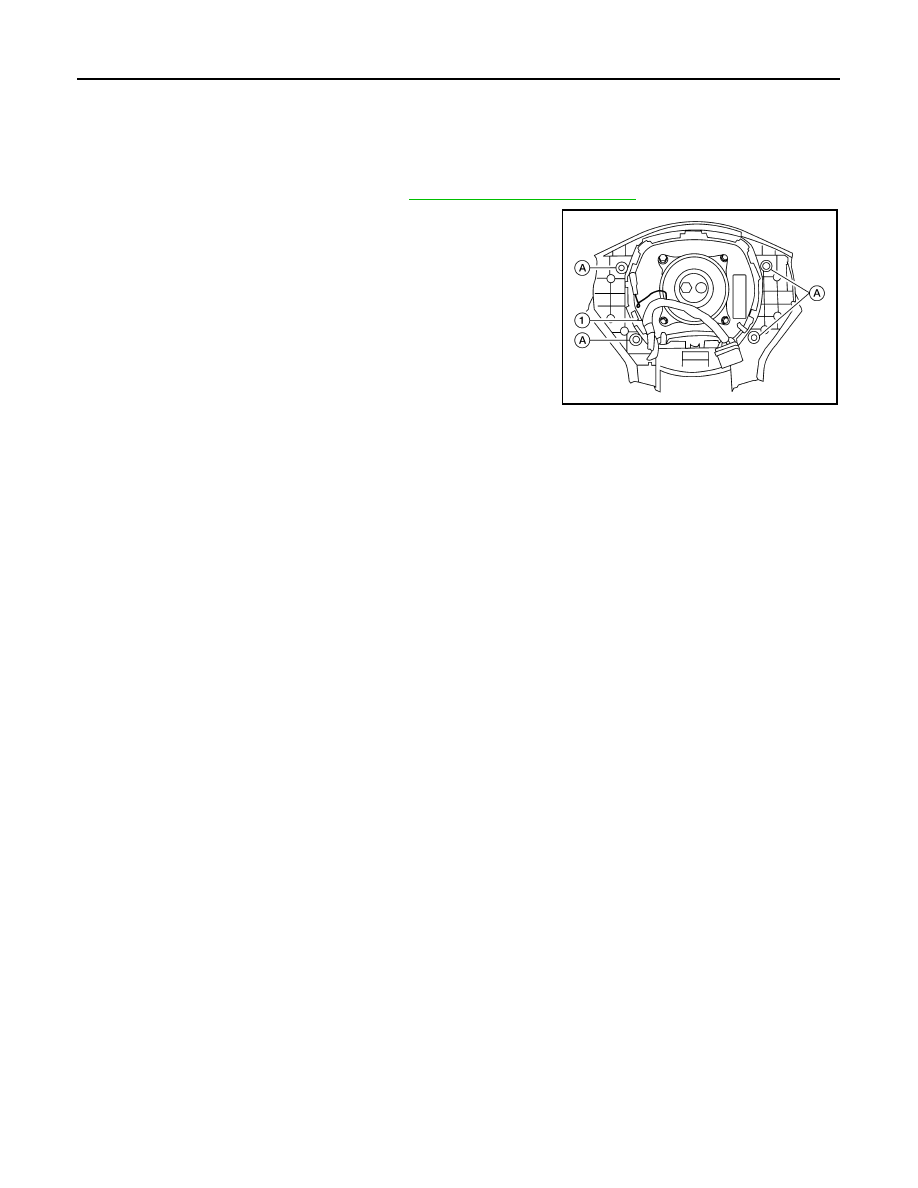

2. Remove the steering wheel switch assembly screws (A), then

remove the steering wheel switches (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0045ZZ

AV

AUDIO ANTENNA (COUPE)

AV-449

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO ANTENNA (COUPE)

Location of Antenna

INFOID:0000000004206704

Window Antenna Repair

INFOID:0000000004206705

ELEMENT CHECK

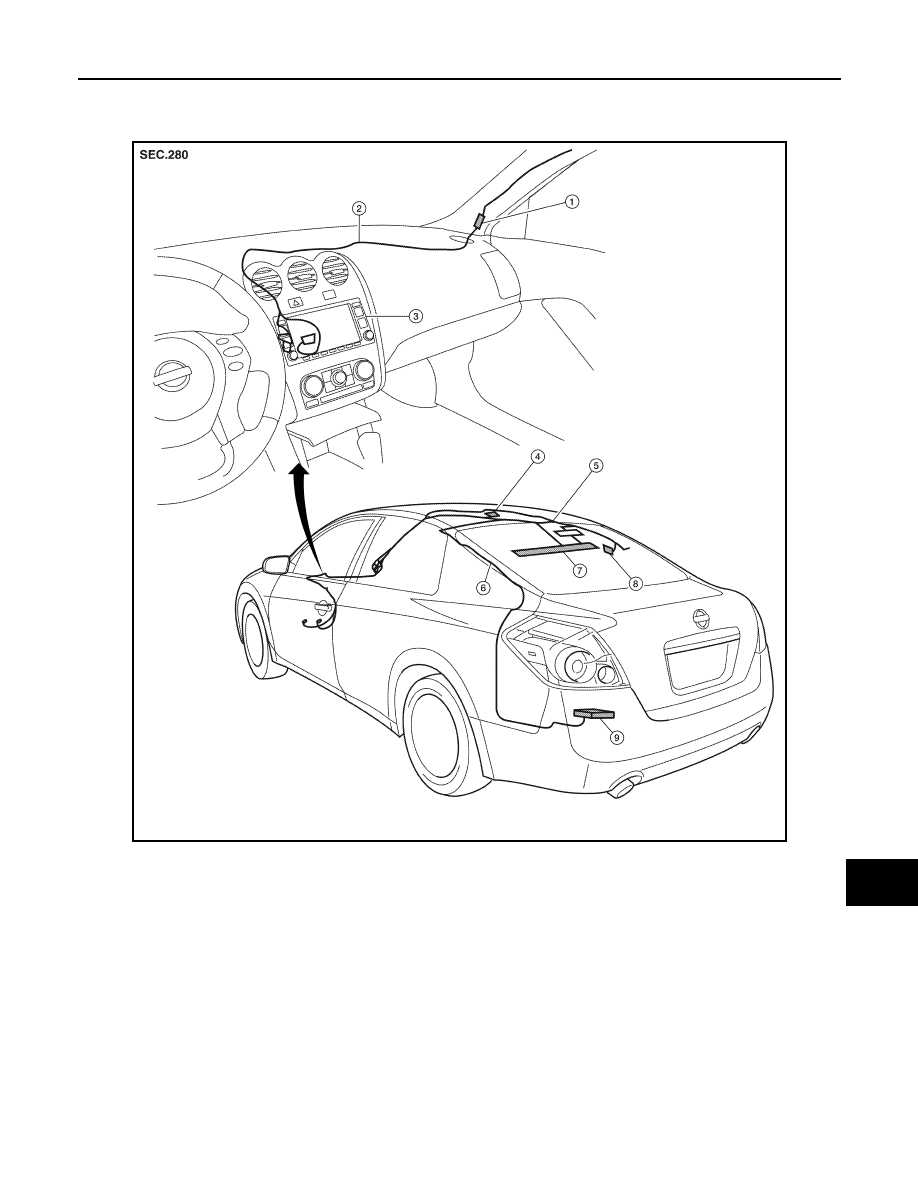

AWNIA1816ZZ

1.

In-line connectors M87, M501

2.

AV control unit harness

3.

AV control unit

4.

Satellite antenna

5.

AV control unit antenna feeder

6.

Satellite radio antenna feeder

7.

Window Antenna

8.

Antenna amp.

9.

Satellite radio tuner

AV-450

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

AUDIO ANTENNA (COUPE)

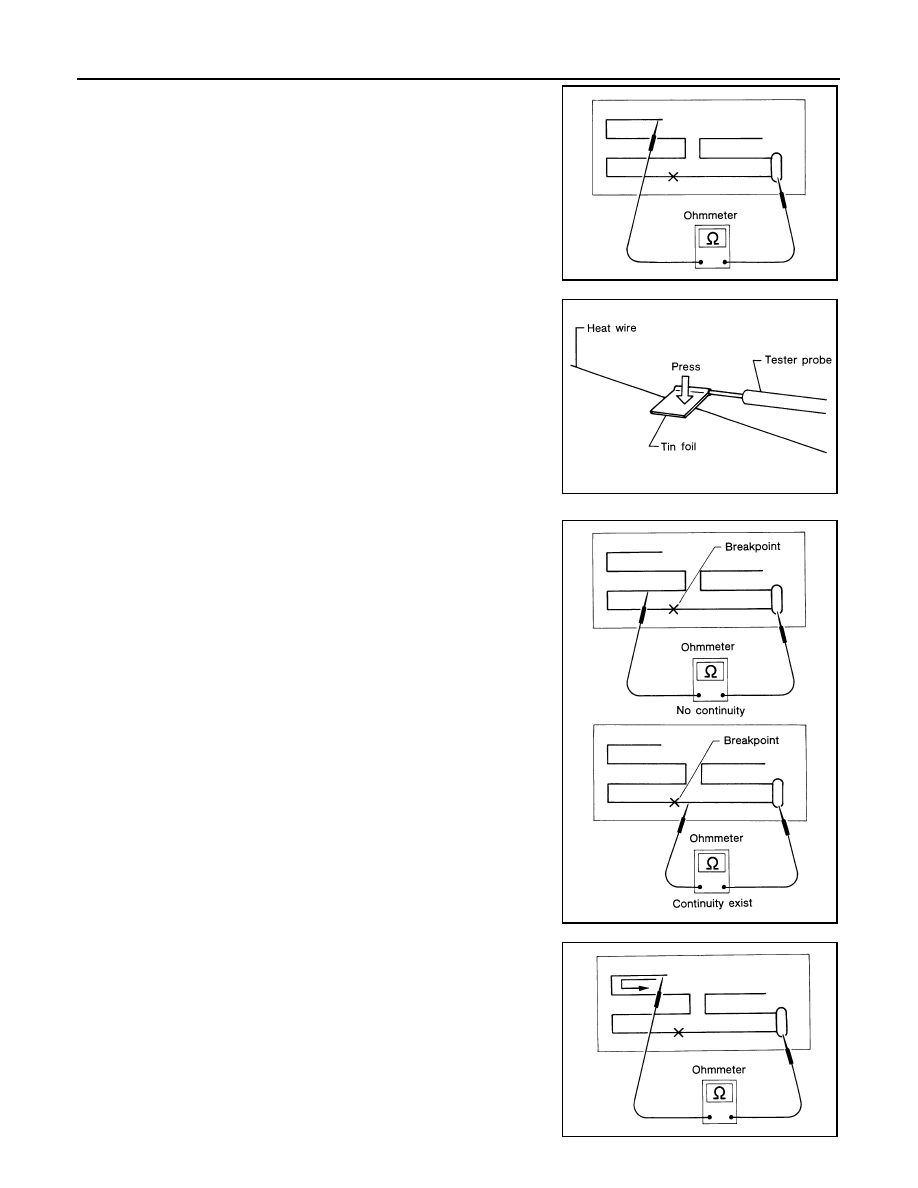

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

SEL250I

SEL122R

SEL252I

SEL253I

AV

AUDIO ANTENNA (COUPE)

AV-451

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REPAIR EQUIPMENT

• Conductive silver composition (DuPont No. 4817 or equivalent)

• Ruler 30 cm (11.8 in) long

• Drawing pen

• Heat gun

• Alcohol

• Cloth

REPAIRING PROCEDURE

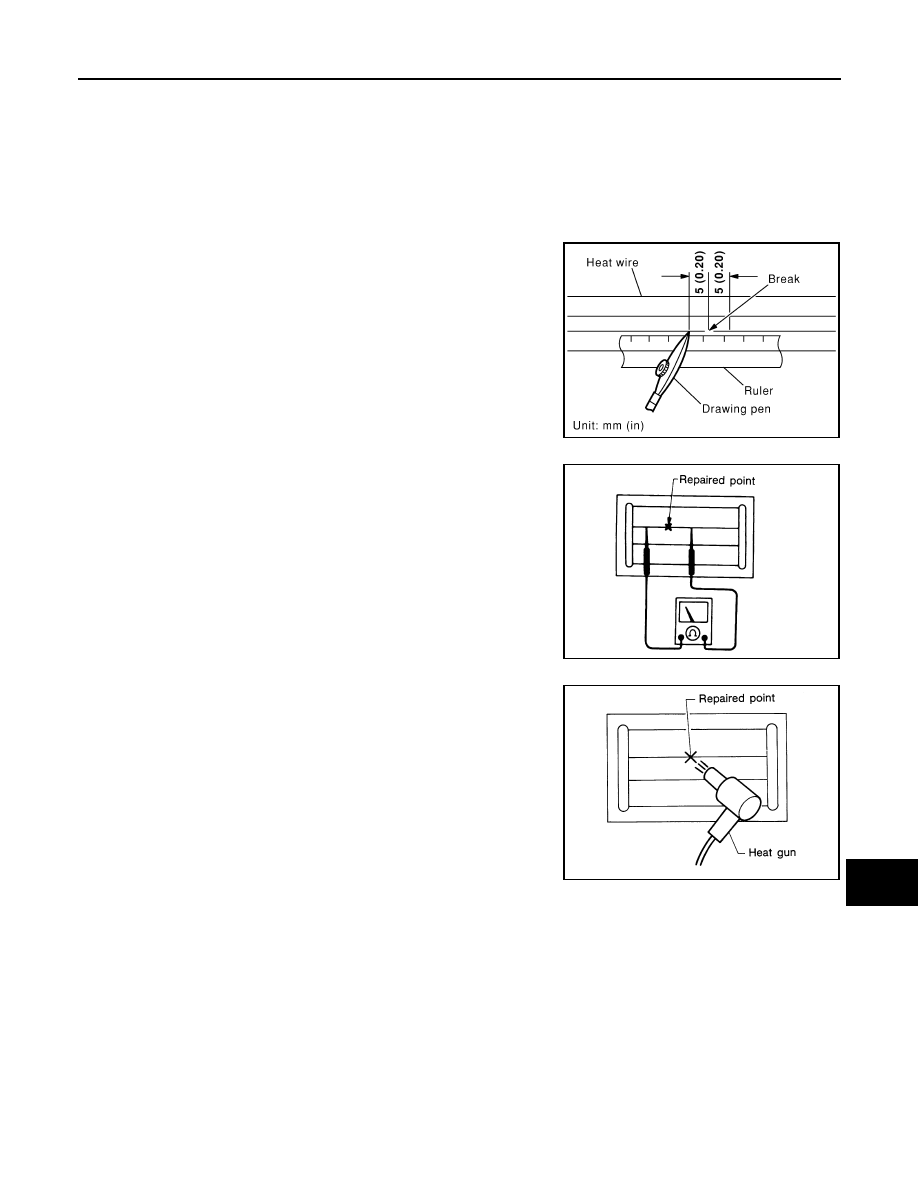

1. Wipe broken heat wire and its surrounding area clean with a

cloth dampened in alcohol.

2. Apply a small amount of conductive silver composition to tip of

drawing pen.

Shake silver composition container before use.

3. Place ruler on glass along broken line. Deposit conductive silver

composition on break with drawing pen. Slightly overlap existing

heat wire on both sides [preferably 5 mm (0.20 in)] of the break.

4. After repair has been completed, check repaired wire for conti-

nuity. This check should be conducted 10 minutes after silver

composition is deposited.

Do not touch repaired area while test is being conducted.

5. Apply a constant stream of hot air directly to the repaired area

for approximately 20 minutes with a heat gun. A minimum dis-

tance of 3 cm (1.2 in) should be kept between repaired area and

hot air outlet.

If a heat gun is not available, let the repaired area dry for 24

hours.

PIIA0215E

SEL012D

SEL013D
