Nissan Altima L32. Manual - part 111

AV-436

< PREPARATION >

[BOSE AUDIO WITH NAVIGATION]

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000004206687

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0191E

AV

AUDIO UNIT

AV-437

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ON-VEHICLE REPAIR

AUDIO UNIT

Removal and Installation

INFOID:0000000004206688

REMOVAL

1. Remove cluster lid C. Refer to

IP-12, "Removal and Installation"

.

2. Remove cluster lid D lower finisher. Refer to

IP-12, "Removal and Installation"

.

3. Remove navigation audio unit upper and lower screws (A).

4. Remove the navigation audio unit bracket screws (A) and

remove the navigation audio unit bracket (1).

5. Pull out the navigation audio unit assembly, disconnect the navigation audio unit assembly connectors.

INSTALLATION

Installation is in the reverse order of removal.

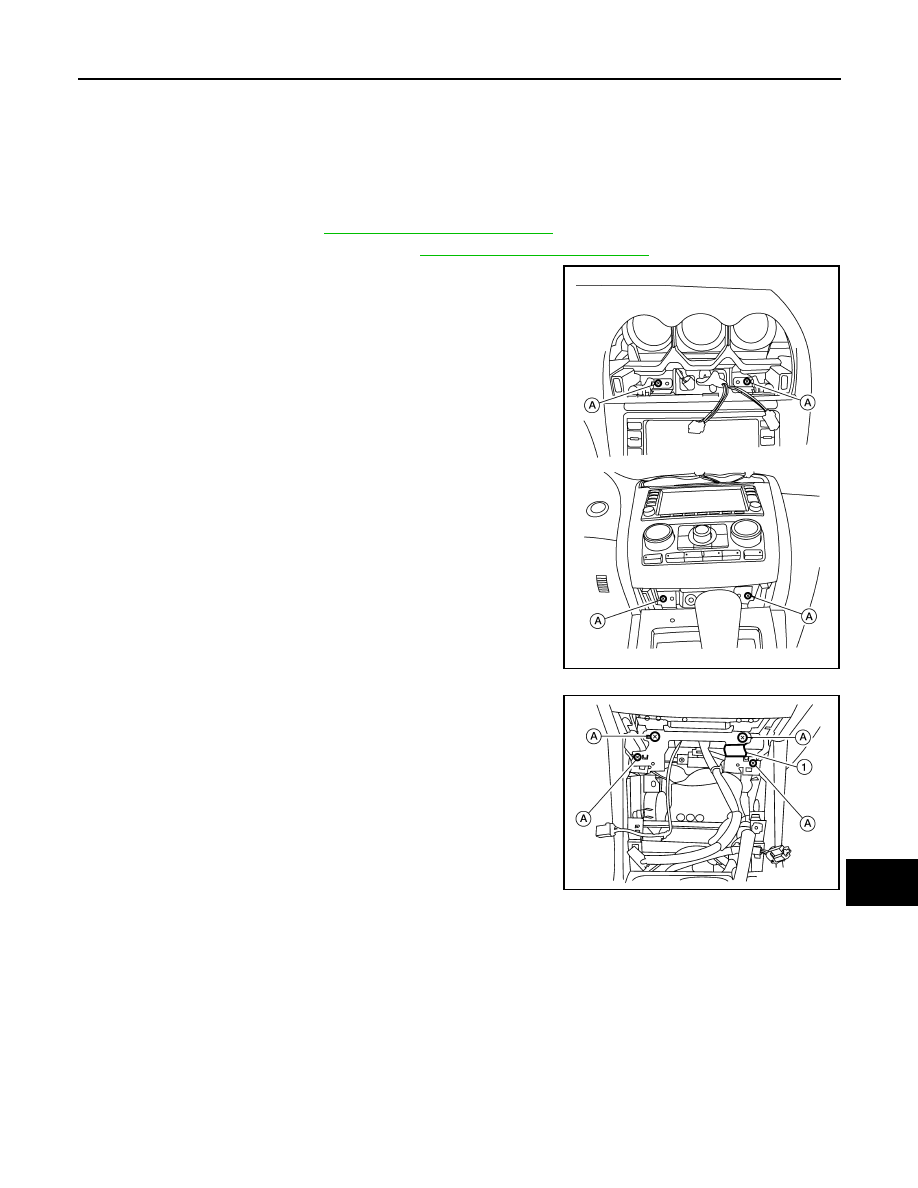

ALNIA0059ZZ

ALNIA0060ZZ

AV-438

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

BOSE SPEAKER AMP

BOSE SPEAKER AMP

Removal and Installation - Coupe

INFOID:0000000004206689

REMOVAL

1. Disconnect the negative battery terminal.
2. Remove the trunk floor carpet and spare tire cover. Refer to

INT-23, "Removal and Installation"

.

3. Remove the RH trunk floor spacer.
4. Remove the Bose speaker amp. screws (A), then disconnect the

Bose speaker amp. connectors (B) and remove the Bose

speaker amp. (1).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation - Sedan

INFOID:0000000004523221

REMOVAL

1. Disconnect the negative battery terminal.
2. Open the trunk lid.
3. Remove the Bose speaker amp. screws (A), then disconnect the

Bose speaker amp. connectors (B) and remove the Bose

speaker amp. (1).

INSTALLATION

Installation is in the reverse order of removal.

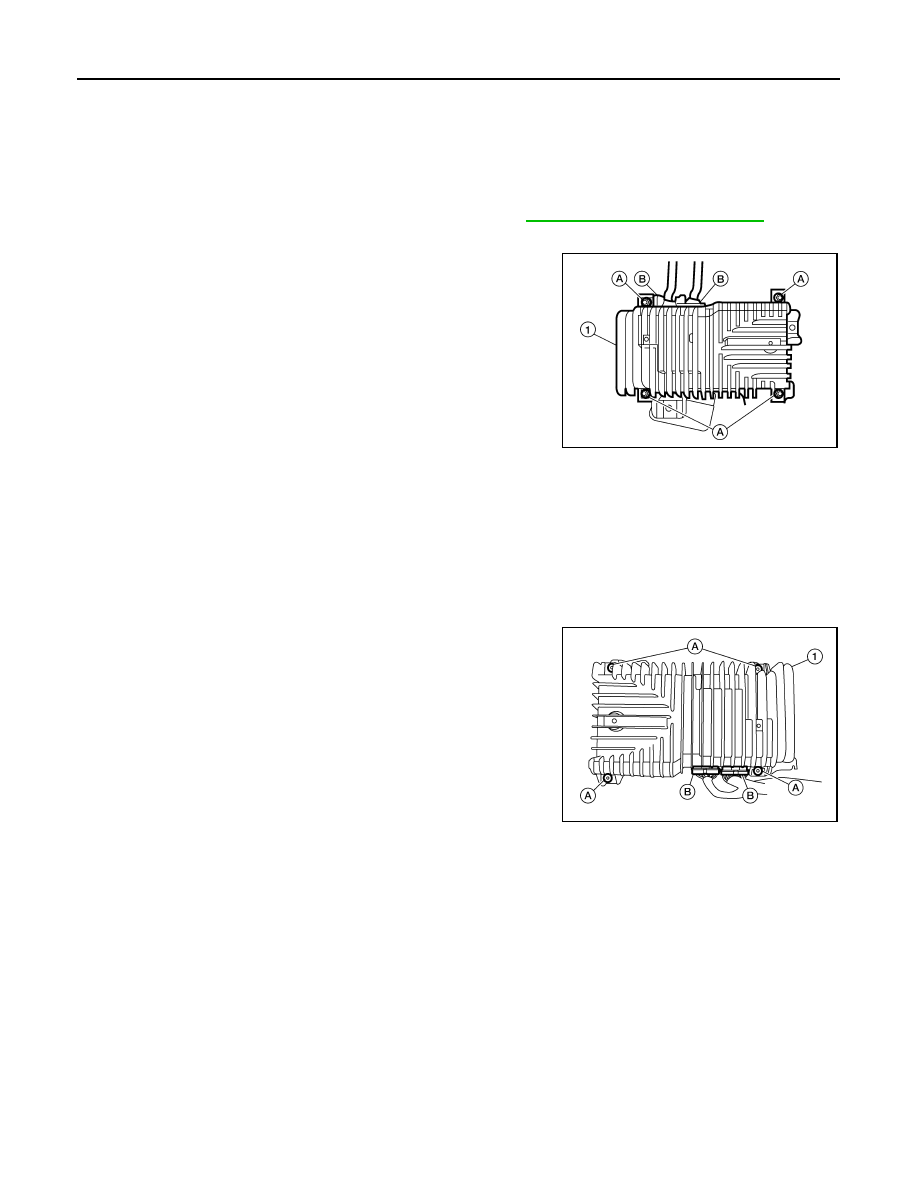

ALNIA0918ZZ

ALNIA1020ZZ

AV

CD CHANGER

AV-439

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CD CHANGER

Removal and Installation

INFOID:0000000004206691

REMOVAL

1. Remove the Cluster D lower finisher. Refer to

IP-12, "Removal and Installation"

.

2. Put selector lever in the drive "D" position (CVT models only).
3. Put shift lever in neutral (M/T models only).
4. Using a suitable tool remove the CD changer finisher (1), then

disconnect the power socket, AUX jack connectors and remove

the CD changer finisher (1).

5. Remove the CD changer screws (A), pull out the unit, then dis-

connect the CD changer connector and remove the CD changer

(1).

6. Remove the CD changer bracket screws (A).

• CD changer brackets (1)

• CD changer (2)

INSTALLATION

Installation is in the reverse order of removal.

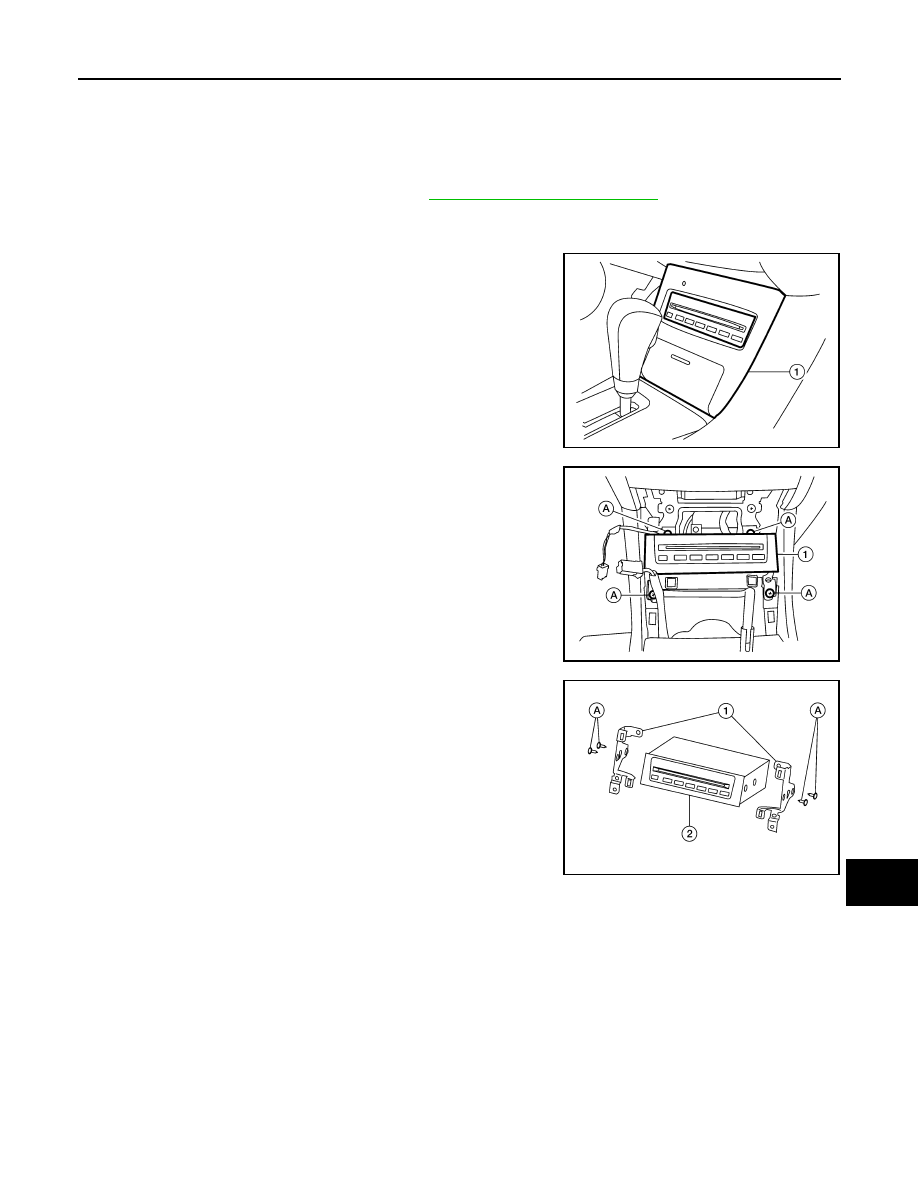

ALNIA0047ZZ

ALNIA0048ZZ

ALNIA0049ZZ
