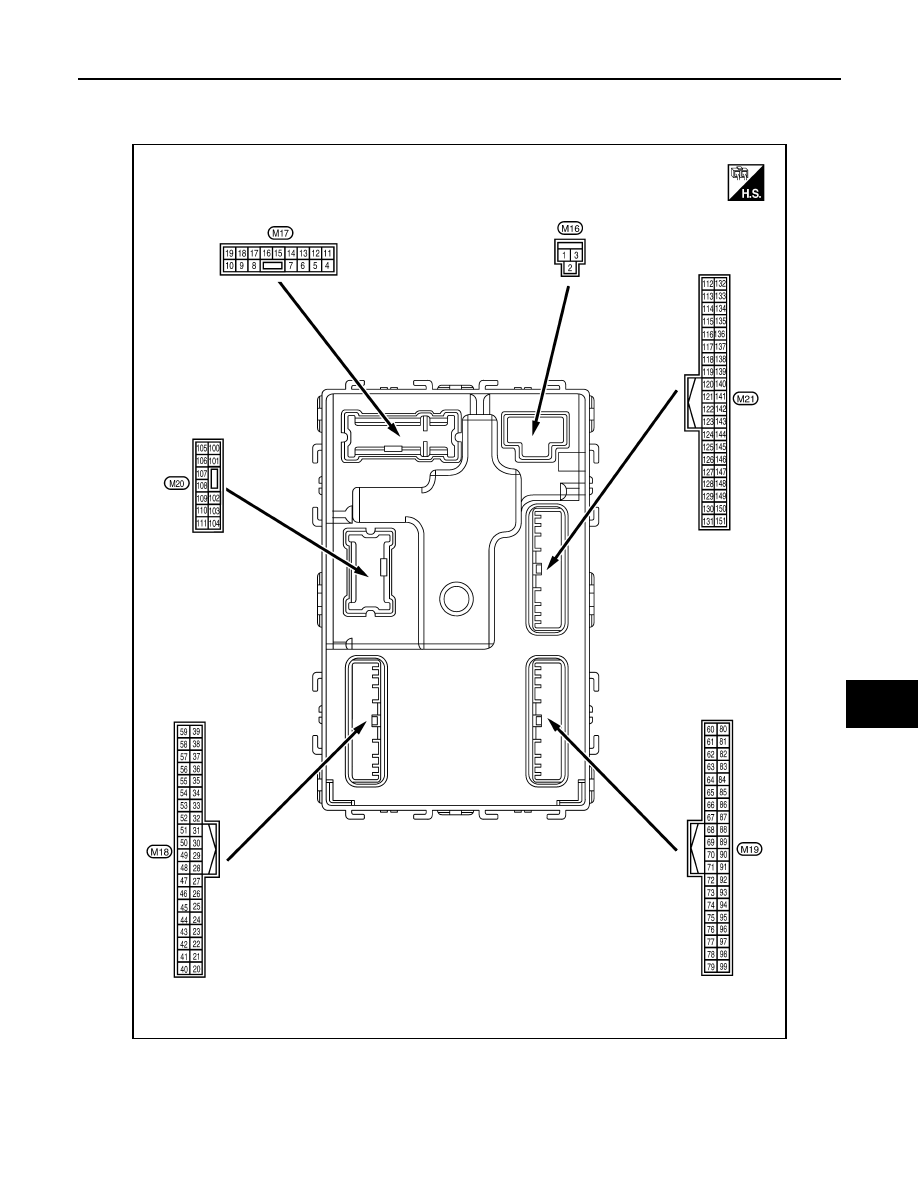

BCM (BODY CONTROL MODULE) PWC-47 < ECU DIAGNOSIS > [LH ONLY ANTI-PINCH-COUPE] C D E F G H I J L M A B PWC N O P DOOR STAT-DR Driver door LOCK status LOCK Wait with selective UNLOCK operation (5 seconds) READY Driver door UNLOCK status UNLK DOOR STAT-AS Passenger door LOCK status LOCK Wait with selective UNLOCK operation (5 seconds) READY Passenger door UNLOCK status UNLK ID OK FLAG Ignition switch ACC or ON RESET Ignition switch OFF SET PRMT ENG STAT When the engine start is prohibited RESET When the engine start is permitted SET PRMT RKE STAT NOTE: RESET KEY SW -SLOT When Intelligent Key is not inserted into key slot OFF When Intelligent Key is inserted into key slot ON RKE OPE COUN1 During the operation of Intelligent Key Operation frequency of Intelligent Key RKE OPE COUN2 NOTE: Operation frequency of Intelligent Key CONFRM ID ALL The key ID that the key slot receives does not accord with any key YET The key ID that the key slot receives accords with any key ID regis- DONE CONFIRM ID4 The key ID that the key slot receives does not accord with the fourth YET The key ID that the key slot receives accords with the fourth key ID DONE CONFIRM ID3 The key ID that the key slot receives does not accord with the third YET The key ID that the key slot receives accords with the third key ID DONE CONFIRM ID2 The key ID that the key slot receives does not accord with the sec- YET The key ID that the key slot receives accords with the second key DONE CONFIRM ID1 The key ID that the key slot receives does not accord with the first YET The key ID that the key slot receives accords with the first key ID DONE TP 4 The ID of fourth key is not registered to BCM YET The ID of fourth key is registered to BCM DONE TP 3 The ID of third key is not registered to BCM YET The ID of third key is registered to BCM DONE TP 2 The ID of second key is not registered to BCM YET The ID of second key is registered to BCM DONE TP 1 The ID of first key is not registered to BCM YET The ID of first key is registered to BCM DONE AIR PRESS FL Ignition switch ON (only when the signal from the transmitter is re- Air pressure of front LH tire AIR PRESS FR Ignition switch ON (only when the signal from the transmitter is re- Air pressure of front RH tire Monitor Item Condition Value/Status |
