FRONT DOOR SPEAKER (SEDAN)

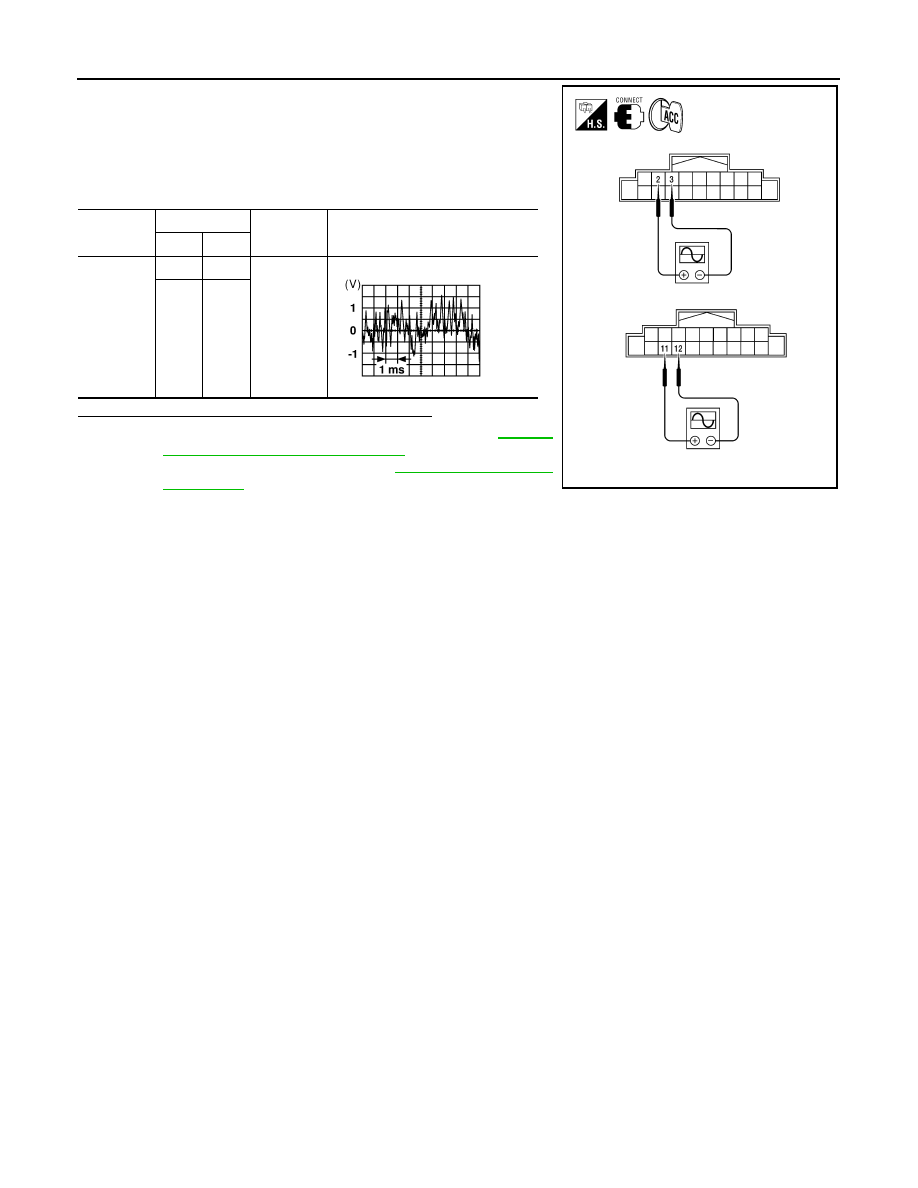

1. Connect AV control unit connector and BOSE speaker amp.

connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between AV control unit harness connector ter-

minals with CONSULT-III or oscilloscope.

Are the audio signal voltage readings as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-438,

"Removal and Installation - Sedan"

.

NO

>> Replace AV control unit. Refer to

AV-437, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M47

2

3

Receive
audio sig-
nal

11

12

ALNIA0171ZZ

SKIA0177E

AV

FRONT TWEETER (COUPE)

AV-333

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT TWEETER (COUPE)

Description

INFOID:0000000004206642

The audio unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the audio

signals before sending them to the front tweeters using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000004206643

1.

HARNESS CHECK

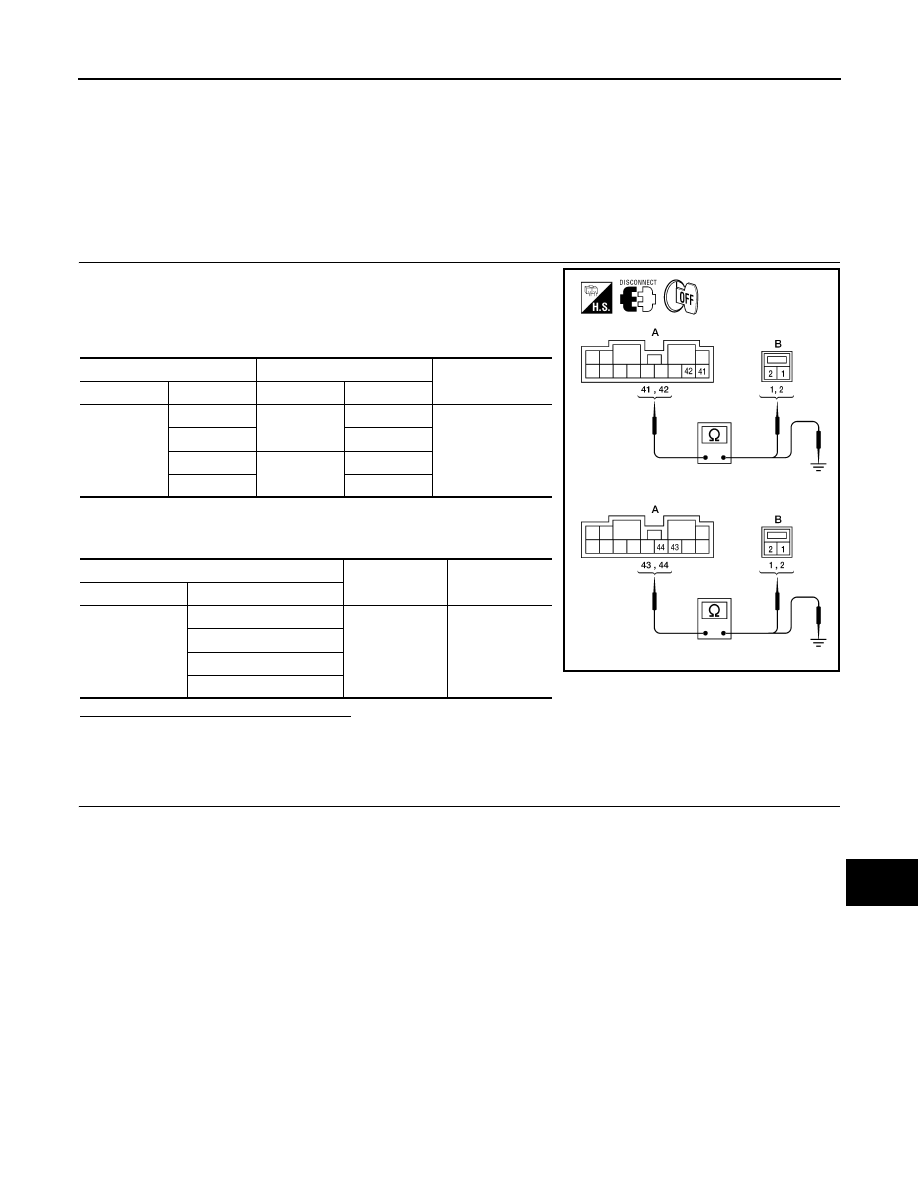

1. Disconnect BOSE speaker amp. connector B122 and suspect

tweeter connector.

2. Check continuity between BOSE speaker amp. harness connec-

tor B122 (A) and suspect tweeter harness connector (B).

3. Check continuity between BOSE speaker amp. harness connec-

tor B122 (A) and ground.

Are continuity test results as specified?

YES

>> GO TO 2

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

2.

FRONT TWEETER SIGNAL CHECK

A

B

Continuity

Connector

Terminal

Connector

Terminal

B122

41

M51

1

Yes

42

2

44

M52

1

43

2

A

—

Continuity

Connector

Terminal

B122

41

Ground

No

42

44

43

ALNIA0137ZZ

AV-334

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

FRONT TWEETER (COUPE)

1. Connect BOSE speaker amp. connector B122 and suspect

tweeter connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between BOSE speaker amp. harness connec-

tor B122 terminals with CONSULT-III or oscilloscope.

Are voltage readings as specified?

YES

>> Replace suspect tweeter. Refer to

AV-440, "Removal

and Installation"

.

NO

>> GO TO 3

3.

HARNESS CHECK

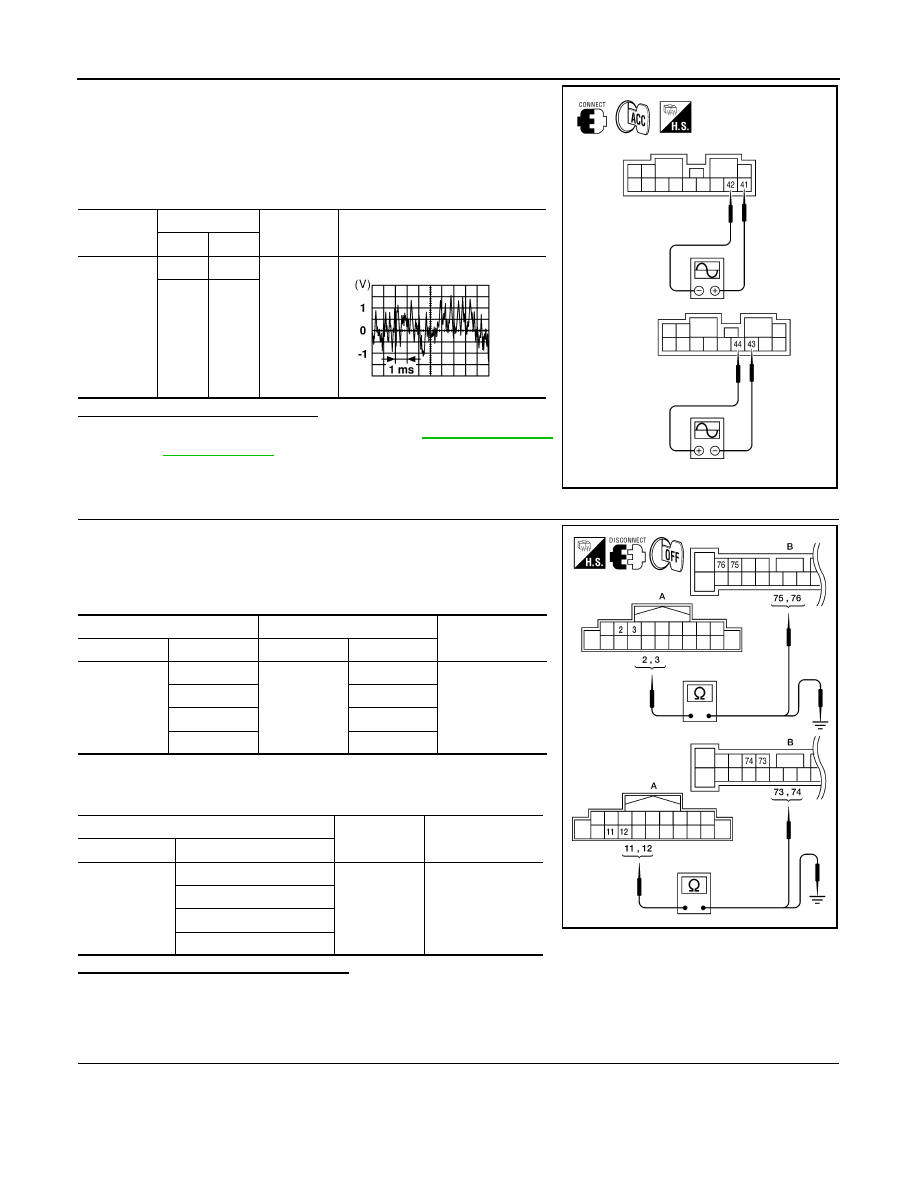

1. Disconnect AV control unit connector M47 and BOSE speaker

amp. connector B121.

2. Check continuity between AV control unit harness connector (A)

M47 and BOSE speaker amp. harness connector B121 (B).

3. Check continuity between AV control unit harness connector

B121 (A) and ground.

Are continuity test results as specified?

YES

>> GO TO 4

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

4.

FRONT TWEETER SIGNAL CHECK

Connector

Terminals

Condition

Reference

signal

(+)

(-)

B122

41

42

Receive
audio sig-
nal

44

43

ALNIA0138ZZ

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M47

2

B121

75

Yes

3

76

11

73

12

74

A

—

Continuity

Connector

Terminal

M47

2

Ground

No

3

11

12

ALNIA0136ZZ

AV

FRONT TWEETER (COUPE)

AV-335

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

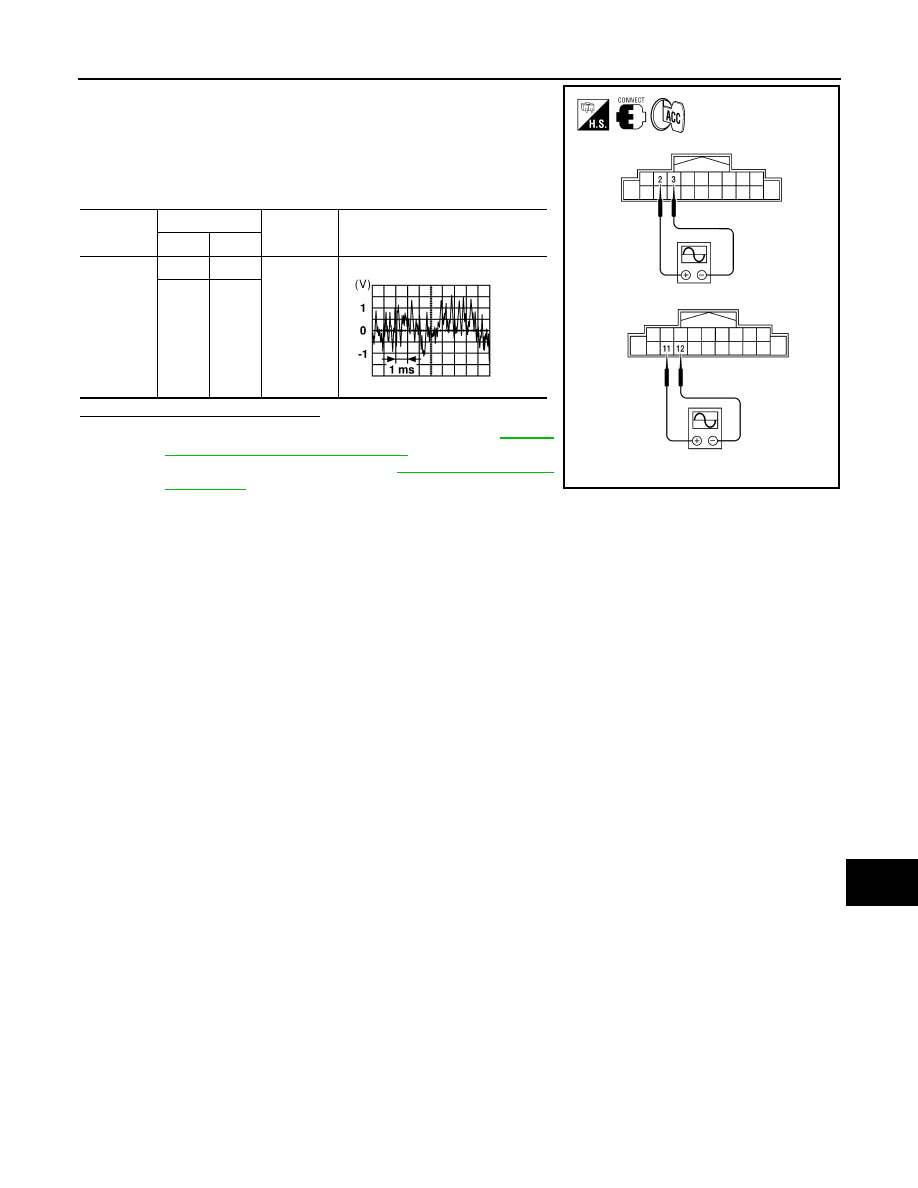

1. Connect AV control unit connector and BOSE speaker amp.

connector.

2. Turn ignition switch to ACC.

3. Push “POWER” switch.

4. Check the signal between AV control unit harness connector ter-

minals with CONSULT-III or oscilloscope.

Are voltage readings as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-438,

"Removal and Installation - Coupe"

.

NO

>> Replace AV control unit. Refer to

AV-437, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M47

2

3

Receive
audio sig-
nal

11

12

ALNIA0171ZZ
