3.

Apply soapy water to bound bumper.

CAUTION:

Never use machine oil.

4.

Insert bound bumper into mounting insulator.

5.

Compress coil spring using a spring compressor (commercial service tool), and install it onto strut assem-
bly.

CAUTION:

• Be sure a spring compressor is securely attached to coil spring, before compress coil spring.

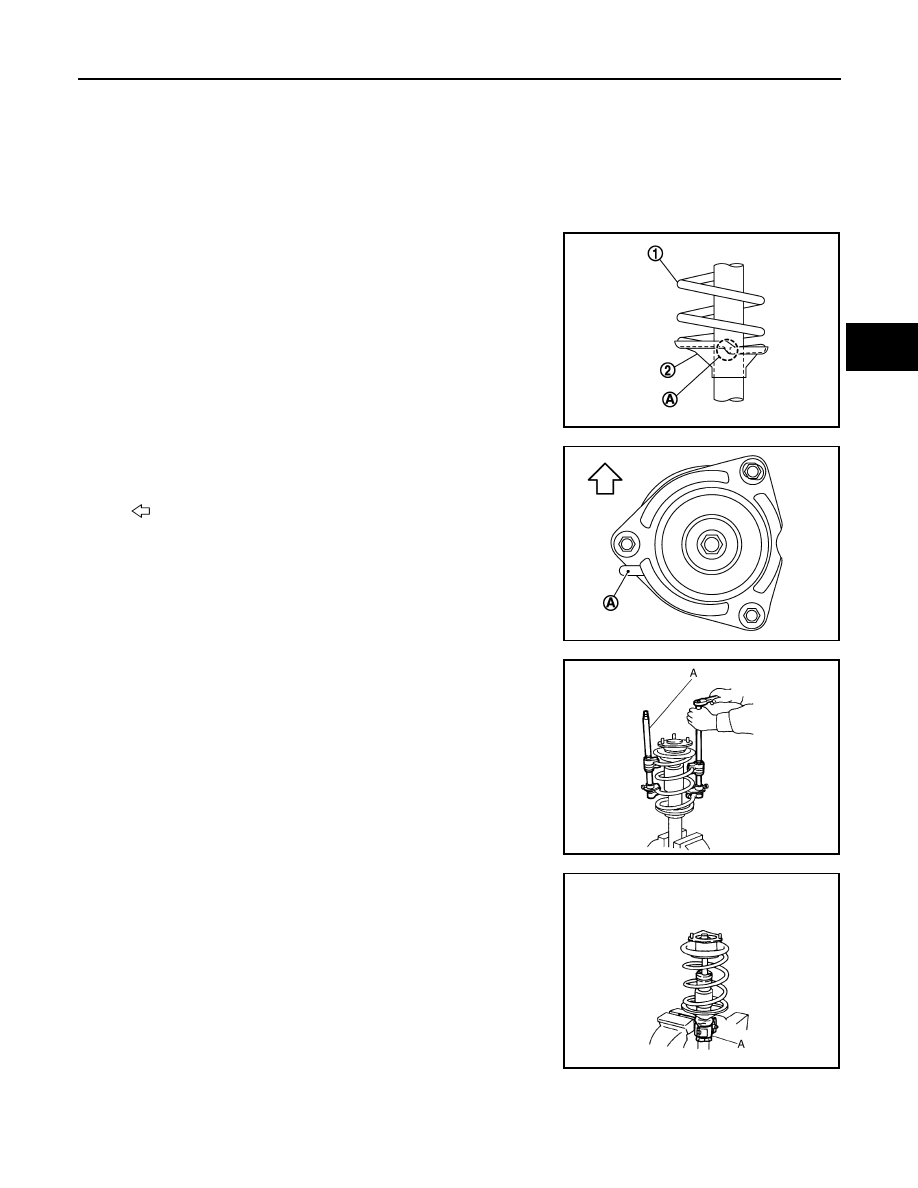

• Align the lower end of coil spring (1) with “A” of lower

rubber seat (2) as shown in the figure.

• Set coil spring so that its paint marks are aligned with the

positions of 1.25 turns and 2.25 turns from the bottom end
of the coil spring.

6.

Check the location of protrusion (A) of the mounting insulator
and install it with faced outside of the vehicle to the strut.

7.

Secure piston rod tip so that piston rod does not turn, then
tighten piston rod lock nut with specified torque.

CAUTION:

Never reuse piston rod lock nut.

8.

Gradually release a spring compressor (A) (commercial service
tool), and remove coil spring.

CAUTION:

Loosen while making sure coil spring attachment position
does not move.

9.

Remove the strut attachment (A) [SST: ST35652000 (

—

)]

from strut assembly.

Inspection

INFOID:0000000009650670

INSPECTION AFTER DISASSEMBLY

JPEIA0095ZZ

: Vehicle front

JPEIA0094ZZ

JPEIA0007ZZ

JPEIA0006ZZ

FSU-12

< REMOVAL AND INSTALLATION >

FRONT COIL SPRING AND STRUT

Check the following items, and replace the parts if necessary.

Strut

• Strut for deformation, cracks or damage
• Piston rod for damage, uneven wear or distortion
• Oil leakage

Strut Mounting Insulator and bound bumper

Check strut mounting insulator and bound bumper for cracks, wear or damage.

Coil Spring

Check coil spring for cracks, wear or damage.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connector. Refer to

BRC-119, "FRONT WHEEL SENSOR :

Exploded View"

.

2.

Check wheel alignment. Refer to

FSU-7, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-49, "Work Procedure"

 (with VDC).

Disposal

INFOID:0000000009650671

1.

Set strut assembly horizontally to the ground with the piston rod fully extracted.

2.

Drill 2 – 3 mm (0.08 – 0.12 in) hole at the position (

) from top

as shown in the figure to release gas gradually.

CAUTION:

• Wear eye protection (safety glasses).
• Wear gloves.
• Be careful with metal chips or oil blown out by the com-

pressed gas.

NOTE:
• Drill vertically in this direction show by arrow.
• Directly to the outer tube avoiding brackets.
• The gas is clear, colorless, odorless, and harmless.

3.

Position the drilled hole downward and drain oil by moving the piston rod several times.

CAUTION:

Dispose of drained oil according to the law and local regulations.

A

: 20 – 30 mm (0.79 – 1.18 in)

JPEIA0160ZZ

TRANSVERSE LINK

FSU-13

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

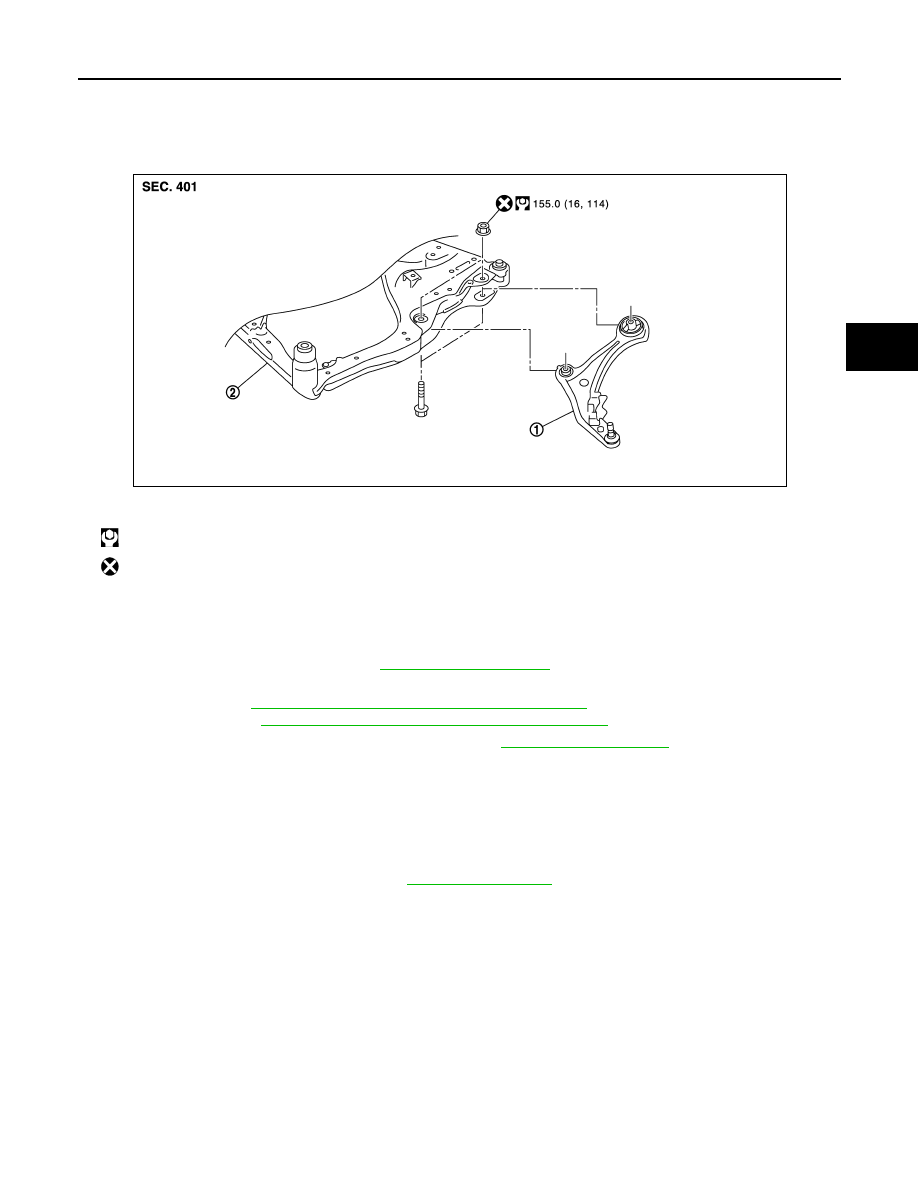

TRANSVERSE LINK

Exploded View

INFOID:0000000009650672

Removal and Installation

INFOID:0000000009650673

REMOVAL

1.

Remove tires with power tool. Refer to

WT-46, "Exploded View"

.

2.

Remove drive shaft from wheel hub assembly.
• Left side: Refer to

FAX-18, "LEFT SIDE : Removal and Installation"

.

• Right side: Refer to

FAX-19, "RIGHT SIDE : Removal and Installation"

.

3.

Separate transverse link from steering knuckle. Refer to

FAX-9, "Exploded View"

.

4.

Remove transverse link from suspension member.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Never reuse transverse link mounting nut.
• Perform final tightening of bolts and nuts at the vehicle installation position (rubber bushing), under unladen

conditions with tires on level ground.

• Perform inspection after installation. Refer to

FSU-13, "Inspection"

.

Inspection

INFOID:0000000009650674

INSPECTION AFTER REMOVAL

Check the following items, and replace the parts if necessary.

Transverse Link

• Transverse link and bushing for deformation, cracks or damage.
• Ball joint boot for cracks or other damage, and also for grease leakage.

Swing Torque

1.

Manually move ball stud to confirm it moves smoothly with no binding.

2.

Move ball stud at least ten times by hand to check for smooth movement.

1.

Transverse link

2.

Front suspension member

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

JPEIA0091GB

FSU-14

< REMOVAL AND INSTALLATION >

TRANSVERSE LINK

3.

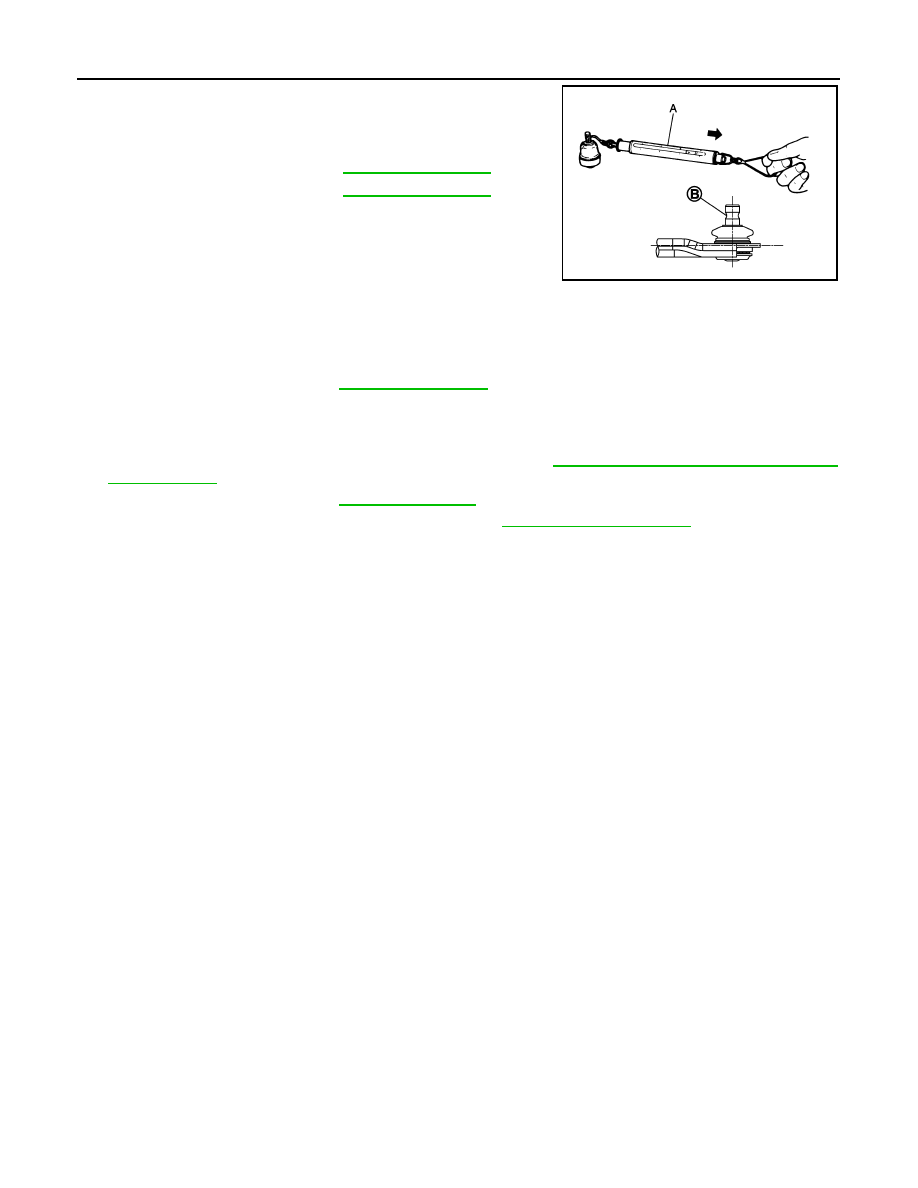

Hook a spring balance (A) at cutout on ball stud (B). Confirm
spring balance measurement value is within specifications when
ball stud begins moving.

• If swing torque exceeds standard range, replace transverse link

assembly.

Axial End Play

1.

Move ball stud at least ten times by hand to check for smooth movement.

2.

Move tip of ball stud in axial direction to check for looseness.

• If axial end play exceeds the standard value, replace transverse link assembly.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connector. Refer to

BRC-119, "FRONT WHEEL SENSOR :

Exploded View"

.

2.

Check wheel alignment. Refer to

FSU-7, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-49, "Work Procedure"

 (with VDC).

Swing torque

: Refer to

FSU-21, "Ball Joint"

.

Measurement on
spring balance

: Refer to

FSU-21, "Ball Joint"

.

JPEIA0138ZZ

Axial end play

: Refer to

FSU-21, "Ball Joint"

.
