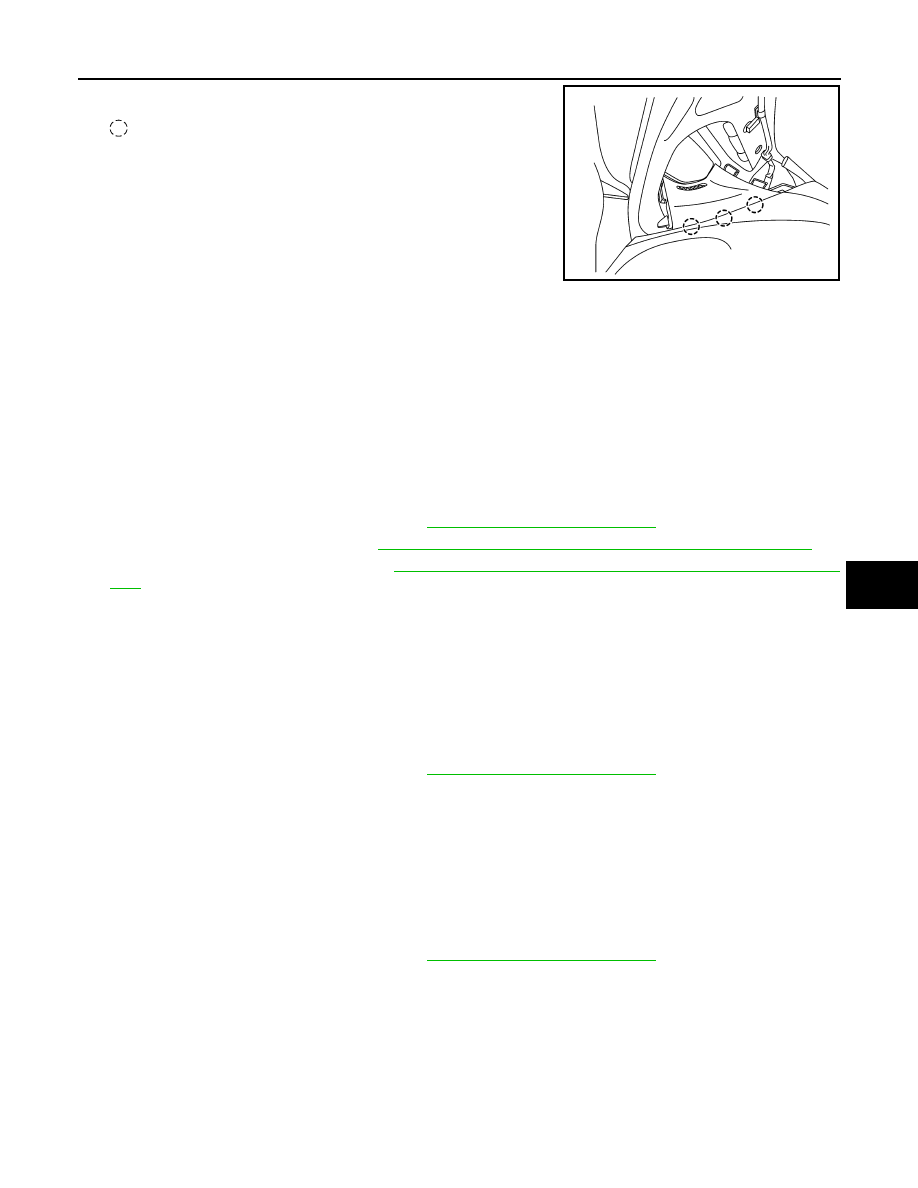

2. Release side defroster grille pawls using a suitable tool and

remove.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the pawls for deformation and damage during installation. Replace with a new com-

ponent if necessary.

• When installing side defroster grille, check that all pawls are securely placed into instrument panel

assembly.

CENTER VENTILATOR DUCT
CENTER VENTILATOR DUCT : Removal and Installation

INFOID:0000000009395331

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

2. Remove side defroster ducts. Refer to

VTL-7, "SIDE DEFROSTER DUCT : Removal and Installation"

.

3. Remove center defroster duct. Refer to

VTL-7, "CENTER DEFROSTER DUCT : Removal and Installa-

tion"

.

4. Remove screw and center ventilator duct from instrument panel assembly.

INSTALLATION

Installation is in the reverse order of removal.

CENTER DEFROSTER DUCT
CENTER DEFROSTER DUCT : Removal and Installation

INFOID:0000000009395336

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

2. Remove screws and center defroster duct from instrument panel assembly.

INSTALLATION

Installation is in the reverse order of removal.

SIDE DEFROSTER DUCT
SIDE DEFROSTER DUCT : Removal and Installation

INFOID:0000000009395337

REMOVAL

1. Remove instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

2. Remove screws and side defroster duct from instrument panel assembly.

INSTALLATION

Installation is in the reverse order of removal.

FOOT DUCT
FOOT DUCT : Removal and Installation

INFOID:0000000009395332

FOOT DUCT

AWJIA1098ZZ

VTL-8

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

Removal

1. Remove instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

2. Remove screws and foot duct (LH/RH) from heating and cooling unit assembly.

Installation

Installation is in the reverse order of removal.

REAR FLOOR DUCT
REAR FLOOR DUCT : Removal and Installation

INFOID:0000000009643752

REMOVAL

1. Remove driver seat (if necessary). Refer to

SE-20, "DRIVER SIDE : Removal and Installation"

.

2. Remove passenger seat (if necessary). Refer to

SE-22, "PASSENGER SIDE : Removal and Installation"

.

3. Remove rear seat cushion. Refer to

SE-30, "SEAT CUSHION : Removal and Installation"

.

4. Remove dash side finisher (LH/RH). Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installation"

.

5. Remove center pillar lower finisher (LH/RH). Refer to

INT-25, "CENTER PILLAR LOWER FINISHER :

Removal and Installation"

.

6. Remove center console lower. Refer to

IP-20, "Removal and Installation"

7. Position floor trim and floor insulators aside.
8. Release and remove rear floor ducts.

INSTALLATION

Install in the reverse order of removal.

FRONT BLOWER MOTOR

VTL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

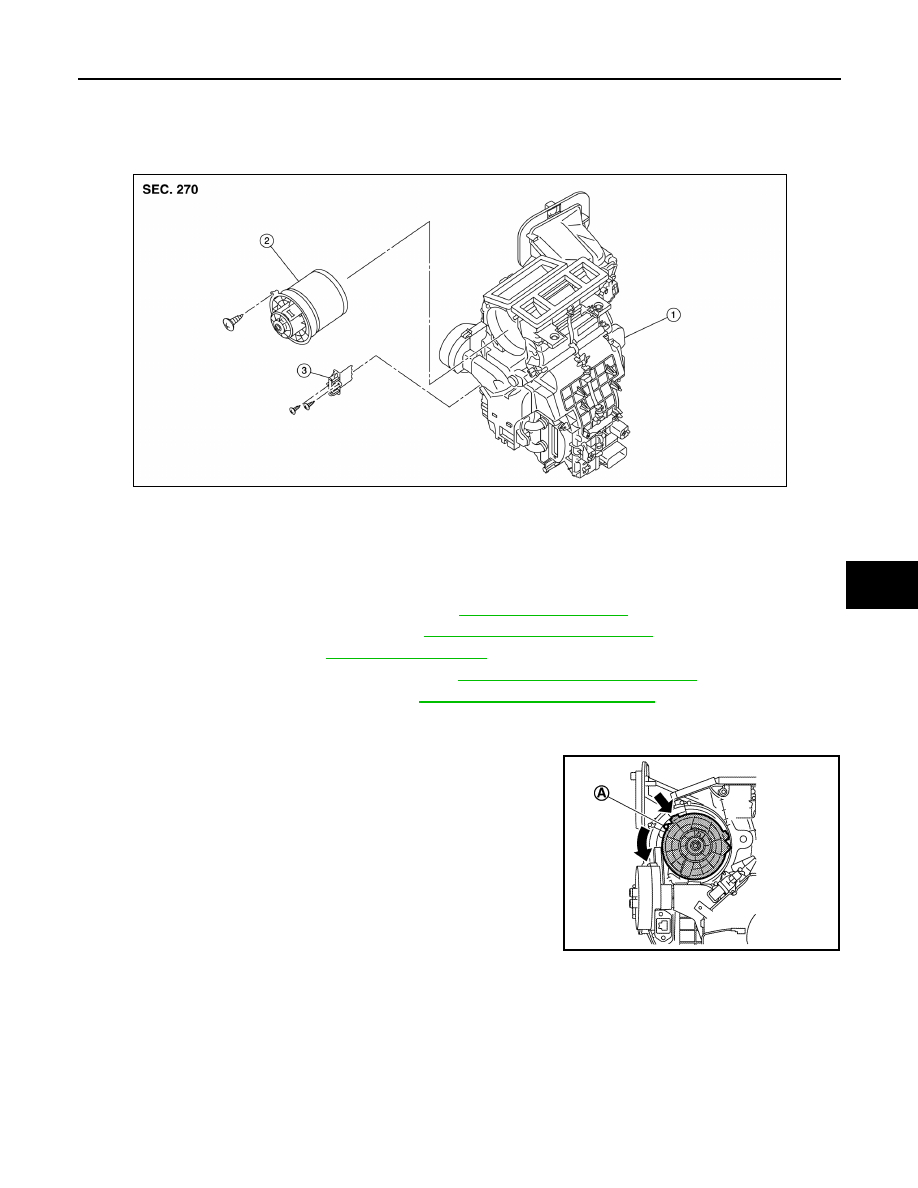

FRONT BLOWER MOTOR

Exploded View

INFOID:0000000008968534

Removal and Installation

INFOID:0000000009395333

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-67, "Exploded View"

.

2. Remove instrument lower panel LH. Refer to

IP-24, "Removal and Installation"

.

3. Remove knee bolster. Refer to

IP-14, "Exploded View"

.

4. Remove the accelerator pedal assembly. Refer to

ACC-3, "Removal and Installation"

.

5. Remove the brake pedal assembly. Refer to

BR-19, "Removal and Installation"

.

6. Disconnect the harness connectors from the front blower motor.
7. Disconnect the harness connector from the thermo control amp.
8. Remove the front blower motor screw (A).
9. Press the flange holding hook, turn the front blower motor coun-

terclockwise and remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Heating and cooling unit assembly

2.

Front blower motor

3.

Front blower motor resistor

AWIIA1465ZZ

JMIIA1741ZZ

WCS

WCS-1
