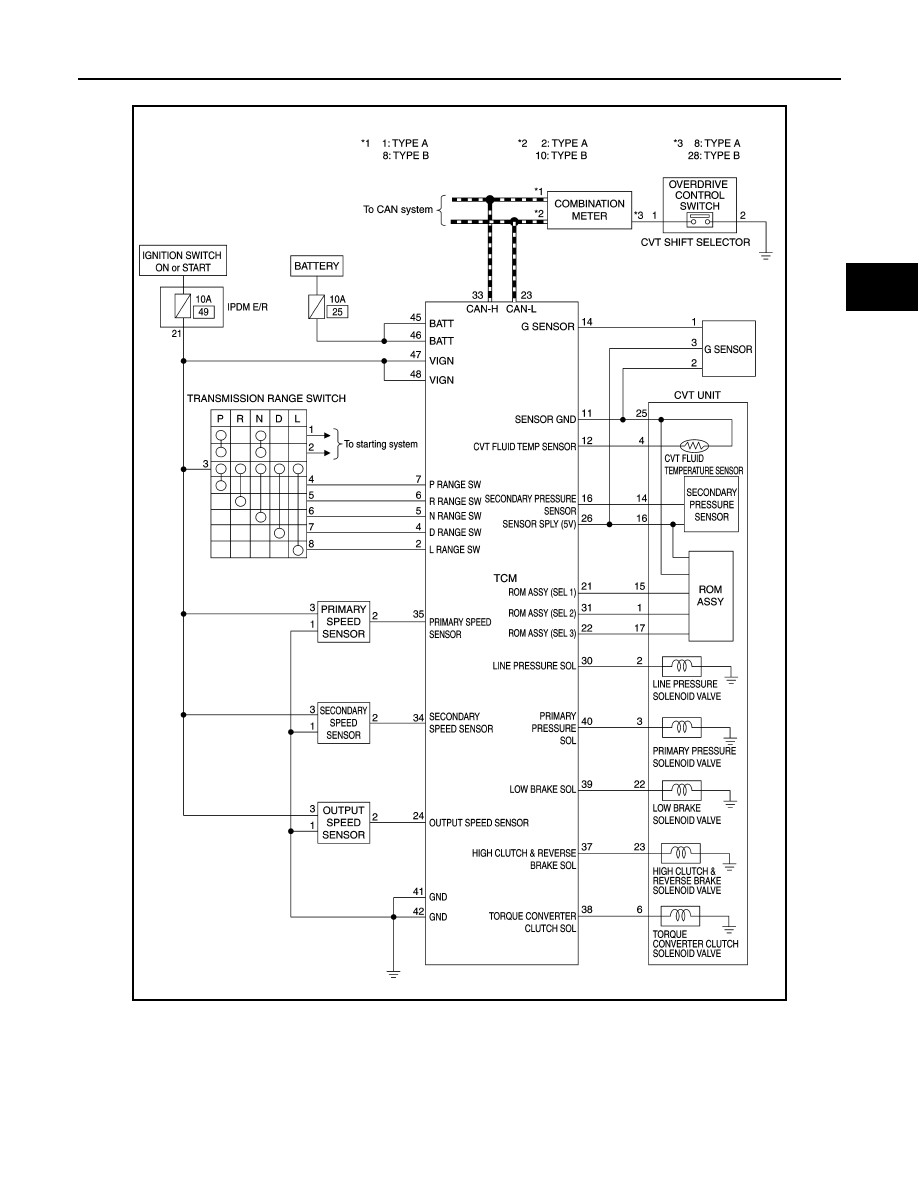

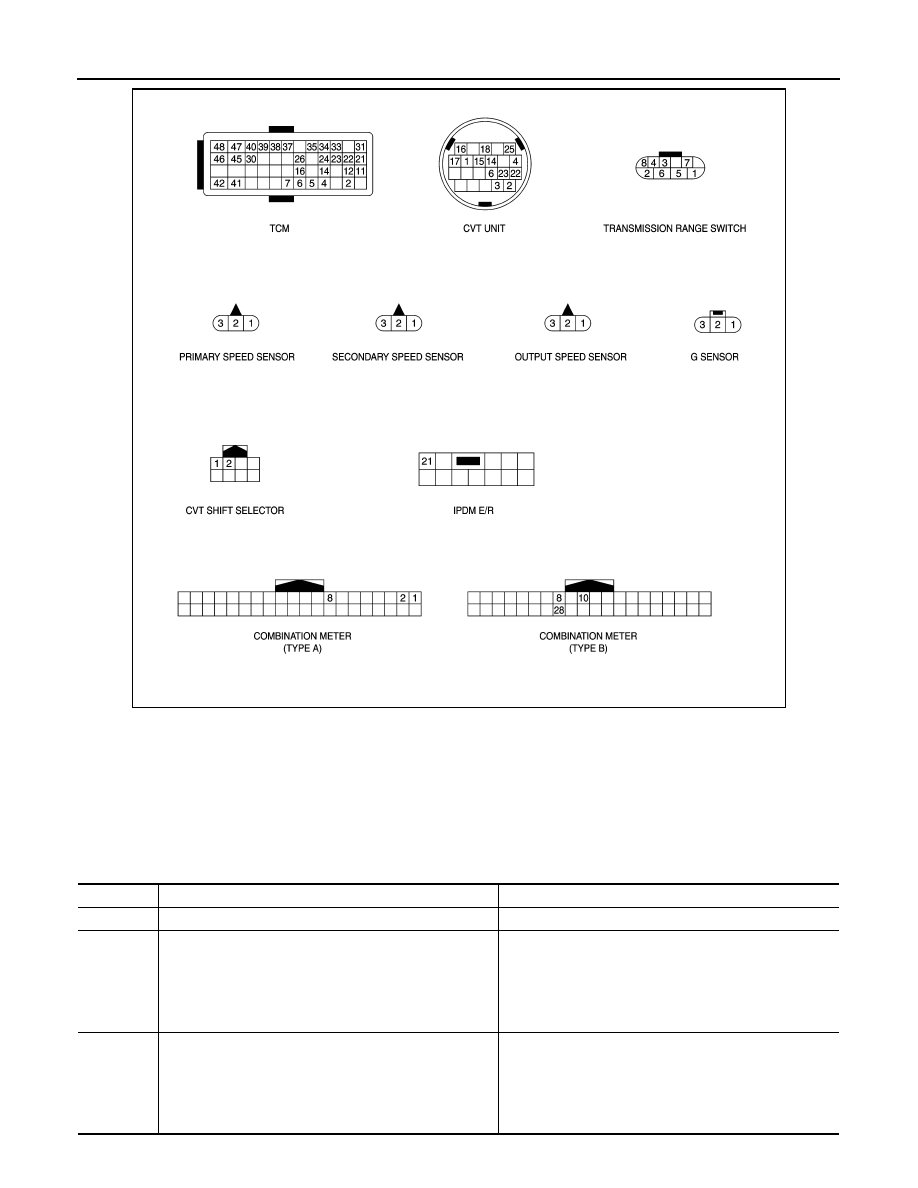

CVT CONTROL SYSTEM : Schematic

INFOID:0000000009019611

JSDIA2911GB

TM-78

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

SYSTEM

CVT CONTROL SYSTEM : Fail-safe

INFOID:0000000009019612

TCM has a fail-safe mode. The mode functions so that operation can be continued even if the signal circuit of

the main electronically controlled input/output parts is damaged.

If the vehicle shows following behaviors including “poor acceleration”, a malfunction of the applicable system

is detected by TCM and the vehicle may be in a fail-safe mode. At this time, check the DTC code and perform

inspection and repair according to the malfunction diagnosis procedures.

Fail-safe function

JSDIA2912GB

DTC

Vehicle behavior

Conditions of vehicle

P062F

Not changed from normal driving

—

P0705

• Shift position indicator on combination meter is not dis-

played.

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

P0706

• Shift position indicator on combination meter is not dis-

played.

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

SYSTEM

TM-79

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

P0711

Acceleration is slow

Engine coolant temperature when engine start: Temp.

≥

10

°C (50°F)

• Selector shock is large
• Start  is  slow

Engine coolant temperature when engine start:

−35°C (−

31

°F) ≤Temp. < 10°C (50°F)

• Selector shock is large
• Start  is  slow

Engine coolant temperature when engine start: Temp. <

−

35

°C (−31°F)

P0712

Acceleration is slow

Engine coolant temperature when engine start: Temp.

≥

10

°C (50°F)

• Selector shock is large
• Start  is  slow

Engine coolant temperature when engine start:

−35°C (−

31

°F) ≤Temp. < 10°C (50°F)

• Selector shock is large
• Start  is  slow

Engine coolant temperature when engine start: Temp. <

−

35

°C (−31°F)

P0713

Acceleration is slow

Engine coolant temperature when engine start: Temp.

≥

10

°C (50°F)

• Selector shock is large
• Start  is  slow

Engine coolant temperature when engine start:

−35°C (−

31

°F) ≤Temp. < 10°C (50°F)

• Selector shock is large
• Start  is  slow

Engine coolant temperature when engine start: Temp. <

−

35

°C (−31°F)

P0715

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Vehicle speed is not increased
• Lock-up is not performed

—

P0720

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

P0740

Lock-up is not performed

—

P0743

Lock-up is not performed

—

P0744

Lock-up is not performed

—

P0746

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Vehicle speed is not increased
• Lock-up is not performed

—

P0846

• Start  is  slow
• Acceleration is slow

—

P0847

Acceleration is slow

—

P0848

• Start  is  slow
• Acceleration is slow

—

P0863

Not changed from normal driving

—

P0890

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

P0962

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—

P0963

• Selector shock is large
• Start  is  slow
• Acceleration is slow
• Lock-up is not performed

—
