REAR SEAT

SEAT CUSHION
SEAT CUSHION : Removal and Installation

INFOID:0000000009567491

REMOVAL

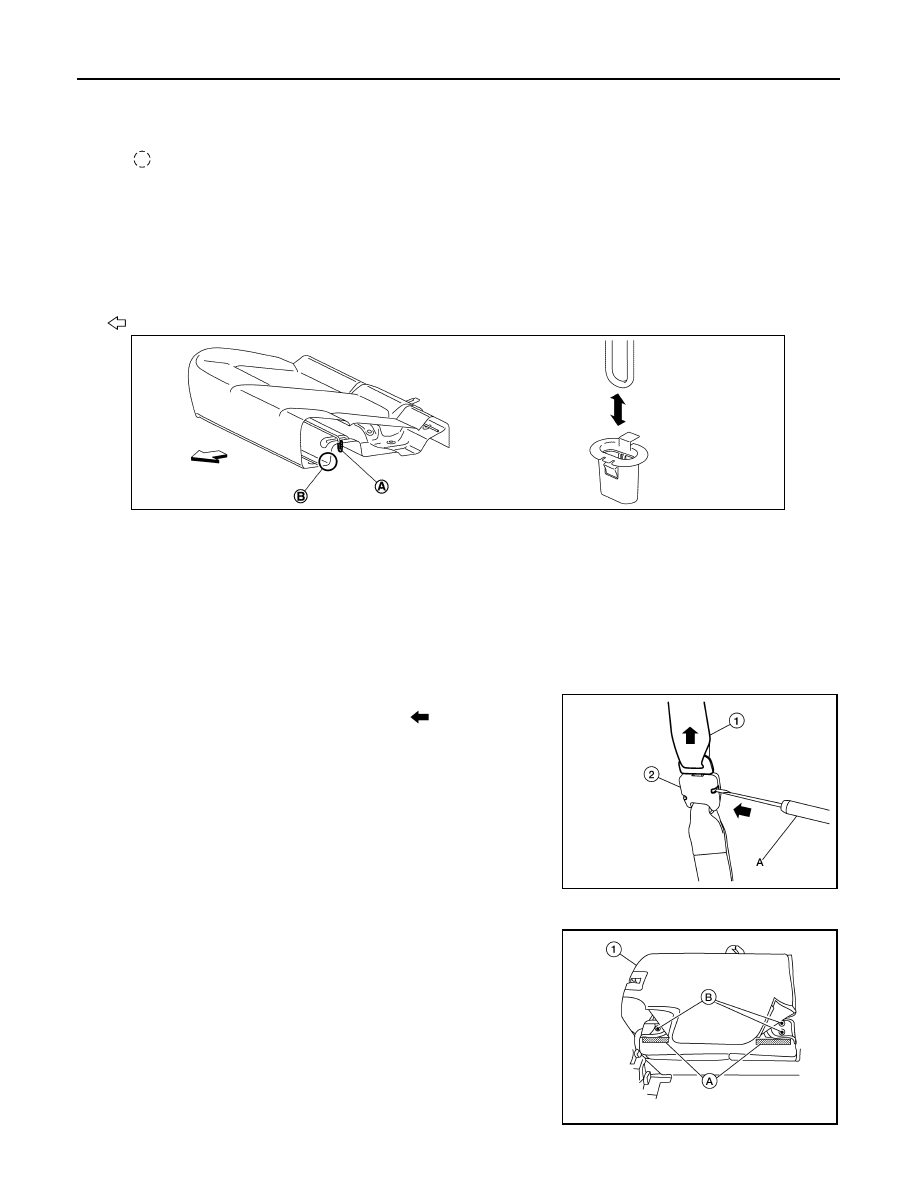

1. Lift up the seat cushion assembly front edge (B) to release it from the seat cushion hooks (A) (LH/RH) and

remove.

: Front

INSTALLATION

Installation is in the reverse order of removal.

SEATBACK
SEATBACK : Removal and Installation

INFOID:0000000009567492

REMOVAL

Seatback (LH)

1. Release seat belt retractor (center) (1) from seat belt buckle

(LH) (2) using a suitable tool (A) as shown (

).

2. Place the seatback (LH) in the folded down position.
3. Release hook fasteners (A).
4. Remove bolts (B) and the seatback (LH) (1).

19. Seatback pad (LH)

20. Seatback trim (LH)

21. Seatback latch finisher (LH)

22. Seatback frame (LH)

23. Seatback latch bracket (LH)

24. Seatback latch (LH)

25. Seatbelt guide finisher

26. Seat belt guide

27. Seatback (LH)

Pawl

JMJIA4835ZZ

ALHIA0315ZZ

ALJIA1242ZZ

REAR SEAT

SE-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Seatback (RH)

1. Place the seatback (RH) in the folded down position.
2. Release hook fasteners (A).
3. Remove bolts (B) and the seatback (RH) (1).

INSTALLATION

Installation is in the reverse order of removal.

Tighten the seatback assembly bolts to specification. Refer to

SE-27, "Exploded View"

.

SEATBACK HINGE
SEATBACK HINGE : Removal and Installation

INFOID:0000000009567493

REMOVAL

1. Remove the seatbacks (LH/RH). Refer to

SE-30, "SEATBACK : Removal and Installation"

.

2. Remove the seat cushion. Refer to

SE-30, "SEAT CUSHION : Removal and Installation"

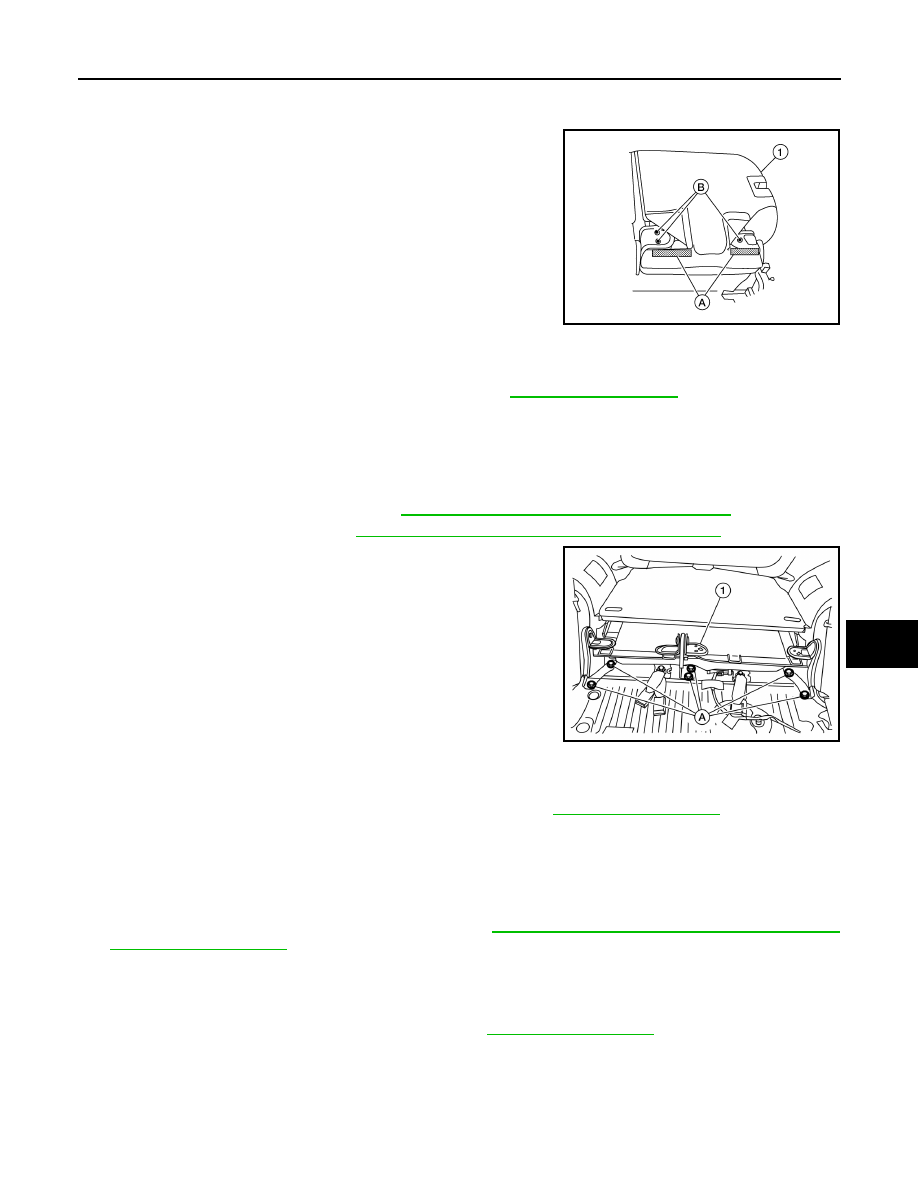

3. Remove bolts (A) and the seatback hinge (1).

INSTALLATION

Installation is in the reverse order of removal.

Tighten the seatback hinge assembly bolts to specification. Refer to

SE-27, "Exploded View"

.

SEATBACK STRIKER
SEATBACK STRIKER : Removal and Installation

INFOID:0000000009639110

REMOVAL

1. Remove the luggage side upper finisher. Refer to

INT-35, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

2. Remove bolts and the seatback strikers.

INSTALLATION

Installation is in the reverse order of removal.

Tighten the seatback striker bolts to specification. Refer to

SE-27, "Exploded View"

.

SEAT CUSHION HOOK
SEAT CUSHION HOOK : Removal and Installation

INFOID:0000000009567485

REMOVAL

ALJIA1243ZZ

ALJIA1244ZZ

SE-32

< REMOVAL AND INSTALLATION >

REAR SEAT

1. Remove the seat cushion. Refer to

SE-30, "SEAT CUSHION : Removal and Installation"

.

2. Release the seat cushion hook pawls as shown and remove.

CAUTION:

Before removing the seat cushion hook, check its orientation (front/rear).

INSTALLATION

Installation is in the reverse order of removal.

JMJIA6035ZZ

FRONT HEATED SEAT SWITCH

SE-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

FRONT HEATED SEAT SWITCH

Removal and Installation

INFOID:0000000009567684

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

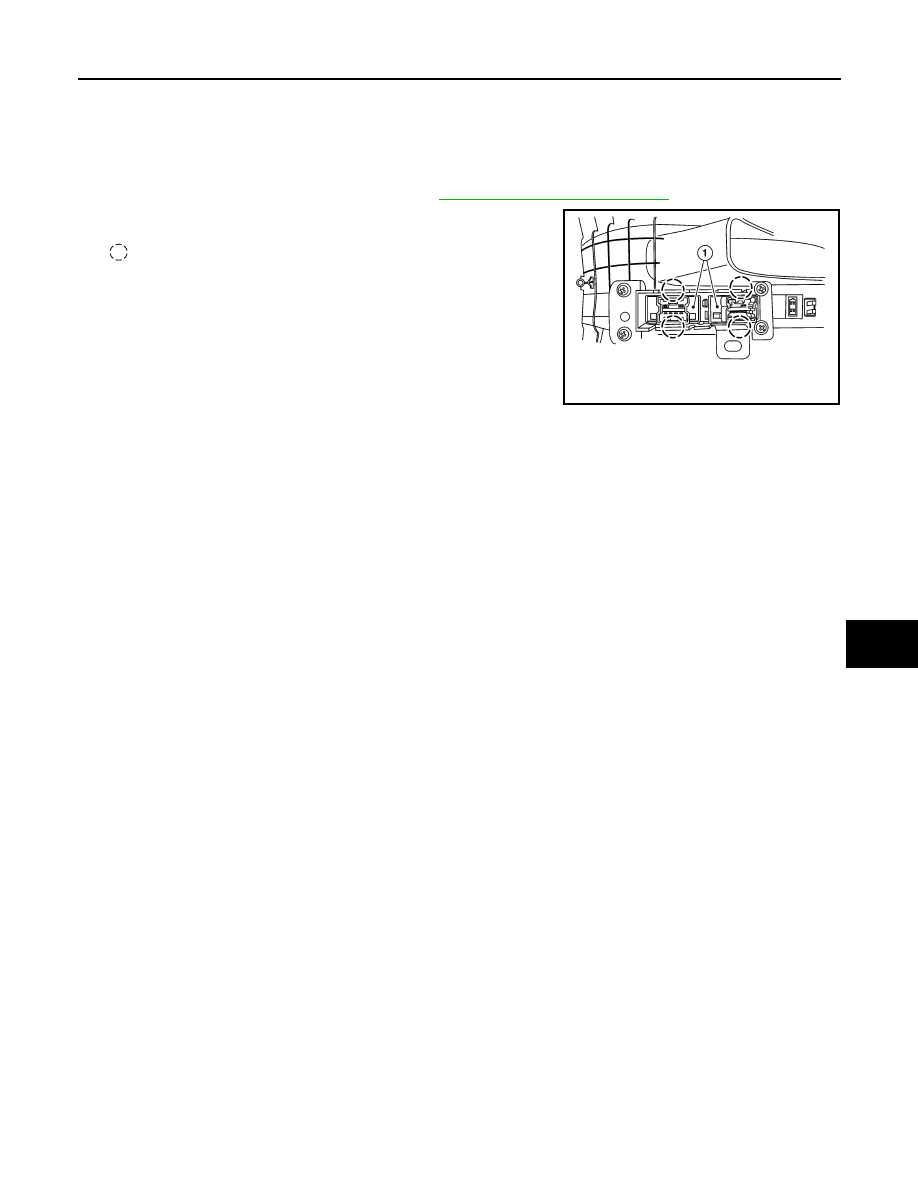

2. Release pawls using a suitable tool and remove the front heated

seat switches (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALJIA1245ZZ
