REAR SEAT

Exploded View

INFOID:0000000009567482

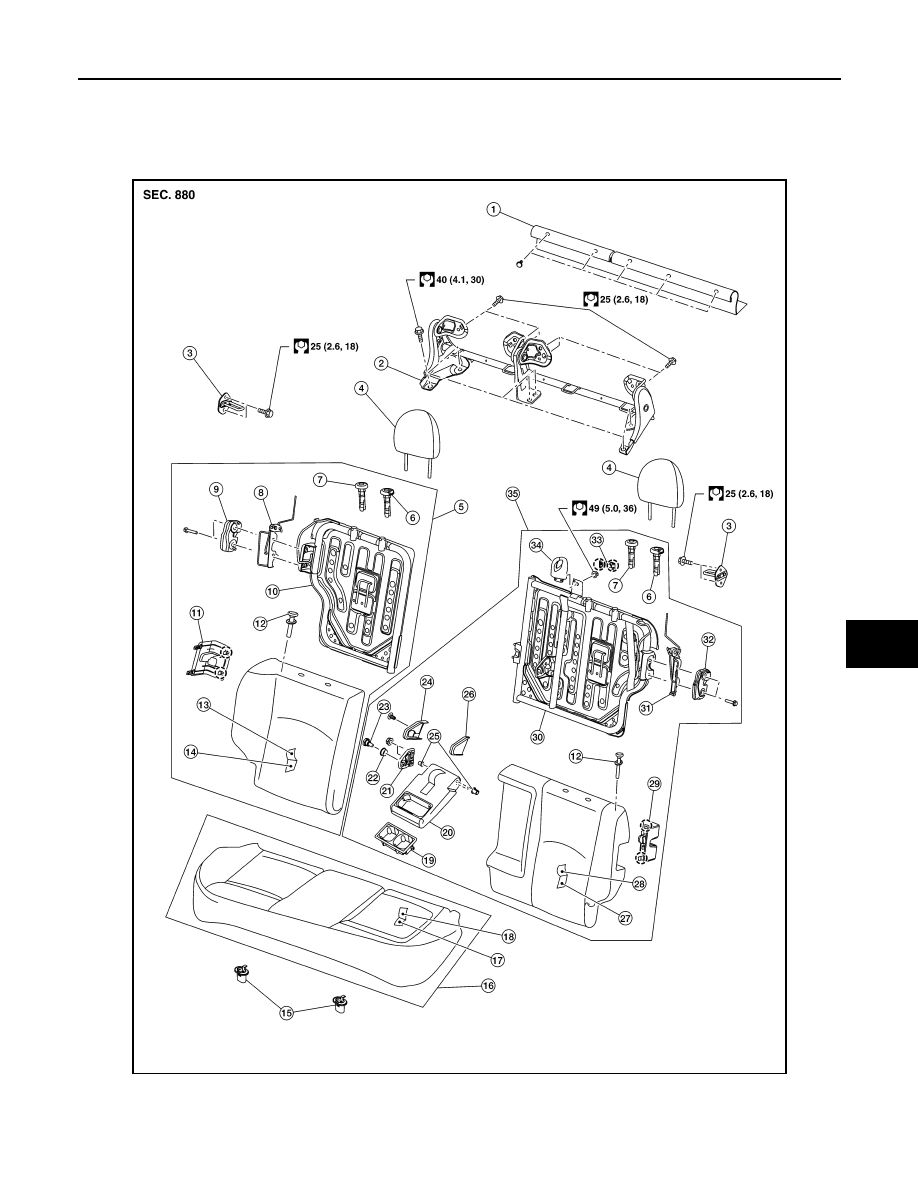

REAR SEAT WITH ARMREST

AWJIA1138ZZ

1.

Seatback hinge trim

2.

Seatback hinge

3.

Seatback striker

4.

Headrest

5.

Seatback (RH)

6.

Headrest holder (locked)

SE-28

< REMOVAL AND INSTALLATION >

REAR SEAT

7.

Headrest holder (free)

8.

Seatback latch bracket (RH)

9.

Seatback latch (RH)

10. Seatback frame (RH)

11. Seatback latch finisher (RH)

12. Seatback latch release knob

13. Seatback trim (RH)

14. Seatback pad (RH)

15. Seat cushion hook

16. Seat cushion

17. Seat cushion pad

18. Seat cushion trim

19. Cup holder

20. Armrest

21. Armrest hinge bracket

22. Armrest pivot bolt bushing

23. Armrest pivot bolt

24. Armrest hinge bracket finisher

(RH)

25. Bushing

26. Armrest hinge bracket finisher (LH) 27. Seatback pad (LH)

28. Seatback trim (LH)

29. Seatback latch finisher (LH)

30. Seatback frame (LH)

31. Seatback latch bracket (LH)

32. Seatback latch (LH)

33. Seatbelt guide finisher

34. Seat belt guide

35. Seatback (LH)

Pawl

REAR SEAT

SE-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

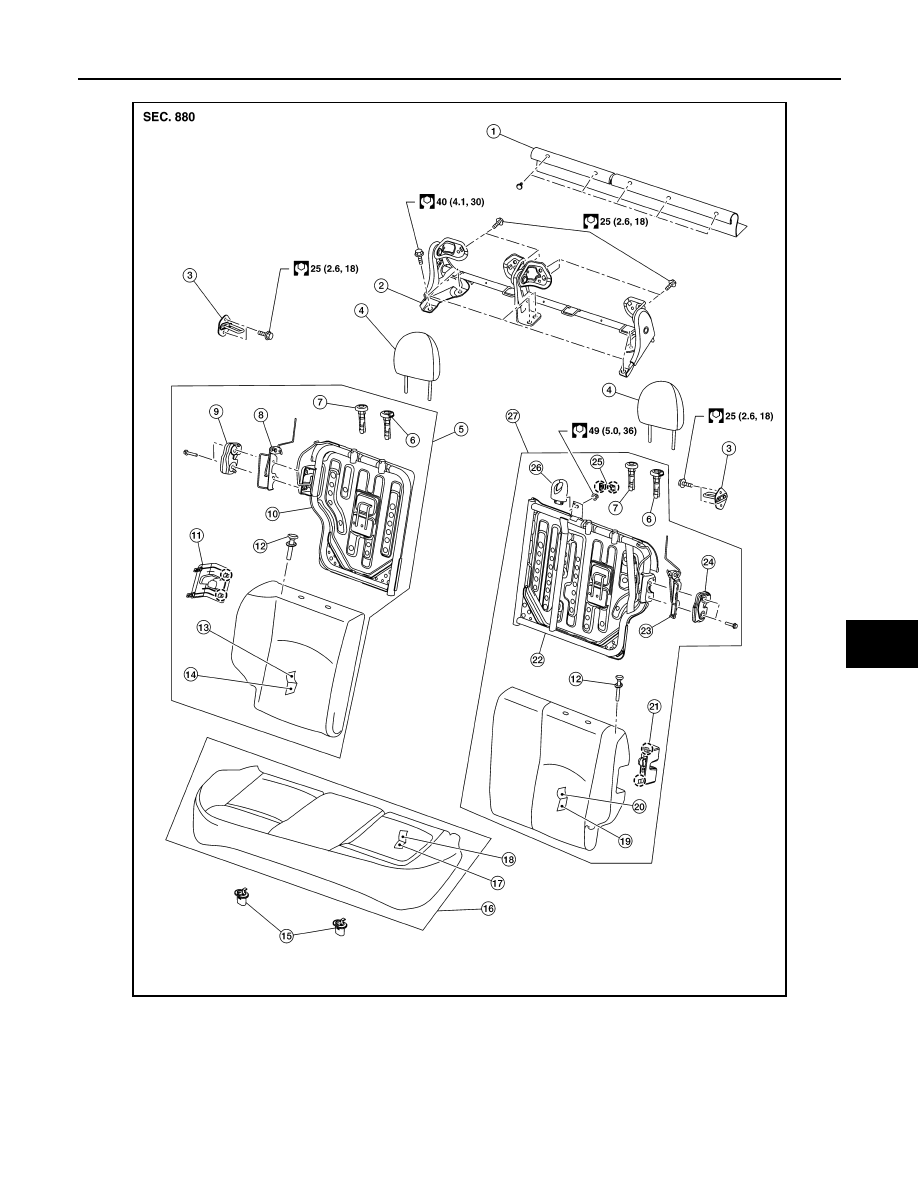

REAR SEAT WITHOUT ARMREST

AWJIA1137ZZ

1.

Seatback hinge trim

2.

Seatback hinge

3.

Seatback striker

4.

Headrest

5.

Seatback(RH)

6.

Headrest holder (locked)

7.

Headrest holder (free)

8.

Seatback latch bracket (RH)

9.

Seatback latch (RH)

10. Seatback frame (RH)

11. Seatback latch finisher (RH)

12. Seatback latch release knob

13. Seatback trim (RH)

14. Seatback pad (RH)

15. Seat cushion hook

16. Seat cushion

17. Seat cushion pad

18. Seat cushion trim
