PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009472995

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

MWI-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000009477923

Tool name

Description

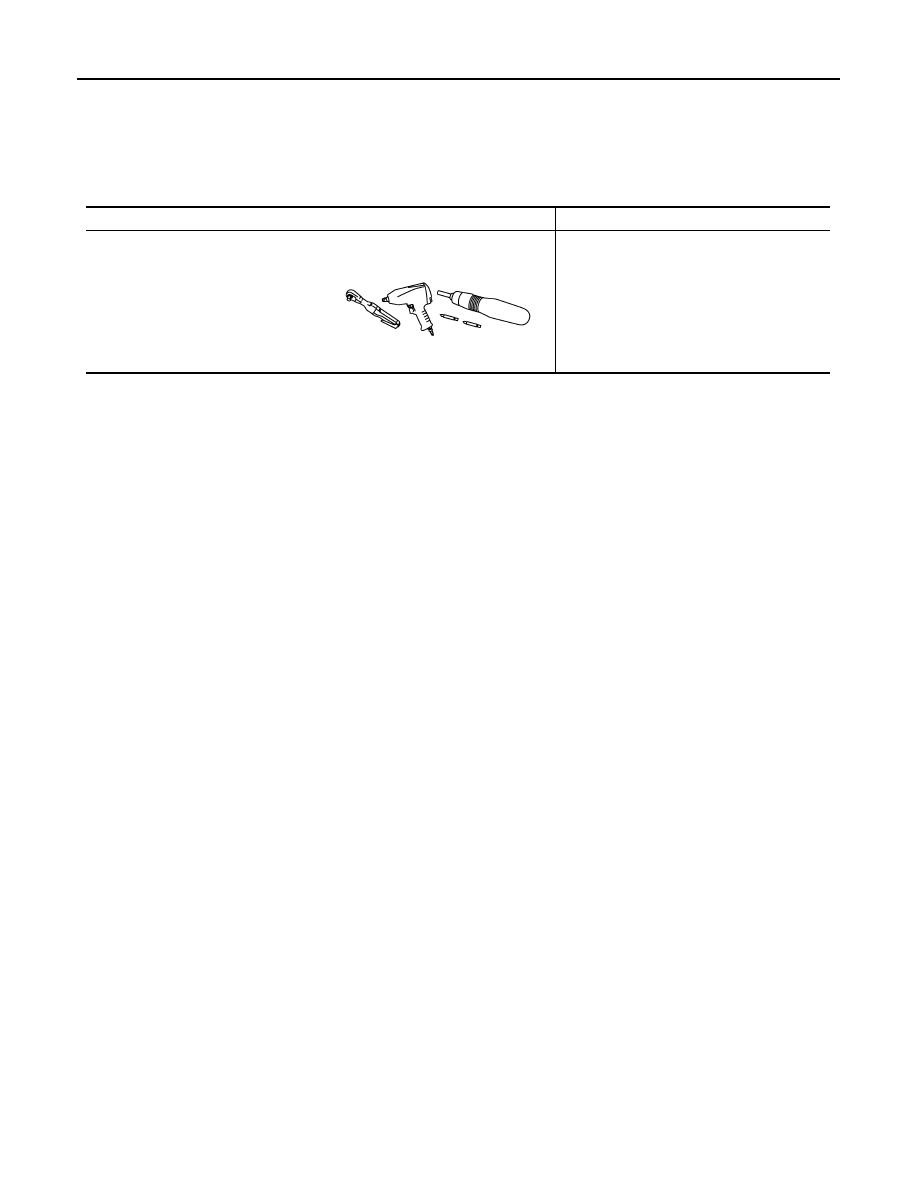

Power Tool

Loosening nuts, screws and bolts

PIIB1407E

MWI

COMPONENT PARTS

MWI-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

METER SYSTEM

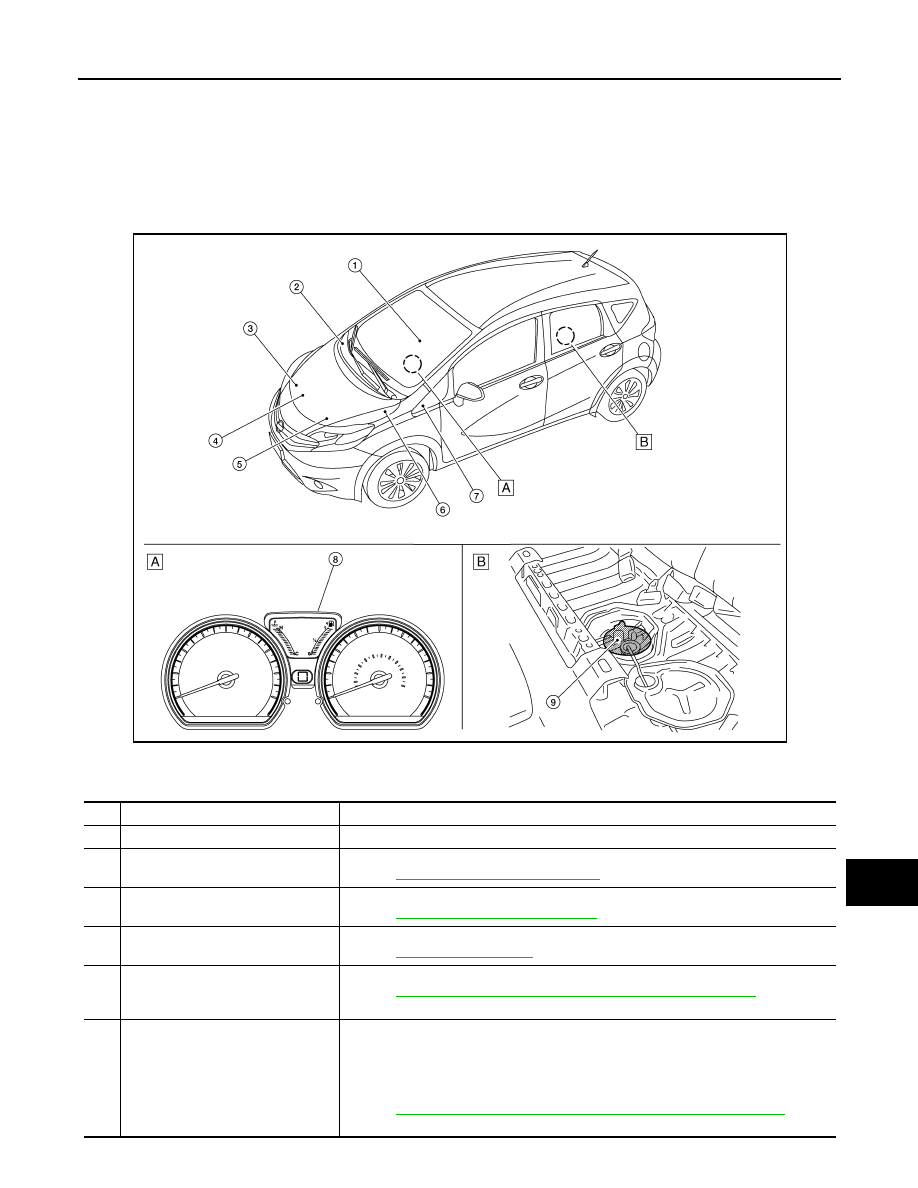

METER SYSTEM : Component Parts Location

INFOID:0000000009654090

A.

Combination meter

B.

View with inspection hole cover removed.

No.

Component

Function

1.

Parking brake switch

Transmits the parking brake switch signal to the combination meter.

2.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.
Refer to

BRC-7, "Component Parts Location"

 for detailed installation location.

3.

Washer fluid level switch

Transmits the washer fluid level switch signal to the combination meter.
Refer to

WW-6, "Component Parts Location"

 for detailed installation location.

4.

Engine oil pressure sensor

Transmits the engine oil pressure sensor signal to the ECM.
Refer to

EM-92, "Exploded View"

 for detailed installation location.

5.

TCM

Transmits the shift position signal to the combination meter via CAN communication.
Refer to

TM-60, "CVT CONTROL SYSTEM : Component Parts Location"

 for detailed

installation location.

6.

ECM

Transmits the following signals to the combination meter via CAN communication.
• Engine speed signal
• Engine coolant temperature signal
• Fuel consumption monitor signal
• Engine oil pressure sensor signal
Refer to

EC-14, "ENGINE CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

AWNIA3135ZZ

MWI-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

METER SYSTEM : Combination Meter

INFOID:0000000009654091

The combination meter controls the following items according to the signals received from each unit via CAN

communication and the signals from switches and sensors.

• Measuring instruments

• Indicator lamps

• Warning lamps

• Meter illumination control

• Information display

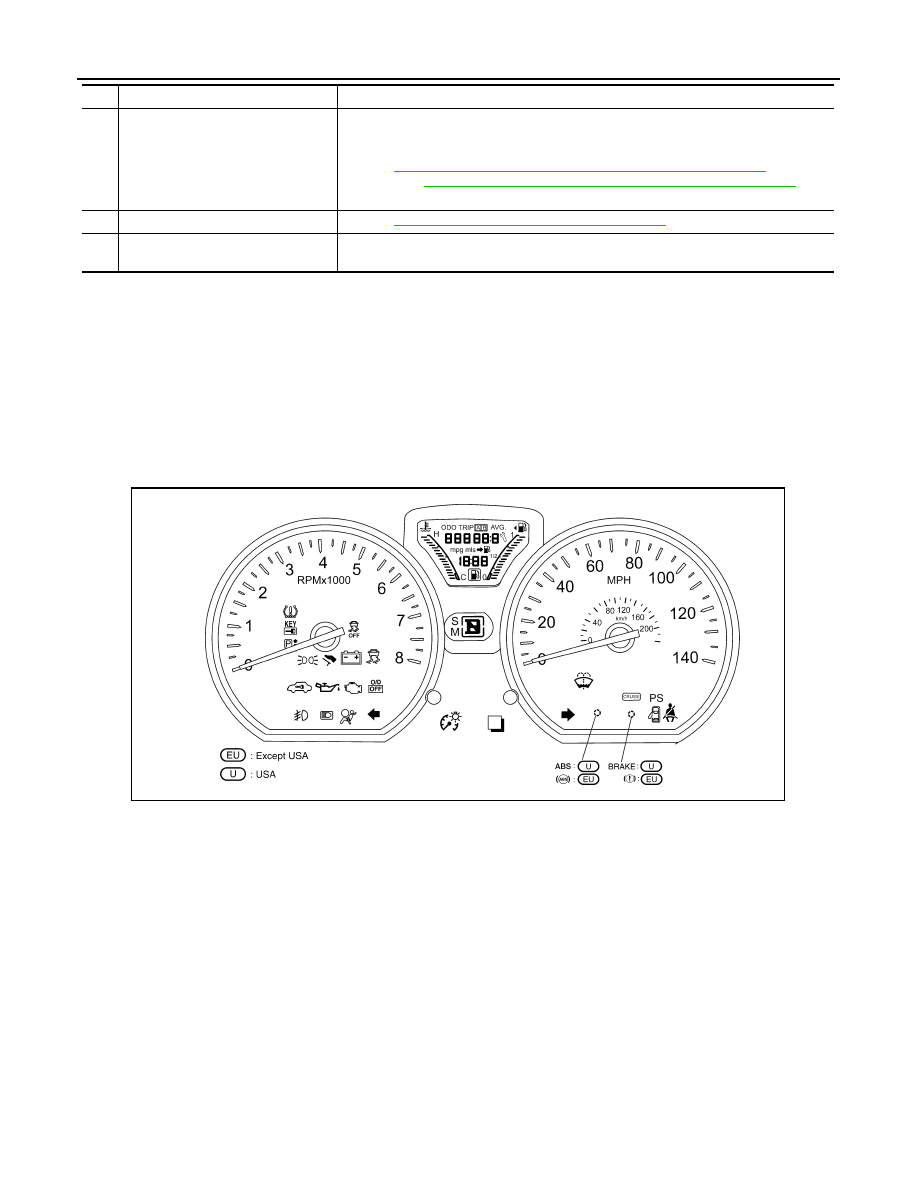

ARRANGEMENT OF COMBINATION METER

7.

BCM

Transmits the following signals to the combination meter via CAN communication.
• Door switch signal
• Buzzer signal
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 (with Intel-

ligent Key) or

BCS-73, "BODY CONTROL SYSTEM : Component Parts Location"

 (with-

out Intelligent Key) for detailed installation location.

8.

Combination meter

Refer to

MWI-6, "METER SYSTEM : Combination Meter"

.

9.

Fuel level sensor unit and fuel pump
 (fuel level sensor)

Transmits the fuel level sensor signal to the combination meter.

No.

Component

Function

AWNIA3127ZZ
