CONTROL BY THERMO CONTROL AMP.

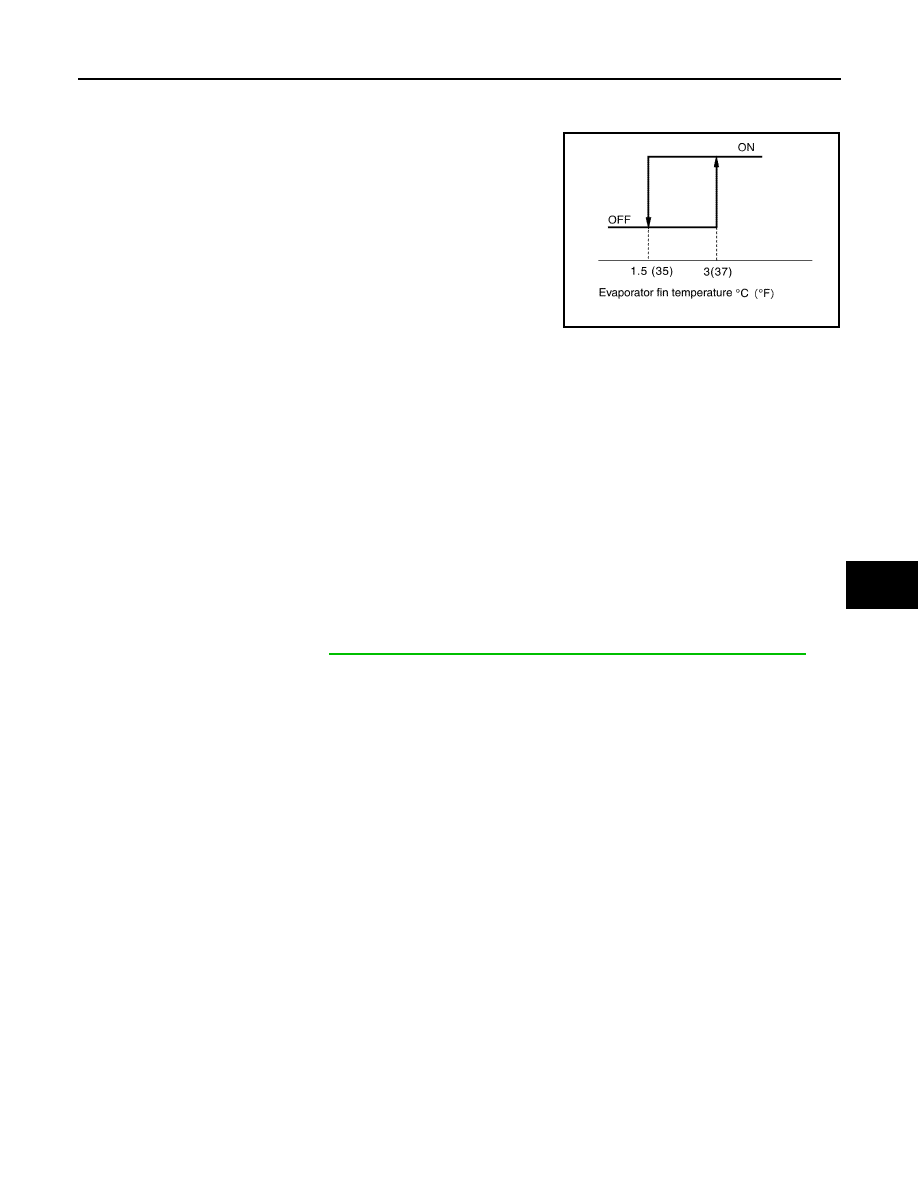

Low Temperature Protection Control

• When thermo control amp. detects that evaporator fin temperature

is 1.5

°C (35°F) or less, thermo control amp. switches A/C ON sig-

nal to OFF and stops the compressor.

When the evaporator fin temperature returns to 3

°C (37°F) or

more, the compressor is activated.

CONTROL BY ECM

Refrigerant Pressure Protection

The refrigerant system is protected against excessively high- or low-pressures by the refrigerant pressure sen-

sor, located on the liquid tank on the condenser. The refrigerant pressure sensor detects the pressure inside

the refrigerant line and sends a voltage signal to the ECM. If the system pressure rises above or falls below

the following values, the ECM requests the IPDM E/R to de-energize the A/C relay and disengage the com-

pressor.
• 3.12 MPa (31.82 kg/cm

2

, 452.4 psi) or more (When the engine speed is less than 1,500 rpm)

• 2.74 MPa (27.95 kg/cm

2

, 397.3 psi) or more (When the engine speed is 1,500 rpm or more)

• 0.14 MPa (1.43 kg/cm

2

, 20.3 psi) or less

Compressor Oil Circulation Control

When the engine starts while the engine coolant temperature is 56

°C (133°F) or less, ECM activates the com-

pressor for approximately 6 seconds and circulates the compressor oil once.

Air Conditioning Cut Control

When the engine is under a high load condition, the ECM transmits an A/C relay OFF request to IPDM E/R,

and stops the compressor. Refer to

EC-37, "AIR CONDITIONING CUT CONTROL : System Description"

.

Door Control

INFOID:0000000009549325

SWITCHES AND THEIR CONTROL FUNCTIONS

JMIIA1228GB

HAC-16

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

SYSTEM

*: With rear foot duct

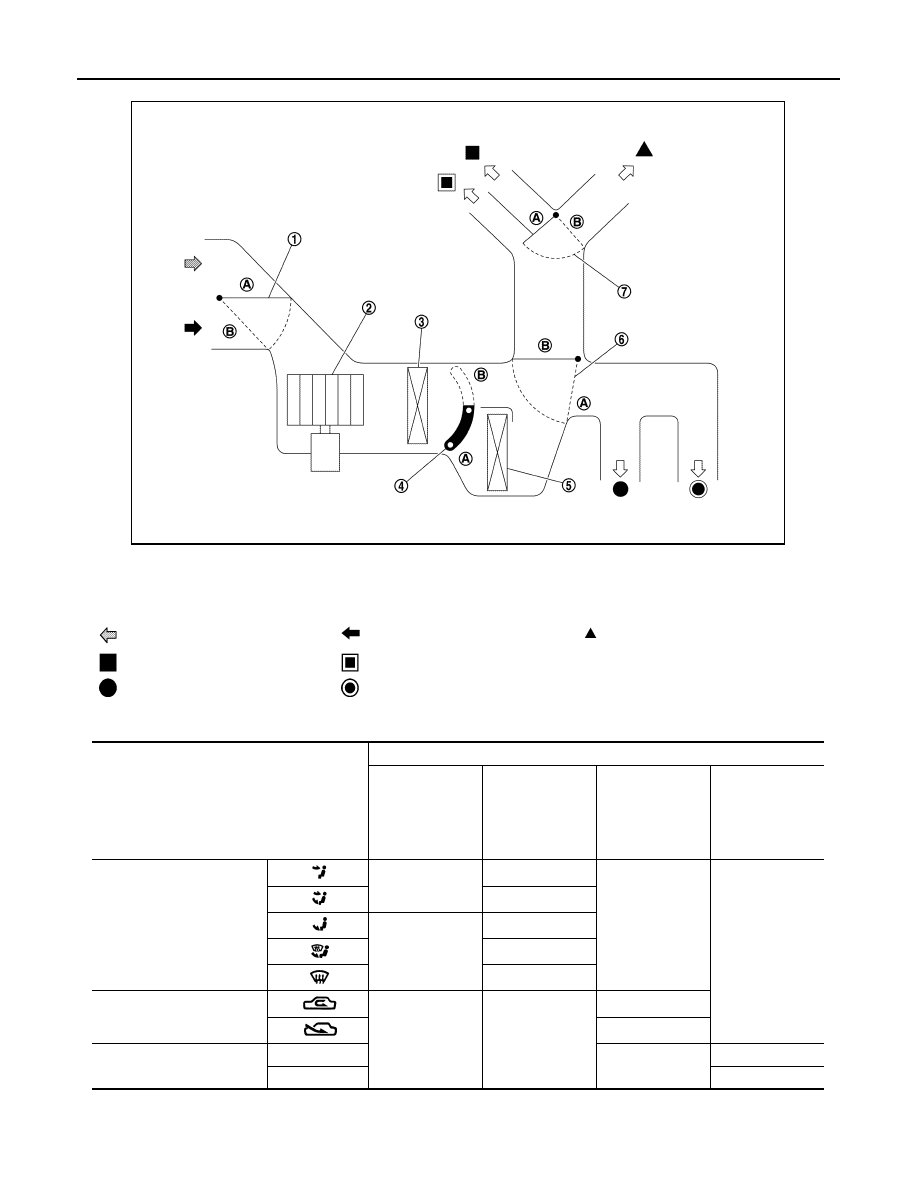

AIR DISTRIBUTION

With rear foot duct

1.

Intake door

2.

Blower motor

3.

Evaporator

4.

Air mix door

5.

Heater core

6.

Foot door

7.

Ventilator and defroster door
Fresh air intake

Recirculation air

Defroster

Center ventilator

Side ventilator

Foot

Rear foot

*

Switch/Dial

position

Door position

V

e

nt

ila

to

r an

d

ef

ros

ter doo

r

Fo

ot

 do

or

In

ta

ke

 do

or

Ai

r mi

do

or

MODE dial

B

A

A – B

A

A – B

A – B

A

Air intake lever

A

B

Temperature control dial

Full cold

A

Full hot

B

JMIIA1751ZZ

SYSTEM

HAC-17

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Without rear foot duct

Discharge air flow

Mode position indi-

cation

Air outlet/distribution

Ventilator

Foot

Defroster

Center

Side

Front

Rear

50%

50%

29%

25%

28%

18%

14%

47%

22%

17%

14%

36%

20%

30%

22%

78%

Discharge air flow

Mode position indication

Air outlet/distribution

Ventilator

Foot

Defroster

Center

Side

50%

50%

30%

30%

40%

14%

66%

20%

14%

51%

35%

22%

78%

HAC-18

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

OPERATION

OPERATION

Switch Name and Function

INFOID:0000000009549327

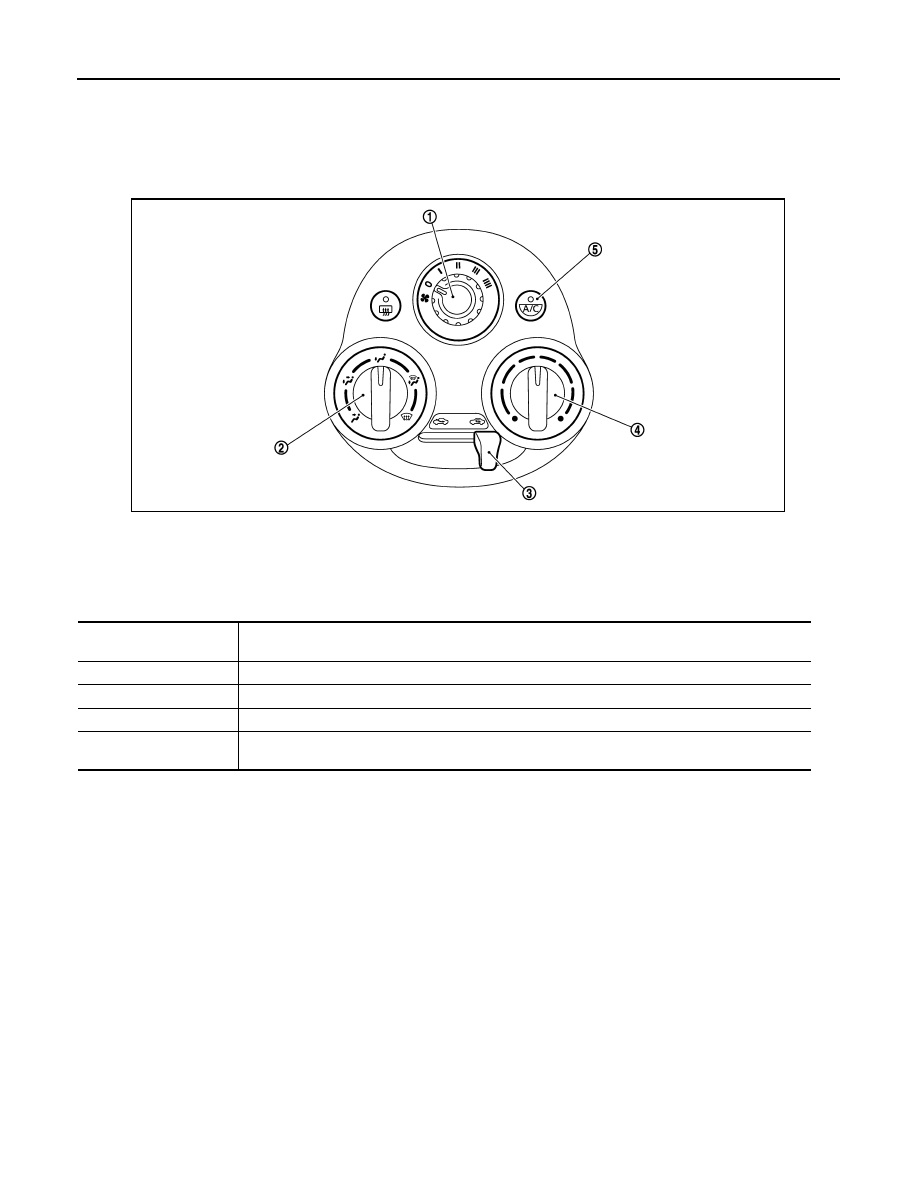

CONTROLLER

SWITCH OPERATION

1.

Fan control dial (fan switch)

2.

MODE dial

3.

Intake lever

4.

Temperature control dial

5.

A/C switch

JMIIA0933ZZ

Fan control dial (fan
switch)

Fan speed can be adjusted within a range from 1st to 4th.

MODE dial

Mode position is selected to an optimal position by operating this dial.

Intake lever

The air inlet changes REC

⇔ FRE each time by operation this lever.

Temperature control dial

The setting temperature can be selected to an optimum temperature by operating this dial.

A/C switch

The compressor control (switch indicator) is turned ON

⇔ OFF each time by pressing this switch

while the blower motor is activated.
