EM-120

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

*

1

: Diameter made by intersection point of conic angles

α1 and α2

*

2

: Diameter made by intersection point of conic angles

α2 and α3

*

3

: Machining data

VALVE SPRING

Cylinder Block

INFOID:0000000009444765

CYLINDER BLOCK

Unit: mm (in)

Angle “

α2”

Intake

88

°45′ - 90°15′

Exhaust

88

°45′ - 90°15′

Angle “

α3”

Intake

120

°

Exhaust

120

°

Contacting width “W”*

3

Intake

1.44 - 2.1 (0.0567 - .0827)

Exhaust

1.1 - 1.9 (.0433 - .0748) or 0.9 - 2.1 (.0354 - .0827)

Height “h”

Intake

4.7 (0.185)

4.15 (0.163)

Exhaust

6.0 (0.236)

5.43 (0.213)

Depth “H”

Intake

4.7 (0.185)

Exhaust

6.0 (0.236)

Free height

46.73 mm (1.8398 in)

Installation height

32.40 mm (1.2756 in)

Installation load

136 - 154 N (13.9 - 15.7 kg, 30.6 - 34.6 lb)

Height during valve open

23.96 mm (0.9433 in)

Load with valve open

242 - 272 N (24.7 - 27.7 kg, 54.4 - 61.1 lb)

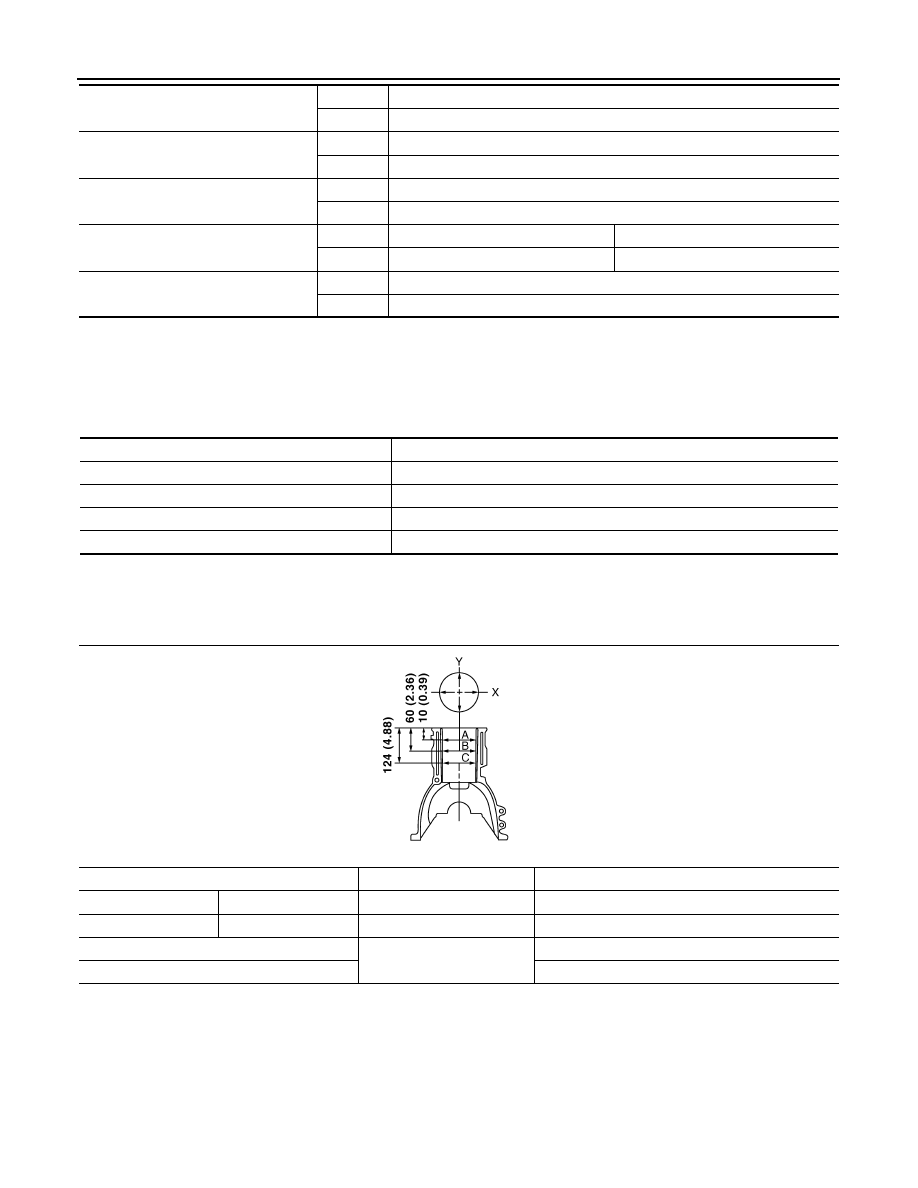

Surface distortion

Limit

0.1 (0.004)

Cylinder bore

Inner diameter

Standard

78.000 - 78.015 (3.0709 - 3.0715)

Wear limit

—

Out-of-round (Difference between “X” and “Y”)

Limit

0.015 (0.0006)

Taper (Difference between “A” and “C”)

0.010 (0.0004)

PBIC3924E

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-121

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

* : Always check with the Parts Department for the latest parts information.

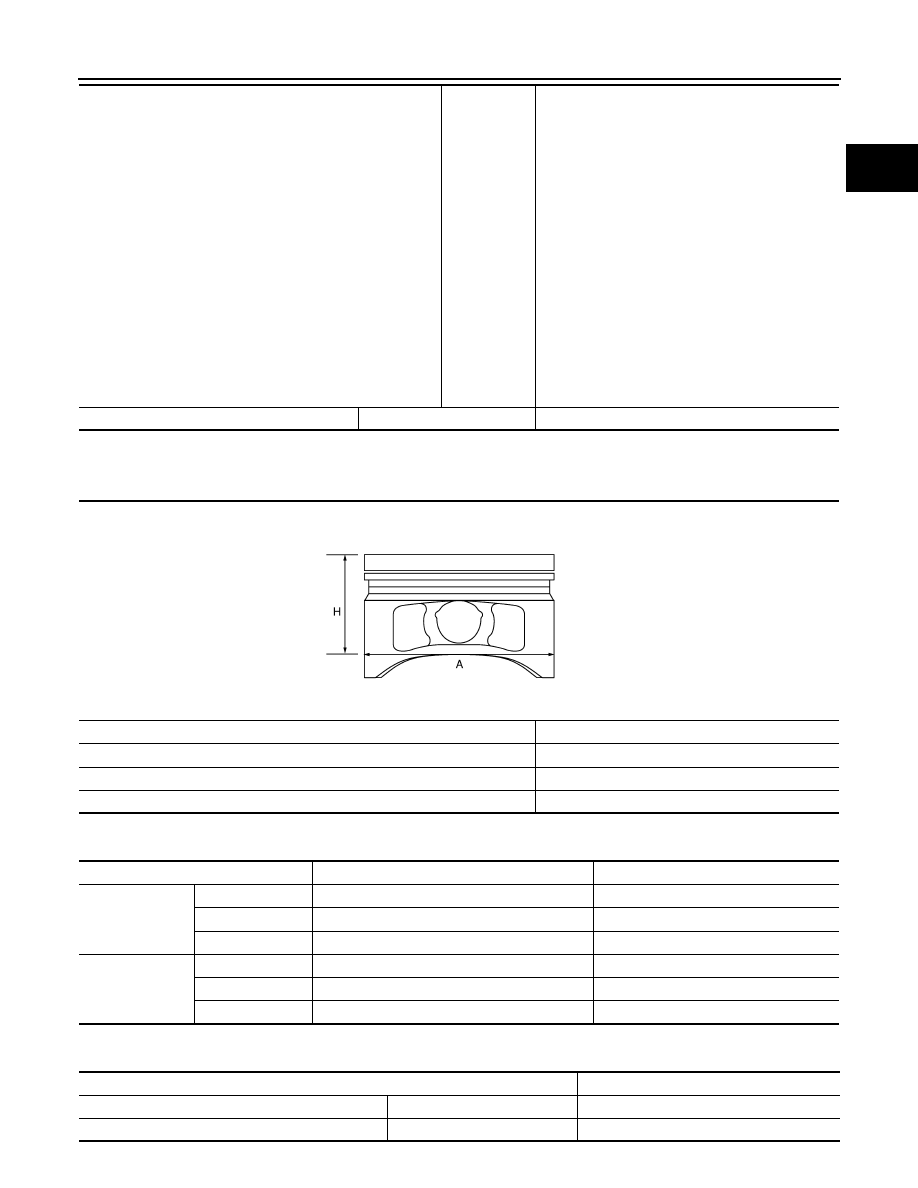

AVAILABLE PISTON

Unit: mm (in)

PISTON RING

Unit: mm (in)

PISTON PIN

Unit: mm (in)

Cylinder block main bearing housing inner diameter grade*

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W

51.997 - 51.998 (2.0471 - 2.0472)
51.998 - 51.999 (2.0472 - 2.0472)
51.999 - 52.000 (2.0472 - 2.0472)
52.000 - 52.001 (2.0472 - 2.0473)
52.001 - 52.002 (2.0473 - 2.0473)
52.002 - 52.003 (2.0473 - 2.0474)
52.003 - 52.004 (2.0474 - 2.0474)
52.004 - 52.005 (2.0474 - 2.0474)
52.005 - 52.006 (2.0474 - 2.0475)
52.006 - 52.007 (2.0475 - 2.0475)
52.007 - 52.008 (2.0475 - 2.0475)
52.008 - 52.009 (2.0476 - 2.0476)
52.009 - 52.010 (2.0476 - 2.0476)

52.010 - 52.011 (2.0476 - 2.0477)
52.011 - 52.012 (2.0477 - 2.0477)

52.012 - 52.013 (2.0477 - 2.0478)
52.013 - 52.014 (2.0478 - 2.0478)
52.014 - 52.015 (2.0478 - 2.0478)
52.015 - 52.016 (2.0478 - 2.0479)
52.016 - 52.017 (2.0479 - 2.0479)

Difference in inner diameter between cylinders

Standard

Less than 0.03 (0.0012)

Piston skirt diameter “A”

77.965 - 77.980 (3.0694 - 3.0700)

Piston height “H” dimension

37.1 (1.460)

Piston pin hole diameter

19.006 - 19.012 (0.7482 - 0.7485)

Piston to cylinder bore clearance

0.020 - 0.050 (0.0008 - 0.0020)

PBIC0188E

Items

Standard

Limit

Side clearance

Top

0.04 - 0.08 (0.0016 - 0.0031)

0.11 (0.0043)

2nd

0.03 - 0.07 (0.0012 - 0.0028)

0.10 (0.0039)

Oil (rail ring)

0.045 - 0.125 (0.0018 - 0.0049)

—

End gap

Top

0.20 - 0.30 (0.0079 - 0.0118)

—

2nd

0.35 - 0.50 (0.0138 - 0.0197)

—

Oil (rail ring)

0.20 - 0.45 (0.0079 - 0.0177)

—

Piston pin outer diameter

18.999 - 19.002 (0.7480 - 0.7481)

Piston to piston pin oil clearance

Standard

0.010 - 0.014 (0.0004 - 0.0006)

Connecting rod bushing oil clearance

Standard

–0.018 to –0.044 (–0.0007 to –0.0017)

EM-122

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

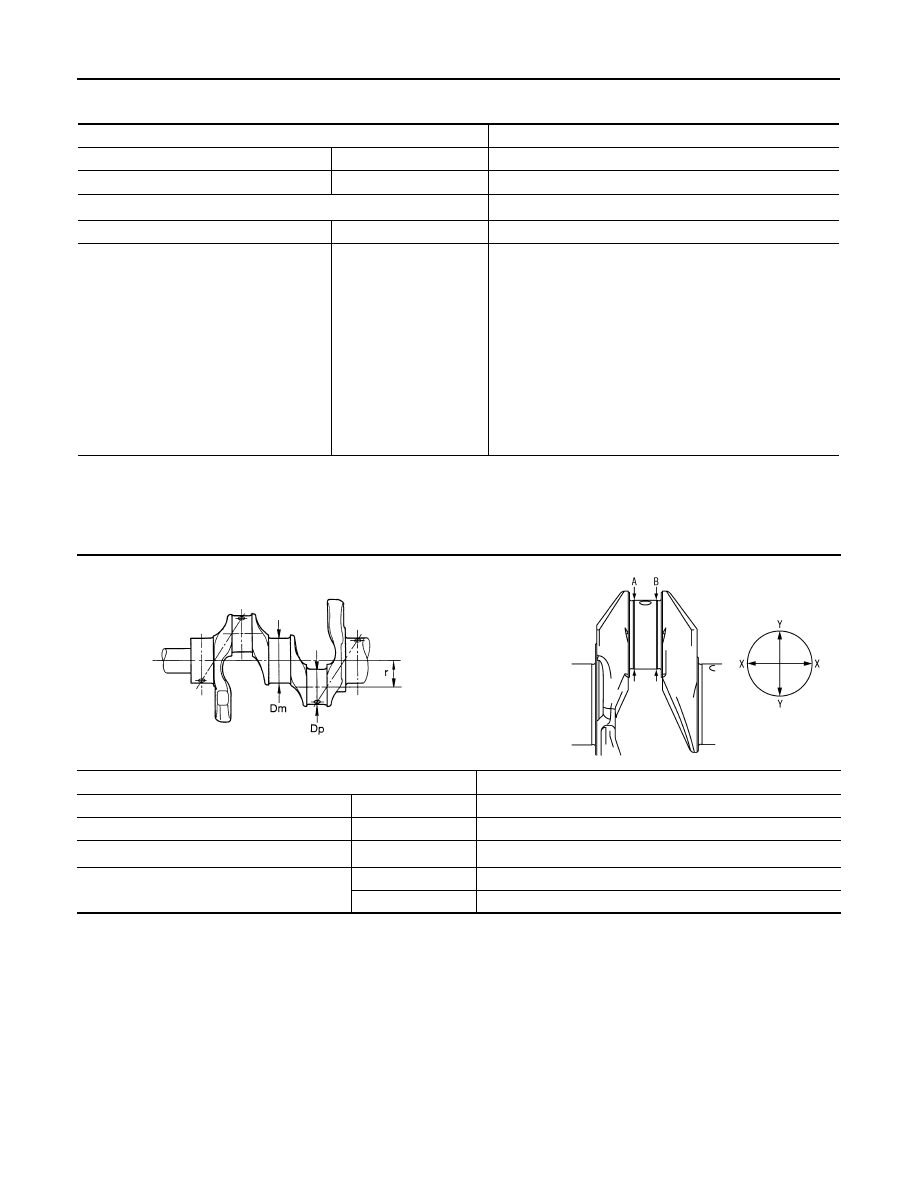

CONNECTING ROD

Unit: mm (in)

*

1

 : After installing in connecting rod

*

2

 : Always check with the Parts Department for the latest parts information.

CRANKSHAFT

Unit: mm (in)

Center distance

129.84 - 129.94 (5.1118 - 5.1157)

Bend [per 100 (3.94)]

Limit

0.15 (0.0059)

Torsion [per 100 (3.94)]

Limit

0.30 (0.0118)

Connecting rod bushing inner diameter*

1

18.958 - 18.978 (0.7463 - 0.7471)

Side clearance

Standard

0.200 - 0.352 (0.0079 - 0.0138)

Connecting rod big end diameter grade*

2

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N

43.000 - 43.001 (1.6929 - 1.6929)
43.001 - 43.002 (1.6929 - 1.6930)
43.002 - 43.003 (1.6930 - 1.6930)
43.003 - 43.004 (1 6930 - 1.6931)
43.004 - 43.005 (1.6931 - 1.6931)
43.005 - 43.006 (1.6931 - 1.6931)
43.006 - 43.007 (1.6931 - 1.6932)
43.007 - 43.008 (1.6932 - 1.6932)
43.008 - 43.009 (1.6932 - 1.6933)
43.009 - 43.010 (1.6933 - 1.6933)

43.010 - 43.011 (1.6933 - 1.6933)
43.011 - 43.012 (1.6933 - 1.6934)

43.012 - 43.013 (1.6934 - 1.6934)

Center distance “r”

41.68 - 41.76 (1.6409 - 1.6441)

Out-of-round

Limit

0.003 (0.0001)

Taper

Limit

0.004 (0.0002)

Runout [TIR*

1

]

Limit

0.10 (0.0039)

Crankshaft end play

Standard

0.098 - 0.260 (0.0039 - 0.0102)

Limit

0.35 (0.0138)

SEM645

PBIC3459J

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-123

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

*

1

: Total indicator reading

*

2

: Always check with the Parts Department for the latest parts information.

*

3

: Grade No. B through U reflects less than maximum specification.

*

4

: Grade No. B through W reflects less than maximum specification.

Main Bearing

INFOID:0000000009444766

MAIN BEARING

Crankshaft pin journal diameter grade.*

2

“Dp”*

3

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U

39.970 - 39.971 (1.5736 - 1.5737)
39.969 - 39.970 (1.5736 - 1.5736)
39.968 - 39.969 (1.5735 - 1.5736)
39.967 - 39.968 (1.5735 - 1.5735)
39.966 - 39.967 (1.5735 - 1.5735)
39.965 - 39.966 (1.5734 - 1.5735)
39.964 - 39.965 (1.5734 - 1.5734)
39.963 - 39.964 (1.5733 - 1.5734)
39.962 - 39.963 (1.5733 - 1.5733)
39.961 - 39.962 (1.5733 - 1.5733)
39.960 - 39.961 (1.5732 - 1.5733)
39.959 - 39.960 (1.5732 - 1.5732)
39.958 - 39.959 (1.5731 - 1.5732)
39.957 - 39.958 (1.5731 - 1.5731)
39.956 - 39.957 (1.5731 - 1.5731)
39.955 - 39.956 (1.5730 - 1.5731)
39.954 - 39.955 (1.5730 - 1.5730)
39.953 - 39.954 (1.5729 - 1.5730)

Crankshaft main journal diameter grade.*

2

“Dm”*

4

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W

47.978 - 47.979 (1.8889 - 1.8889)
47.977 - 47.978 (1.8889 - 1.8889)
47.976 - 47.977 (1.8888 - 1.8889)
47.975 - 47.976 (1.8888 - 1.8888)
47.974 - 47.975 (1.8887 - 1.8888)
47.973 - 47.974 (1.8887 - 1.8887)
47.972 - 47.973 (1.8887 - 1.8887)
47.971 - 47.972 (1.8886 - 1.8886)
47.970 - 47.971 (1.8886 - 1.8886)
47.969 - 47.970 (1.8885 - 1.8886)
47.968 - 47.969 (1.8885 - 1.8885)
47.967 - 47.968 (1.8885 - 1.8885)
47.966 - 47.967 (1.8884 - 1.8885)
47.965 - 47.966 (1.8884 - 1.8884)
47.964 - 47.965 (1.8883 - 1.8884)
47.963 - 47.964 (1.8883 - 1.8883)
47.962 - 47.963 (1.8883 - 1.8883)
47.961 - 47.962 (1.8882 - 1.8883)
47.960 - 47.961 (1.8882 - 1.8882)
47.959 - 47.960 (1.8881 - 1.8882)
