EM-116

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

Belt Tension and Frequency

*: When engine is cold.

Spark Plug

INFOID:0000000009444761

SPARK PLUG (PLATINUM-TIPPED TYPE)

*: Always check with the Parts Department for the latest parts information.

Exhaust Manifold

INFOID:0000000009444762

EXHAUST MANIFOLD

Unit: mm (in)

Camshaft

INFOID:0000000009444763

CAMSHAFT

Unit: mm (in)

Location

 Tension adjustment *

Unit: N (kg-f,

lb-f)

 Frequency adjustment *

Unit: Hz

Used belt

New belt

Used belt

New belt

Limit

After adjusted

Limit

After adjusted

Drive belt

With A/C

350 (35.7, 78.7)

881 - 951
(89.9 - 97.0,
198.0 - 213.8)

1070 - 1138

(109.1 - 116.1,

240.5 - 255.8)

145.5

230.5 - 239.5

254 - 262

Without A/C

876 - 964
(89.4 - 98.3,
196.9 - 216.7)

1064 - 1152
(108.5 - 117.5,
239.2 - 259.0)

162

256.5 - 268.5

282.5 - 293.5

Make

NGK

Standard type*

PLZKAR6A-11

Gap (nominal)

1.1 mm (0.043 in)

Items

                                Limit

Surface distortion

0.3 (0.012)

Items

Standard

Limit

Camshaft runout [TIR*]

 0.02 (0.0008)

0.1 (0.0039)

Camshaft cam height “A”

Intake

41.705 - 41.895 (1.6419 - 1.6494)

41.505 (1.6341)

Exhaust

40.915 - 41.105 (1.6108 - 1.6183)

40.715 (1.6029)

Camshaft journal outer diameter

No. 1

27.935 - 27.955 (1.0998 - 1.1006)

—

No. 2, 3, 4, 5

24.950 - 24.970 (0.9822 - 0.9830)

—

Camshaft bracket inner diameter

No. 1

28.000 - 28.021 (1.1024 - 1.1032)

—

No. 2, 3, 4, 5

25.000 - 25.021 (0.9842 - 0.9850)

—

SEM671

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-117

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

*: Total indicator reading

VALVE LIFTER

Unit: mm (in)

VALVE CLEARANCE

Unit: mm (in)

1

:Approximately 20

°C (68°F)

2

:Approximately 80

°C (176°F)

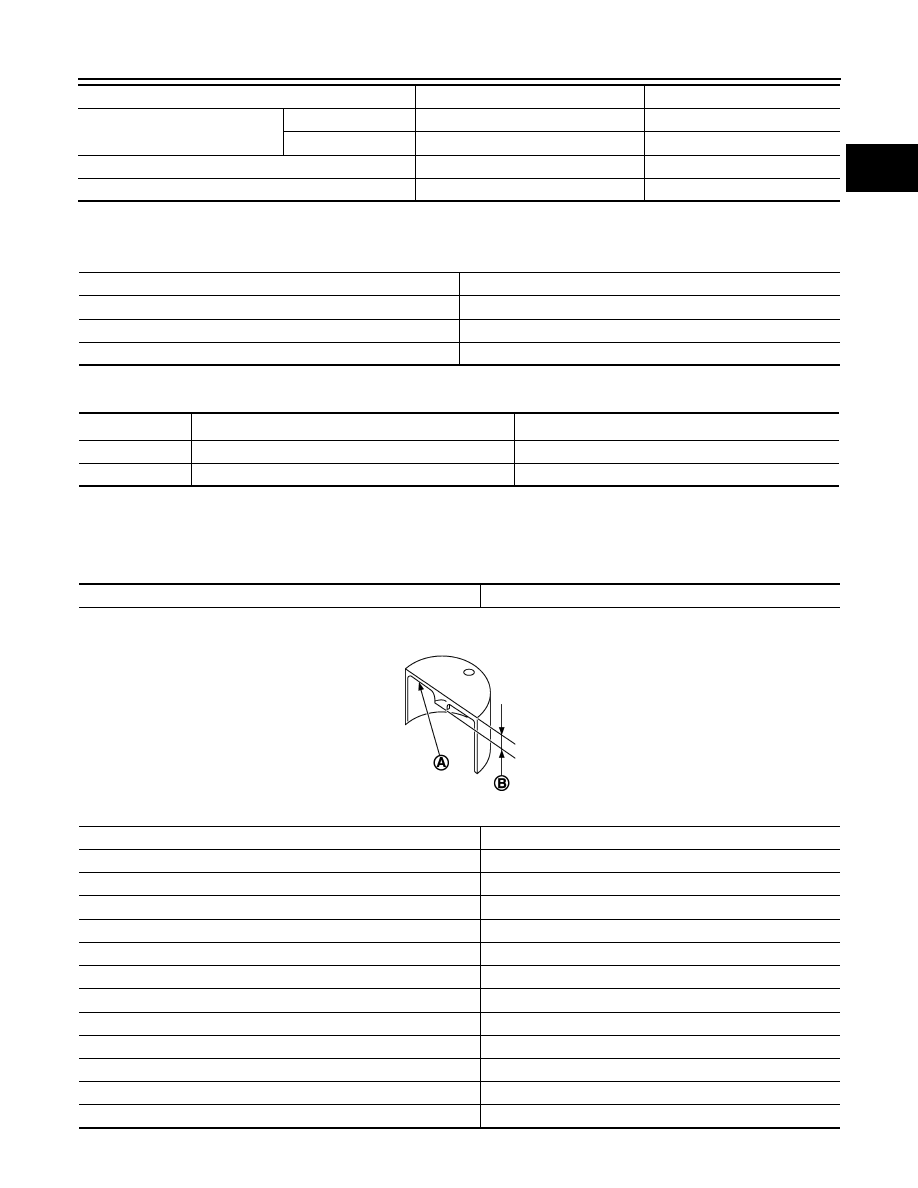

AVAILABLE VALVE LIFTER

Unit: mm (in)

Camshaft journal oil clearance

No. 1

0.045 - 0.086 (0.0018 - 0.0034)

—

No. 2, 3, 4, 5

0.030 - 0.071 (0.0011 - 0.0027)

—

Camshaft end play

0.075 - 0.153 (0.0029 - 0.0060)

0.2 (0.0078)

Camshaft sprocket runout [TIR*]

—

0.1 (0.0039)

Items

Standard

Limit

Items

                                              Standard

Valve lifter outer diameter

29.977 - 29.987 (1.1802 - 1.1806)

Valve lifter hole diameter

28 - 28.4 (1.024 - 1.1181)

Valve lifter clearance

0.013 - 0.044 (0.0005 - 0.0017)

Cold

1

Hot

2

Intake

0.26 - 0.34 (0.010 - 0.013)

0.304 - 0.416 (0.012 - 0.016)

Exhaust

0.29 - 0.37 (0.011 - 0.015)

0.308 - 0.432 (0.012 - 0.017)

Identification mark (A)

Thickness (B)

300

3.00 (0.1181)

302

3.02 (0.1189)

304

3.04 (0.1197)

306

3.06 (0.1205)

308

3.08 (0.1213)

310

3.10 (0.1220)

312

3.12 (0.1228)

314

3.14 (0.1236)

316

3.16 (0.1244)

318

3.18 (0.1252)

320

3.20 (0.1260)

322

3.22 (0.1268)

324

3.24 (0.1276)

JPBIA0170ZZ

EM-118

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

Cylinder head

INFOID:0000000009444764

CYLINDER HEAD

Unit: mm (in)

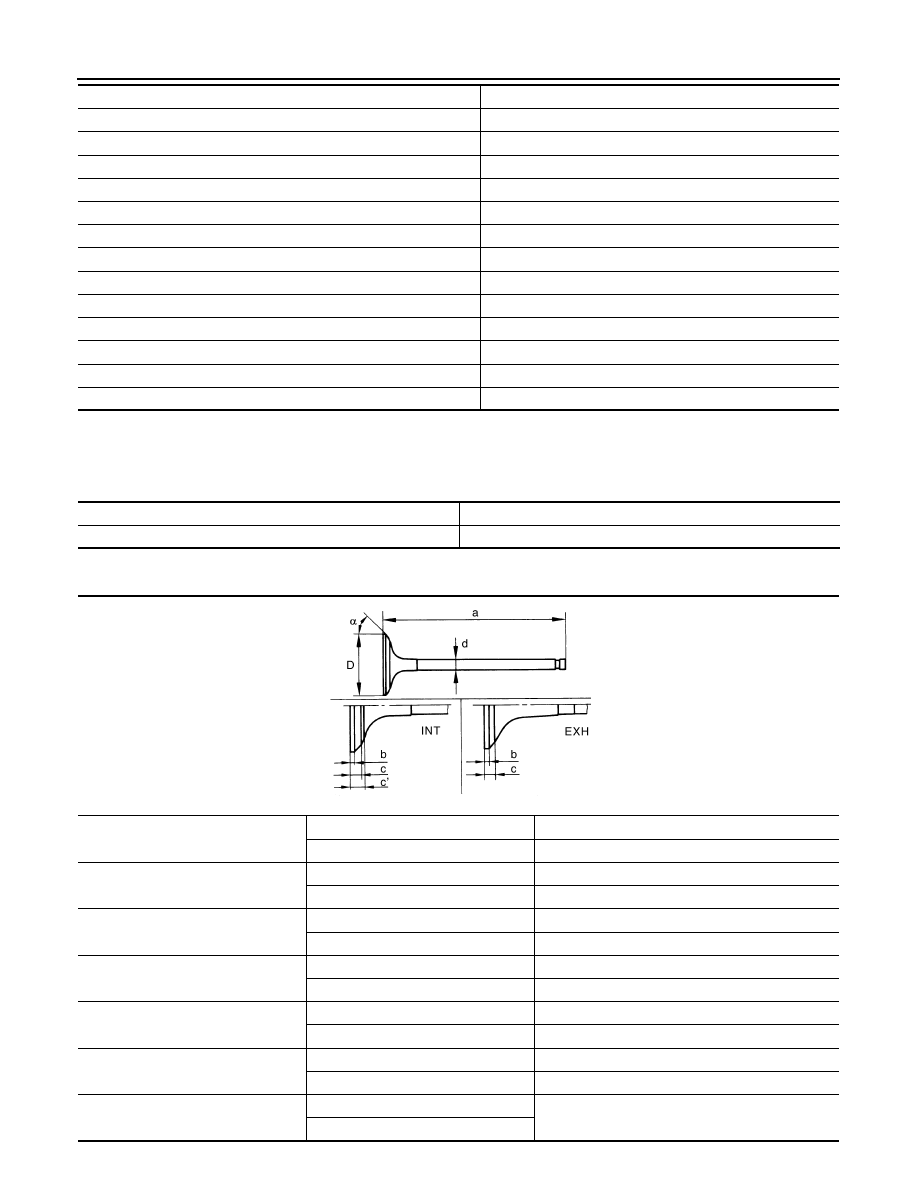

VALVE DIMENSIONS

Unit: mm (in)

326

3.26 (0.1283)

328

3.28 (0.1291)

330

3.30 (0.1299)

332

3.32 (0.1307)

334

3.34 (0.1315)

336

3.36 (0.1323)

338

3.38 (0.1331)

340

3.40 (0.1339)

342

3.42 (0.1346)

344

3.44 (0.1354)

346

3.46 (0.1362)

348

3.48 (0.1370)

350

3.50 (0.1378)

Identification mark (A)

Thickness (B)

Items

Limit

Head surface distortion

                                           0.1 (0.004)

Valve head diameter “D”

Intake

31.6 - 31.9 (1.244 - 1.256)

Exhaust

25.3 - 25.6 (0.996 - 1.007)

Valve length “a”

Intake

101.73 (4.01)

Exhaust

102.49 (4.04)

“b”

Intake

1.0 (0.0393)

Exhaust

1.0 (0.0393)

“c”

Intake

2.1 - 2.8 (0.0826 - 0.1102)

Exhaust

2.3 - 3.0 (0.0905 - 0.1181)

“c

′”

Intake

3.0 (0.1181)

Exhaust

–

“d ”

Intake

4.965 - 4.980 (0.1954 - 0.1960)

Exhaust

4.955 - 4.970 (0.1950 - 0.1956)

Valve seat angle “

α”

Intake

45

°15′ - 45°45′

Exhaust

PBIC3878E

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-119

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

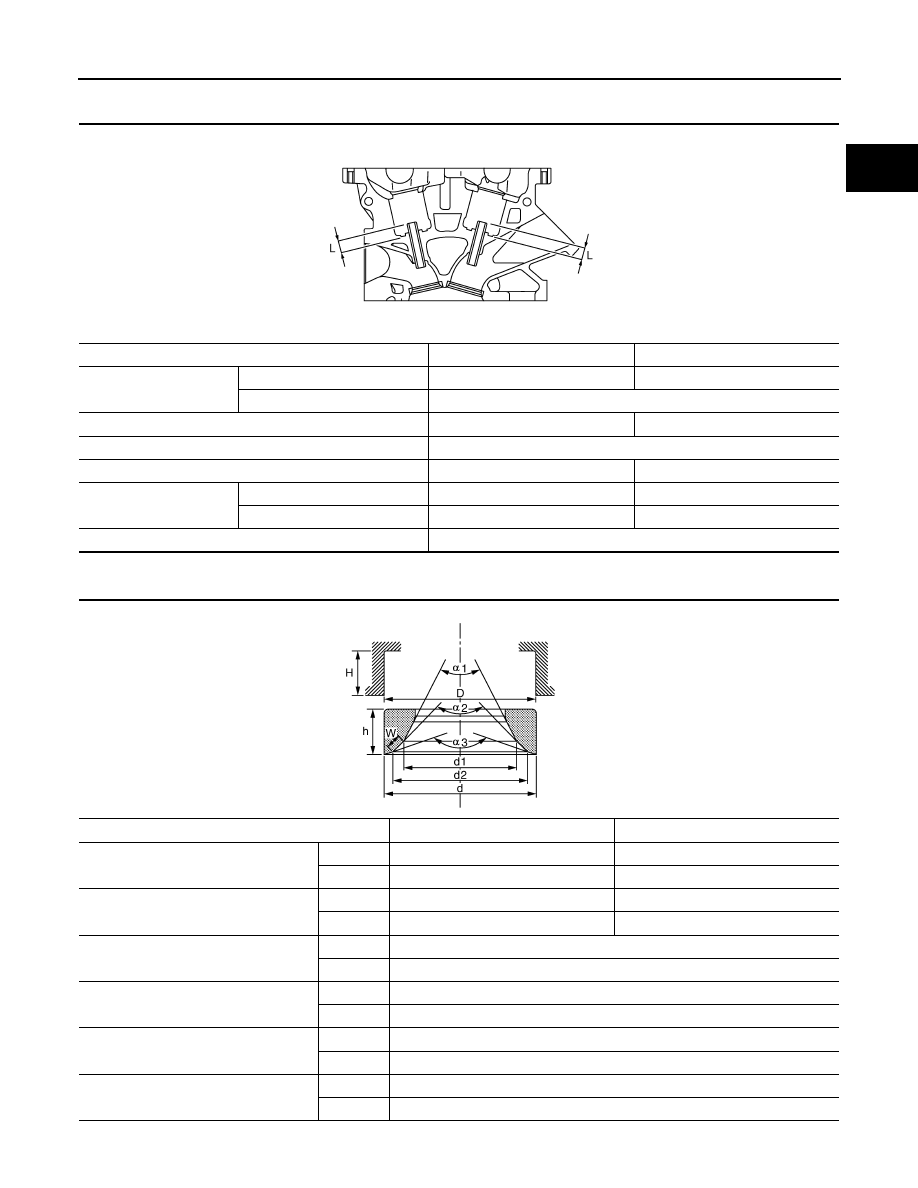

VALVE GUIDE

Unit: mm (in)

VALVE SEAT

Unit: mm (in)

Items

Standard part

Service part

Valve guide

Outer diameter

9.023 - 9.034 (0.3552 - 0.3556)

9.223 - 9.234 (0.3631 - 0.3635)

Inner diameter (Finished size)

5.000 - 5.018 (0.1968 - 0.1975)

Cylinder head valve guide hole diameter

8.975 - 9.001 (0.3533 - 0.3544)

9.175 - 9.201 (0.3612 - 0.3622)

Interference fit of valve guide

0.022 - 0.059 (0.0009 - 0.0023)

Items

Standard

Limit

Valve guide clearance

Intake

0.020 - 0.053 (0.0008 - 0.0021)

0.1 (0.004)

Exhaust

0.030 - 0.063 (0.0012 - 0.0025)

0.1 (0.004)

Projection length “L”

11.4 - 11.8 (0.448 - 0.464)

PBIC0184E

Items

Standard

Oversize [0.5 (0.02)] (Service)

Cylinder head seat recess diameter “D”

Intake

29.75 - 30.25 (1.1713 - 1.1909)

30.43 - 30.73 (1.1980 - 1.2098)

Exhaust

25.991 - 26.007 (1.0233 - 1.0239)

26.491 - 26.507 (1.0430 - 1.0436)

Valve seat outer diameter “d”

Intake

32.108 - 32.124 (1.2641 - 1.2647)

32.608 - 32.624 (1.2838 - 1.2844)

Exhaust

23.65 - 24.15 (.9311 - .9508)

23.69 - 26.007 (.9327 - 1.0239)

Valve seat interference fit

Intake

0.081 - 0.124 (0.0032 - 0.0049)

Exhaust

0.064 - 0.107 (0.0025 - 0.0042)

Diameter “d1”*

1

Intake

27.8 - 28.2 (1.0945 - 1.1102)

Exhaust

21.7 - 22.1 (.8543 - .8701)

Diameter “d2”*

2

Intake

31.2 - 31.4 (1.228 - 1.236)

Exhaust

24.9 - 25.1 (0.980 - 0.988)

Angle “

α1”

Intake

60

°

Exhaust

45

°
