REAR DOOR

DLK-277

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Loosen door hinge nuts (door side).
3. Adjust the surface height of rear door according to the specifications provided.
4. Temporarily tighten door hinge nuts (door side).
5. Loosen door hinge nuts and bolts (body side).
6. Raise rear door at rear end to adjust clearance of rear door according to the specifications provided.
7. After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• Apply touch-up paint (body color) to the head of hinge bolts and nuts.

• Check door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-purpose

grease.

8. Install center pillar lower finisher. Refer to

INT-25, "CENTER PILLAR LOWER FINISHER : Removal and

Installation"

.

DOOR STRIKER
DOOR STRIKER : Removal and Installation

INFOID:0000000009645181

REMOVAL

Remove bolts and rear door striker.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse door striker bolts.

• Tighten door striker bolts to specification. Refer to

DLK-274, "Exploded View"

.

• After installation, check front door open/close operation. If necessary, adjust the door striker. Refer

to

DLK-277, "DOOR STRIKER : Adjustment"

.

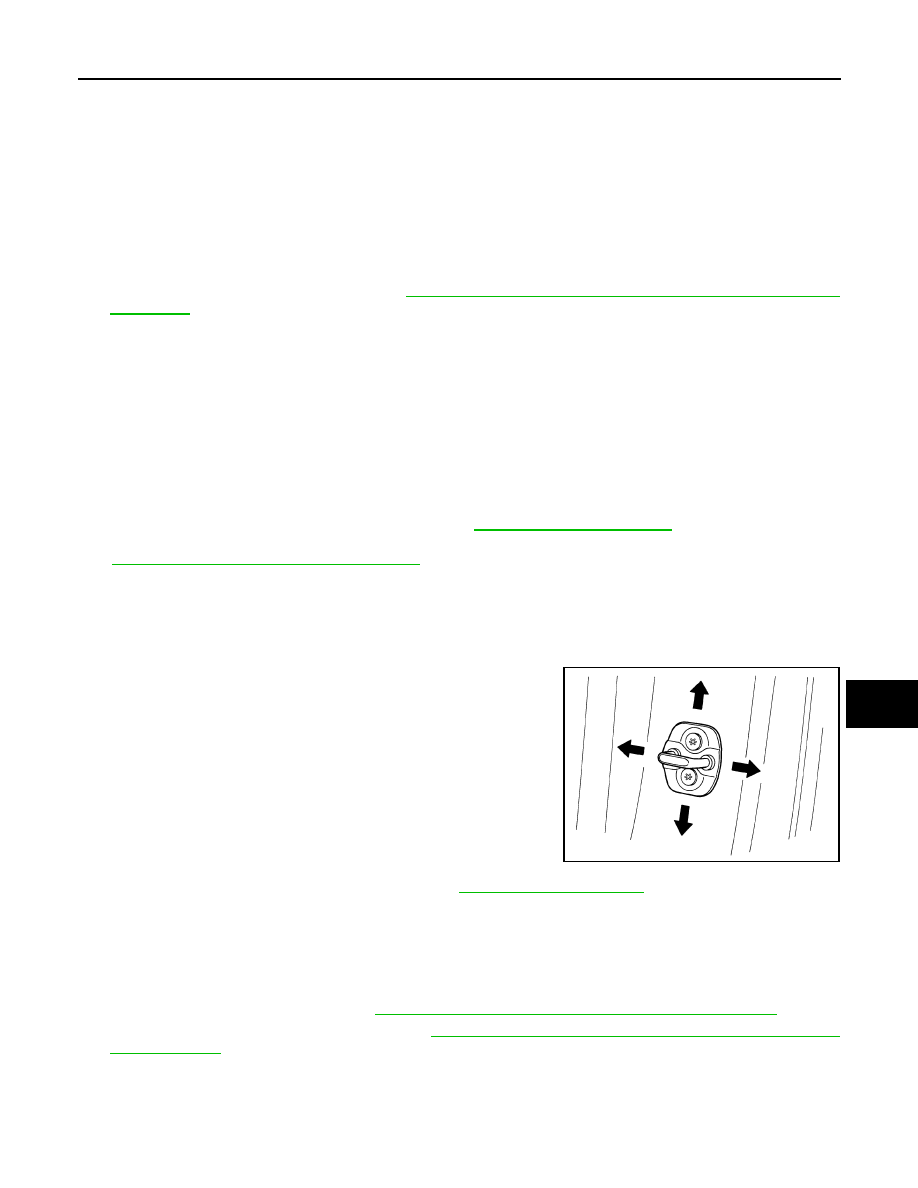

DOOR STRIKER : Adjustment

INFOID:0000000009645182

DOOR STRIKER ADJUSTMENT

1. Loosen door striker bolts.
2. Adjust door striker so that it becomes parallel with rear door lock

insertion direction.

3. Tighten door striker bolts to specification. Refer to

DLK-274, "Exploded View"

.

DOOR HINGE
DOOR HINGE : Removal and Installation

INFOID:0000000009645183

REMOVAL

1. Remove rear door assembly. Refer to

DLK-274, "DOOR ASSEMBLY : Removal and Installation"

.

2. Remove center pillar lower finisher. Refer to

INT-25, "CENTER PILLAR LOWER FINISHER : Removal

and Installation"

.

3. Remove rear door hinge bolts and nuts (body side) and rear door hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

PIIB2804J

DLK-278

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

REAR DOOR

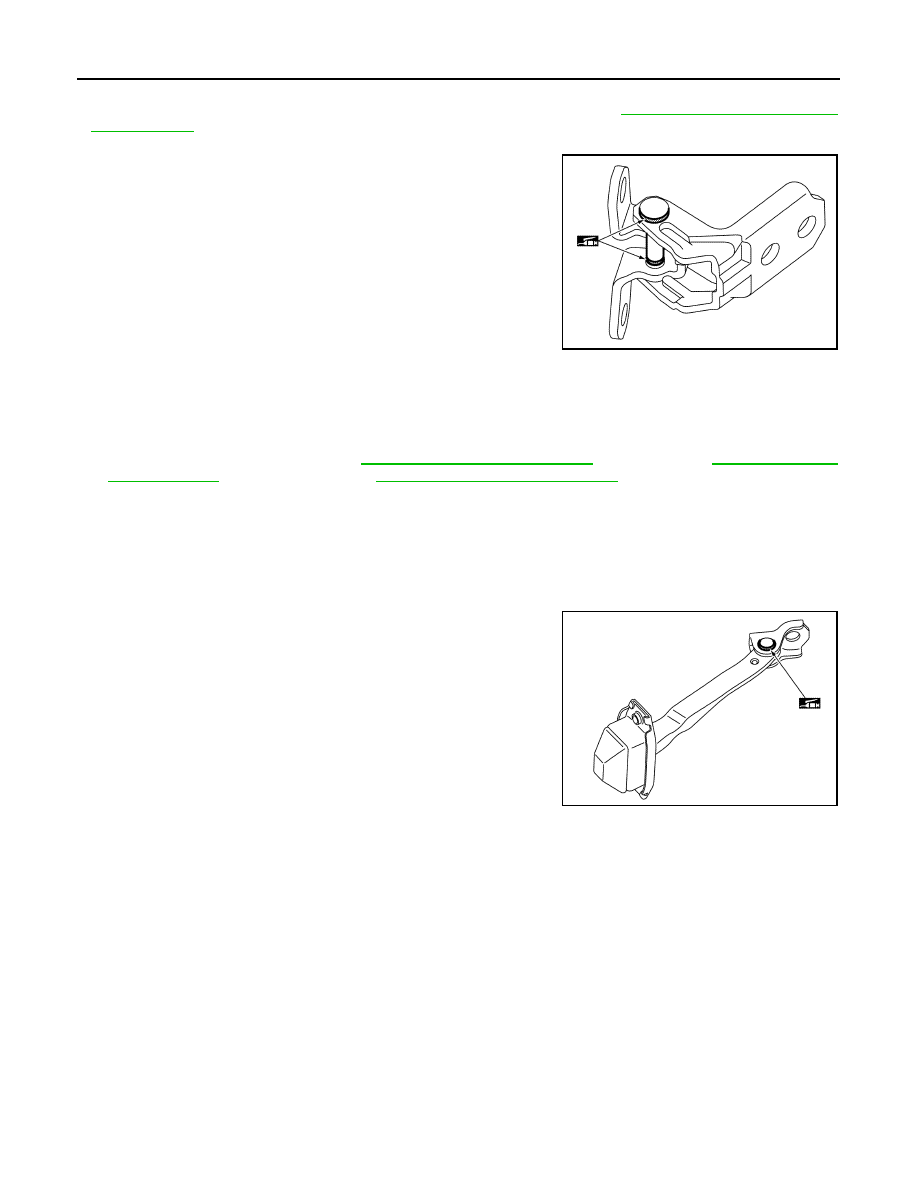

• Apply anticorrosive agent to the door hinge mating surface.

• After installation, perform the rear door adjustment procedure. Refer to

DLK-276, "DOOR ASSEMBLY

: Adjustment"

.

• After adjusting, apply touch-up paint (body color) to the head of door hinge bolts and nuts.

• Check door hinge rotating point for poor lubrication. If neces-

sary, apply a suitable multi-purpose grease.

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000009645184

REMOVAL

1. Remove rear door speaker. Refer to

AV-55, "Removal and Installation"

 (BASE AUDIO),

AV-120, "Removal

and Installation"

 (DISPLAY AUDIO) or

AV-243, "Removal and Installation"

 (NAVIGATION).

2. Remove door check link bolt (body side).
3. Remove door check link bolts (door side) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check rear door open/close operation.

• Check door check link rotating point for poor lubrication. If

necessary, apply a suitable multi-purpose grease.

JMKIA8072ZZ

JMKIA8074ZZ

BACK DOOR

DLK-279

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR

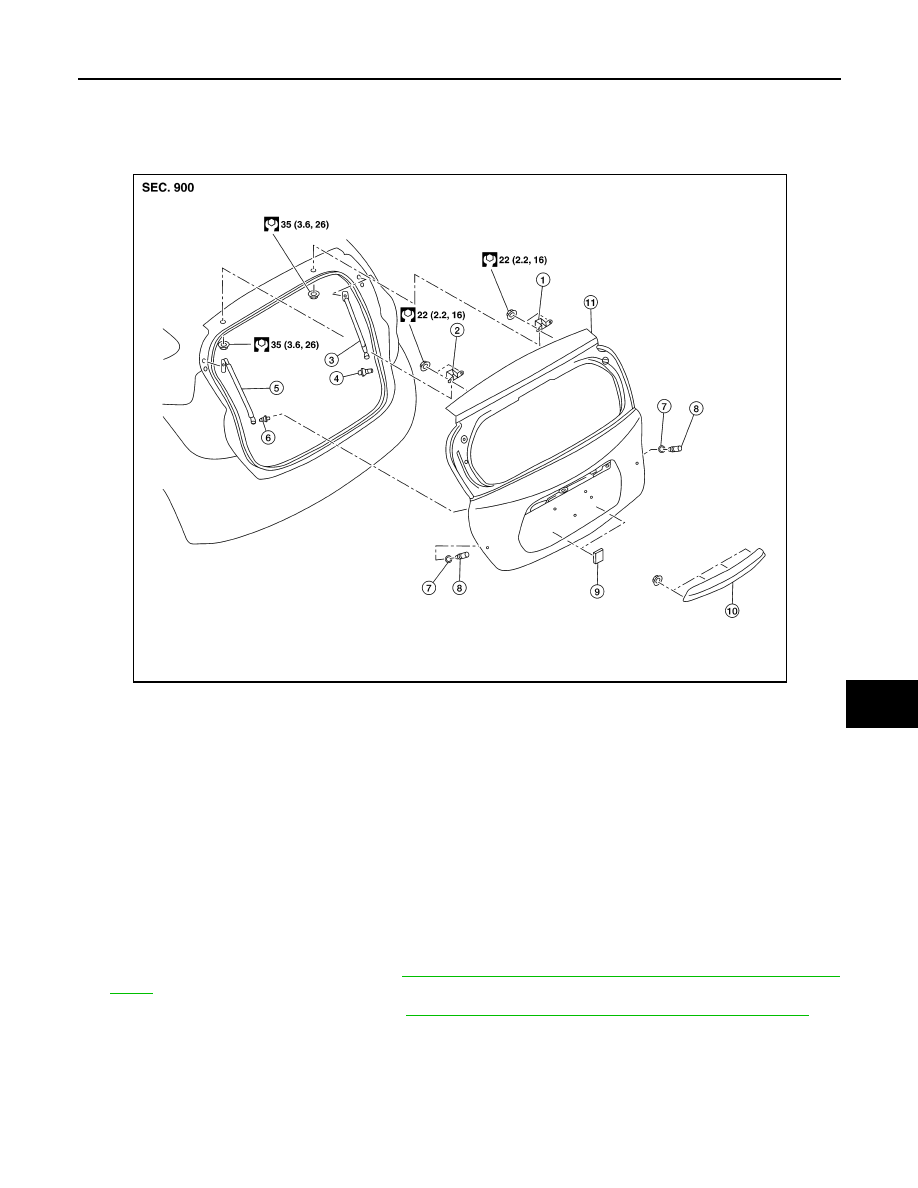

Exploded View

INFOID:0000000009645185

BACK DOOR ASSEMBLY
BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009645188

CAUTION:

• Use two people when removing or installing the back door due to its heavy weight.

• Use shop cloths to protect surrounding components from damage during removal and installation of

back door.

REMOVAL

1. Remove back door inner finisher. Refer to

INT-36, "BACK DOOR INNER FINISHER : Removal and Instal-

lation"

.

2. Remove back door stay (LH/RH). Refer to

DLK-157, "BACK DOOR STAY : Removal and Installation"

.

1.

Back door hinge (RH)

2.

Back door hinge (LH)

3.

Back door stay (RH)

4.

Back door stay stud ball (RH)

5.

Back door stay (LH)

6.

Back door stay stud ball (LH)

7.

Bumper rubber seal

8.

Bumper rubber

9.

Spacer

10. Back door outer finisher

11. Back door assembly

AWKIA2571ZZ

DLK-280

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR

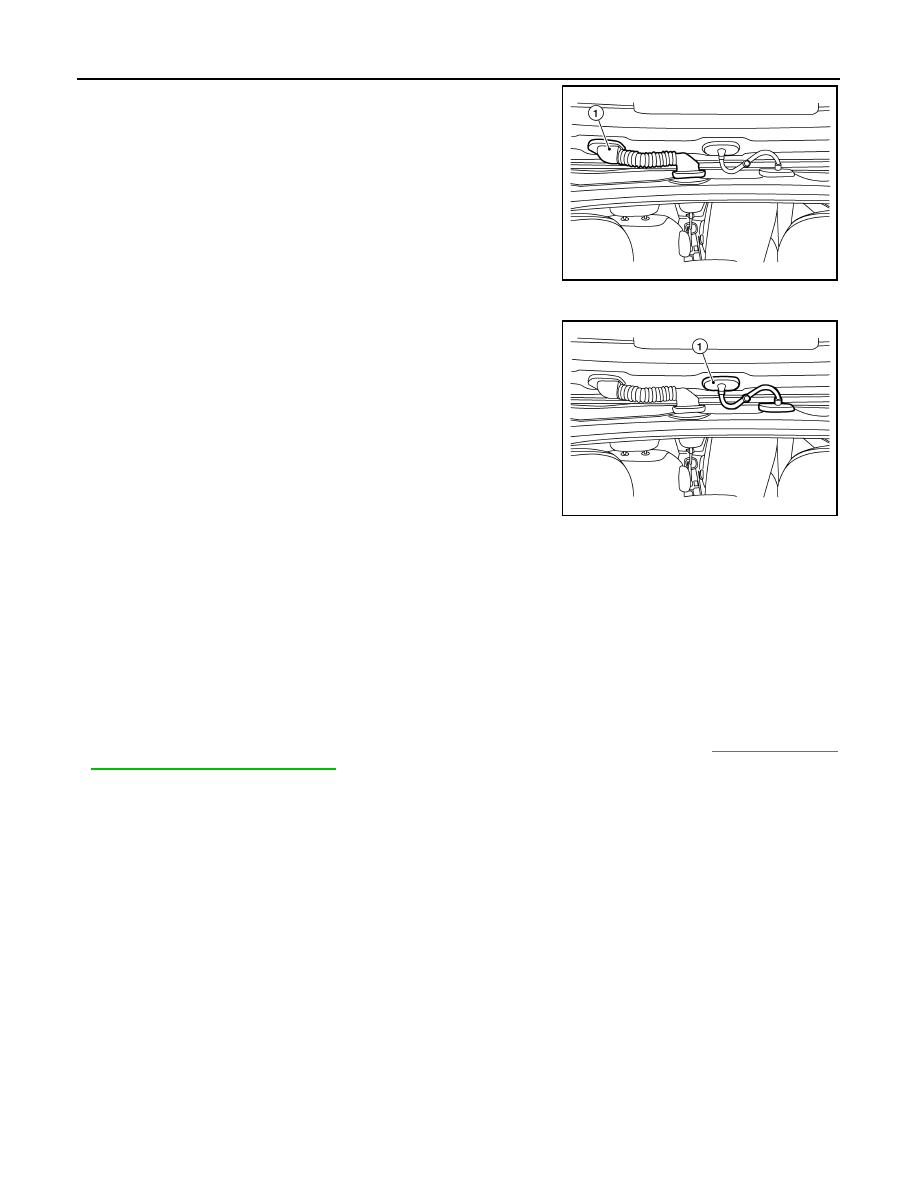

3. Remove back door harness grommet (1), then pull harness from

the back door.

4. Disconnect washer tube from rear wiper.
5. Remove washer tube grommet (1), then pull washer tube from

the back door.

6. Support the back door assembly using a suitable tool.

WARNING:

Bodily injury may occur if back door assembly is not supported properly when removing the back

door spindle unit.

7. Remove back door hinge nuts (door side) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the surface between hinge and door side.

• When reusing stud ball, always apply locking sealant before installing stud ball to back door.

• After installation, perform the back door assembly adjustment procedure. Refer to

DLK-281, "BACK

DOOR ASSEMBLY : Adjustment"

.

ALKIA3187ZZ

ALKIA3188ZZ
