FRONT FENDER

DLK-269

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4. Remove front fender stiffener (2) by carefully pulling upper por-

tion of front fender (1) away from body.

: Front

CAUTION:

Use care when removing the front fender. The front fender

stiffener foam adheres the front fender to the body. Care-

fully release the stiffener foam or damage to front fender

may occur.

5. Remove front fender.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, apply touch-up paint (body color) to the head of front fender bolts.

• After installation, adjust the following components as necessary:

- Hood assembly: Refer to

DLK-262, "HOOD ASSEMBLY : Adjustment"

.

- Front door assembly: Refer to

DLK-271, "DOOR ASSEMBLY : Adjustment"

.

JMKIA5633ZZ

DLK-270

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR

FRONT DOOR

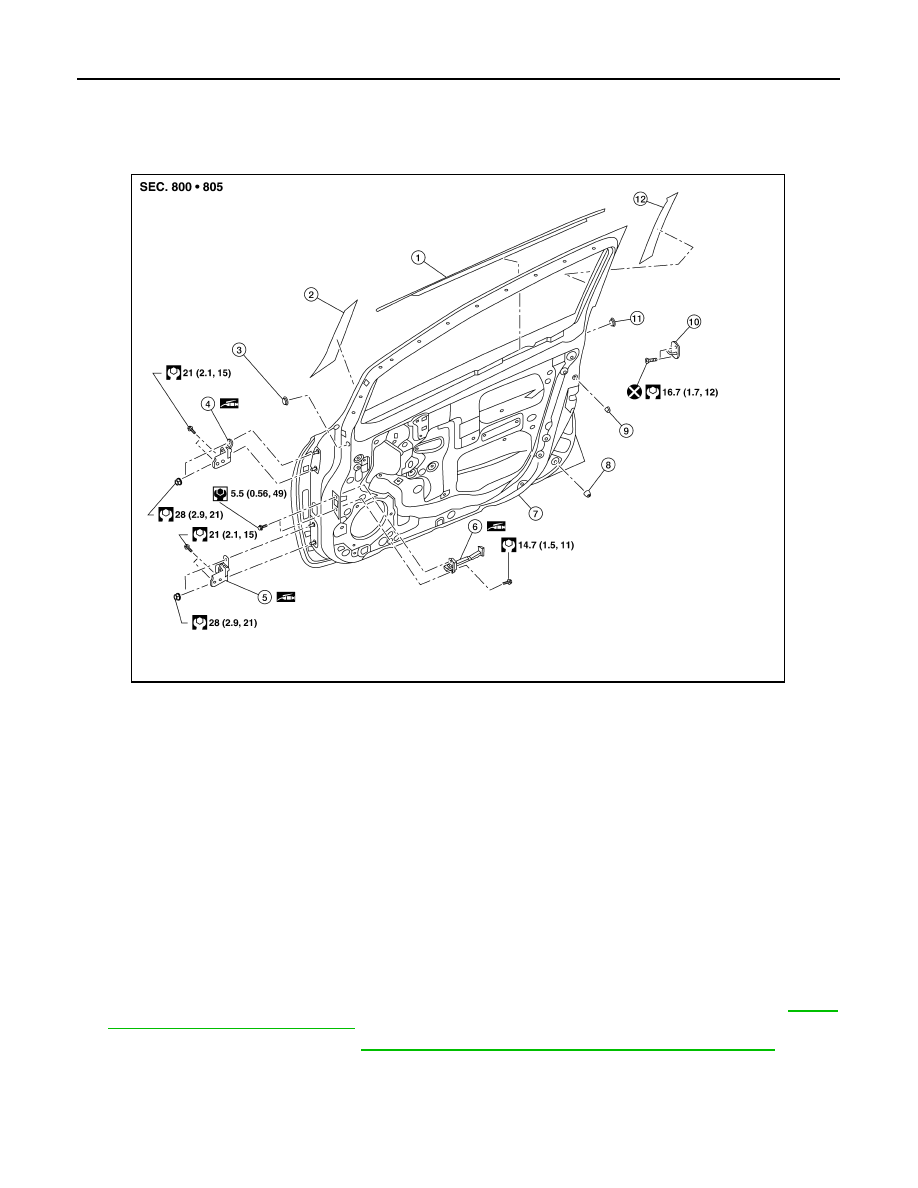

Exploded View

INFOID:0000000009645169

DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009645171

CAUTION:

• Use two people when removing or installing front door due to its heavy weight

• When removing and installing front door assembly, support the door using a suitable tool.

• Do not use air tools or electric tools for servicing.

• Before servicing, turn ignition switch off, disconnect both battery terminals and wait at least three

minutes.

REMOVAL

1. Disconnect the battery positive and negative terminals and wait at least three minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

2. Remove dash side finisher. Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installation"

.

3. Disconnect the harness connectors from the front door.
4. Remove door check link bolt (body side).
5. Remove door hinge nuts (door side) and front door assembly.

INSTALLATION

1.

Inside seal

2.

Door sash front tape

3.

Grommet (driver side only)

4.

Door upper hinge

5.

Door lower hinge

6.

Door check link

7.

Front door panel

8.

Lower grommet

9.

Upper grommet

10. Door striker

11. Body panel plug

12. Door sash rear tape

AWKIA2492ZZ

FRONT DOOR

DLK-271

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Installation is in the reverse order of removal.

CAUTION:

• After installation, perform the front door adjustment procedure. Refer to

DLK-271, "DOOR ASSEM-

BLY : Adjustment"

.

• Apply anticorrosive agent to the door hinge mating surface.

• Check door hinge rotating point for poor lubrication. If neces-

sary, apply a suitable multi-purpose grease.

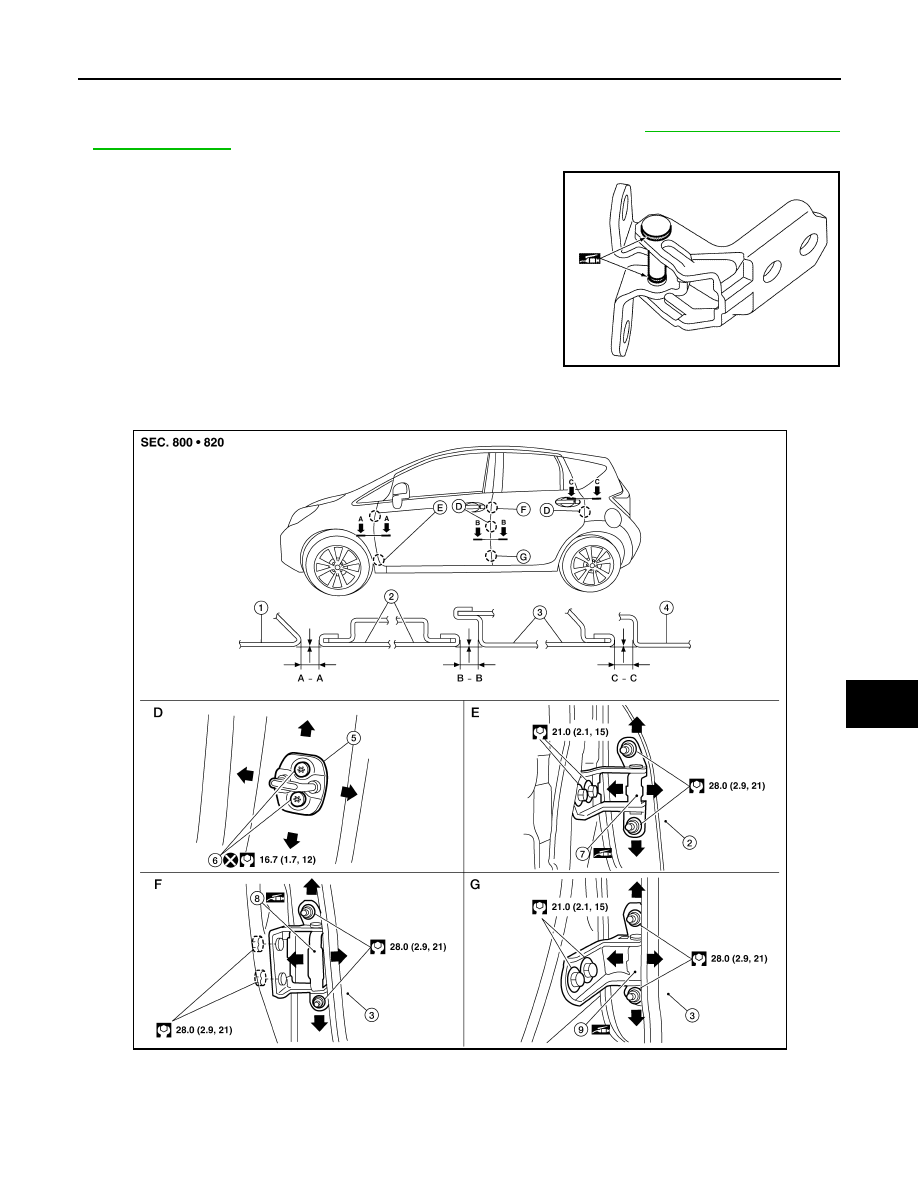

DOOR ASSEMBLY : Adjustment

INFOID:0000000009645172

JMKIA8072ZZ

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

Striker bolt

7.

Front door hinge

8.

Rear door upper hinge

9.

Rear door lower hinge

AWKIA2493ZZ

DLK-272

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR

Check the clearance and surface height between front door and each part by visual inspection and tactile feel.

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dure.

Unit: mm (in)

1. Remove front fender. Refer to

DLK-268, "Removal and Installation"

.

2. Loosen front door hinge nuts (door side).
3. Adjust the surface height of front door according to the specifications provided.
4. Temporarily tighten front door hinge nuts (door side).
5. Loosen front door hinge bolts (body side).
6. Raise or lower the front door at rear end to adjust clearance of the front door according to the specifica-

tions provided.

7. After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

Check door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-purpose

grease.

8. Install front fender. Refer to refer to

DLK-268, "Removal and Installation"

.

DOOR STRIKER
DOOR STRIKER : Removal and Installation

INFOID:0000000009645173

REMOVAL

Remove bolts and door striker.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse door striker bolts.

• Tighten bolts to specification. Refer to

DLK-270, "Exploded View"

.

• After installation, check front door open/close operation. If necessary, perform the door striker

adjustment procedure. Refer to

DLK-272, "DOOR STRIKER : Adjustment"

.

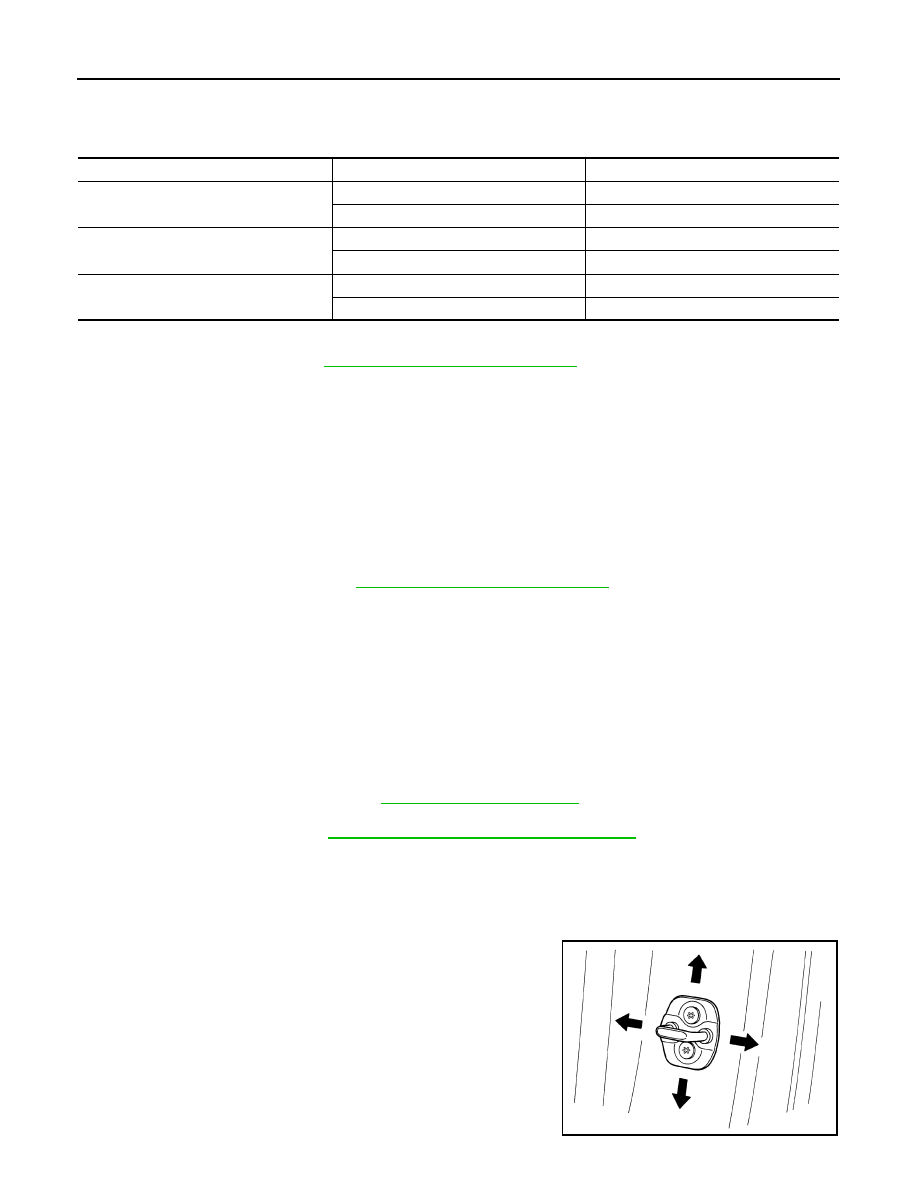

DOOR STRIKER : Adjustment

INFOID:0000000009645174

DOOR STRIKER ADJUSTMENT

1. Loosen door striker bolts
2. Adjust door striker so that it becomes parallel with front door lock

insertion direction.

Section

Measurement

Standard

A – A

Clearance

4.6

± 1.0 (0.18 ± 0.04)

Surface height

0.0

± 1.0 (0.0 ± 0.04)

B – B

Clearance

4.6

± 2.0 (0.18 ± 0.08)

Surface height

0.0

± 1.5 (0.0 ± 0.06)

C – C

Clearance

4.6

± 1.0 (0.18 ± 0.04)

Surface height

0.0

± 1.0 (0.0 ± 0.04)

PIIB2804J
