BACK DOOR

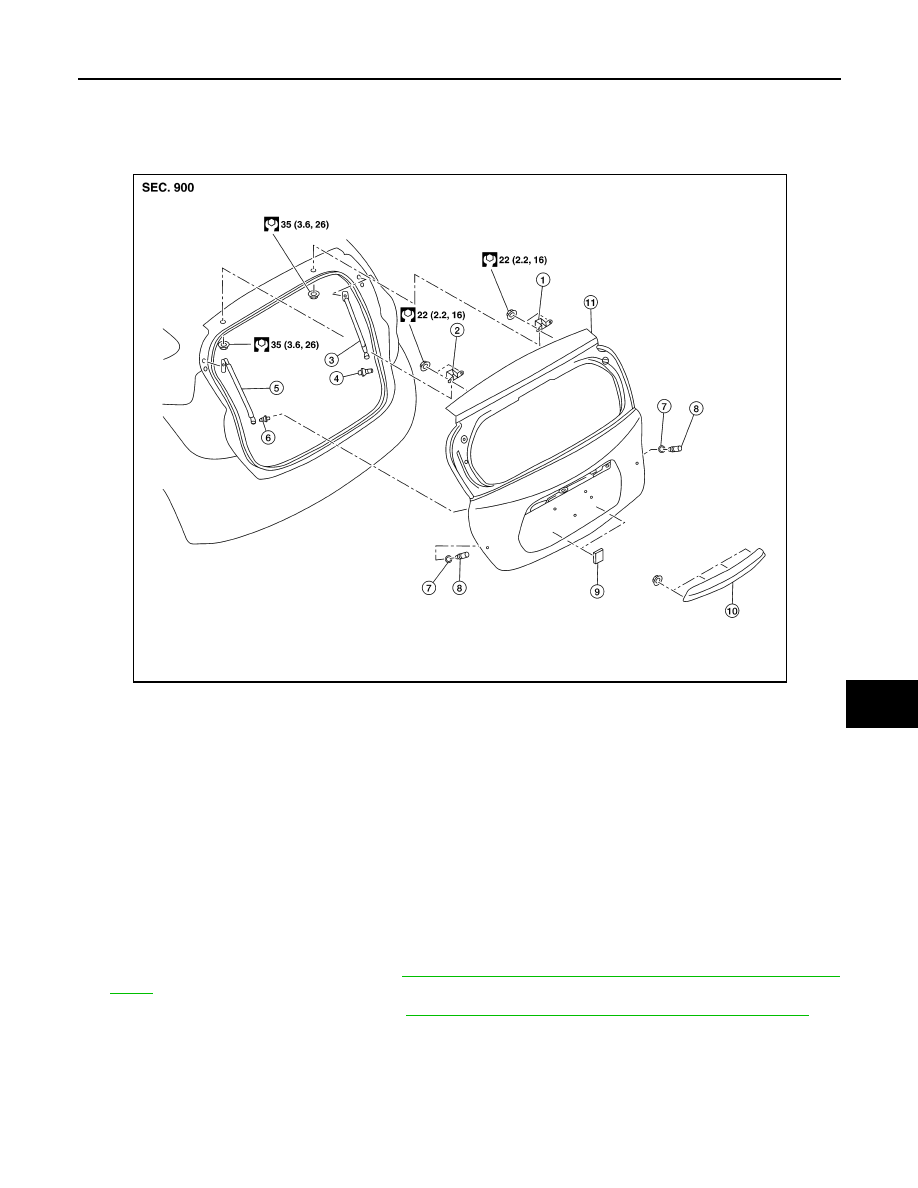

Exploded View

INFOID:0000000008969445

BACK DOOR ASSEMBLY
BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009549278

CAUTION:

• Use two people when removing or installing the back door due to its heavy weight.

• Use shop cloths to protect surrounding components from damage during removal and installation of

back door.

REMOVAL

1. Remove back door inner finisher. Refer to

INT-36, "BACK DOOR INNER FINISHER : Removal and Instal-

lation"

.

2. Remove back door stay (LH/RH). Refer to

DLK-157, "BACK DOOR STAY : Removal and Installation"

.

1.

Back door hinge (RH)

2.

Back door hinge (LH)

3.

Back door stay (RH)

4.

Back door stay stud ball (RH)

5.

Back door stay (LH)

6.

Back door stay stud ball (LH)

7.

Bumper rubber seal

8.

Bumper rubber

9.

Spacer

10. Back door outer finisher

11. Back door assembly

AWKIA2571ZZ

DLK-154

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

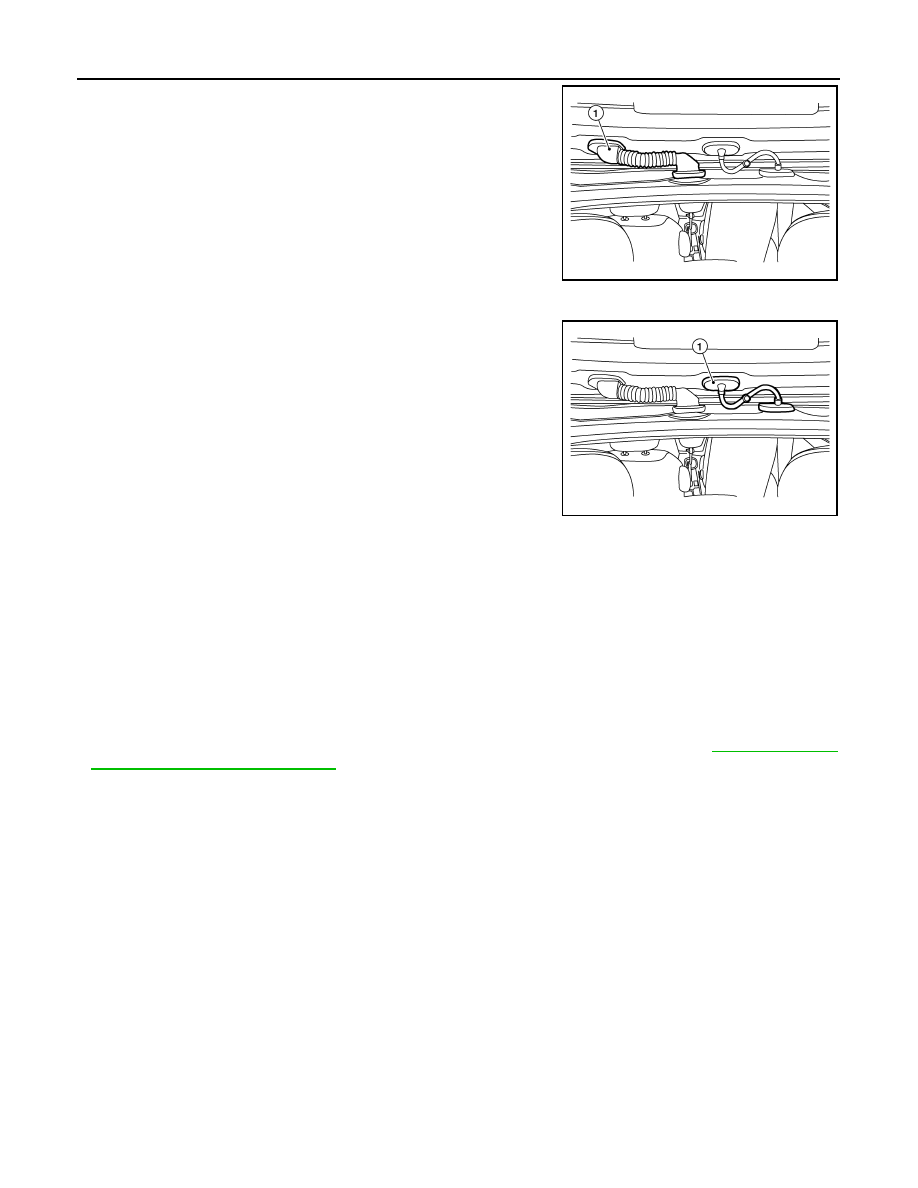

3. Remove back door harness grommet (1), then pull harness from

the back door.

4. Disconnect washer tube from rear wiper.
5. Remove washer tube grommet (1), then pull washer tube from

the back door.

6. Support the back door assembly using a suitable tool.

WARNING:

Bodily injury may occur if back door assembly is not supported properly when removing the back

door spindle unit.

7. Remove back door hinge nuts (door side) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the surface between hinge and door side.

• When reusing stud ball, always apply locking sealant before installing stud ball to back door.

• After installation, perform the back door assembly adjustment procedure. Refer to

DLK-155, "BACK

DOOR ASSEMBLY : Adjustment"

.

ALKIA3187ZZ

ALKIA3188ZZ

BACK DOOR

DLK-155

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000009549279

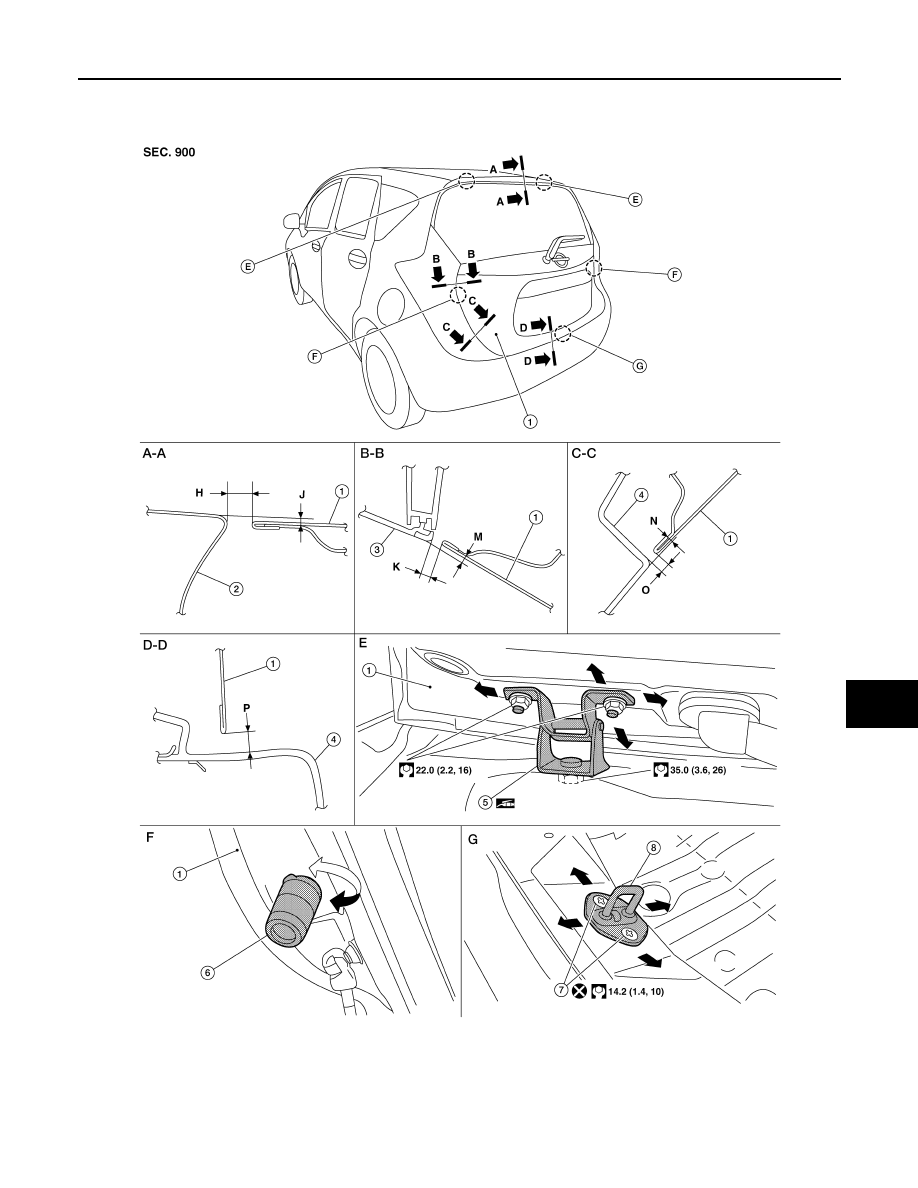

1.

Back door panel

2.

Roof panel

3.

Rear combination lamp

4.

Rear bumper fascia

5.

Back door hinge

6.

Bumper rubber

7.

Bolt

8.

Back door striker

AWKIA2495ZZ

DLK-156

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

Check the clearance and the surface height between back door and each part by visual inspection and tactile

feel. If the clearance and the surface height are out of specification, adjust them according to the adjustment

procedure.

Unit: mm (in)

1. Loosen back door hinge nuts (door side).
2. Lift up back door approximately 100 – 150 mm (3.94 – 5.91 in) height then close it lightly and check that it

is engaged firmly with back door closed.

3. Check the clearance and surface height and adjust back door as necessary.
4. Tighten back door hinge nuts to specified torque.

CAUTION:

• After installation, check back door open/close, lock/unlock operation.

• Check back door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-pur-

pose grease.

• After adjusting, apply touch-up paint (body color) to the head of rear door hinge bolts and nuts.

BACK DOOR STRIKER
BACK DOOR STRIKER : Removal and Installation

INFOID:0000000009549280

REMOVAL

1. Remove back door kicking plate using a suitable tool.
2. Remove bolts and back door striker.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse back door striker bolts.

• After installation, check back door open/close, lock/unlock operation.

• After installation, perform the back door assembly adjustment procedure. Refer to

DLK-155, "BACK

DOOR ASSEMBLY : Adjustment"

.

BACK DOOR STRIKER : Adjustment

INFOID:0000000009549285

DOOR STRIKER ADJUSTMENT

1. Loosen door striker bolts.

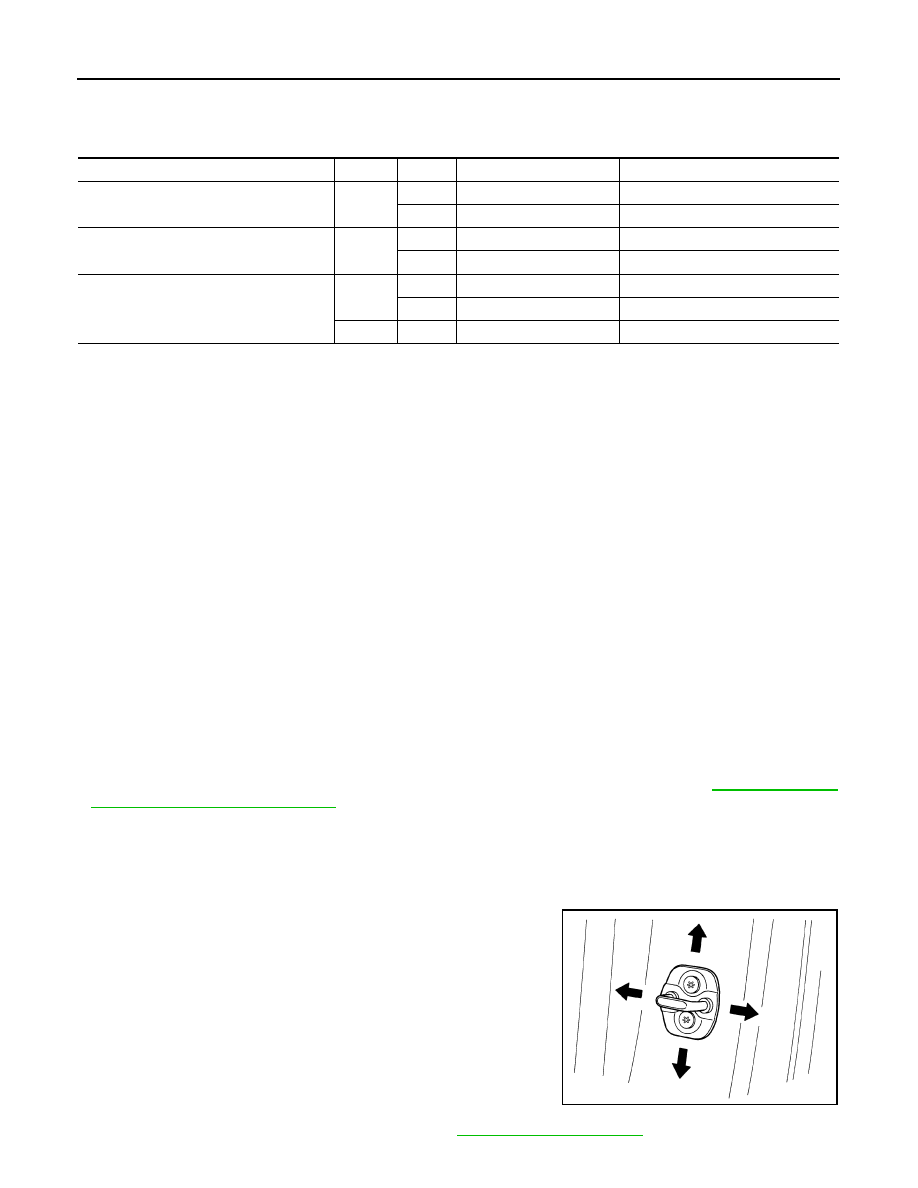

2. Adjust door striker so that it becomes parallel with back door

lock insertion direction.

3. Tighten door striker bolts to specification. Refer to

DLK-153, "Exploded View"

.

Portion

Section

Item

Measurement

Standard

Back door panel – Roof panel

A – A

H

Clearance

6.0

± 1.0 (0.24 ± 0.04)

I

Surface height

0.0 +0.5, -1.5 (0.00 +0.02, -0.06)

Rear combination lamp – Back door panel

B – B

J

Clearance

5.0

± 2.0 (0.20 ± 0.08)

K

Surface height

-2.0

± 2.0 (-0.08 ± 0.08)

Rear bumper fascia – Back-door panel

C – C

L



Clearance

5.0

± 2.0 (0.20 ± 0.08)

M

Surface height

0.0 +0.5, -2.0 (0.0 +0.02, -0.08)

D – D

M

Clearance

7.0

± 2.0 (0.28 ± 0.08)
