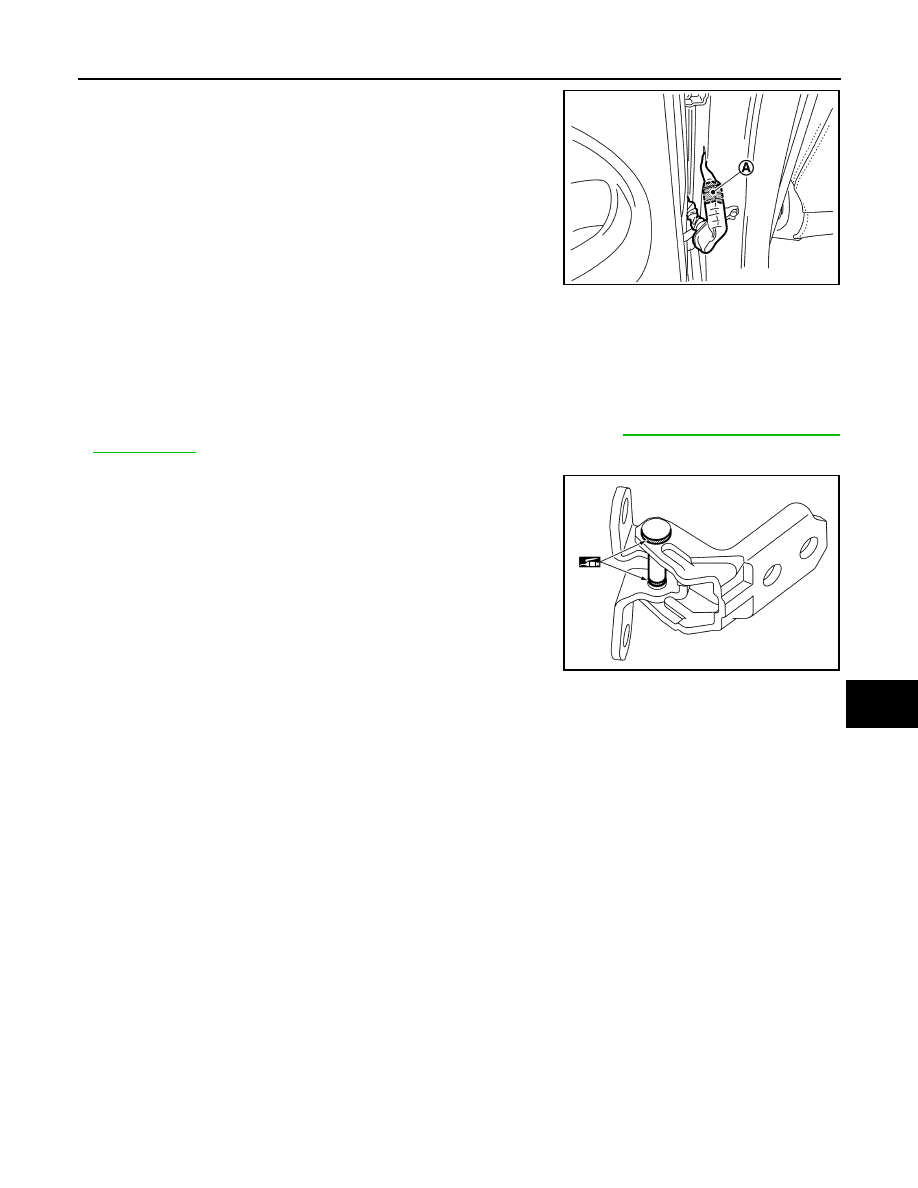

2. Disconnect the harness connector (A) from rear door.

3. Remove door check link bolt (body side).
4. Remove door hinge nuts (door side) and rear door assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent to the hinge mating surface.

• After installation, perform the rear door adjustment procedure. Refer to

DLK-150, "DOOR ASSEMBLY

: Adjustment"

.

• After adjusting, apply touch-up paint (body color) to the head of door hinge nuts.

• Check door hinge rotating point for poor lubrication. If neces-

sary, apply a suitable multi-purpose grease.

JMKIA8084ZZ

JMKIA8072ZZ

DLK-150

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

DOOR ASSEMBLY : Adjustment

INFOID:0000000009486671

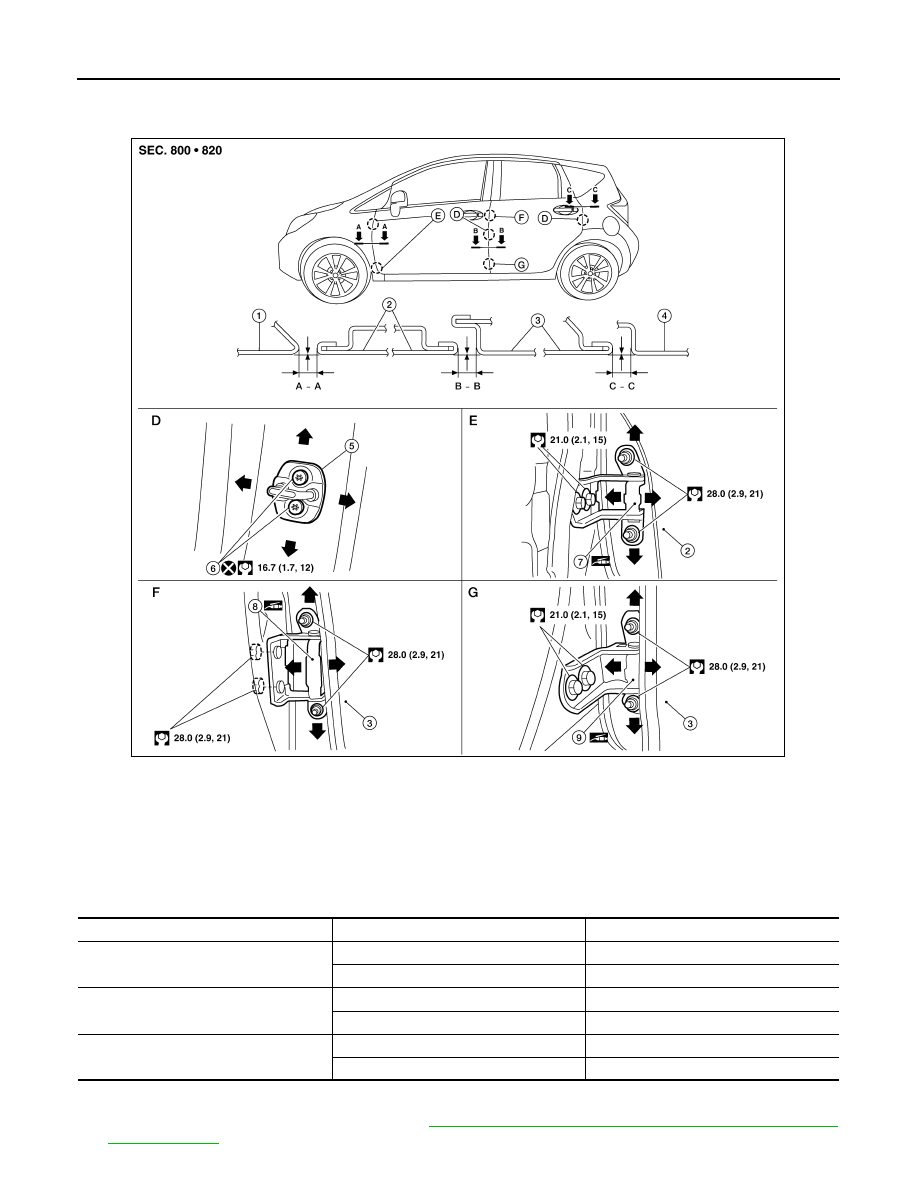

Check the clearance and surface height between rear door and each part by visual inspection and tactile feel.

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dure.

Unit: mm (in)

1. Remove center pillar lower finisher. Refer to

INT-25, "CENTER PILLAR LOWER FINISHER : Removal

and Installation"

.

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

Striker bolt

7.

Front door hinge

8.

Rear door upper hinge

9.

Rear door lower hinge

AWKIA2493ZZ

Section

Measurement

Standard

A – A

Clearance

4.6

± 1.0 (0.18 ± 0.04)

Surface height

0.0

± 1.0 (0.0 ± 0.04)

B – B

Clearance

4.6

± 2.0 (0.18 ± 0.08)

Surface height

0.0

± 1.5 (0.0 ± 0.06)

C – C

Clearance

4.6

± 1.0 (0.18 ± 0.04)

Surface height

0.0

± 1.0 (0.0 ± 0.04)

REAR DOOR

DLK-151

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Loosen door hinge nuts (door side).
3. Adjust the surface height of rear door according to the specifications provided.
4. Temporarily tighten door hinge nuts (door side).
5. Loosen door hinge nuts and bolts (body side).
6. Raise rear door at rear end to adjust clearance of rear door according to the specifications provided.
7. After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• Apply touch-up paint (body color) to the head of hinge bolts and nuts.

• Check door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-purpose

grease.

8. Install center pillar lower finisher. Refer to

INT-25, "CENTER PILLAR LOWER FINISHER : Removal and

Installation"

.

DOOR STRIKER
DOOR STRIKER : Removal and Installation

INFOID:0000000009486672

REMOVAL

Remove bolts and rear door striker.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse door striker bolts.

• Tighten door striker bolts to specification. Refer to

DLK-148, "Exploded View"

.

• After installation, check front door open/close operation. If necessary, adjust the door striker. Refer

to

DLK-151, "DOOR STRIKER : Adjustment"

.

DOOR STRIKER : Adjustment

INFOID:0000000009541371

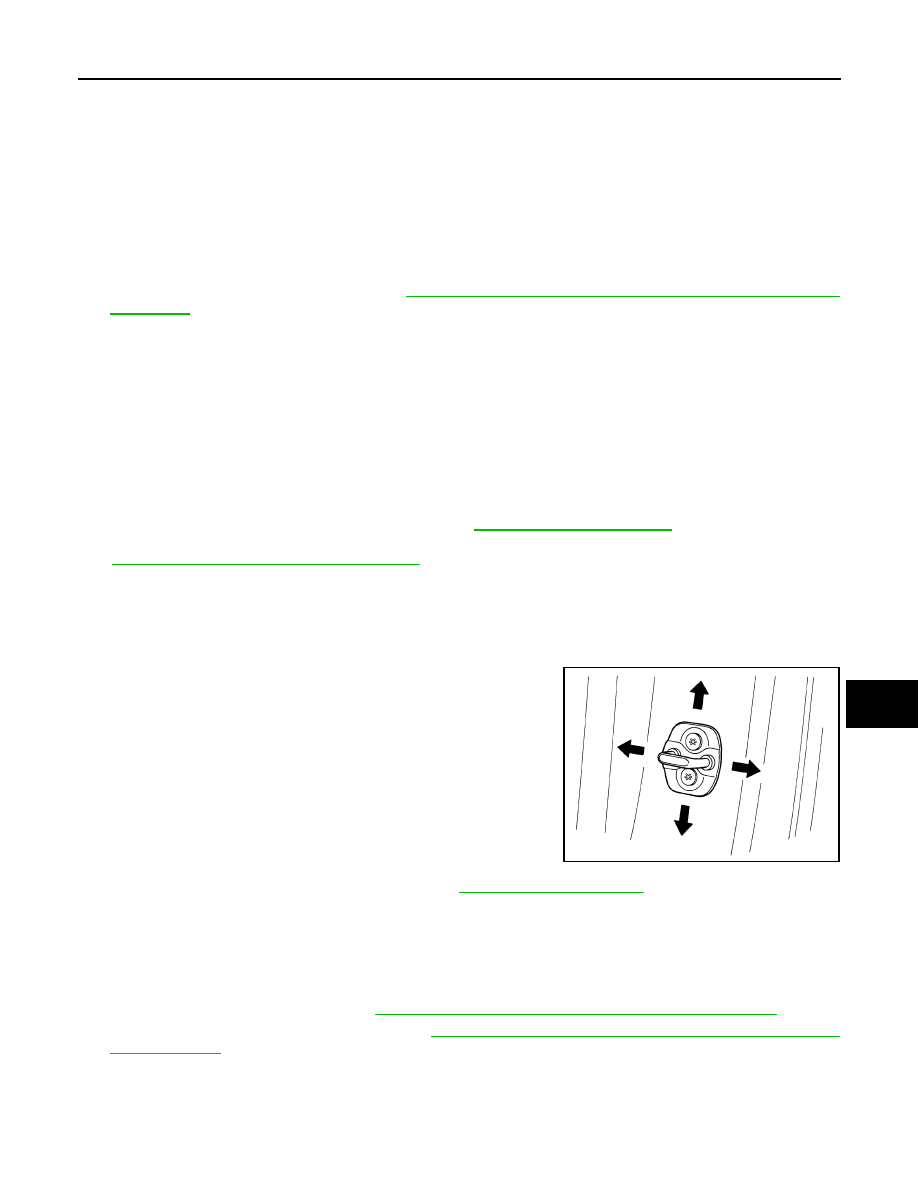

DOOR STRIKER ADJUSTMENT

1. Loosen door striker bolts.
2. Adjust door striker so that it becomes parallel with rear door lock

insertion direction.

3. Tighten door striker bolts to specification. Refer to

DLK-148, "Exploded View"

.

DOOR HINGE
DOOR HINGE : Removal and Installation

INFOID:0000000009486673

REMOVAL

1. Remove rear door assembly. Refer to

DLK-148, "DOOR ASSEMBLY : Removal and Installation"

.

2. Remove center pillar lower finisher. Refer to

INT-25, "CENTER PILLAR LOWER FINISHER : Removal

and Installation"

.

3. Remove rear door hinge bolts and nuts (body side) and rear door hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

PIIB2804J

DLK-152

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

• Apply anticorrosive agent to the door hinge mating surface.

• After installation, perform the rear door adjustment procedure. Refer to

DLK-150, "DOOR ASSEMBLY

: Adjustment"

.

• After adjusting, apply touch-up paint (body color) to the head of door hinge bolts and nuts.

• Check door hinge rotating point for poor lubrication. If neces-

sary, apply a suitable multi-purpose grease.

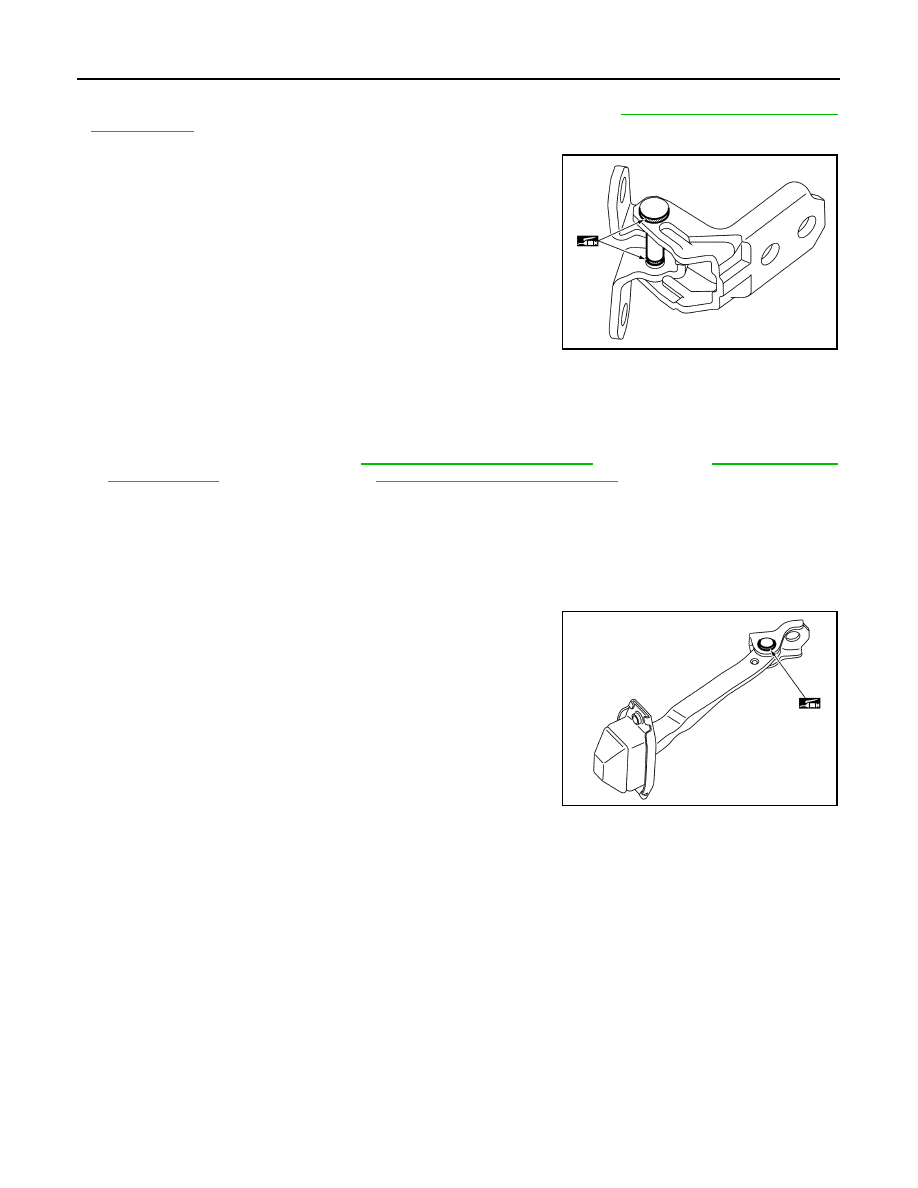

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000009486674

REMOVAL

1. Remove rear door speaker. Refer to

AV-55, "Removal and Installation"

 (BASE AUDIO),

AV-120, "Removal

and Installation"

 (DISPLAY AUDIO) or

AV-243, "Removal and Installation"

 (NAVIGATION).

2. Remove door check link bolt (body side).
3. Remove door check link bolts (door side) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check rear door open/close operation.

• Check door check link rotating point for poor lubrication. If

necessary, apply a suitable multi-purpose grease.

JMKIA8072ZZ

JMKIA8074ZZ
