BRM-24

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

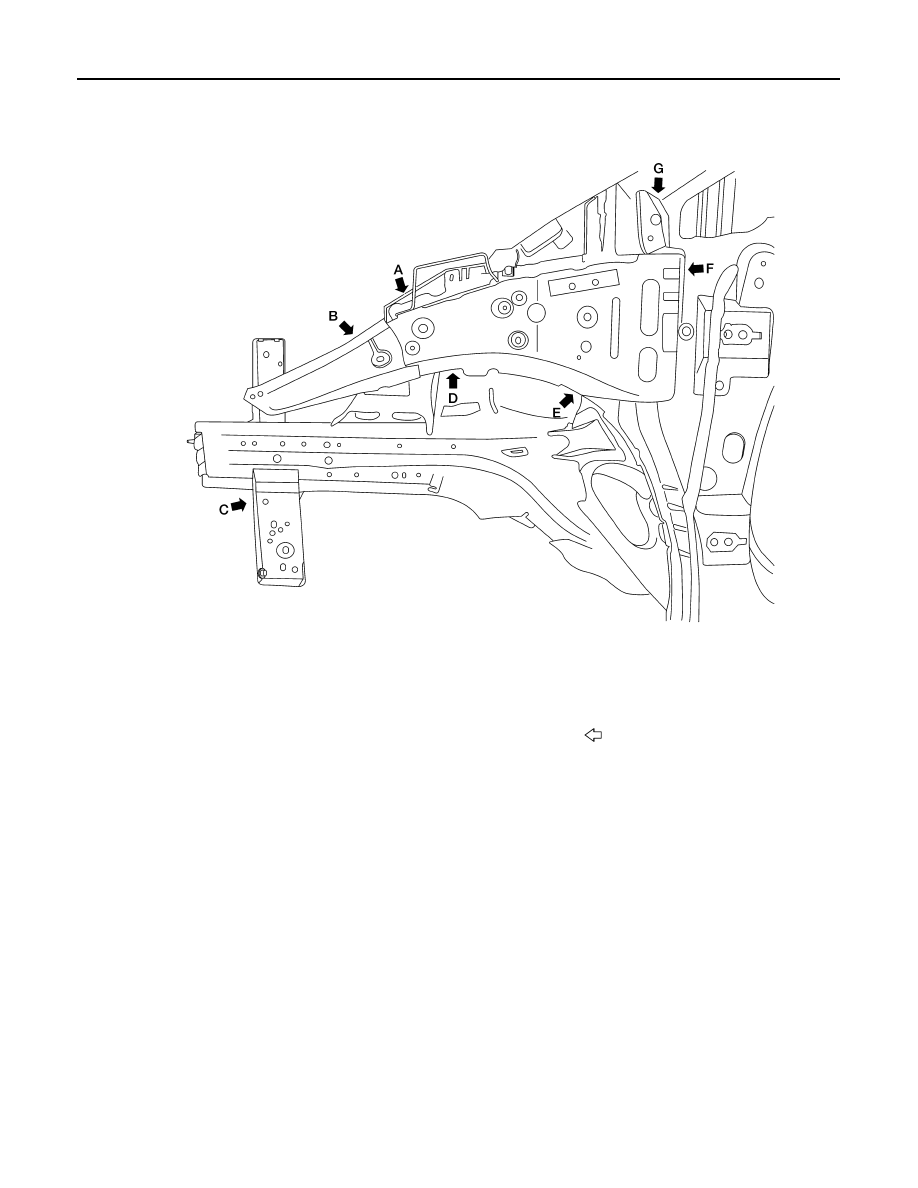

Hoodledge

INFOID:0000000009345083

Replacement parts

A. Front strut housing

B. Upper front hoodledge

C. Radiator core support lower

D. Hoodledge reinforcement

E. Hoodledge connector

F. Hoodledge reinforcement rear

G. Dash side extension

Front

AWKIA2534ZZ

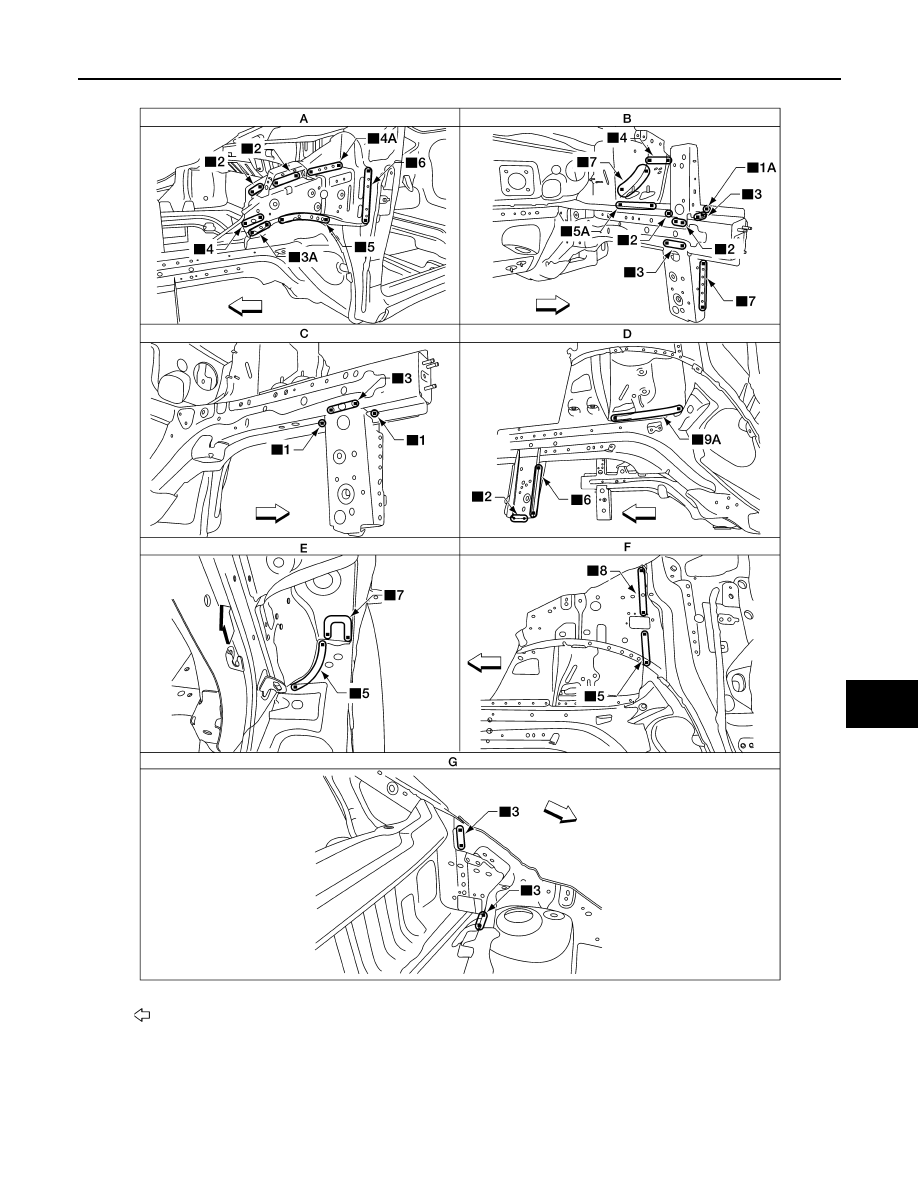

REPLACEMENT OPERATIONS

BRM-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Front

AWKIA2552ZZ

BRM-26

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

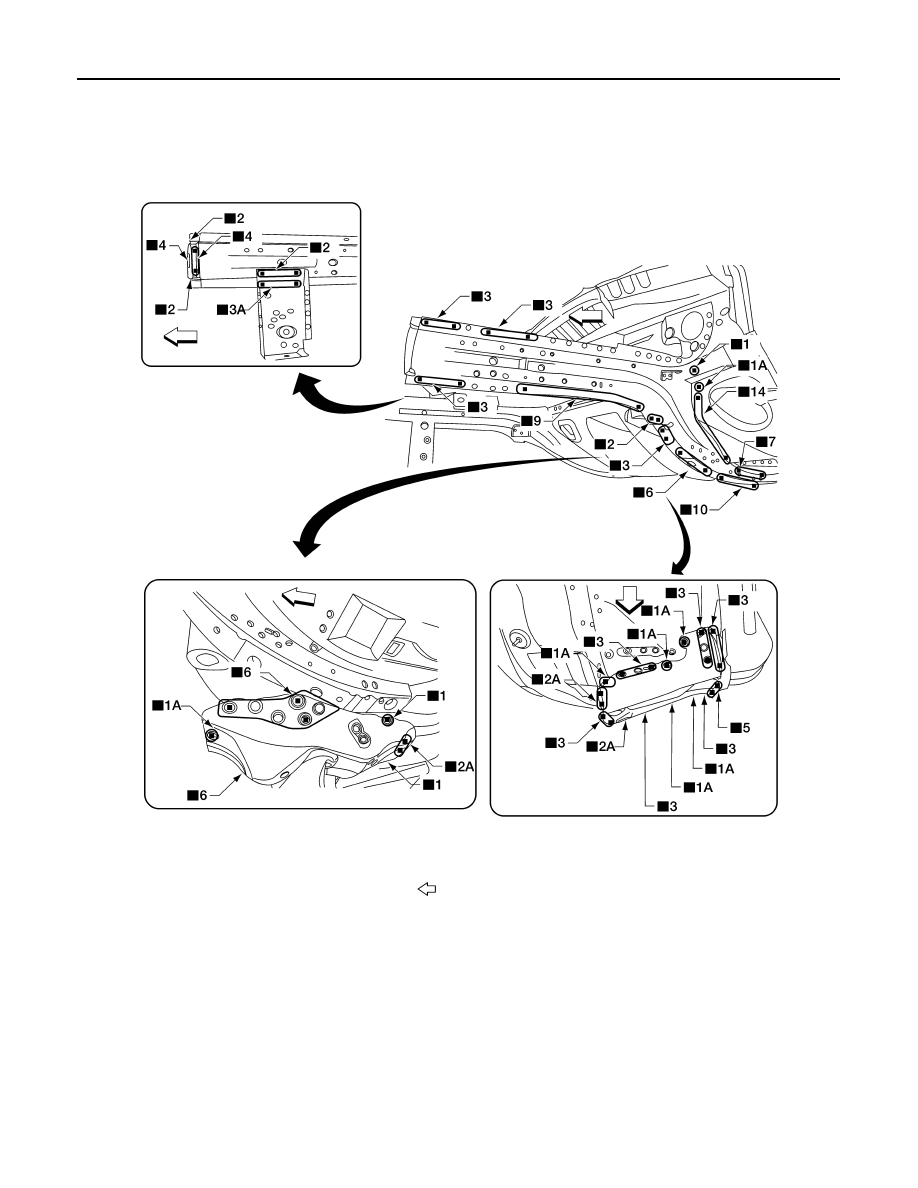

Front Side Member

INFOID:0000000009345084

AWKIA2548ZZ

Replacement parts
z

Front side member outside

Front

REPLACEMENT OPERATIONS

BRM-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

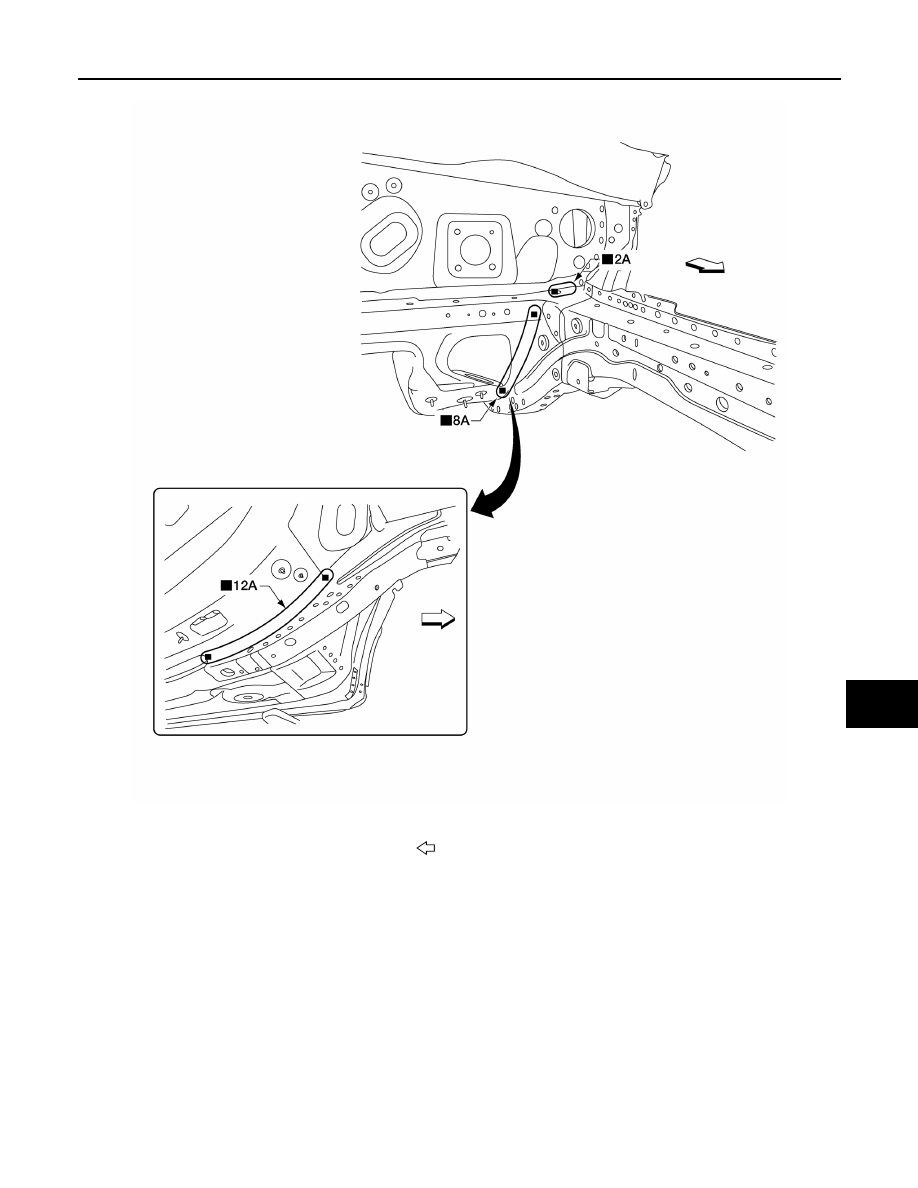

Front Pillar

INFOID:0000000009345085

OUTER

 Work after hoodledge and hoodledge reinforcement rear has been removed.

AWKIA2538ZZ

Replacement parts
z

Front side member inner

Front
