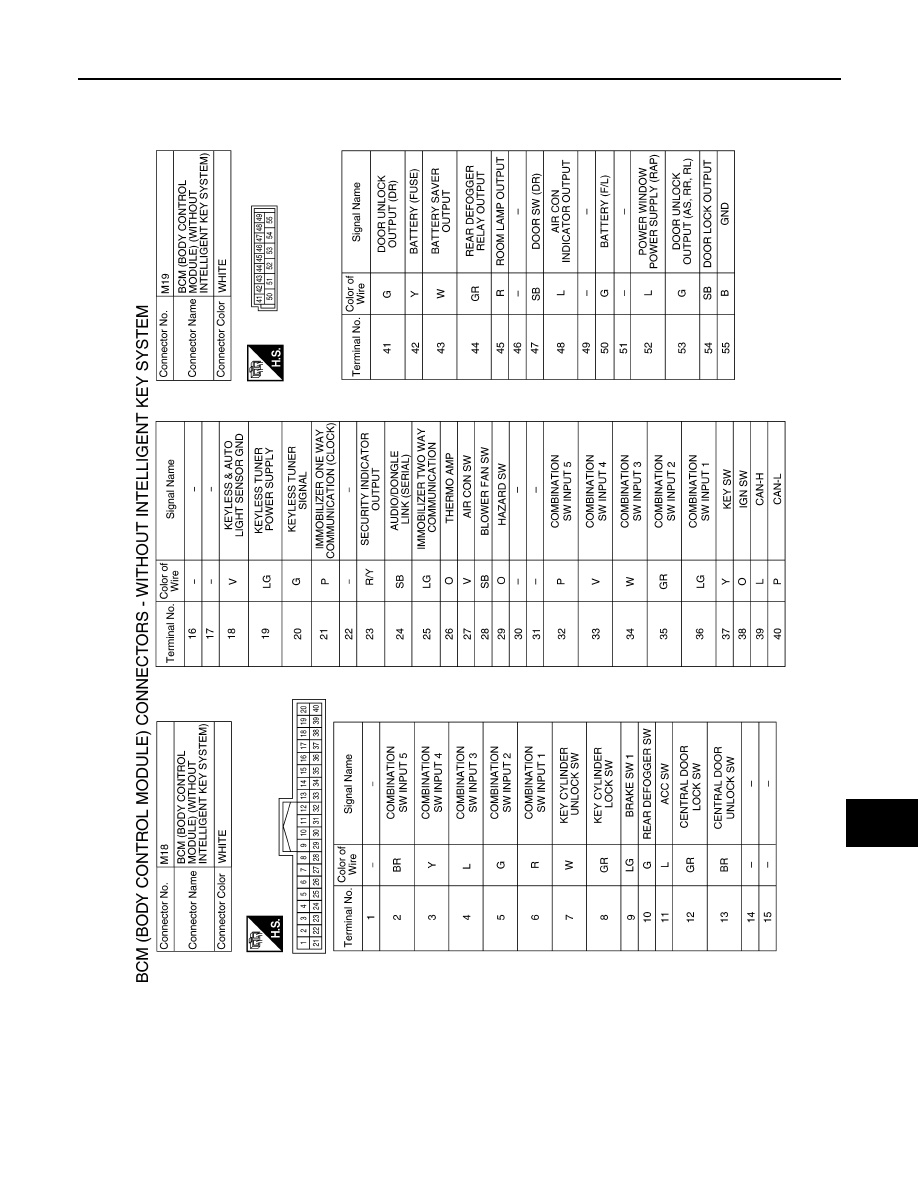

Nissan Versa Note. Manual - part 94

BCS

BCM

BCS-113

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA1738GB

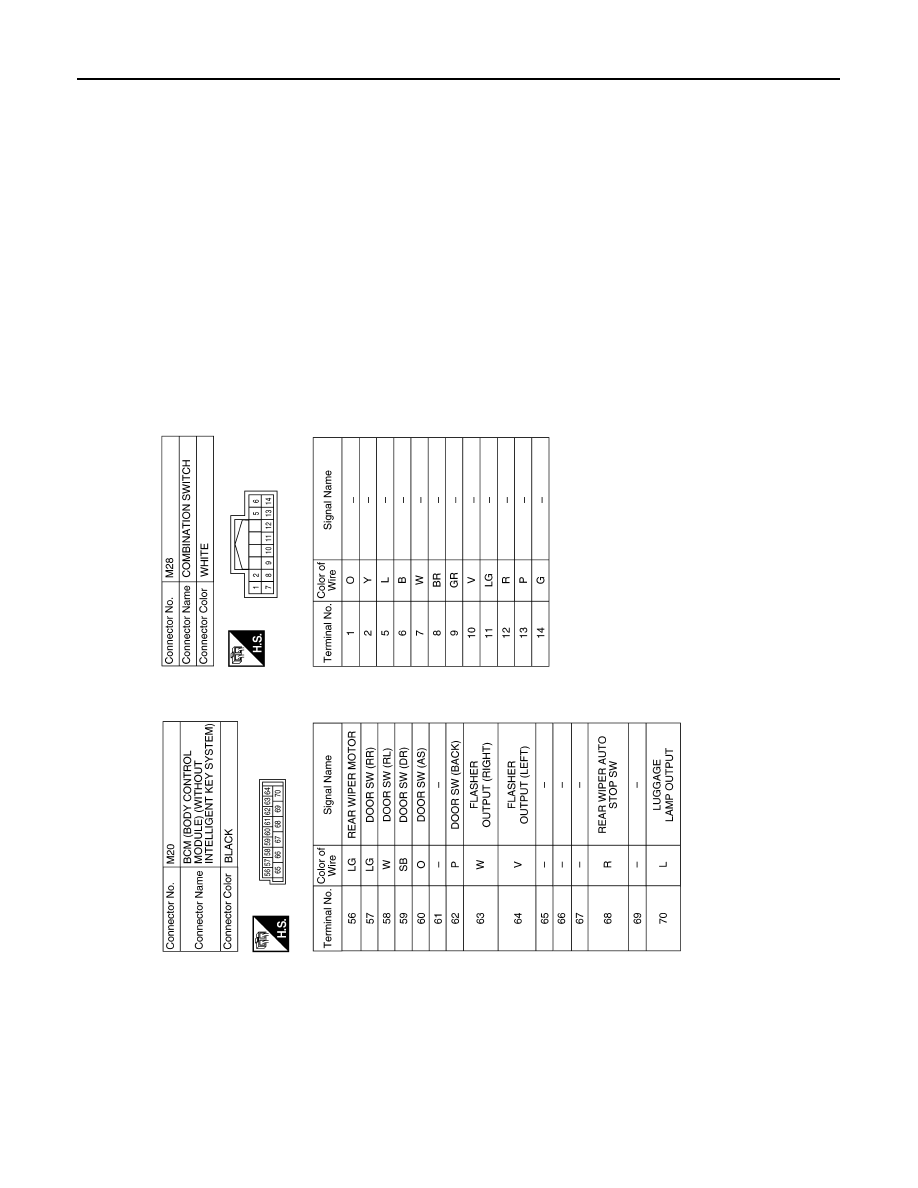

BCS-114

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM

AAMIA1739GB

BCS

ADDITIONAL SERVICE WHEN REPLACING BCM

BCS-115

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

ADDITIONAL SERVICE WHEN REPLACING BCM

Description

INFOID:0000000009693685

BEFORE REPLACEMENT

When replacing BCM, save or print current vehicle specification with CONSULT configuration before replace-

ment.

NOTE:

If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection” after

replacing BCM.

AFTER REPLACEMENT

CAUTION:

When replacing BCM, always perform “WRITE CONFIGURATION” with CONSULT. Or not doing so,

BCM control function does not operate normally.

• Complete the procedure of “WRITE CONFIGURATION” in order.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

• If you set incorrect “WRITE CONFIGURATION”, incidents might occur.

NOTE:

When replacing BCM, perform the system initialization (NATS) (if equipped).

Work Procedure

INFOID:0000000009693686

1.

SAVING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “READ CONFIGURATION” to save or print current vehicle specification. Refer to

BCS-116, "Descrip-

tion"

.

NOTE:

If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection” after

replacing BCM.

>> GO TO 2.

2.

REPLACE BCM

Replace BCM. Refer to

BCS-127, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “WRITE CONFIGURATION - Config file” or “WRITE CONFIGURATION - Manual selection” to write

vehicle specification. Refer to

BCS-116, "Work Procedure"

.

>> GO TO 4.

4.

INITIALIZE BCM (NATS) (IF EQUIPPED)

Perform BCM initialization. (NATS)

>> WORK END

BCS-116

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

CONFIGURATION (BCM)

CONFIGURATION (BCM)

Description

INFOID:0000000009693687

Vehicle specification needs to be written with CONSULT because it is not written after replacing BCM.

Configuration has three functions as follows.

NOTE:
Manual setting item: Items which need selection by vehicle specifications
Automatic setting item: Items which are written in automatically (Setting can not be changed)
For some models and specifications, the automatic setting item may not be displayed.

CAUTION:

When replacing BCM, always perform “WRITE CONFIGURATION” with CONSULT. Or not doing so,

BCM control function does not operate normally.

• Complete the procedure of “WRITE CONFIGURATION” in order.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

• Never perform “WRITE CONFIGURATION” except for new BCM.

• If you set incorrect “WRITE CONFIGURATION”, incidents might occur.

Work Procedure

INFOID:0000000009693688

1.

WRITING MODE SELECTION

CONSULT Configuration

Select “CONFIGURATION” of BCM.

When writing saved data>>GO TO 2.

When writing manually>>GO TO 3.

2.

PERFORM “WRITE CONFIGURATION - CONFIG FILE”

CONSULT Configuration

Perform “WRITE CONFIGURATION - Config file”.

>> WORK END

3.

PERFORM “WRITE CONFIGURATION - MANUAL SELECTION”

CONSULT Configuration

1. Select "WRITE CONFIGURATION - Manual selection".

2. Identify the correct model and configuration list. Refer to

BCS-117, "Configuration List"

.

3. Confirm and/or change setting value for each item.

CAUTION:

Thoroughly read and understand the vehicle specification. ECU control may not operate normally

if the setting is not correct.

NOTE:

If items are not displayed, touch “SETTING”. Refer to

BCS-117, "Configuration List"

 for written items and

setting value.

4. Select "SETTING".

CAUTION:

Make sure to select “SETTING” even if the indicated configuration of brand new BCM is same as

the desirable configuration. If not, configuration which is set automatically by selecting vehicle

model can not be memorized.

5. When "COMMAND FINISHED", select "END".

Function

Description

READ CONFIGURATION

• Reads the vehicle configuration of current BCM.
• Saves the read vehicle configuration.

WRITE CONFIGURATION - Manual selection Writes the vehicle configuration with manual selection.

WRITE CONFIGURATION - Config file

Writes the vehicle configuration with saved data.
