Nissan Versa Note. Manual - part 35

AV-132

< PREPARATION >

[NAVIGATION]

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000009541286

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009541287

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-46534)

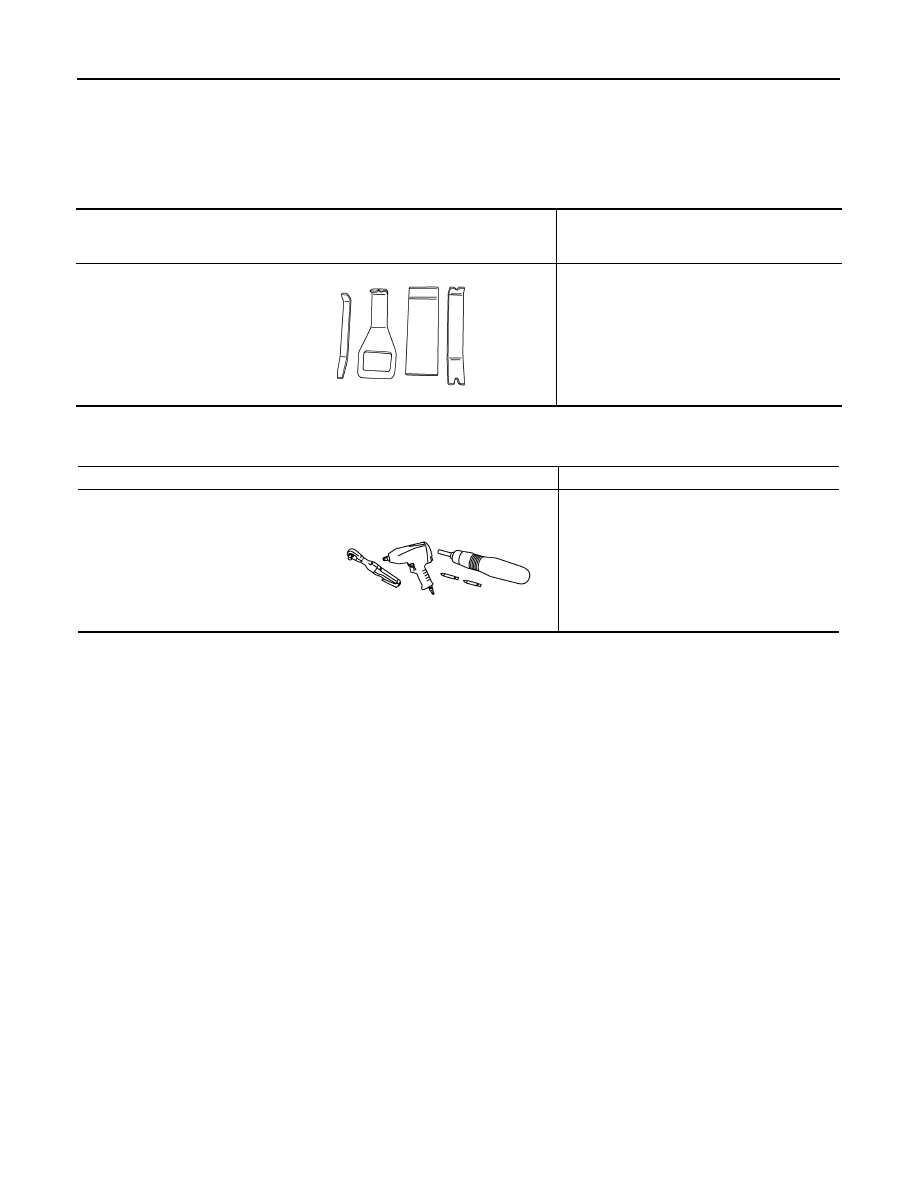

Trim Tool Set

Removing trim components

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

AV

COMPONENT PARTS

AV-133

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

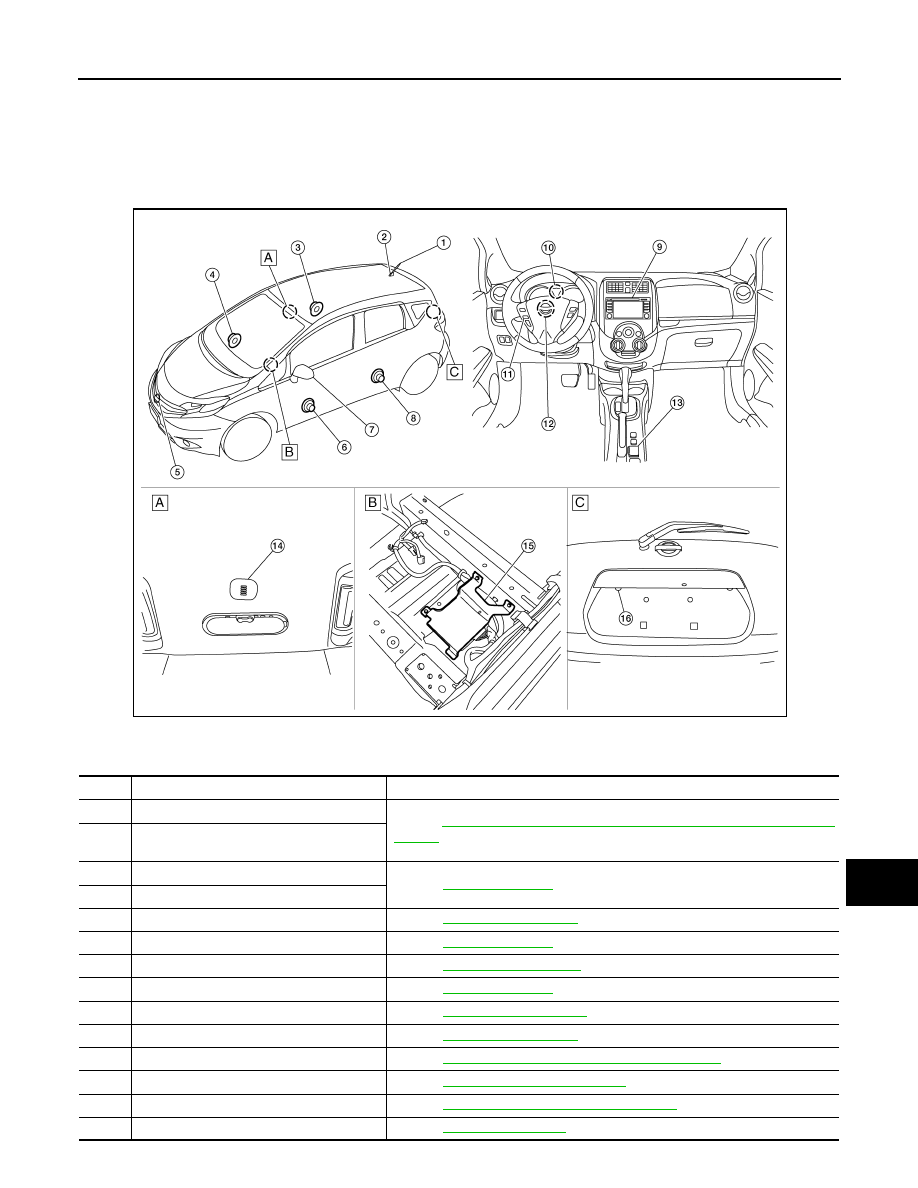

Component Parts Location

INFOID:0000000009681879

A. Front of headliner

B. View with passenger seat removed

C. Center of back door

AWNIA3136ZZ

No.

Component

Function

1.

Rod antenna

Refer to

AV-136, "Rod Antenna, Antenna Amp., Satellite Antenna and Antenna

Feeder"

.

2.

Antenna base (antenna amp. and satellite
antenna)

3.

Rear door speaker RH

Refer to

AV-134, "Speakers"

.

4.

Front door speaker RH

5.

Front camera

Refer to

AV-136, "Front Camera"

.

6.

Front door speaker LH

Refer to

AV-134, "Speakers"

.

7.

Side camera

Refer to

AV-136, "Side Cameras"

.

8.

Rear door speaker LH

Refer to

AV-134, "Speakers"

.

9.

AV control unit

Refer to

AV-134, "AV Control Unit"

.

10.

GPS antenna

Refer to

AV-138, "GPS Antenna"

.

11.

Steering wheel audio control switches

Refer to

AV-135, "Steering Wheel Audio Control Switches"

.

12.

Steering angle sensor

Refer to

AV-136, "Steering Angle Sensor"

.

13.

USB interface and AUX in jack

Refer to

AV-135, "USB Interface and AUX In Jack"

.

14.

Microphone

Refer to

AV-135, "Microphone"

.

AV-134

< SYSTEM DESCRIPTION >

[NAVIGATION]

COMPONENT PARTS

*:

Around View Monitor is a parking aid/convenience feature. Around View Monitor cannot completely eliminate

blind spots. Around View Monitor may not detect every object and does not warn of moving objects. Always

check surroundings before moving vehicle. Around View Monitor is not a substitute for proper backing proce-

dures. Always turn to check what is behind you before backing up.

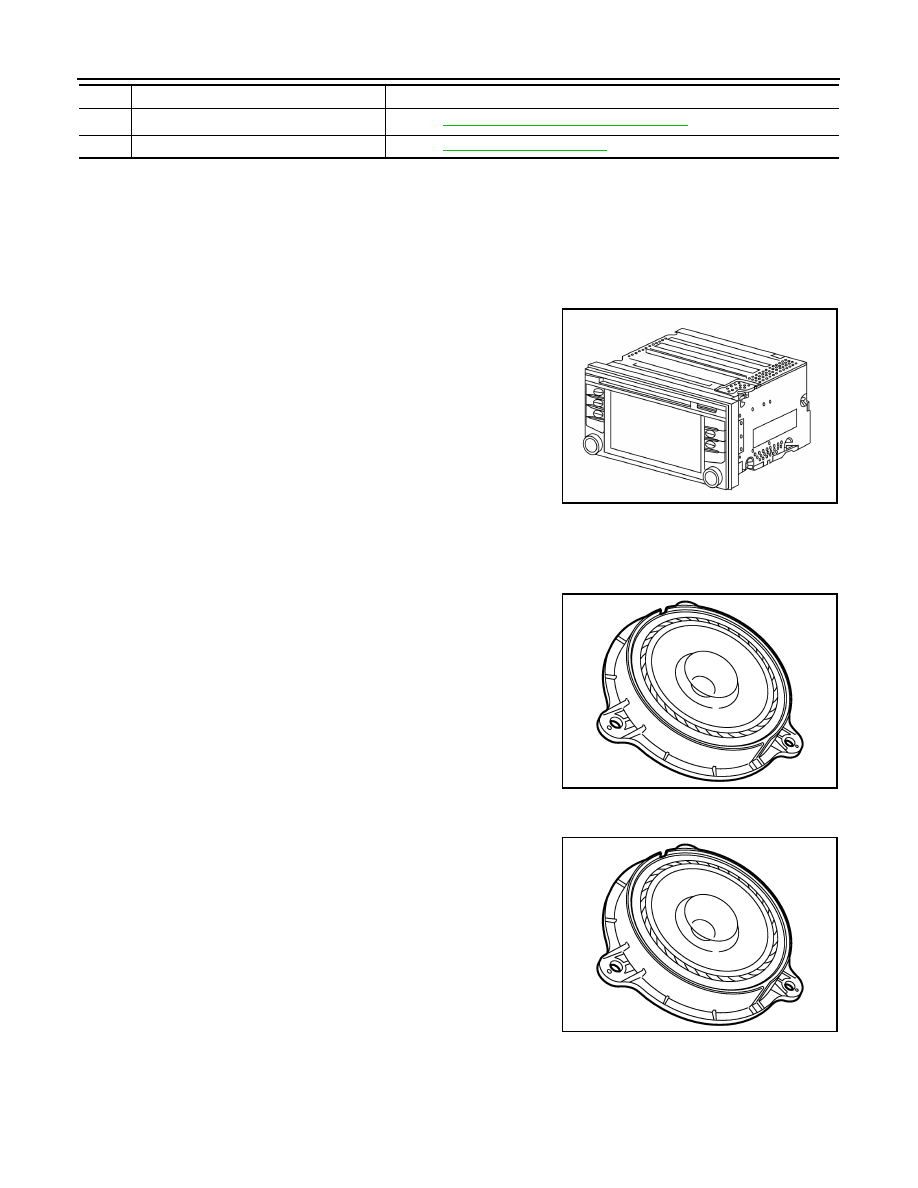

AV Control Unit

INFOID:0000000009681880

Description

• A 5.8-inch QVGA display, an AM/FM electronic tuner radio, CD

drive, audio amplifier, Bluetooth

®

 module, USB interface, camera

controller and navigation unit are integrated into the AV control

unit.

• The 5.8-inch display is a high resolution monitor that includes

touch panel functions.

• Music files stored in iPod

®*

/USB memory can be played using the

separate USB interface.

*

: iPod

®

 is a registered trademark of Apple, Inc. All rights reserved.

Speakers

INFOID:0000000009681881

FRONT DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the front doors.

• Sound signals are input from the AV control unit to output high, mid

and low range sounds.

REAR DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the rear doors.

• Sound signals are input from the AV control unit to output high, mid

and low range sounds.

15.

Around View

®*

 Monitor control unit

Refer to

AV-135, "Around View Monitor Control Unit"

.

16.

Rear view camera

Refer to

AV-136, "Rear View Camera"

.

No.

Component

Function

ALNIA1524ZZ

JPNIA1454ZZ

JPNIA1454ZZ

AV

COMPONENT PARTS

AV-135

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

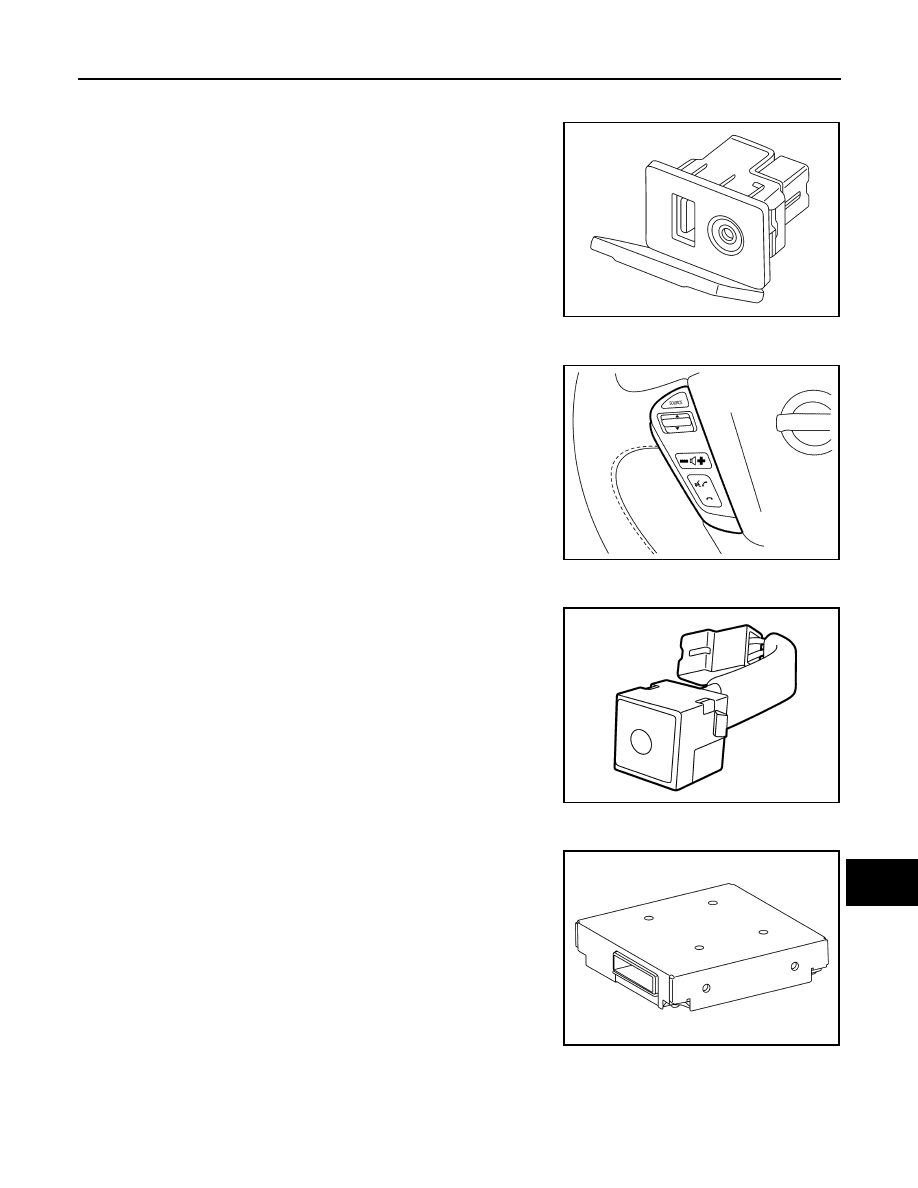

USB Interface and AUX In Jack

INFOID:0000000009681882

• USB Interface and AUX in jack is installed in the console.
• iPod

®

 and USB memory can be connected to the AV control unit

through the USB interface.

• An external audio device can be connected to the AV control unit

through the AUX in jack.

Steering Wheel Audio Control Switches

INFOID:0000000009681883

• Steering wheel audio control switches are installed in the steering

wheel.

• Operations for audio and hands-free phone are possible.

• Switch is connected to the AV control unit.

Microphone

INFOID:0000000009681884

• The microphone is installed in the roof in front of the map lamp

assembly.

• Power is supplied from the AV control unit.

Around View Monitor Control Unit

INFOID:0000000009681898

• The around view monitor control unit is installed underneath the

passenger seat.

• Vehicle width guide lines, predicted course line, vehicle front guid-

ing line and vehicle side line, and vehicle icon are displayed and

combined with camera images.

ALNIA1523ZZ

JSNIA4329ZZ

JPNIA1448ZZ

JSNIA5395ZZ
