BCM, COMBINATION METER

ECU DIAGNOSIS INFORMATION

BCM, COMBINATION METER

List of ECU Reference

INFOID:0000000009269294

ECU

Reference

BCM
(with Intelligent Key)

BCS-28, "Reference Value"

BCS-45, "Fail-safe"

BCS-47, "DTC Inspection Priority Chart"

BCS-48, "DTC Index"

BCM
(without Intelligent Key)

BCS-93, "Reference Value"

BCS-104, "Fail-safe"

BCS-104, "DTC Inspection Priority Chart"

BCS-105, "DTC Index"

COMBINATION METER
(TYPE A)

MWI-22, "Reference Value"

MWI-24, "Fail-Safe"

MWI-25, "DTC Index"

COMBINATION METER
(TYPE B)

MWI-72, "Reference Value"

MWI-75, "Fail-Safe"

MWI-75, "DTC Index"

WCS

WARNING CHIME SYSTEM

WCS-23

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WIRING DIAGRAM

WARNING CHIME SYSTEM

Wiring Diagram

INFOID:0000000009269295

ABNWA1783GB

WCS-24

< WIRING DIAGRAM >

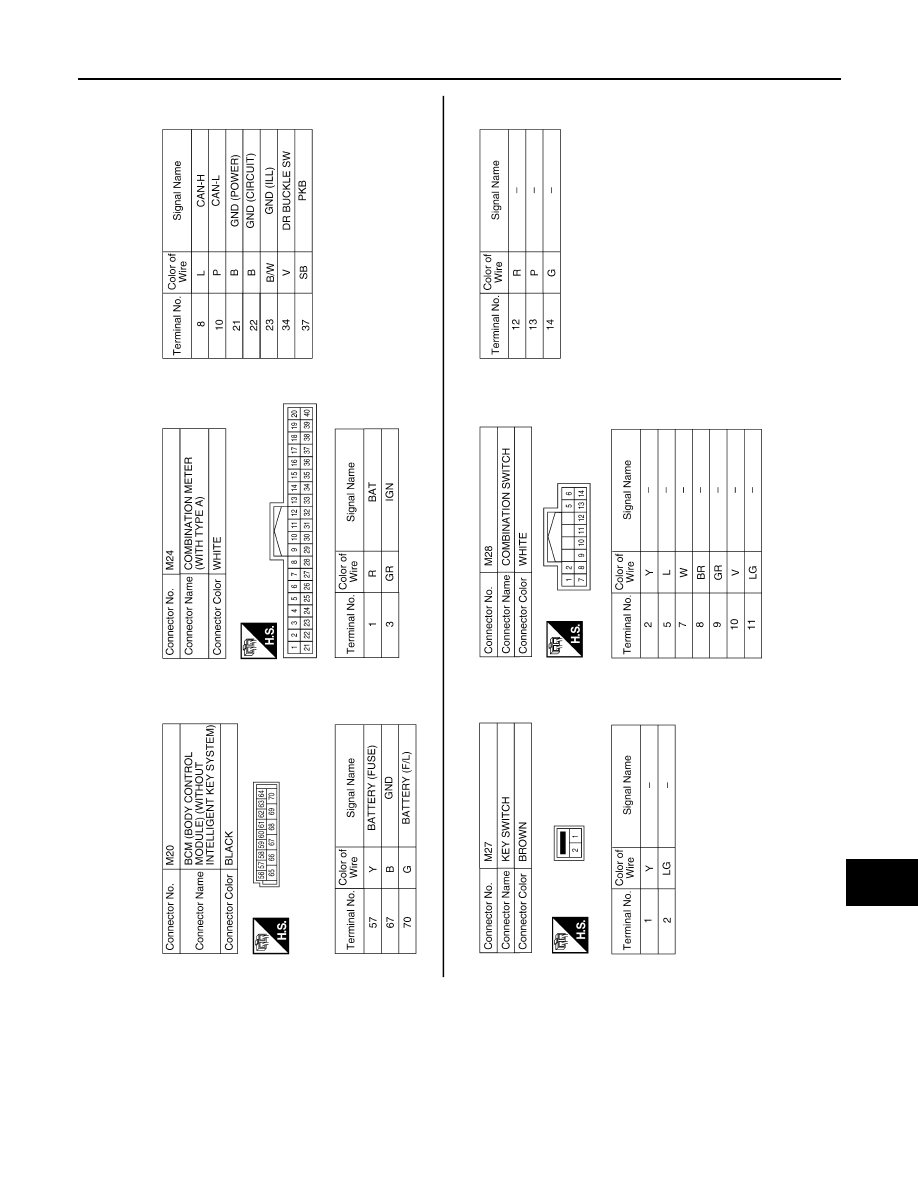

WARNING CHIME SYSTEM

ABNIA4585GB

WCS

WARNING CHIME SYSTEM

WCS-25

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

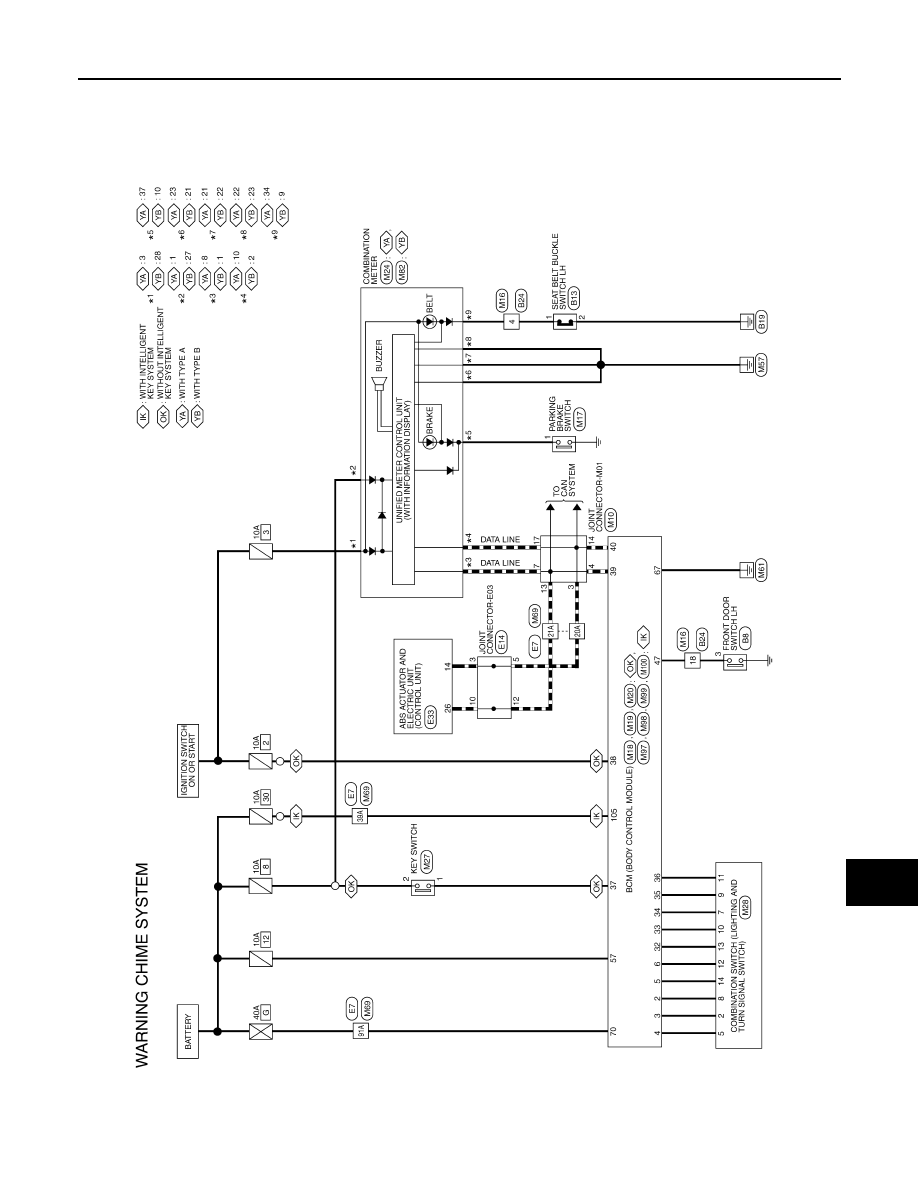

ABNIA4567GB
