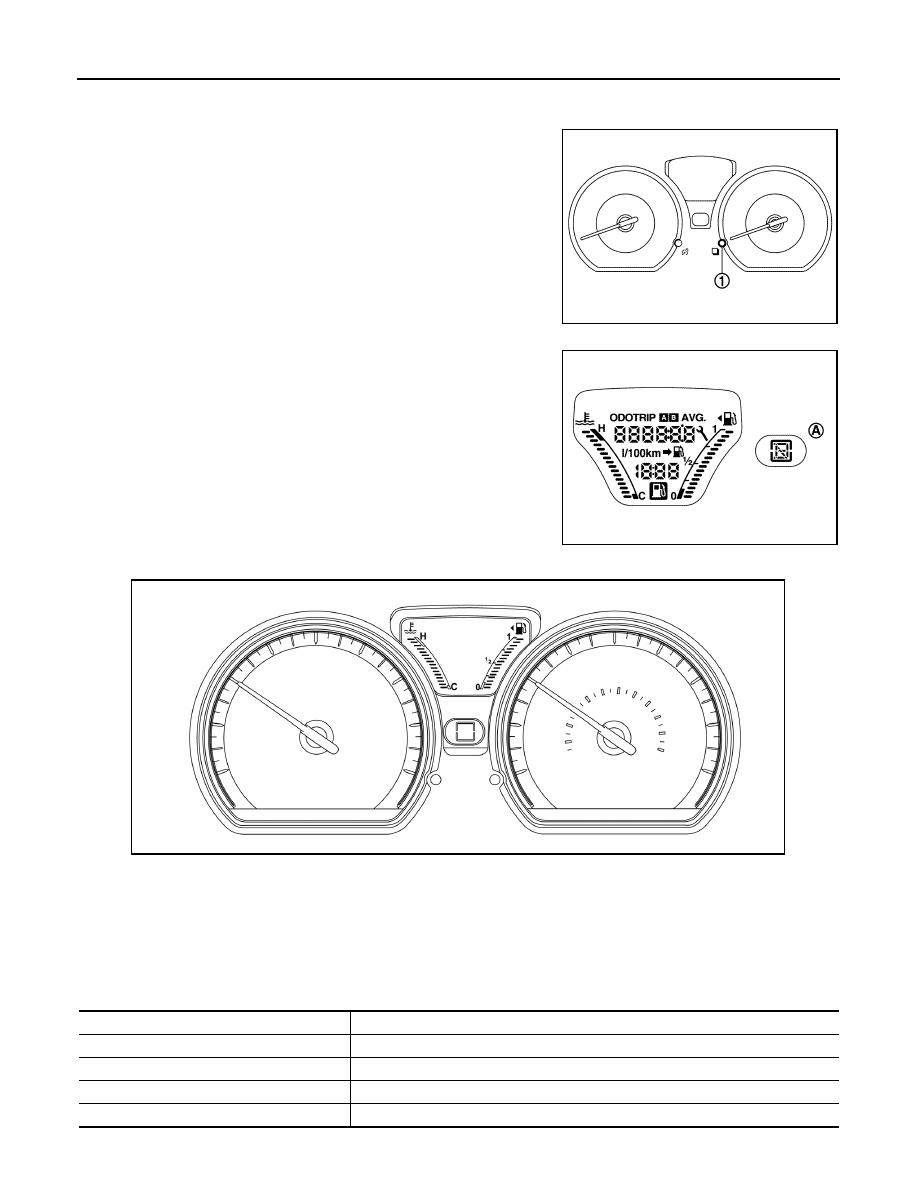

WCS-14 < SYSTEM DESCRIPTION > DIAGNOSIS SYSTEM (COMBINATION METER) 1. Turn ignition switch ON, press the odo/trip meter switch (1) to “trip A” or “trip B”. tion switch ON. 4. Verify the trip meter displays “0000.0”. onds after the ignition switch is turned ON). 6. The combination meter self-diagnosis mode is activated. • Verify all segments of the information display and shift position indicator (A) for CVT models are displayed. 7. Each meter activates by pressing the meter control switch. NOTE: • If any of the meters or gauges is not activated, replace combination meter. • The figure is reference. TYPE B : CONSULT Function INFOID:0000000009507073 APPLICATION ITEMS CONSULT can display each diagnostic item using the diagnostic test modes shown. JSNIA3904ZZ JSNIA3900ZZ AWNIA2440ZZ METER/M&A Diagnosis mode Description SELF DIAGNOSTIC RESULT The combination meter self-diagnosis results. DATA MONITOR Displays combination meter input/output data in real time. SPECIAL FUNCTION Lighting history of the warning lamp and indicator lamp can be checked. CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read. |
