B1118 – B1120 SATELLITE SENSOR LH

SRC-67

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

NOTE:

SRS will not enter diagnosis mode if no malfunction is detected in user mode.
Is the DTC detected?

YES

>> Refer to

SRC-67, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009269168

1.

HARNESS CONNECTOR

Visually inspect all applicable harness connectors for the following:

• Visible damage to connector or terminal

• Loose terminal

• Poor connection

NOTE:

All harness connectors should be inspected from the air bag diagnosis unit to the end component (including

any in-line connectors).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Perform one of the following repairs:

• Visible damage: Replace the harness.

• Loose terminal: Secure the terminal.

• Poor connection: Secure the connection.

2.

CONFIRM DTC

1. Reconnect all harness connectors.

2. Turn ignition switch ON.

3. Check for DTC using CONSULT.
Is DTC still current?

YES

>> GO TO 3

NO

>> Refer to

GI-45, "Intermittent Incident"

.

3.

WIRING HARNESS

Check the wiring harness for visible damage

NOTE

.

NOTE:

The entire wiring harness should be inspected from the air bag diagnosis sensor unit to the end component

(including any in-line connectors).
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace the harness.

4.

CONFIRM DTC

1. Reconnect all harness connectors.

2. Turn ignition switch ON.

3. Check for DTC using CONSULT.
Is DTC still current?

YES

>> GO TO 5.

NO

>> Refer to

GI-45, "Intermittent Incident"

.

5.

AIR BAG DIAGNOSIS SENSOR UNIT

1. Replace the air bag diagnosis sensor unit. Refer to

SR-27, "Removal and Installation"

.

2. Turn ignition switch ON.

3. Check for DTC using CONSULT.
Is DTC still current?

YES

>> GO TO 6.

NO

>> Clear DTC. Inspection End.

6.

SIDE AIR BAG SATELLITE SENSOR LH

Replace the side air bag satellite sensor LH.  Refer to

SR-24, "Removal and Installation"

.

SRC-68

< DTC/CIRCUIT DIAGNOSIS >

B1118 – B1120 SATELLITE SENSOR LH

>> GO TO 7

7.

RELATED HARNESS

Replace the related harness.

>> END

B1113 – B1115 SATELLITE SENSOR RH

SRC-69

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

B1113 – B1115 SATELLITE SENSOR RH

Description

INFOID:0000000009269169

DTC B1113 – B1115 SATELLITE SENSOR RH

The side air bag satellite sensor RH is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor

unit will monitor the side air bag satellite sensor RH for internal failures and its circuits for communication

errors.

PART LOCATION

Refer to

SRC-4, "Component Parts Location"

.

DTC Logic

INFOID:0000000009269170

DTC DETECTION LOGIC

With CONSULT

Without CONSULT

DTC CONFIRMATION PROCEDURE (With CONSULT)

1.

CHECK SELF-DIAG RESULT

1. Turn ignition switch ON.

2. Check for DTC using CONSULT.
Is the DTC detected?

YES (Current DTC)>>Refer to

SRC-70, "Diagnosis Procedure"

.

YES (Past DTC)>>GO TO 2.

NO

>> Inspection End.

2.

ERASE SELF-DIAG RESULT

Erase the DTC using CONSULT.
Can the DTC be erased?

YES

>> Inspection End.

NO

>> Refer to

SRC-70, "Diagnosis Procedure"

.

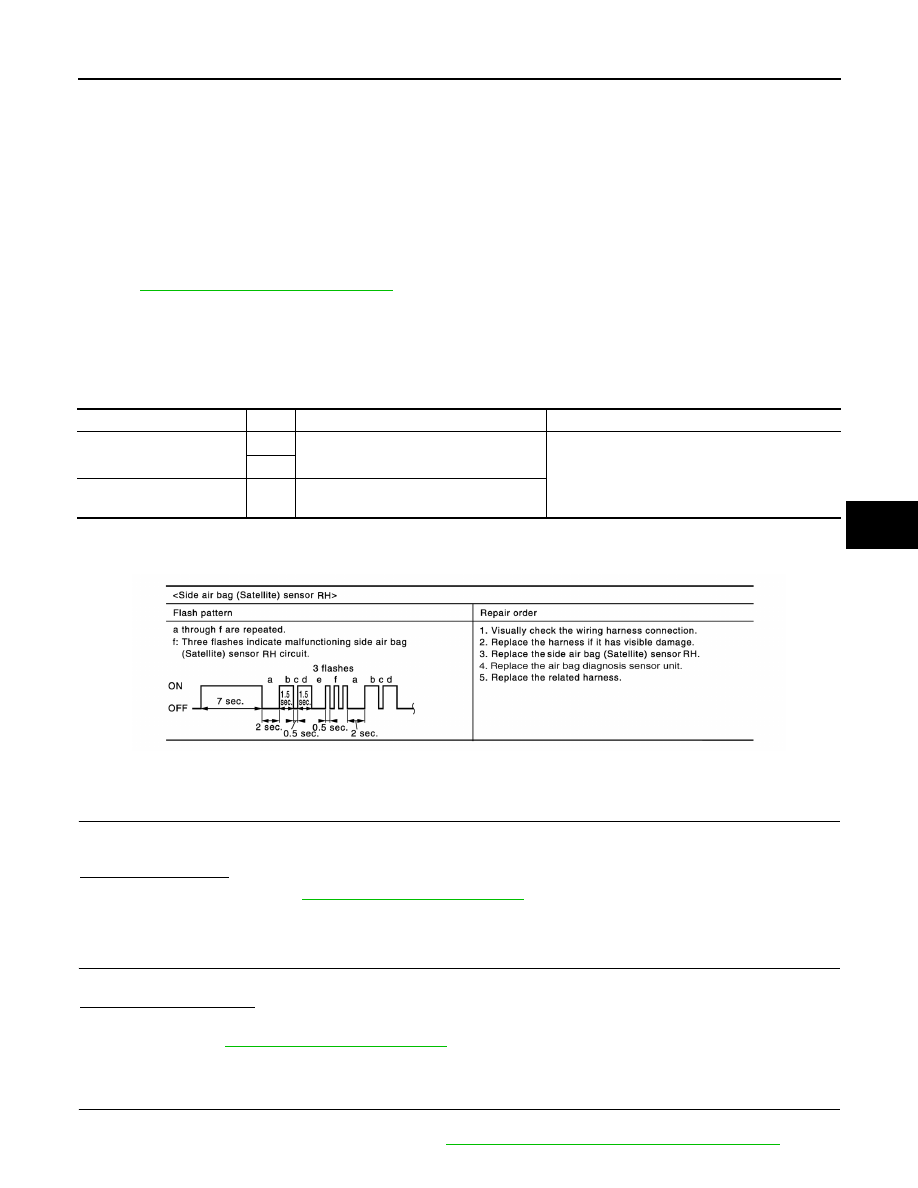

DTC CONFIRMATION PROCEDURE (Without CONSULT)

1.

CHECK SELF-DIAG RESULT

1. Turn ignition switch ON.

2. Check the air bag warning lamp status. Refer to

SRC-15, "Trouble Diagnosis without CONSULT"

.

CONSULT name

DTC

DTC detecting condition

Repair order

SATELLITE SENS RH

[UNIT FAIL]

B1113 Side air bag satellite sensor RH has mal-

functioned.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the side air bag satellite sensor RH.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

B1114

SATELLITE SENS RH

[COMM FAIL]

B1115

Side air bag satellite sensor RH communi-
cation error.

AWHIA0298GB

SRC-70

< DTC/CIRCUIT DIAGNOSIS >

B1113 – B1115 SATELLITE SENSOR RH

NOTE:

SRS will not enter diagnosis mode if no malfunction is detected in user mode.
Is the DTC detected?

YES

>> Refer to

SRC-70, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009269171

1.

HARNESS CONNECTOR

Visually inspect all applicable harness connectors for the following:

• Visible damage to connector or terminal

• Loose terminal

• Poor connection

NOTE:

All harness connectors should be inspected from the air bag diagnosis unit to the end component (including

any in-line connectors).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Perform one of the following repairs:

• Visible damage: Replace the harness.

• Loose terminal: Secure the terminal.

• Poor connection: Secure the connection.

2.

CONFIRM DTC

1. Reconnect all harness connectors.

2. Turn ignition switch ON.

3. Check for DTC using CONSULT.
Is DTC still current?

YES

>> GO TO 3

NO

>> Refer to

GI-45, "Intermittent Incident"

.

3.

WIRING HARNESS

Check the wiring harness for visible damage

NOTE

.

NOTE:

The entire wiring harness should be inspected from the air bag diagnosis sensor unit to the end component

(including any in-line connectors).
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace the harness.

4.

CONFIRM DTC

1. Reconnect all harness connectors.

2. Turn ignition switch ON.

3. Check for DTC using CONSULT.
Is DTC still current?

YES

>> GO TO 5.

NO

>> Refer to

GI-45, "Intermittent Incident"

.

5.

AIR BAG DIAGNOSIS SENSOR UNIT

1. Replace the air bag diagnosis sensor unit. Refer to

SR-27, "Removal and Installation"

.

2. Turn ignition switch ON.

3. Check for DTC using CONSULT.
Is DTC still current?

YES

>> GO TO 6.

NO

>> Clear DTC. Inspection End.

6.

SIDE AIR BAG SATELLITE SENSOR RH

Replace the side air bag satellite sensor RH.  Refer to

SR-24, "Removal and Installation"

.
