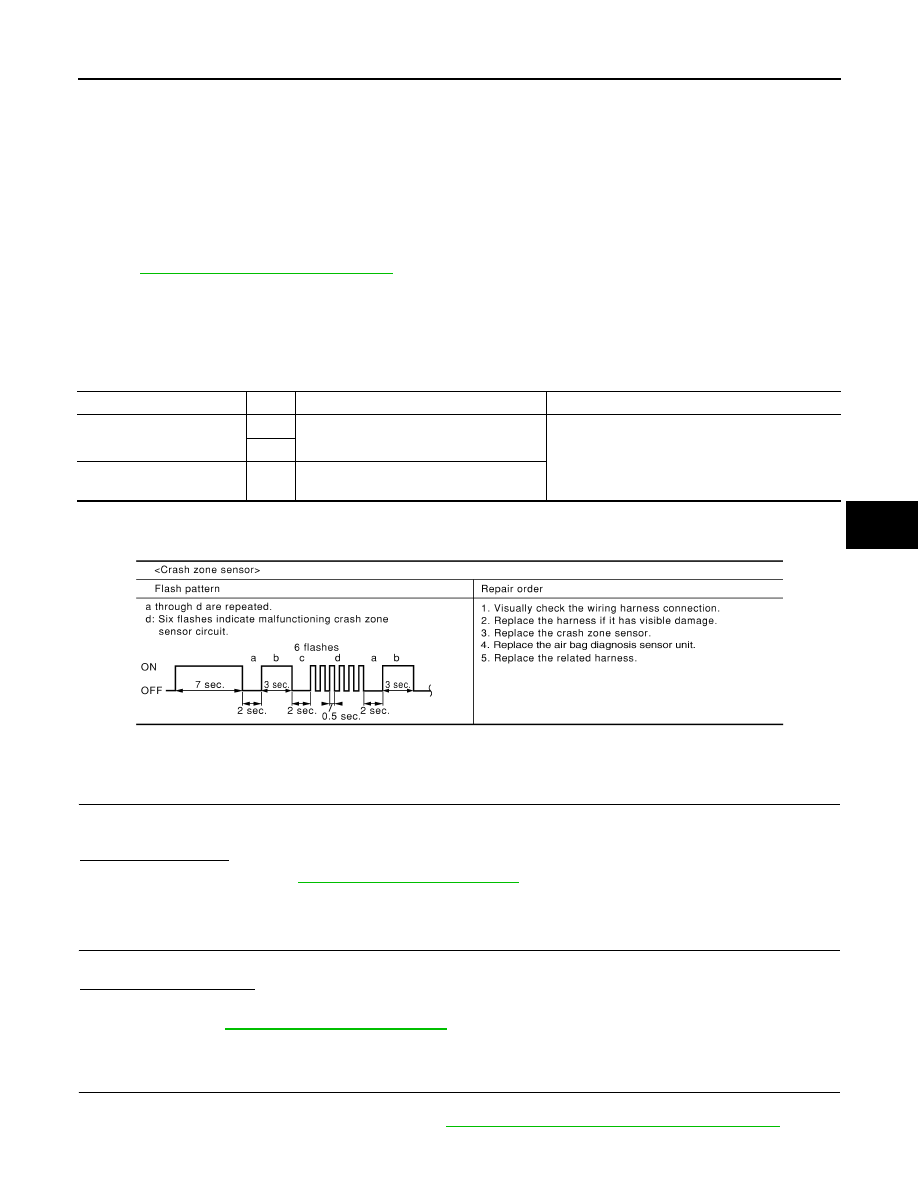

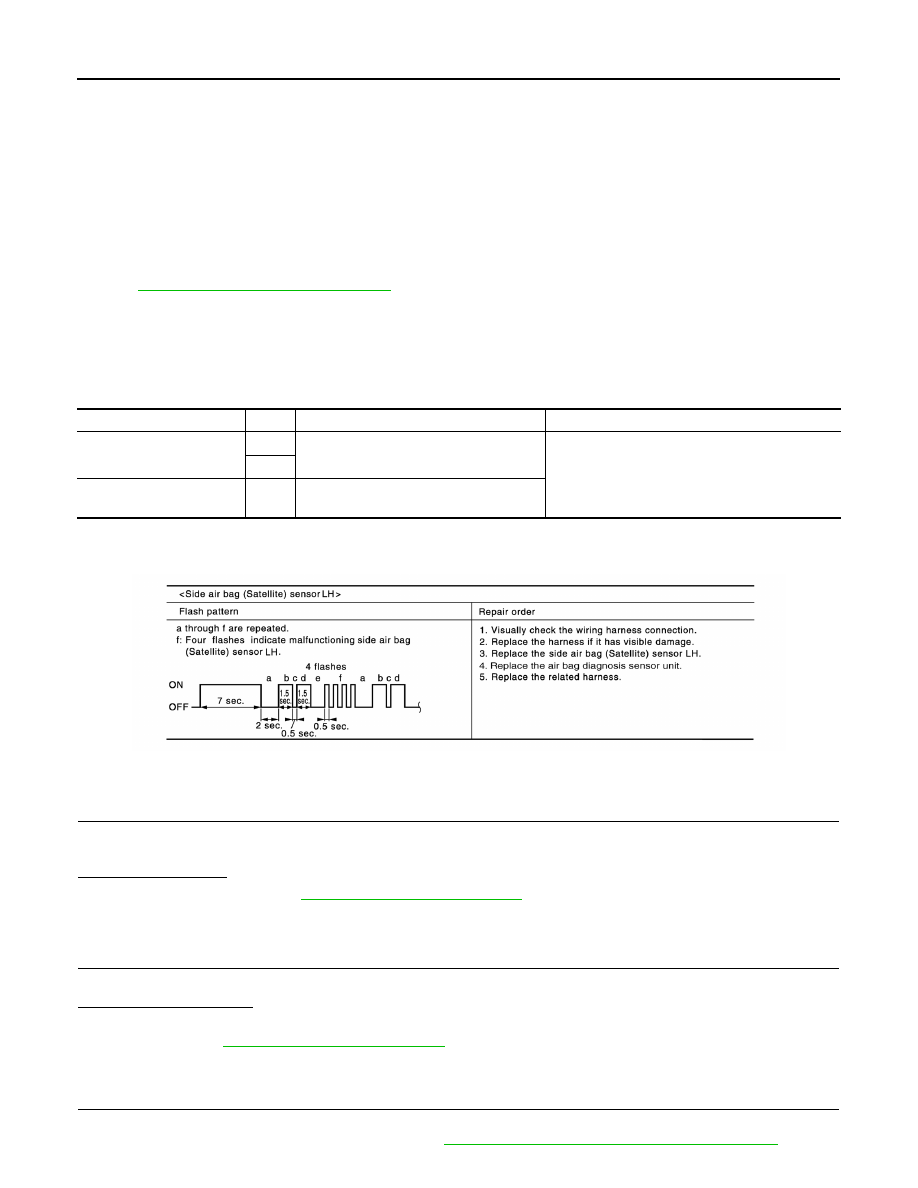

B1033 – B1035 CRASH ZONE SENSOR SRC-63 < DTC/CIRCUIT DIAGNOSIS > C D E F G I J K L M A B SRC N O P B1033 – B1035 CRASH ZONE SENSOR Description INFOID:0000000009269163 DTC B1033 – B1035 CRASH ZONE SENSOR The crash zone sensor is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor for opens and shorts in detected lines to the crash zone sensor. PART LOCATION SRC-4, "Component Parts Location" . DTC Logic INFOID:0000000009269164 DTC DETECTION LOGIC With CONSULT Without CONSULT DTC CONFIRMATION PROCEDURE (With CONSULT) 1. CHECK SELF-DIAG RESULT 1. Turn ignition switch ON. 2. Check for DTC using CONSULT. YES (Current DTC)>>Refer to . YES (Past DTC)>>GO TO 2. NO >> Inspection End. 2. ERASE SELF-DIAG RESULT Erase the DTC using CONSULT. YES >> Inspection End. NO >> Refer to DTC CONFIRMATION PROCEDURE (Without CONSULT) 1. CHECK SELF-DIAG RESULT 1. Turn ignition switch ON. 2. Check the air bag warning lamp status. Refer to SRC-15, "Trouble Diagnosis without CONSULT" NOTE: CONSULT name DTC DTC detecting condition Repair order CRASH ZONE SEN [UNIT FAIL] B1033 Crash zone sensor has malfunctioned. 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the crash zone sensor. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. B1034 CRASH ZONE SEN [COMM FAIL] B1035 Crash zone sensor communication error. WHIA0200E |
