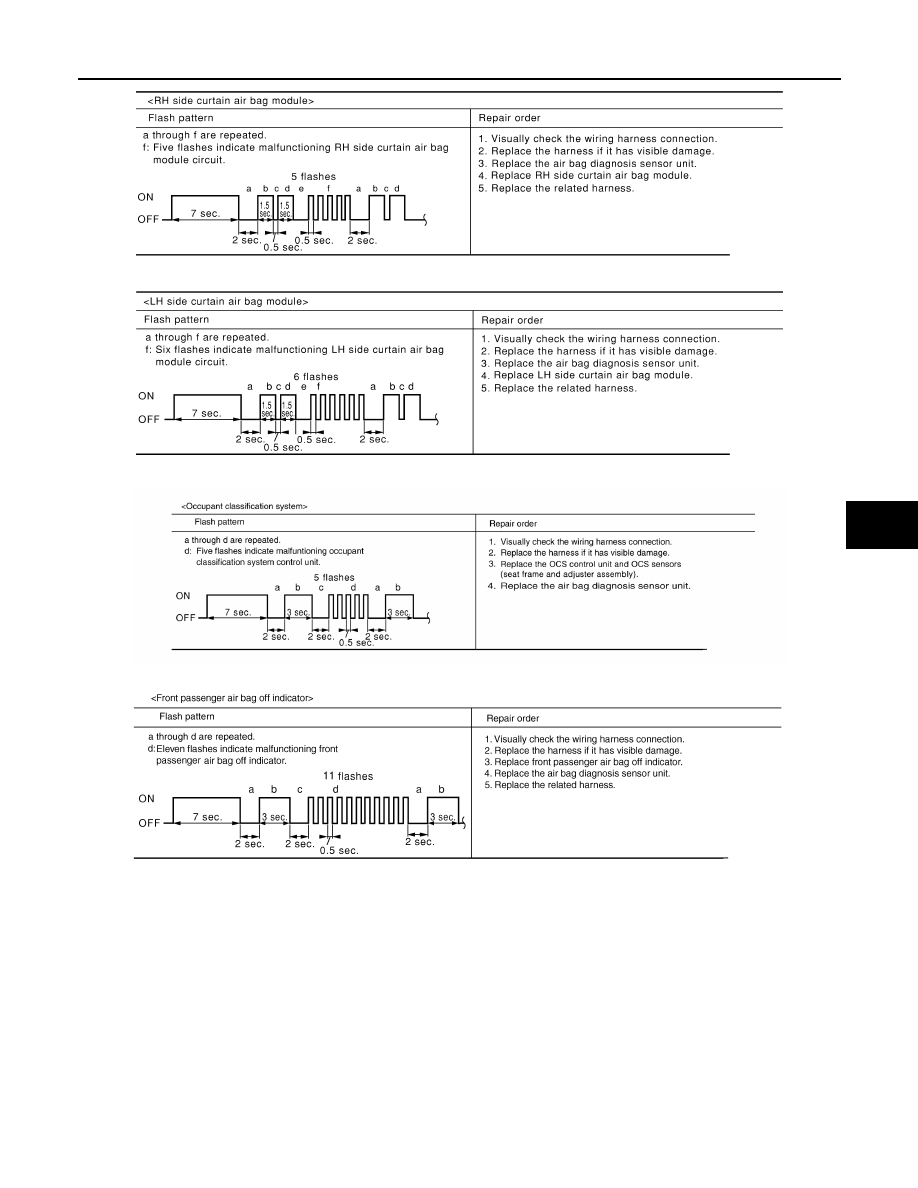

DIAGNOSIS SENSOR UNIT

SRC-23

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

AWHIA0308GB

AWHIA0309GB

AWHIA0357GB

WHIA0212E

SRC-24

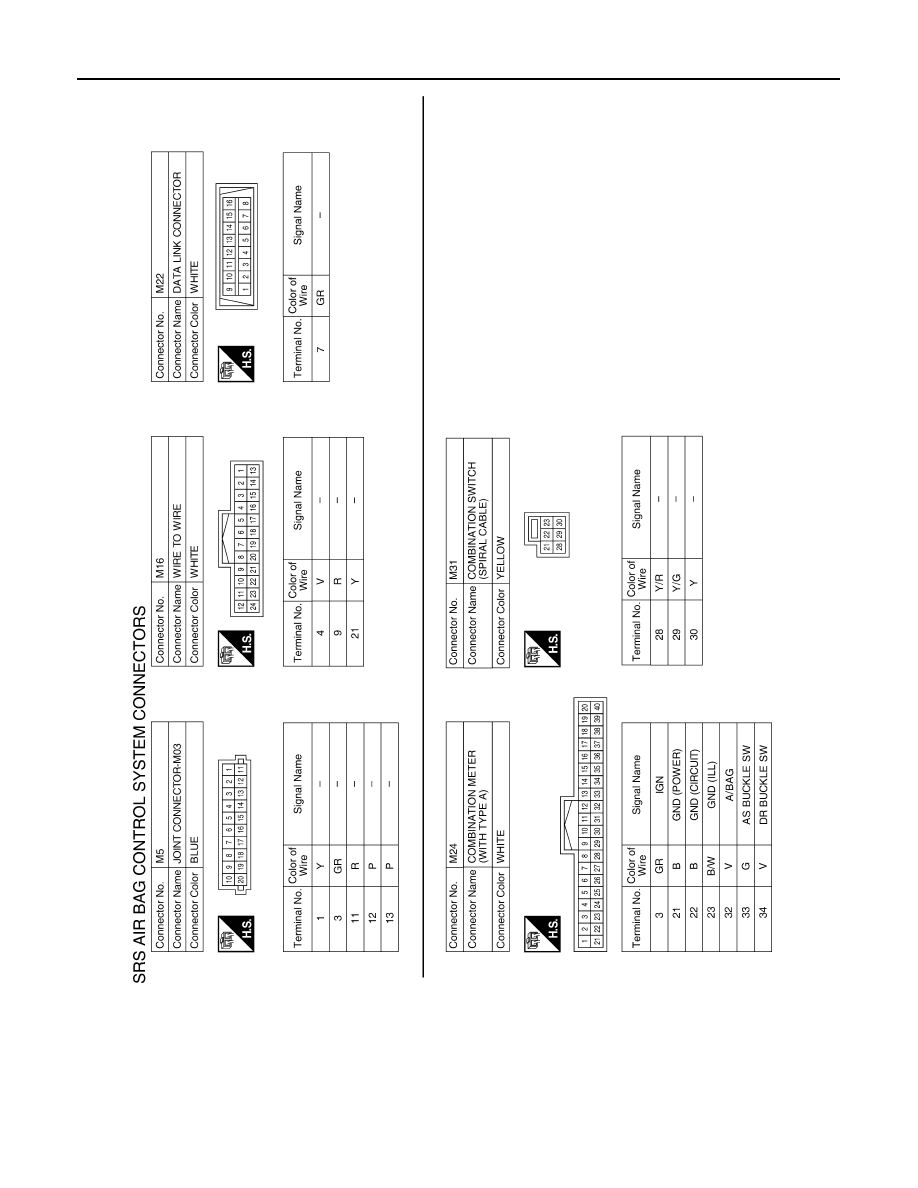

< WIRING DIAGRAM >

SRS AIR BAG CONTROL SYSTEM

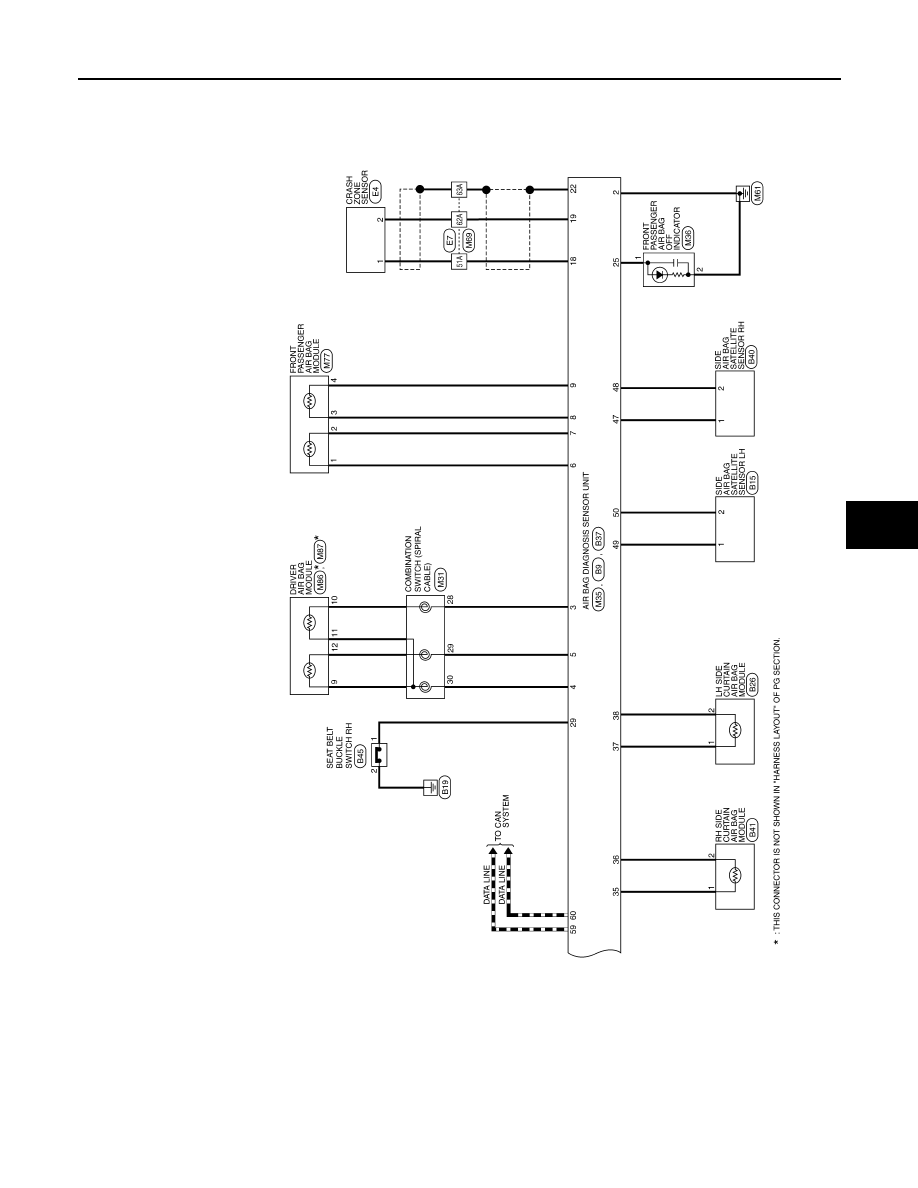

WIRING DIAGRAM

SRS AIR BAG CONTROL SYSTEM

Wiring Diagram

INFOID:0000000009269131

ABHWA0247GB

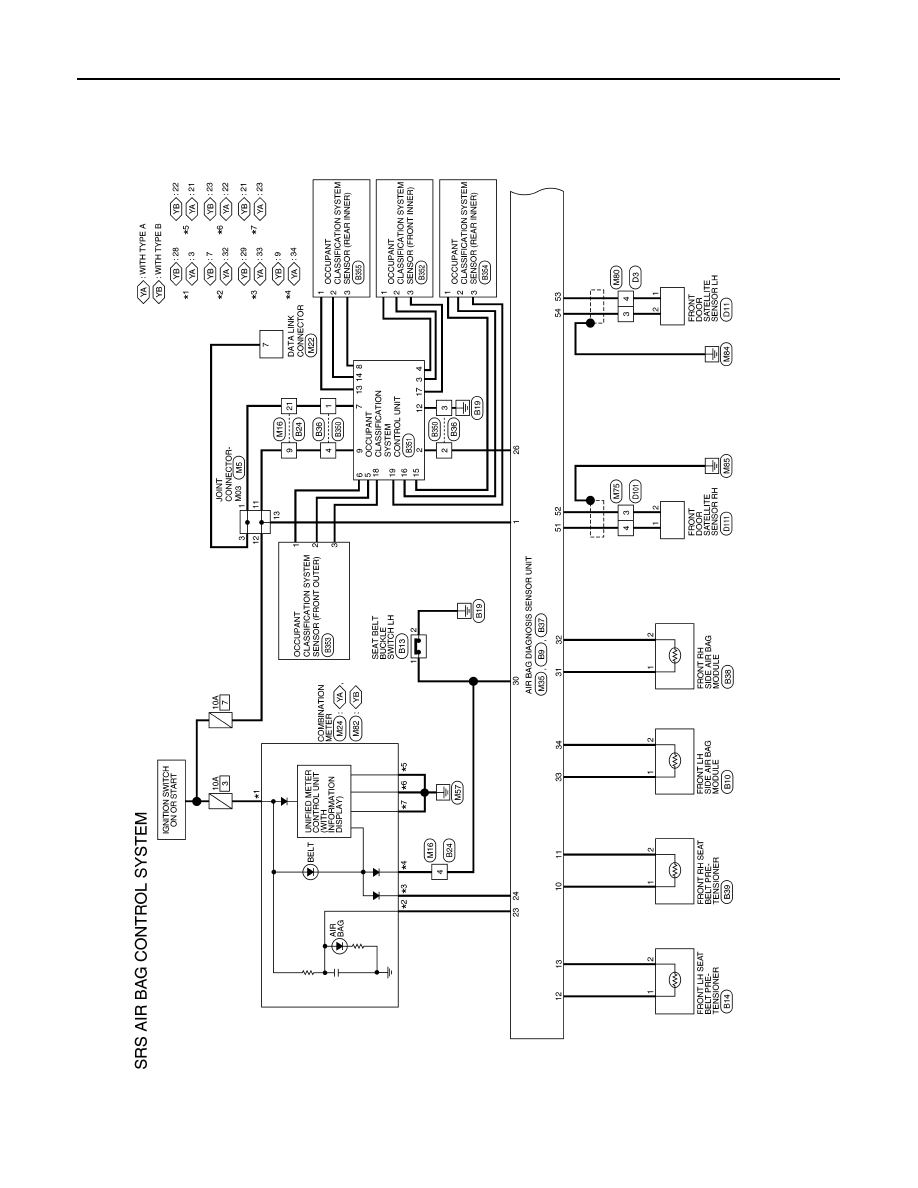

SRS AIR BAG CONTROL SYSTEM

SRC-25

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

ABHWA0208GB

SRC-26

< WIRING DIAGRAM >

SRS AIR BAG CONTROL SYSTEM

ABHIA0645GB
