DIAGNOSIS SENSOR UNIT

SRC-19

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

SATELLITE SENS LH

[UNIT FAIL]

B1118

Side air bag satellite sensor LH has mal-
functioned.

Refer to

SRC-67, "Diagnosis Procedure"

.

B1119

SATELLITE SENS LH

[COMM FAIL]

B1120

Side air bag satellite sensor LH commu-
nication error.

SATELLITE SENS RH

[UNIT FAIL]

B1113

Side air bag satellite sensor RH has
malfunctioned.

Refer to

SRC-70, "Diagnosis Procedure"

.

B1114

SATELLITE SENS RH

[COMM FAIL]

B1115

Side air bag satellite sensor RH commu-
nication error.

FR-LH DOOR SATEL SENS

[UNIT FAIL]

B1343

Front door satellite sensor LH (sedan) or
door satellite sensor LH (coupe) has
malfunctioned.

Refer to

SRC-73, "Diagnosis Procedure"

.

B1344

FR-LH DOOR SATEL SENS

[COM FAIL]

B1345

Front door satellite sensor LH (sedan) or
door satellite sensor LH (coupe) com-
munication error.

B1347

B1348

B1349

FR-LH DOOR SATEL SENS

[MIS-INSTALLATION]

B1346

Front door satellite sensor LH (sedan) or
door satellite sensor LH (coupe) is out of
specification.

FR-RH DOOR SATEL SENS

[UNIT FAIL]

B1336

Front door satellite sensor RH (sedan)
or door satellite sensor RH (coupe) has
malfunctioned.

Refer to

SRC-76, "Diagnosis Procedure"

.

B1337

FR-RH DOOR SATEL SENS

[COM FAIL]

B1338

Front door satellite sensor RH (sedan)
or door satellite sensor RH (coupe)
communication error.

B1340

B1341

B1342

FR-RH DOOR SATEL SENS

[MIS-INSTALLATION]

B1339

Front door satellite sensor RH (sedan)
or door satellite sensor RH (coupe) is
out of specification.

FR DOOR SATEL SENS

B1350

Front door satellite sensor LH/RH (se-
dan) or door satellite sensor LH/RH
(coupe) have malfunctioned.

Refer to

SRC-79, "Diagnosis Procedure"

.

CONTROL UNIT

B1XXX

Air bag diagnosis sensor unit is malfunc-
tioning.

Refer to

SRC-82, "Diagnosis Procedure"

.

PASS A/B INDCTR CKT

B1023

Front passenger air bag OFF indicator is
malfunctioning.

Refer to

SRC-85, "Diagnosis Procedure"

.

OCCUPANT SENS C/U

[UNIT FAIL]

B1017

The OCS control unit is malfunctioning.

Refer to

SRC-88, "Diagnosis Procedure"

.

B1020

B1021

OCCUPANT SENS

[UNIT FAIL]

B1018

The OCS sensor is malfunctioning.

OCCUPANT SENS

[OTHER FAIL]

B1025

The OCS is malfunctioning.

B1032

B1048

OCCUPANT SENS C/U

[COMM FAIL]

B1022

Communication between the OCS con-
trol unit and the air bag diagnosis sensor
unit is interrupted.

FRONTAL COLLISION DE-

TECTION

B1209

Driver and/or front passenger air bag
modules are deployed.

Refer to

SR-5, "For Frontal Collision"

.

SIDE COLLISION DETEC-

TION

B1210

Side and/or curtain air bag modules are
deployed.

Refer to

SR-7, "For Side and Rollover Collision"

.

CONSULT name

DTC

DTC detecting condition

Repair order

SRC-20

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

Flash Code Index

INFOID:0000000009269130

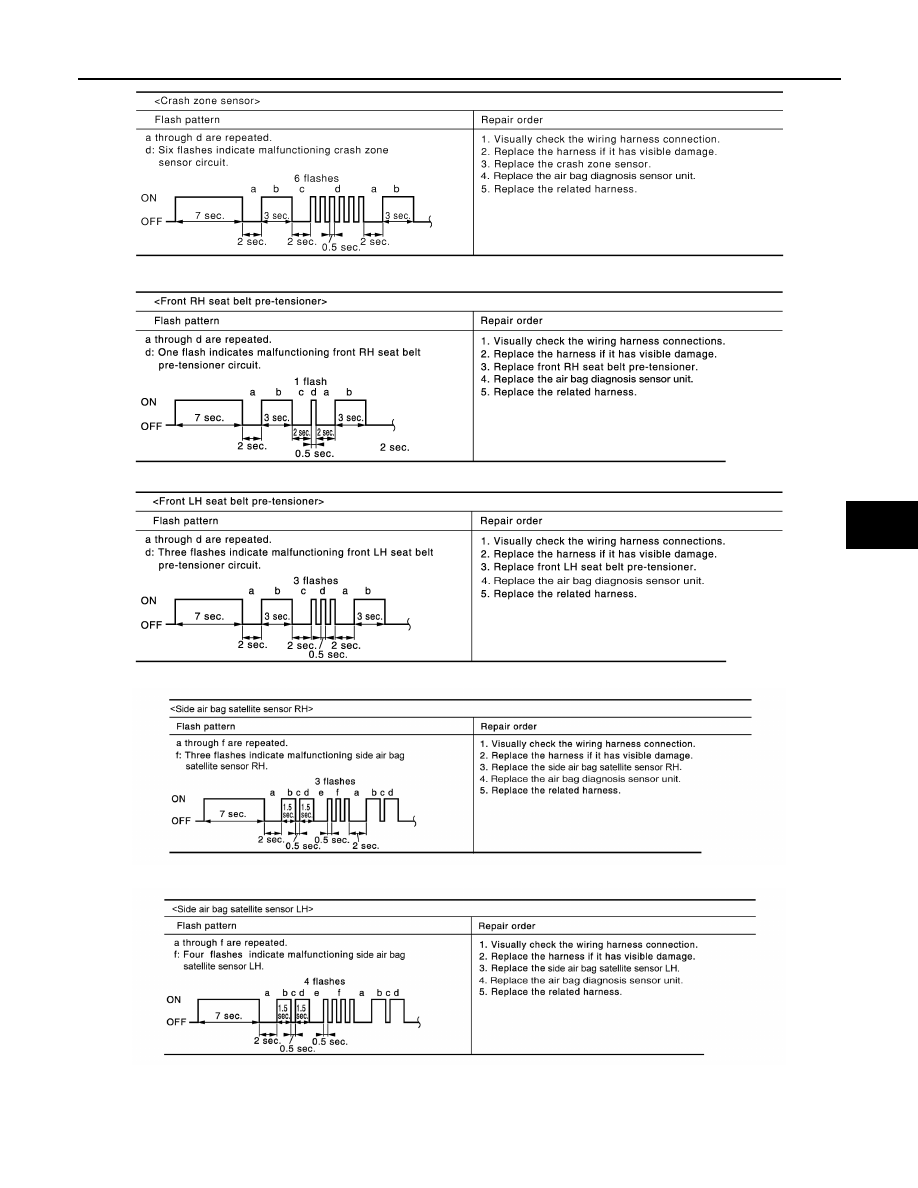

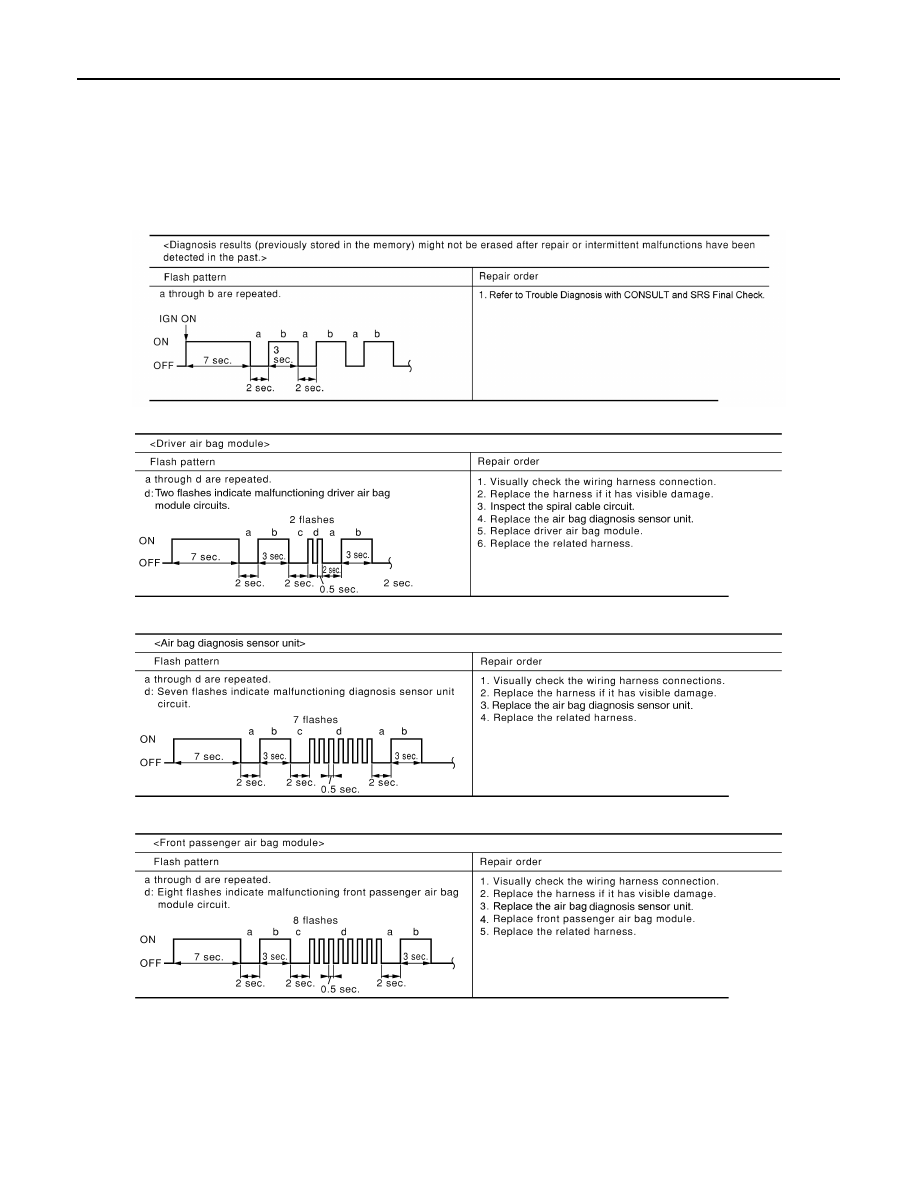

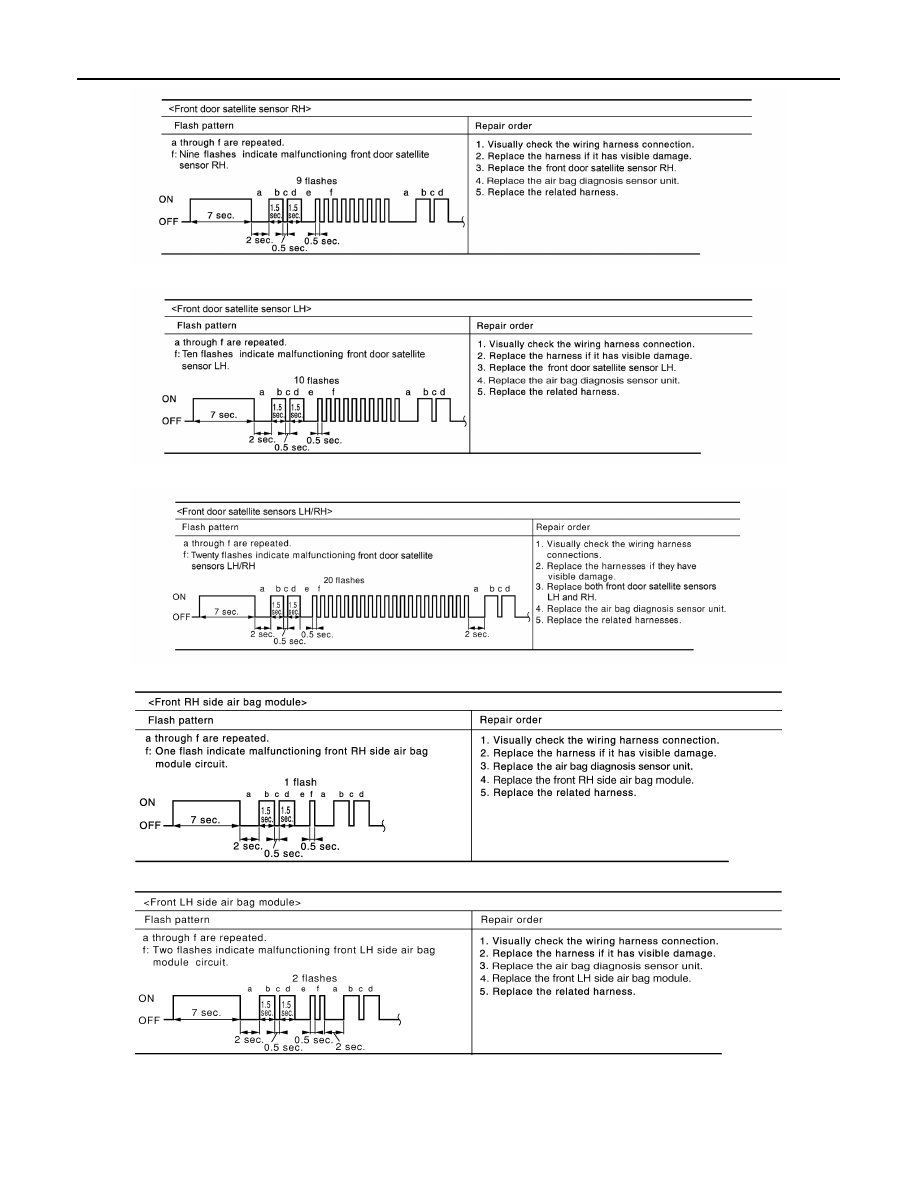

WARNING LAMP FLASH CODE CHART

NOTE:

Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is

eliminated using air bag warning lamp each time repair is finished. If malfunction is still observed, proceed to

the next step. When malfunction is eliminated, further repair work is not required.

AWHIA0300GB

AWHIA0306GB

WHIA0198E

AWHIA0307GB

DIAGNOSIS SENSOR UNIT

SRC-21

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

WHIA0200E

WHIA0262E

WHIA0263E

AWHIA0273GB

AWHIA0272GB

SRC-22

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

AWHIA0334GB

AWHIA0335GB

AWHIA0276GB

AWHIA0305GB

AWHIA0304GB
