Nissan Versa Sedan. Manual - part 679

SE-42

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

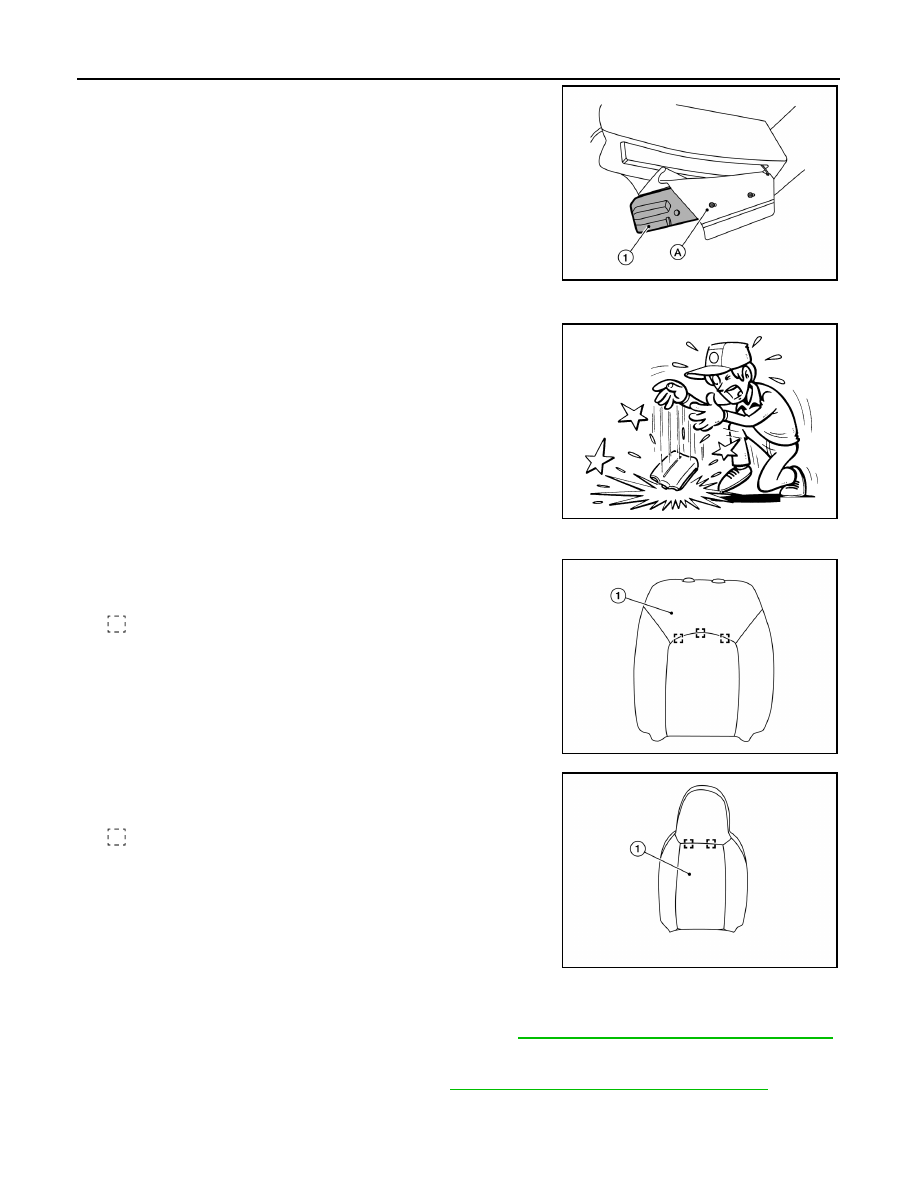

9. Pull the side air bag module (1) out of the chute (A) and remove

from the seatback trim.

CAUTION:

• Replace the side air bag module if it has been dropped or

sustained an impact.

• Do not strike the side air bag module.

10. Separate the seatback trim from the seatback pad.
a. For seatback with removable headrest.
i.

Remove the hog rings and separate the seatback trim (1) from

the seatback pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

b. For seatback without removable headrest.
i.

Remove the hog rings and separate the seatback trim (1) from

the seatback pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

Assembly

Assembly is in the reverse order of disassembly.

• Tighten the side air bag module nuts to specification. Refer to

SE-38, "PASSENGER SIDE : Exploded View"

.

CAUTION:

Do not reuse the side air bag module nuts.

• Tighten the chute rod nuts to specification. Refer to

SE-38, "PASSENGER SIDE : Exploded View"

.

CAUTION:

Do not reuse the chute rod nuts.

CAUTION:

AWJIA0924ZZ

JMHIA0009ZZ

ALJIA0988ZZ

ALJIA0989ZZ

FRONT SEAT

SE-43

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

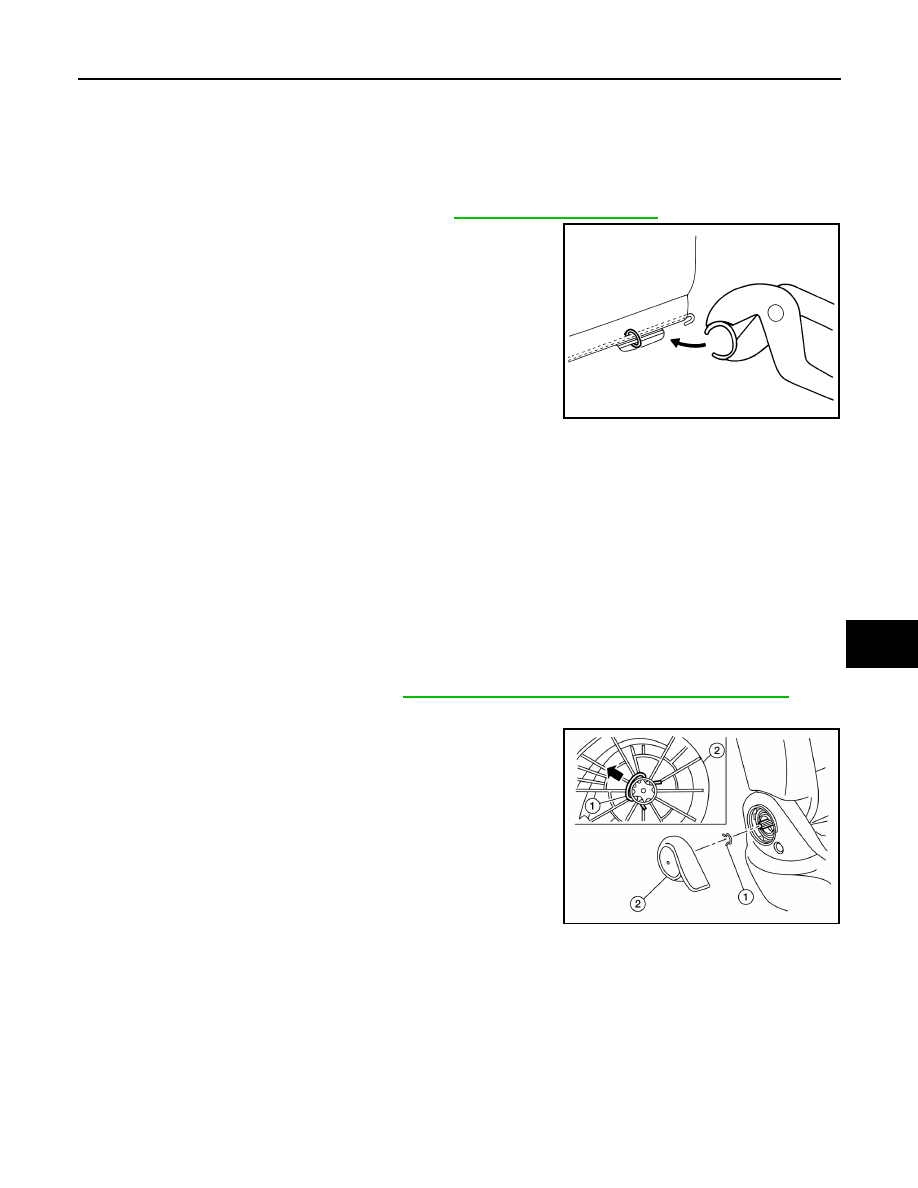

• Inspect seatback pad, seatback trim and seatback trim chutes. Replace if damaged.

• Smooth out all wrinkles during assembly.

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• After work is completed, check that no system malfunction is detected causing the air bag warning

lamp to illuminate.

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tion parts, perform the SRS final check. Refer to

SRC-15, "SRS Final Check"

.

• Install new hog rings on the seatback trim in original positions.

Use only one hog ring in each designated location.

Ensure hog rings are correctly fastened around both the seatback

trim and seatback pad wires.

Use NISSAN standard hog rings and tools to assemble.

SEAT CUSHION

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat cushion repair. It can lead

to personal injury if the side air bag should accidentally deploy.

CAUTION:

• Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least three

minutes.

• Always work from the side or back of the seatback assembly, do not work in front of seat.

• Do not use air tools or electric tools for servicing the seat assembly.

• During disassembly, do not damage the seatback cover, chutes, connectors, retainers, clips, module

harness or the side air bag module.

Disassembly

1. Remove the front seat assembly. Refer to

SE-20, "PASSENGER SIDE : Removal and Installation"

.

2. Remove the recline lever.
a. Remove snap ring (1) using a suitable tool, then remove the

recline lever (2).

3. Remove the seat cushion outer finisher (RH).

PIIB3356J

AWJIA0907ZZ

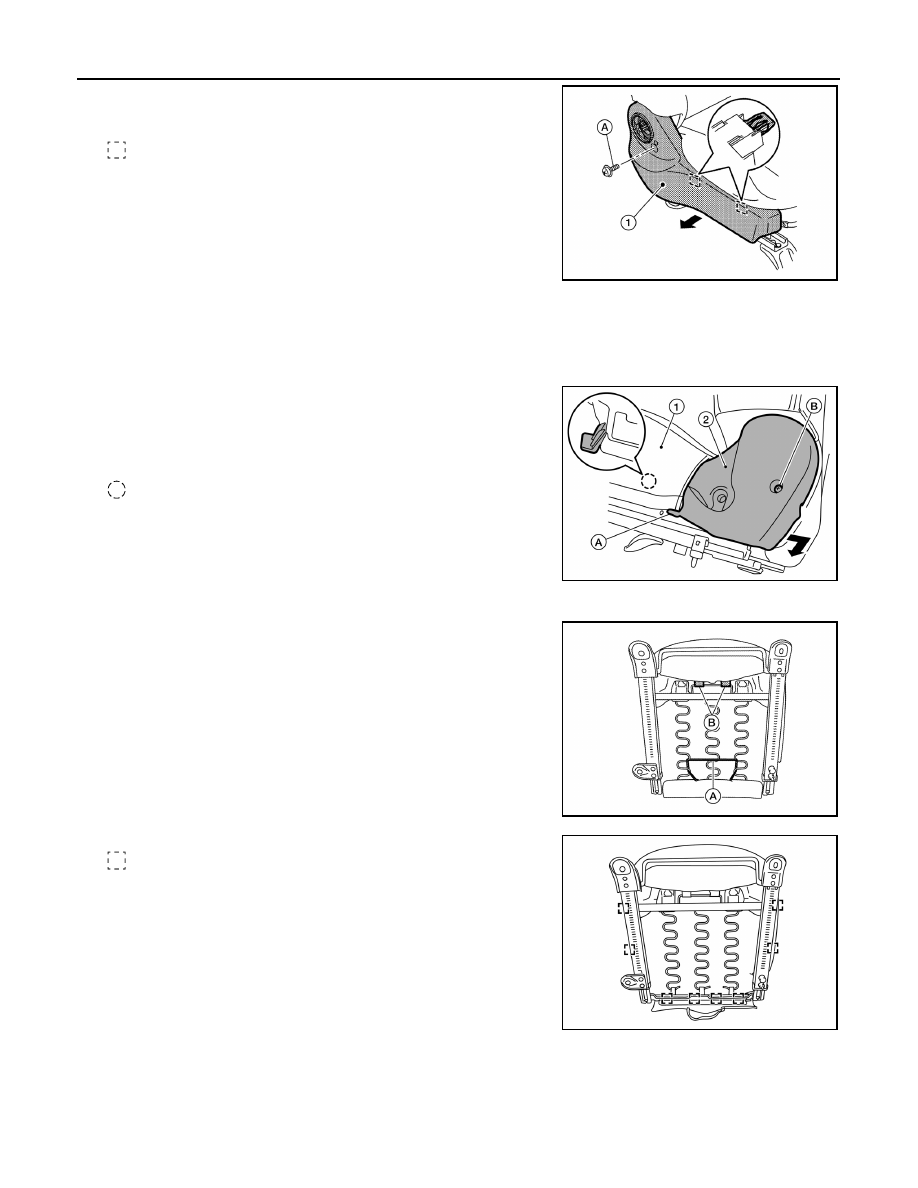

SE-44

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

a. Remove the screw (A).
b. Release the metal clips and remove the seat cushion outer fin-

isher (RH).

: Metal clip

4. Remove the seat belt buckle.
a. Unclip the seat belt buckle harness clip and connector clip from seat frame assembly.
b. Remove seat belt buckle anchor bolt and the seat belt buckle.
5. Remove the seat cushion outer finisher (LH).
a. Remove seat cushion trim retainer (A) and roll up seat cushion

trim (1).

b. Remove the screw (B).
c.

Slide seat cushion outer finisher (LH) (2) rearward to release

pawl and remove.

: Pawl

6. Remove the seat cushion trim and seat cushion pad as an assembly from the seat frame assembly.
a. Remove the seatback trim lower retainer strap (A) and cushion

J-clip retainer (B).

b. Remove seat cushion trim hog rings.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

c.

Remove the seat cushion trim and seat cushion pad from seat

frame assembly.

7. Separate the seat cushion trim from the seat cushion pad.

AWJIA0917ZZ

AWJIA0918ZZ

AWJIA0919ZZ

AWJIA0923ZZ

FRONT SEAT

SE-45

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

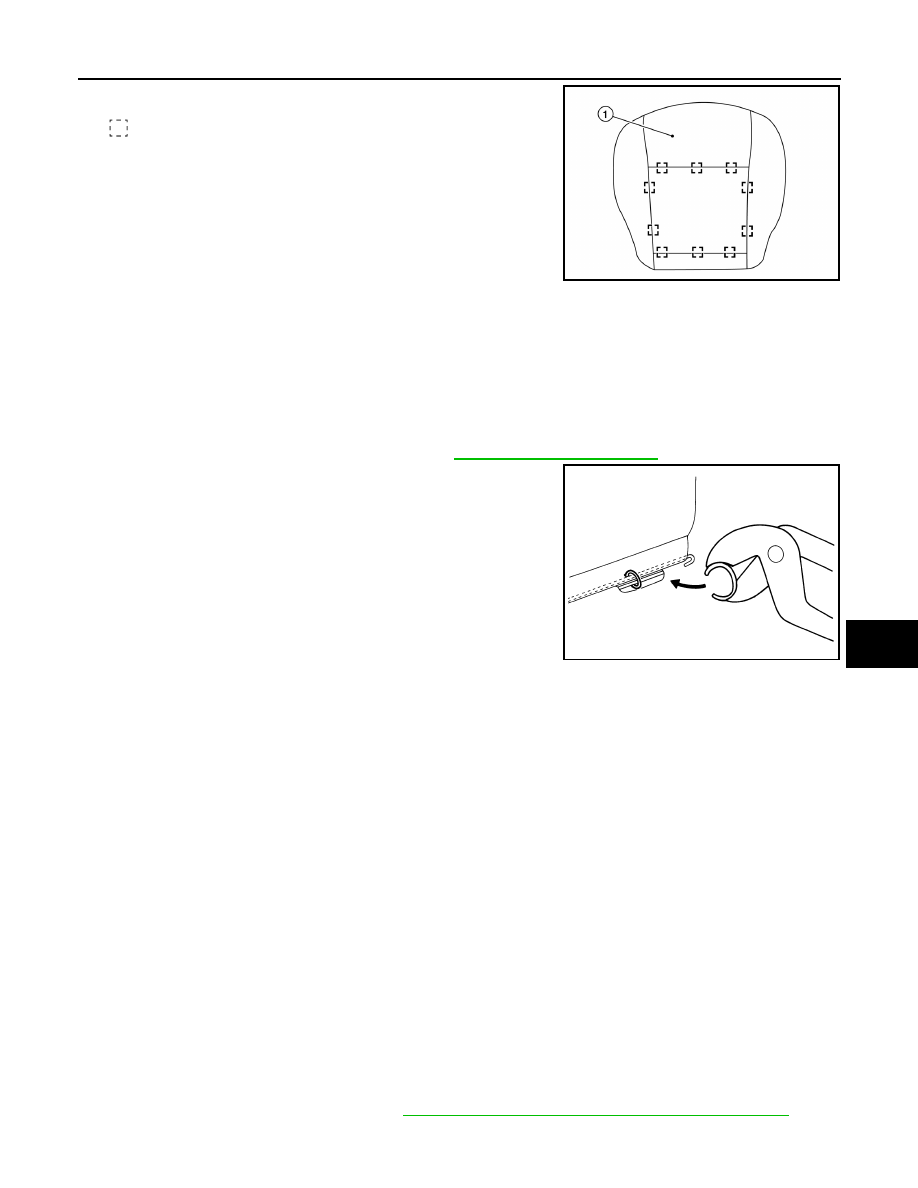

a. Remove the hog rings and separate the seat cushion trim (1)

from the seat cushion pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

Assembly

Assembly is in the reverse order of disassembly.

CAUTION:

• Smooth out all wrinkles during assembly.

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• After work is completed, check that no system malfunction is detected causing the air bag warning

lamp to illuminate.

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tion parts, perform the SRS final check. Refer to

SRC-15, "SRS Final Check"

.

• Install new hog rings on the seat cushion trim in original positions.

Use only one hog ring in each designated location.

Ensure hog rings are correctly fastened around both the seat cush-

ion trim and seat cushion pad wires.

Use NISSAN standard hog rings and tools to assemble.

PASSENGER SIDE : Disassembly and Assembly - Side Air Bag Module

INFOID:0000000009268535

DISASSEMBLY

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to

personal injury if the side air bag should accidentally deploy.

CAUTION:

• Before servicing the side air bag module, turn ignition switch OFF, disconnect both battery terminals

and wait at least three minutes.

• Handle the side air bag module carefully. During disassembly, always hold the side air bag module,

do not let it hang by the wire harness.

• Always work from the side or back of the seatback assembly, do not work in front of seat.

• Do not use air tools or electric tools for servicing the seat assembly.

• Replace the side air bag module if it has been dropped or sustained an impact.

• Do not insert any objects into the side air bag module.

• Do not attempt to disassemble the side air bag module.

• Do not expose the side air bag module to temperatures exceeding 93

°C (200°F).

• Do not expose the side air bag module to any oil, grease, detergent or water.

• During disassembly, do not damage the seatback board, chutes, connectors, retainers, clips, module

harness or the side air bag module.

NOTE:

• If the vehicle has been involved in a collision and the side air bag module has deployed, the front seatback

assembly must be replaced.

• For side air bag module removal and installation, seatback trim and seatback pad must be removed.
1. Remove the front seat assembly. Refer to

SE-20, "PASSENGER SIDE : Removal and Installation"

.
