SE-34

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

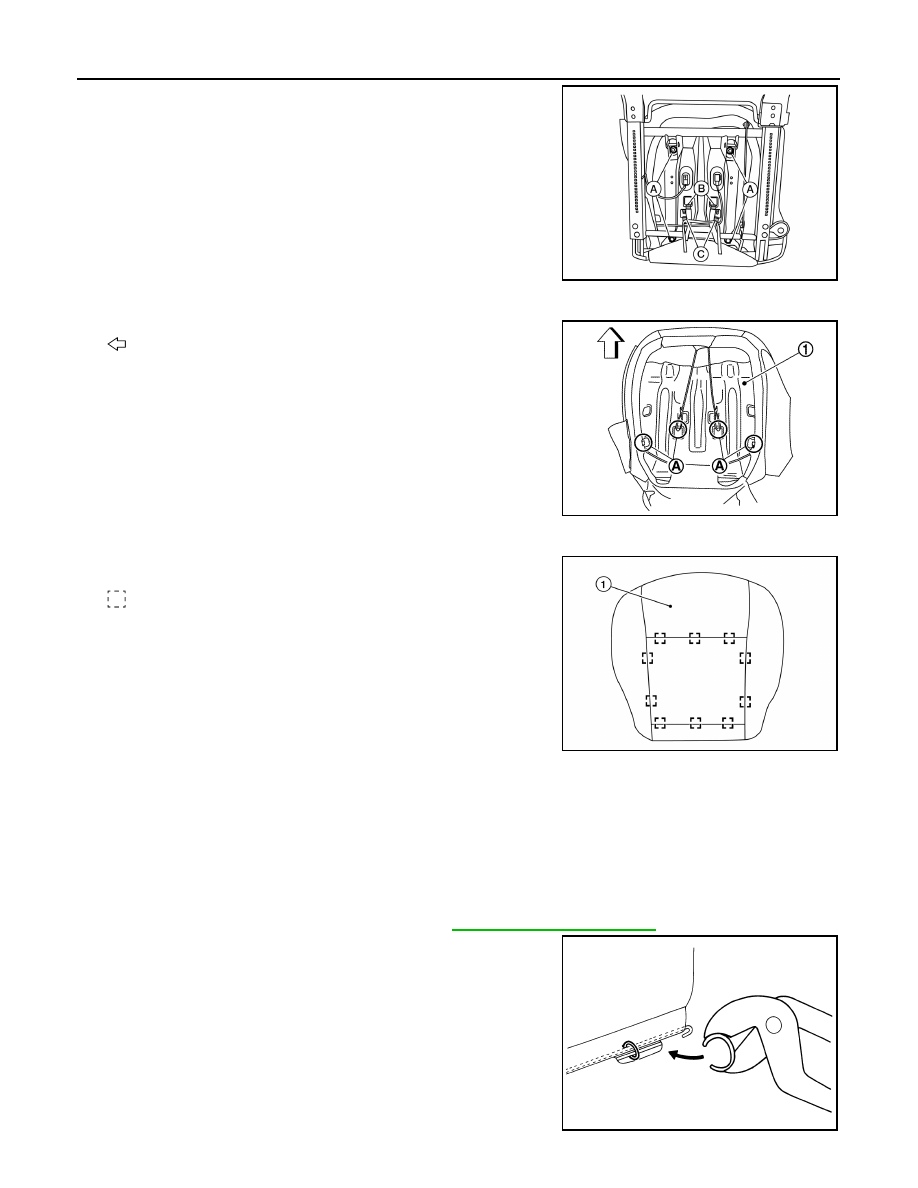

a. Release the seatback trim J-clips (C) and seat cushion J-clips

(B) from the seat cushion frame.

b. Unclip the harness from the seat cushion frame.

NOTE:

Take note of harness routing and attachment location for accu-

rate installation.

c.

Remove bolts (A) and the seat cushion assembly.

8. Remove seat cushion trim and seat cushion pad as an assembly from the seat cushion frame:
a. Release string at locations (A) from seat cushion frame (1).

: Front

b. Loosen string and remove the seat cushion pad and seat cush-

ion trim.

9. Separate the seat cushion trim from the seat cushion pad.
a. Remove the hog rings and separate the seat cushion trim (1)

from the seat cushion pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

Assembly

Assembly is in the reverse order of disassembly.

CAUTION:

• Smooth out all wrinkles during assembly.

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• After work is completed, check that no system malfunction is detected causing the air bag warning

lamp to illuminate.

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tion parts, perform the SRS final check. Refer to

SRC-15, "SRS Final Check"

.

• Install new hog rings on the seat cushion trim in original positions.

Use only one hog ring in each designated location.

Ensure hog rings are correctly fastened around both the seat cush-

ion trim and seat cushion pad wires.

Use NISSAN standard hog rings and tools to assemble.

ALJIA0997ZZ

JMJIA6008ZZ

ALJIA0990ZZ

PIIB3356J

FRONT SEAT

SE-35

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

DRIVER SIDE : Disassembly and Assembly - Side Air Bag Module

INFOID:0000000009268532

DISASSEMBLY

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to

personal injury if the side air bag should accidentally deploy.

CAUTION:

• Before servicing the side air bag module, turn ignition switch OFF, disconnect both battery terminals

and wait at least three minutes.

• Handle the side air bag module carefully. During disassembly, always hold the side air bag module,

do not let it hang by the wire harness.

• Always work from the side or back of the seatback assembly, do not work in front of seat.

• Do not use air tools or electric tools for servicing the seat assembly.

• Replace the side air bag module if it has been dropped or sustained an impact.

• Do not insert any objects into the side air bag module.

• Do not attempt to disassemble the side air bag module.

• Do not expose the side air bag module to temperatures exceeding 93

°C (200°F).

• Do not expose the side air bag module to any oil, grease, detergent or water.

• During disassembly, do not damage the seatback board, chutes, connectors, retainers, clips, module

harness or the side air bag module.

NOTE:

• If the vehicle has been involved in a collision and the side air bag module has deployed, the front seatback

assembly must be replaced.

• For side air bag module removal and installation, seatback trim and seatback pad must be removed.
1. Remove the front seat assembly. Refer to

SE-17, "DRIVER SIDE : Removal and Installation"

.

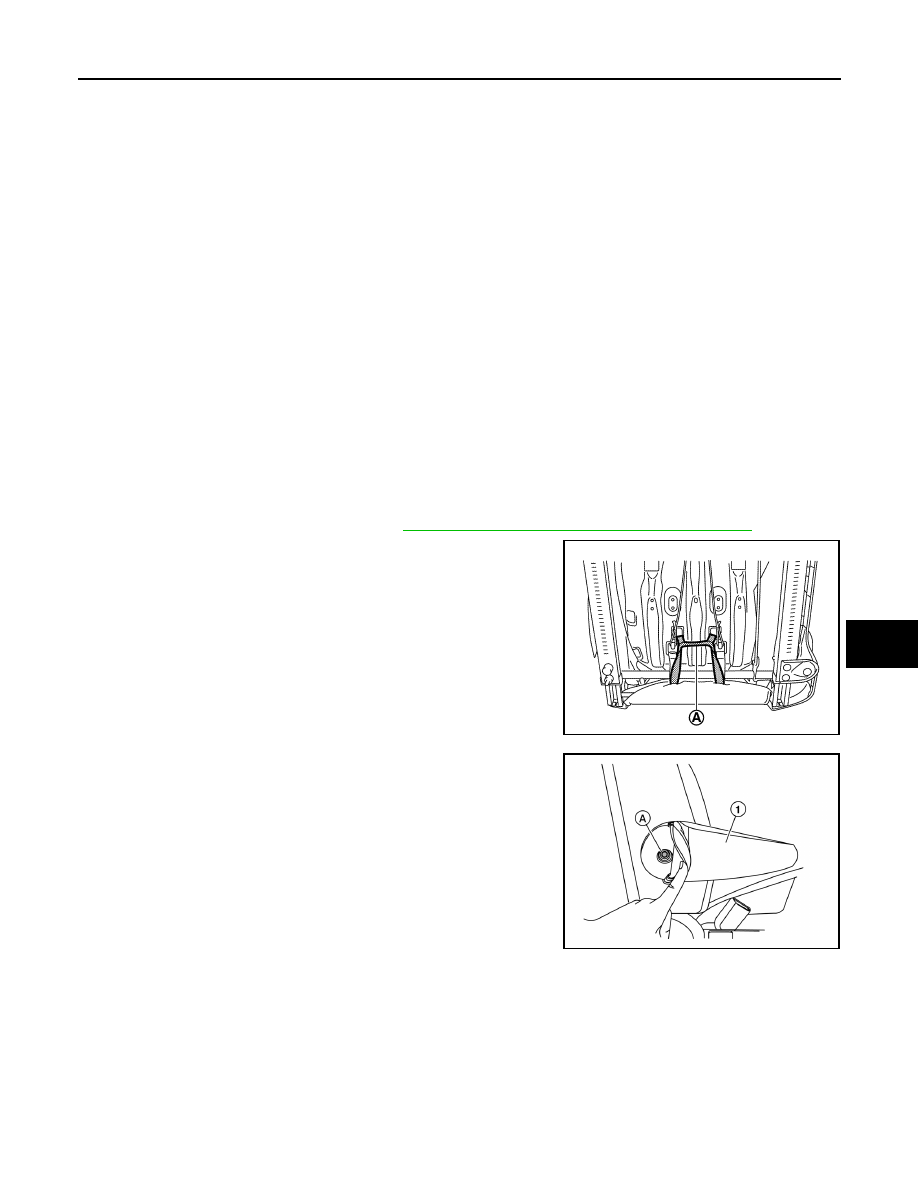

2. Release the lower seatback trim retainer strap (A) from the seat

cushion frame.

3. Remove the armrest (1) (if equipped).
a. Unzip the armrest to access the armrest bolt (A).
b. Remove the armrest bolt (A) and the armrest (1).

JMJIA6015ZZ

ALJIA0994ZZ

SE-36

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

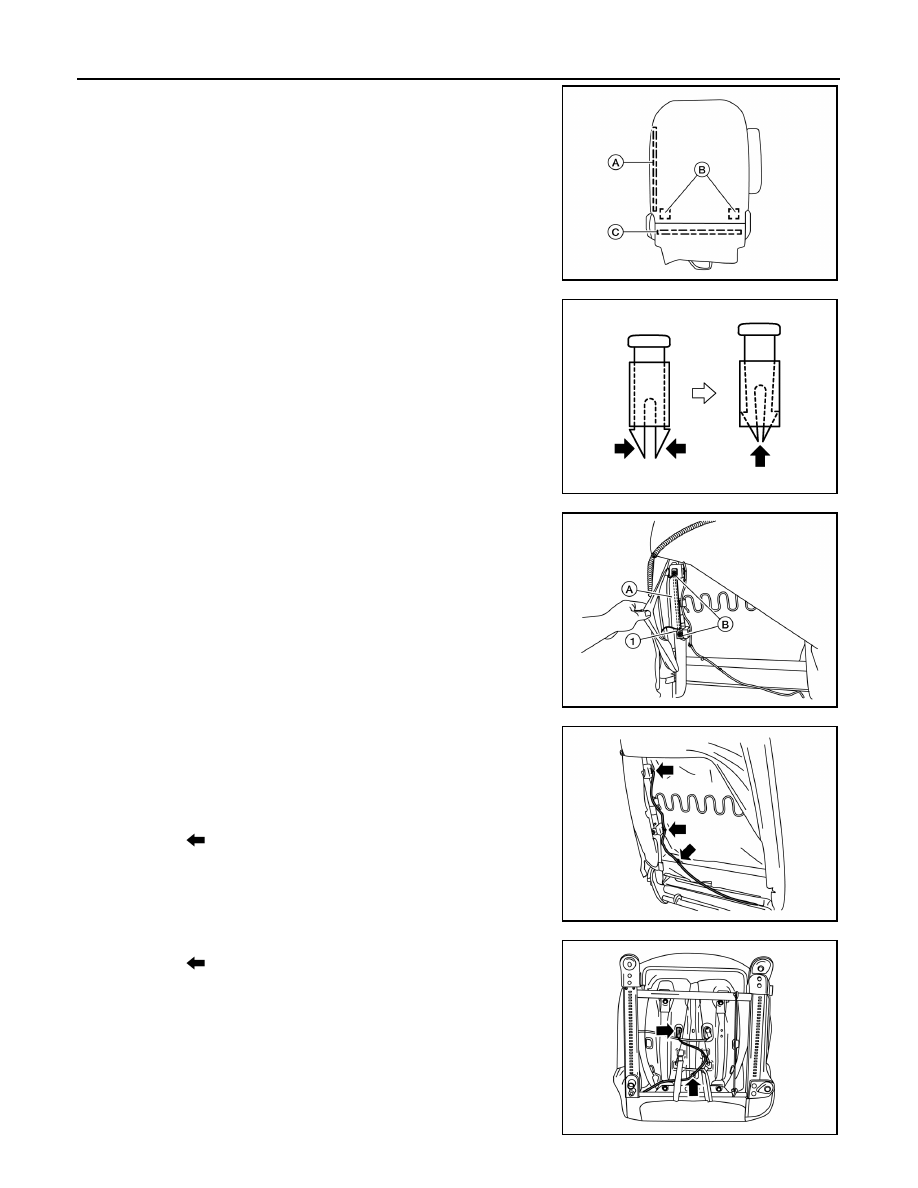

4. Release the J-hook retainer (C), unzip seatback zipper (A) and

release J-clips (B) holding the seatback trim to the seat frame

assembly.

5. Reach up through seatback trim and release locks as shown

and remove the headrest holders (if equipped).

CAUTION:

Before removing/installing the headrest holder, check its

orientation (front/rear and right/left)

6. Remove and discard the two chute rod nuts (B), then route the

chute rod (1) through the opening and remove it from the chute

(A).

CAUTION:

Do not reuse the chute rod nuts.

7. Release the side air bag module harness from seat frame

assembly.

NOTE:

Take note of harness routing and attachment location for accu-

rate installation.

a. From the back of the seat unclip the side air bag module har-

ness clips (

).

b. From the bottom of the seat unclip the side air bag module har-

ness clips (

).

ALJIA0987ZZ

PIIB4084J

ALJIA0992ZZ

ALJIA0689ZZ

ALJIA0692ZZ

FRONT SEAT

SE-37

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

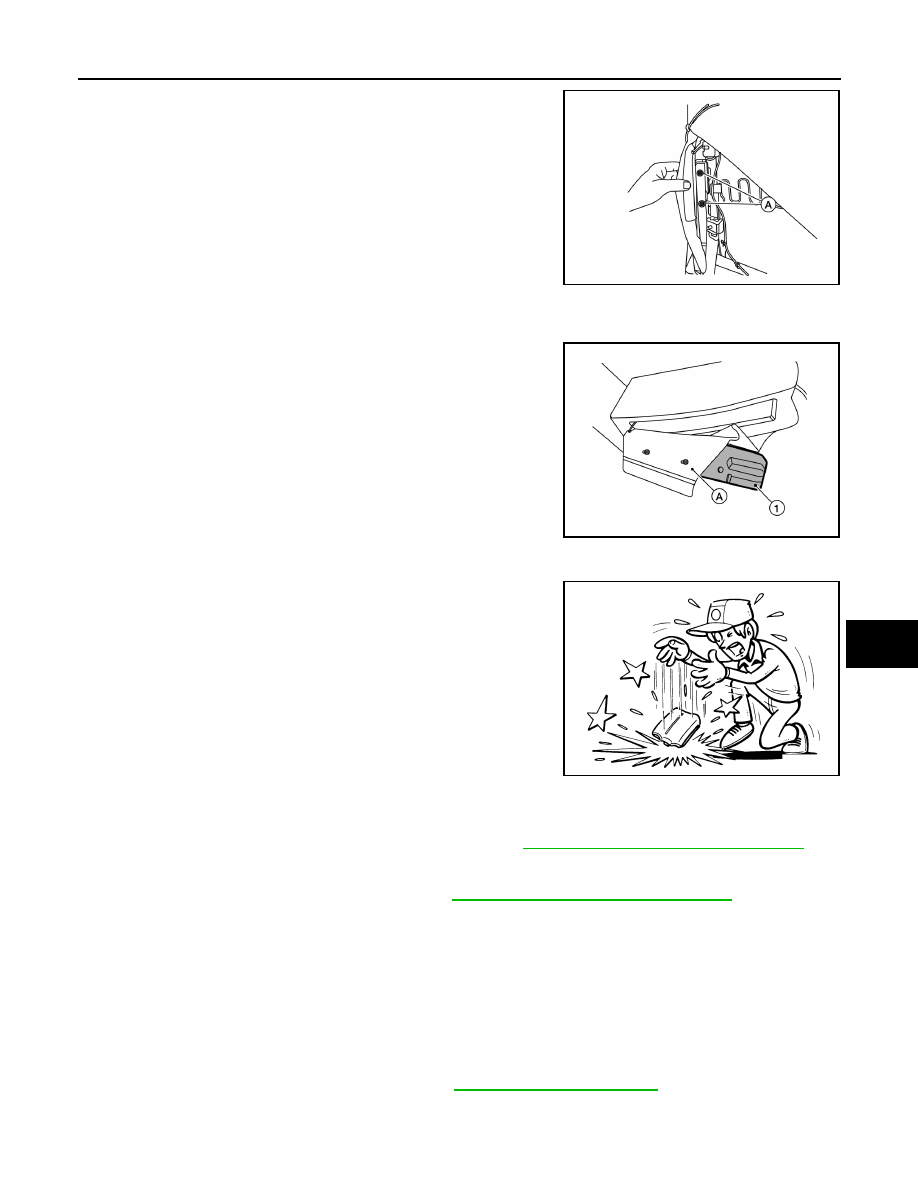

8. Remove and discard the two side air bag module nuts (A).

CAUTION:

Do not reuse the side air bag module nuts.

9. Disengage the side air bag module studs from the seatback frame and lift the seatback trim and seatback

pad as an assembly from the seat frame assembly.

10. Pull the side air bag module (1) out of the chute (A) and remove

from the seatback trim.

CAUTION:

• Replace the side air bag module if it has been dropped or

sustained an impact.

• Do not strike the side air bag module.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Tighten the side air bag module nuts to specification. Refer to

SE-26, "DRIVER SIDE : Exploded View"

.

CAUTION:

Do not reuse the side air bag module nuts.

• Tighten the chute rod nuts to specification. Refer to

SE-26, "DRIVER SIDE : Exploded View"

.

CAUTION:

Do not reuse the chute rod nuts.

CAUTION:

• Inspect seatback pad, seatback trim and seatback trim chutes. Replace if damaged.

• Smooth out all wrinkles during assembly.

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• After work is completed, check that no system malfunction is detected causing the air bag warning

lamp to illuminate.

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tion parts, perform the SRS final check. Refer to

SRC-15, "SRS Final Check"

.

PASSENGER SIDE

ALJIA0991ZZ

ALJIA0993ZZ
