SE-30

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

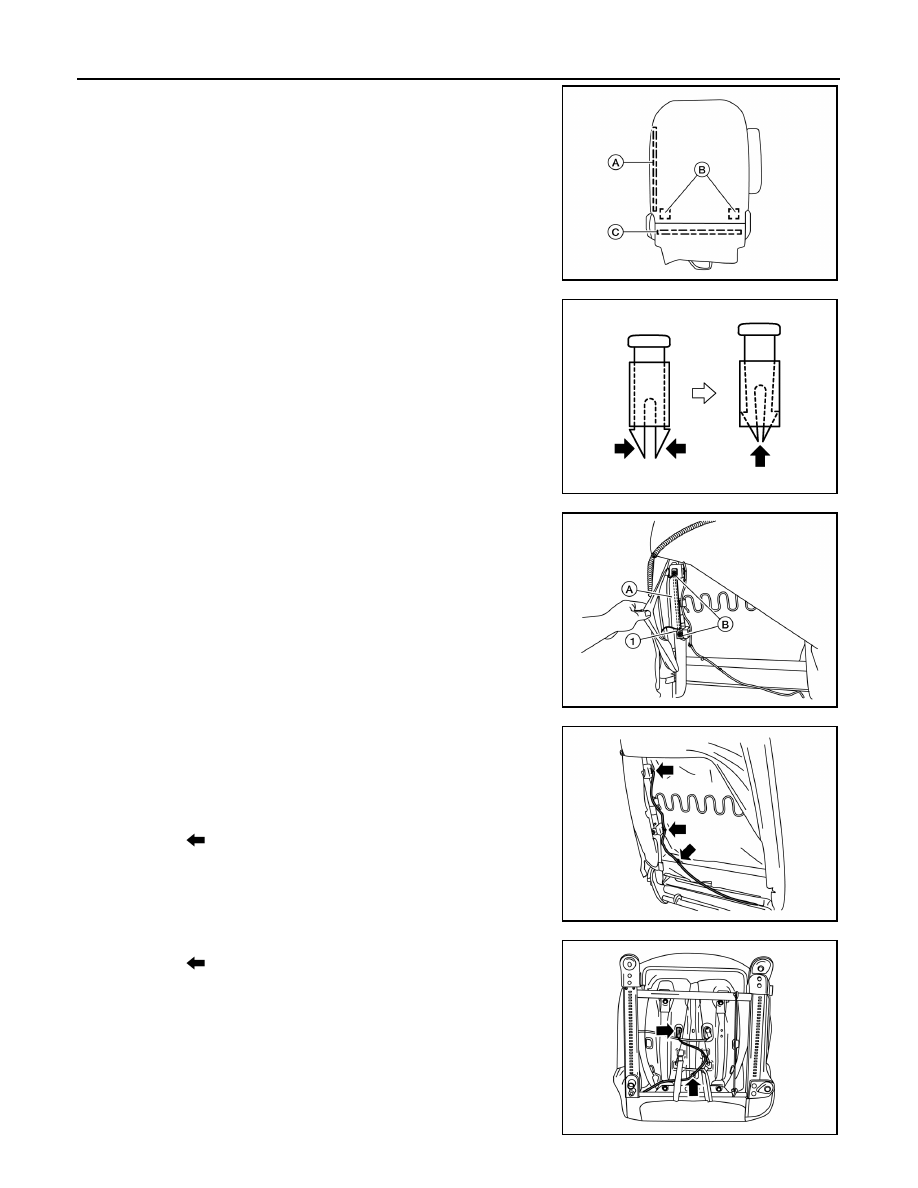

4. Release the J-hook retainer (C), unzip seatback zipper (A) and

release J-clips (B) holding the seatback trim to the seat frame

assembly.

5. Reach up through the seatback trim and release locks as shown

and remove the headrest holders (if equipped).

CAUTION:

Before removing/installing the headrest holder, check its

orientation (front/rear and right/left)

6. Remove and discard the two chute rod nuts (B), then route the

chute rod (1) through the opening and remove it from the chute

(A).

CAUTION:

Do not reuse the chute rod nuts.

7. Release the side air bag module harness from the seat frame

assembly.

NOTE:

Take note of harness routing and attachment location for accu-

rate installation.

a. From the back of the seat unclip the side air bag module har-

ness clips (

).

b. From the bottom of the seat unclip the side air bag module har-

ness clips (

).

ALJIA0987ZZ

PIIB4084J

ALJIA0992ZZ

ALJIA0689ZZ

ALJIA0692ZZ

FRONT SEAT

SE-31

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

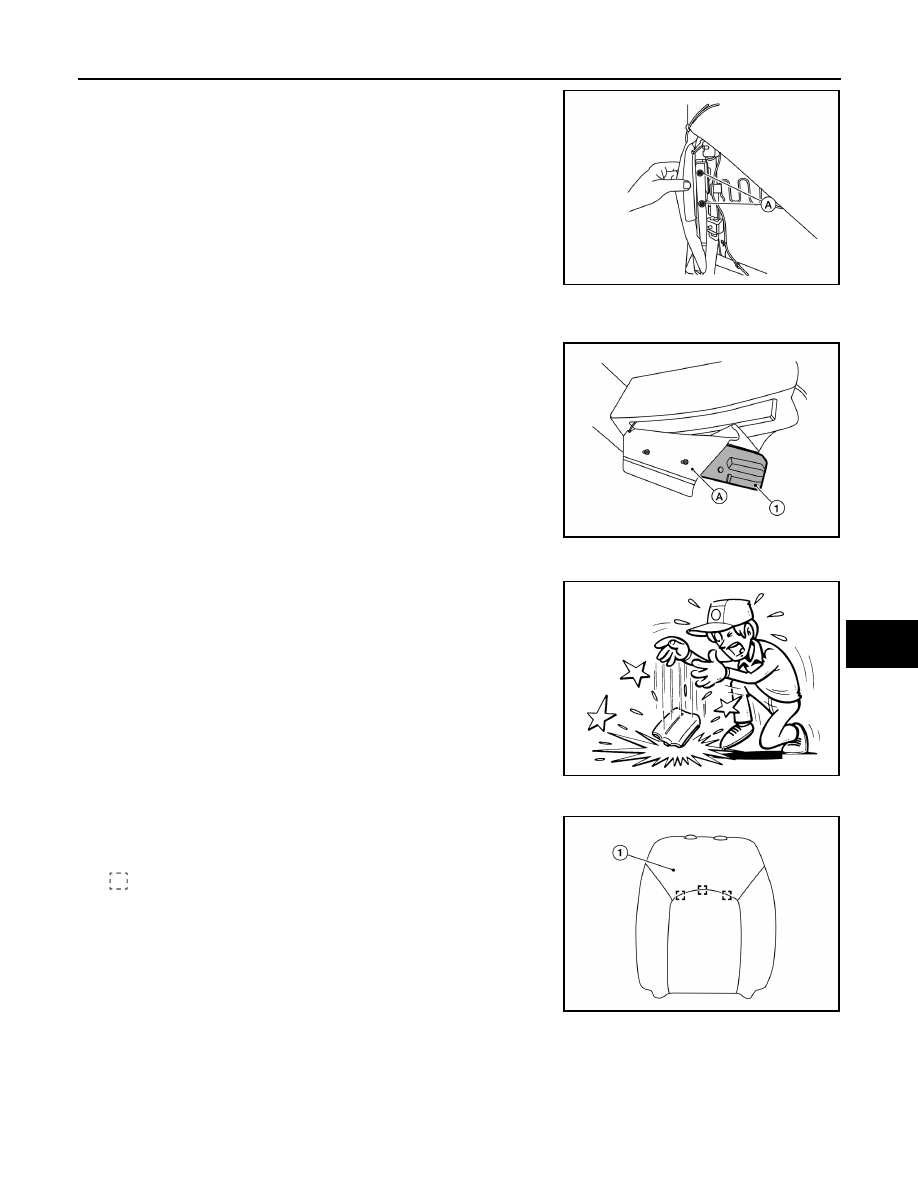

8. Remove and discard the two side air bag module nuts (A).

CAUTION:

Do not reuse the side air bag module nuts.

9. Disengage the side air bag module studs from the seatback frame and lift the seatback trim and seatback

pad as an assembly from the seat frame assembly.

10. Pull the side air bag module (1) out of the chute (A) and remove

from the seatback trim.

CAUTION:

• Replace the side air bag module if it has been dropped or

sustained an impact.

• Do not strike the side air bag module.

11. Separate the seatback trim from the seatback pad.
a. For seatback with removable headrest.
i.

Remove the hog rings and separate the seatback trim (1) from

the seatback pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

ALJIA0991ZZ

ALJIA0993ZZ

JMHIA0009ZZ

ALJIA0988ZZ

SE-32

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

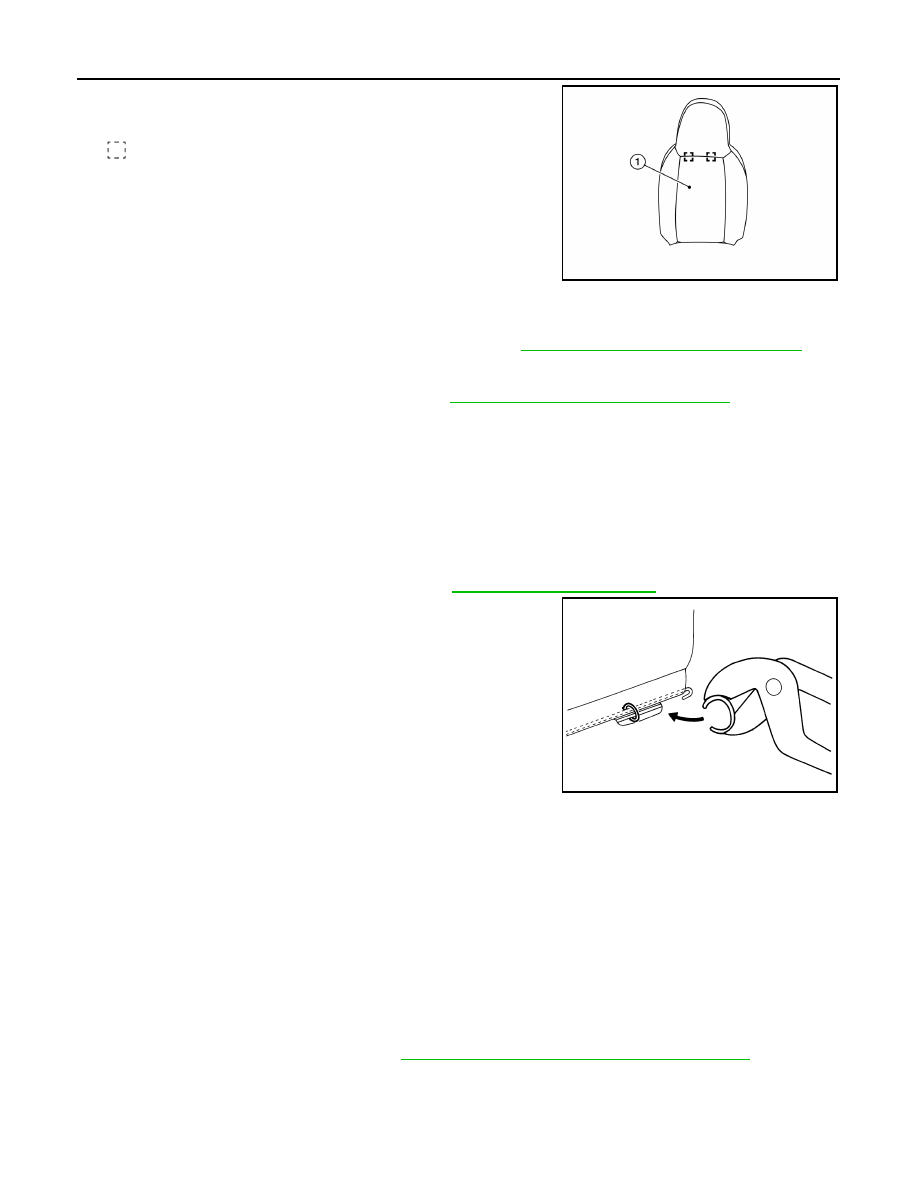

b. For seatback without removable headrest.
i.

Remove the hog rings and separate the seatback trim (1) from

the seatback pad.

: Hog ring

NOTE:

Remove all pieces of hog rings and discard them.

Assembly

Assembly is in the reverse order of disassembly.

• Tighten the side air bag module nuts to specification. Refer to

SE-26, "DRIVER SIDE : Exploded View"

.

CAUTION:

Do not reuse the side air bag module nuts.

• Tighten the chute rod nuts to specification. Refer to

SE-26, "DRIVER SIDE : Exploded View"

.

CAUTION:

Do not reuse the chute rod nuts.

CAUTION:

• Inspect seatback pad, seatback trim and seatback trim chutes. Replace if damaged.

• Smooth out all wrinkles during assembly.

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• After work is completed, check that no system malfunction is detected causing the air bag warning

lamp to illuminate.

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tion parts, perform the SRS final check. Refer to

SRC-15, "SRS Final Check"

.

• Install new hog rings on the seatback trim in original positions.

Use only one hog ring in each designated location.

Ensure hog rings are correctly fastened around both the seatback

trim and seatback pad wires.

Use NISSAN standard hog rings and tools to assemble.

SEAT CUSHION

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat cushion repair. It can lead

to personal injury if the side air bag should accidentally deploy.

CAUTION:

• Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least three

minutes.

• Always work from the side or back of the seatback assembly, do not work in front of seat.

• Do not use air tools or electric tools for servicing the seat assembly.

• During disassembly, do not damage the seatback cover, chutes, connectors, retainers, clips, module

harness or the side air bag module.

Disassembly

1. Remove the front seat assembly. Refer to

SE-17, "DRIVER SIDE : Removal and Installation"

.

2. Remove the lift lever.

ALJIA0989ZZ

PIIB3356J

FRONT SEAT

SE-33

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

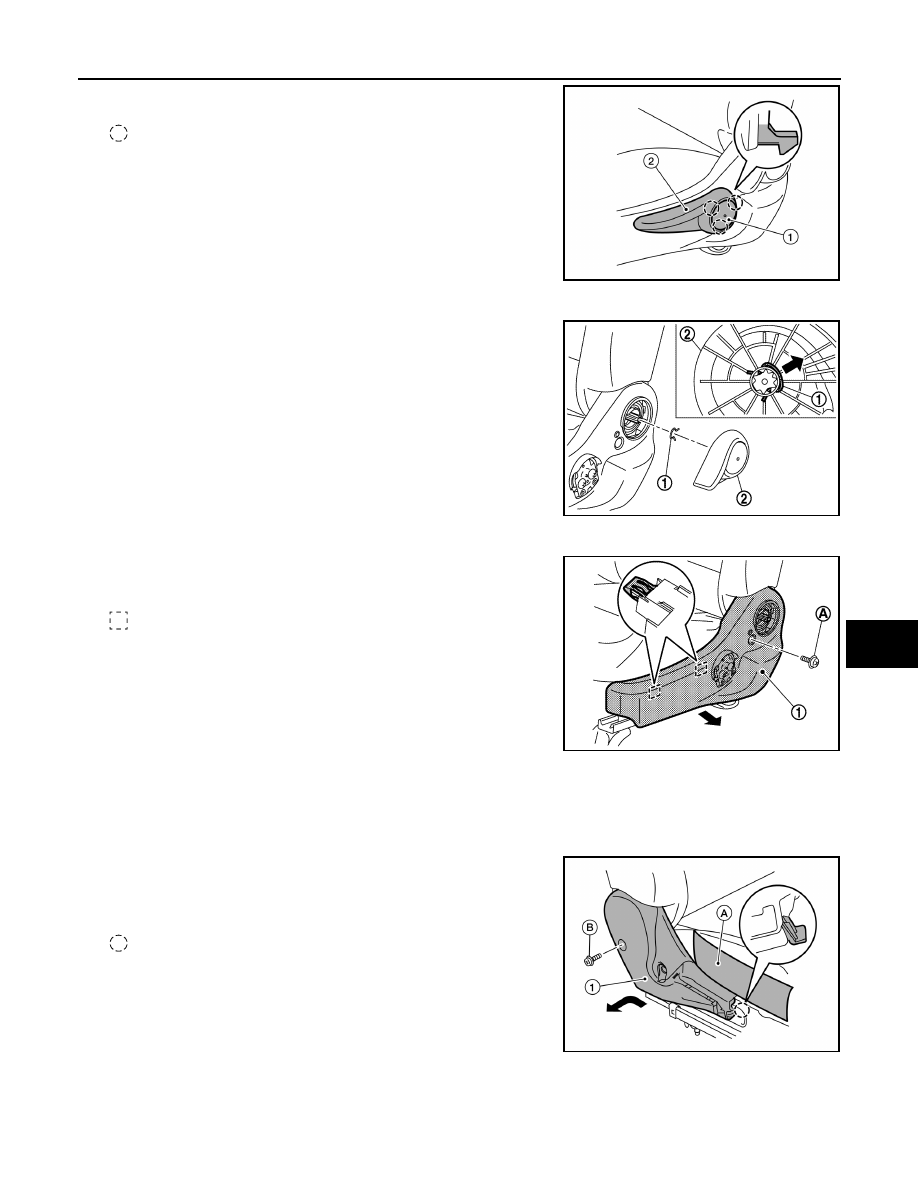

a. Release pawls and remove the lift lever cap (1) (if equipped).
b. Remove screws and the lift lever (2) (if equipped).

: Pawl

3. Remove the recline lever.
a. Remove snap ring (1) using a suitable tool, then the recline lever

(2).

4. Remove the seat cushion outer finisher (LH).
a. Remove the screw (A).
b. Release the metal clips, then remove the seat cushion outer fin-

isher (LH) (1).

: Metal clip

5. Remove the seat belt buckle.
a. Unclip the seat belt buckle harness clip and connector clip from seat frame assembly.
b. Remove the seat belt buckle anchor bolt and the seat belt buckle.
6. Remove the seat cushion outer finisher (RH).
a. Remove the screw (B).
b. Lift up seat cushion trim (A).
c. Slide seat cushion outer finisher (RH) (1) rearward to release

pawl and remove.

: Pawl

7. Remove the seat cushion assembly from the seat frame assembly.

AWJIA0932ZZ

JMJIA6005ZZ

JMJIA6006ZZ

AWJIA0933ZZ
