EXT-22

< REMOVAL AND INSTALLATION >

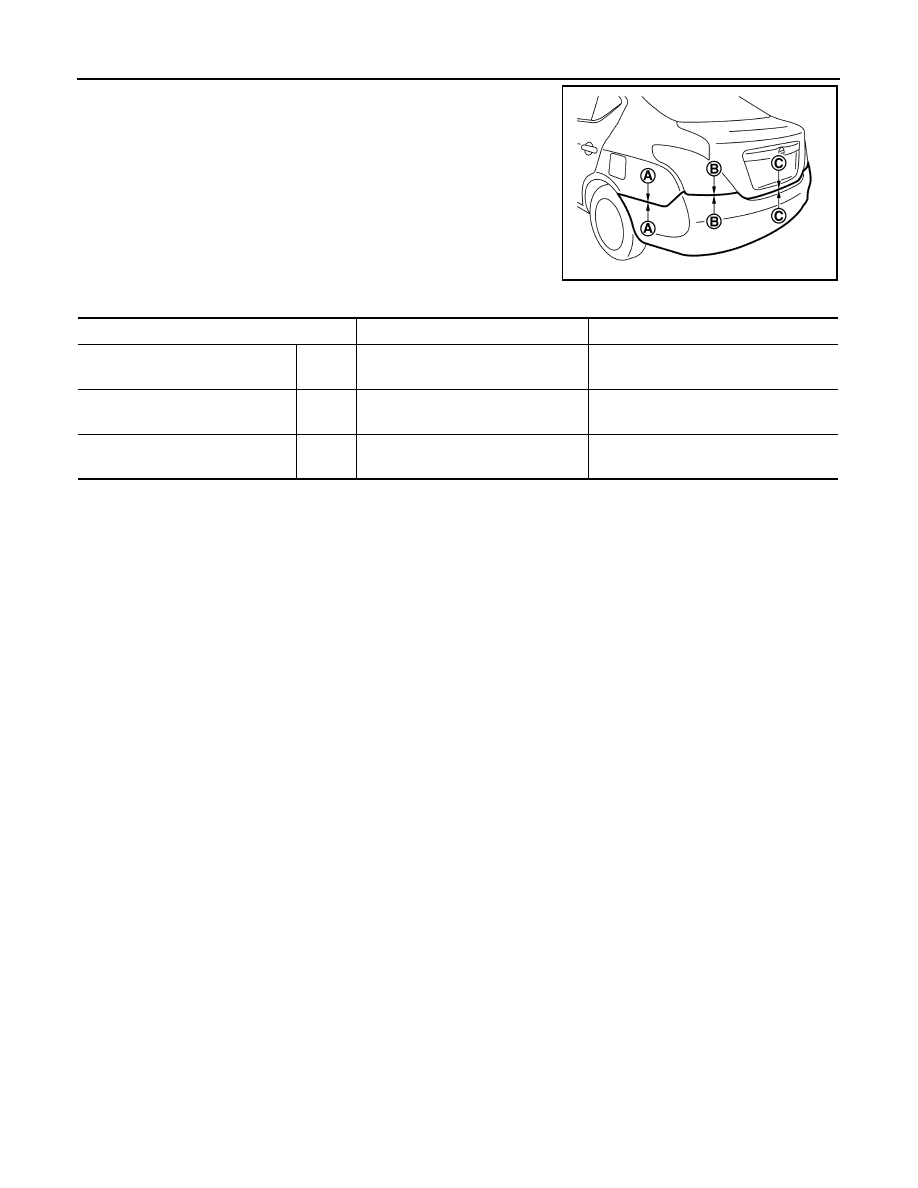

REAR BUMPER

• Fitting adjustment cannot be performed.

JMKIA8023ZZ

Portion

Clearance

Surface height difference

Rear bumper – Rear fender

A – A

0.0 – 1.0 mm

(0.000 – 0.04 in)

(

−1.7) – (+0.3) mm

[(

−0.07) – (+0.01) in]

Rear bumper – Rear combi-
nation lamp

B – B

0.0 – 3.5 mm

(0.000 – 0.14) in

0.1 – 3.9 mm

(0.004 – 0.15 in)

Rear bumper – Trunk lid

C – C

5.0 – 9.0 mm

(0.20 – 0.35 in)

—

FRONT GRILLE

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

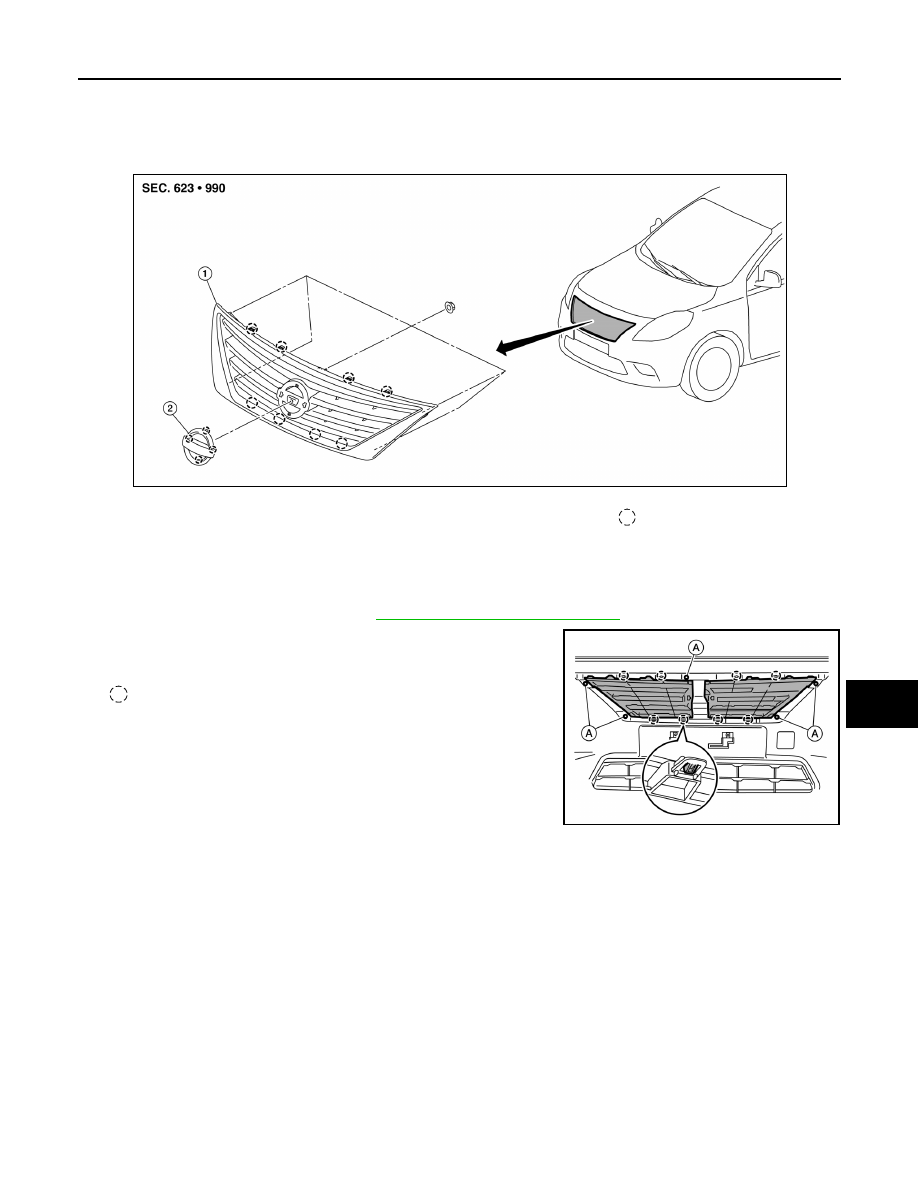

FRONT GRILLE

Exploded View

INFOID:0000000009268556

Removal and Installation

INFOID:0000000009268557

REMOVAL

1. Remove front bumper fascia. Refer to

EXT-16, "Removal and Installation"

.

2. Remove front grille nuts (A).
3. Pull front grille out away from vehicle to disengage pawls and

then remove front grille.

: Pawl

4. Remove front emblem from front grille (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

1.

Front grille

2.

Front emblem

Pawl

AWKIA1860ZZ

AWKIA1861ZZ

EXT-24

< REMOVAL AND INSTALLATION >

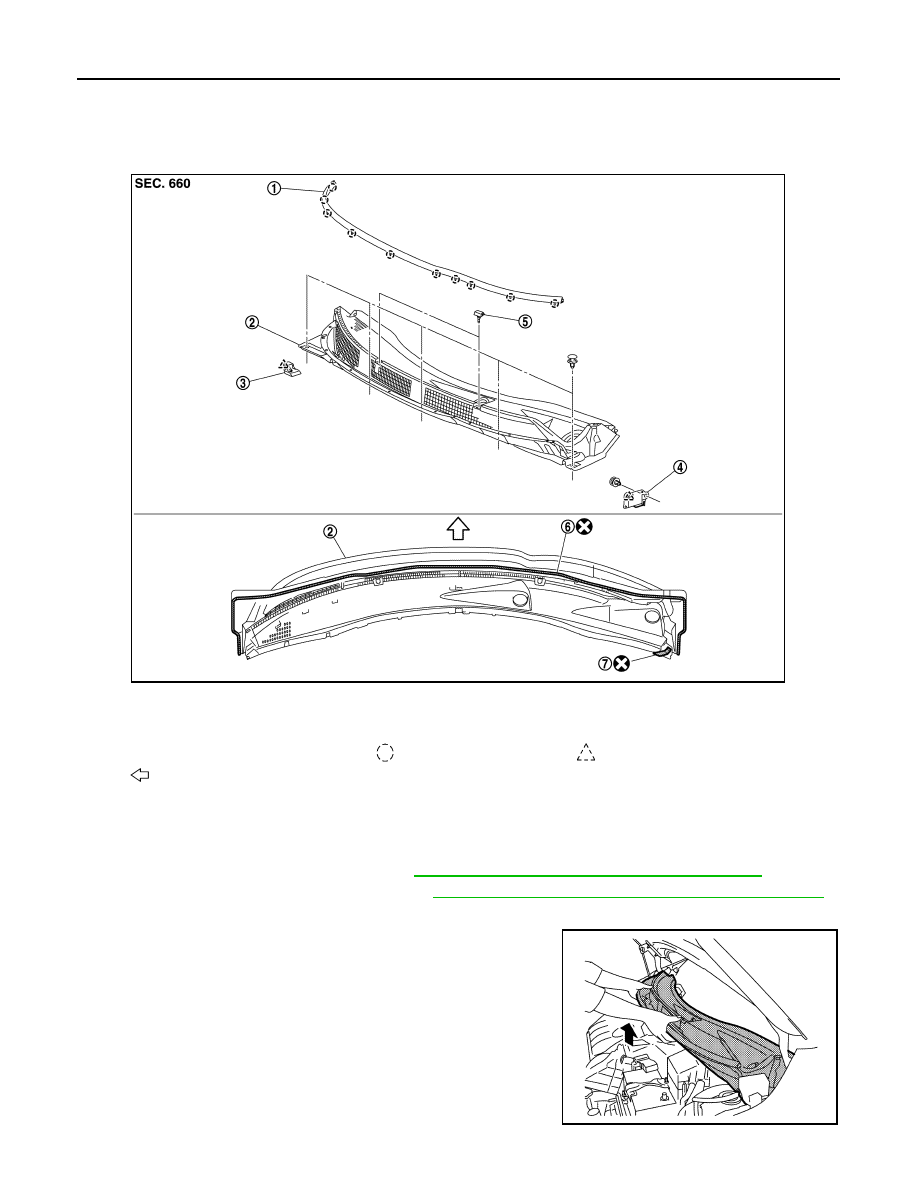

COWL TOP

COWL TOP

Exploded View

INFOID:0000000009268558

Removal and Installation

INFOID:0000000009268559

REMOVAL

1. Remove front wiper arms (LH/RH). Refer to

WW-44, "WIPER ARM : Removal and Installation"

.

2. Remove front fender covers (LH/RH). Refer to

DLK-282, "FENDER COVER : Removal and Installation"

.

3. Remove cowl top cover clips.
4. Pull forward to release cowl top cover from windshield glass.

CAUTION:

When performing the procedure after removing cowl top

cover, protect the lower of windshield glass with urethane,

etc.

1.

Cowl top cover seal

2.

Cowl top cover

3.

Air intake cover

4.

Cowl cover one-way valve

5.

Washer nozzle

6.

EPT sealer [3.0 mm (0.118 in)]

7.

EPT sealer [3.0 mm (0.118 in)]

Clip

Pawl

Front

JMKIA8046ZZ

JMKIA8047ZZ

COWL TOP

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

5. Disconnect the washer tube connector.
6. Remove cowl top cover.
7. Remove the following parts after removing cowl top cover.

• EPT sealer

• Cowl top cover seal

• Washer tube

• Washer nozzles (LH/RH). Refer to

WW-52, "WASHER NOZZLE : Removal and Installation"

.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Always replace cowl top cover EPT sealer on rear of vehicle with a new one when installing old cowl

top cover.

• After installing wiper arms, perform adjustment. Refer to

WW-45, "WIPER ARM : Adjustment"

.
