EXT-14

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

LAIA0071E

FRONT BUMPER

EXT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REMOVAL AND INSTALLATION

FRONT BUMPER

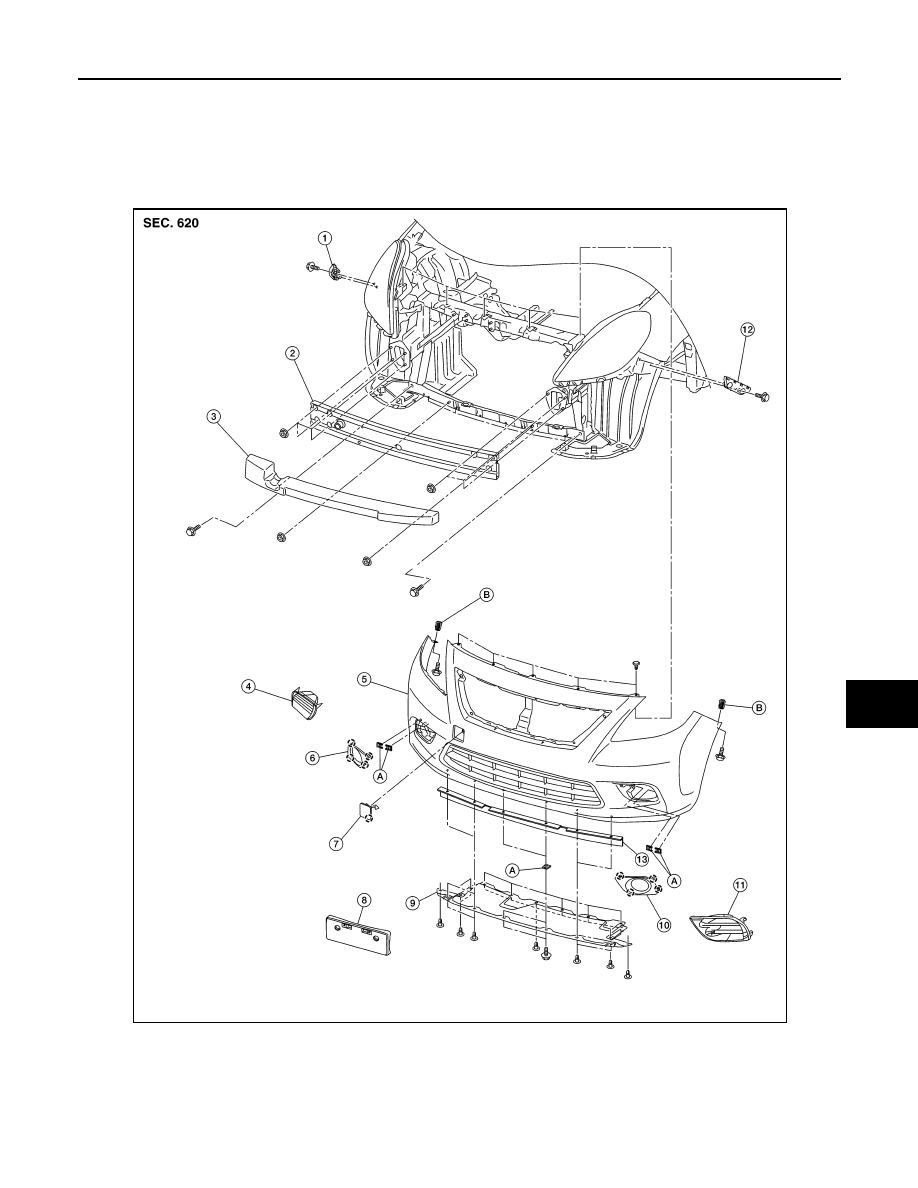

Exploded View

INFOID:0000000009268550

1.

Front bumper side bracket (RH)

2.

Front bumper reinforcement

3.

Front bumper energy absorber

4.

Front bumper fascia finisher (RH)
(If equipped)

5.

Front bumper fascia

6.

Fog lamp finisher (RH) (if
equipped)

7.

Tow cover

8.

License plate bracket

9.

Under cover

AWKIA2508ZZ

EXT-16

< REMOVAL AND INSTALLATION >

FRONT BUMPER

Removal and Installation

INFOID:0000000009268551

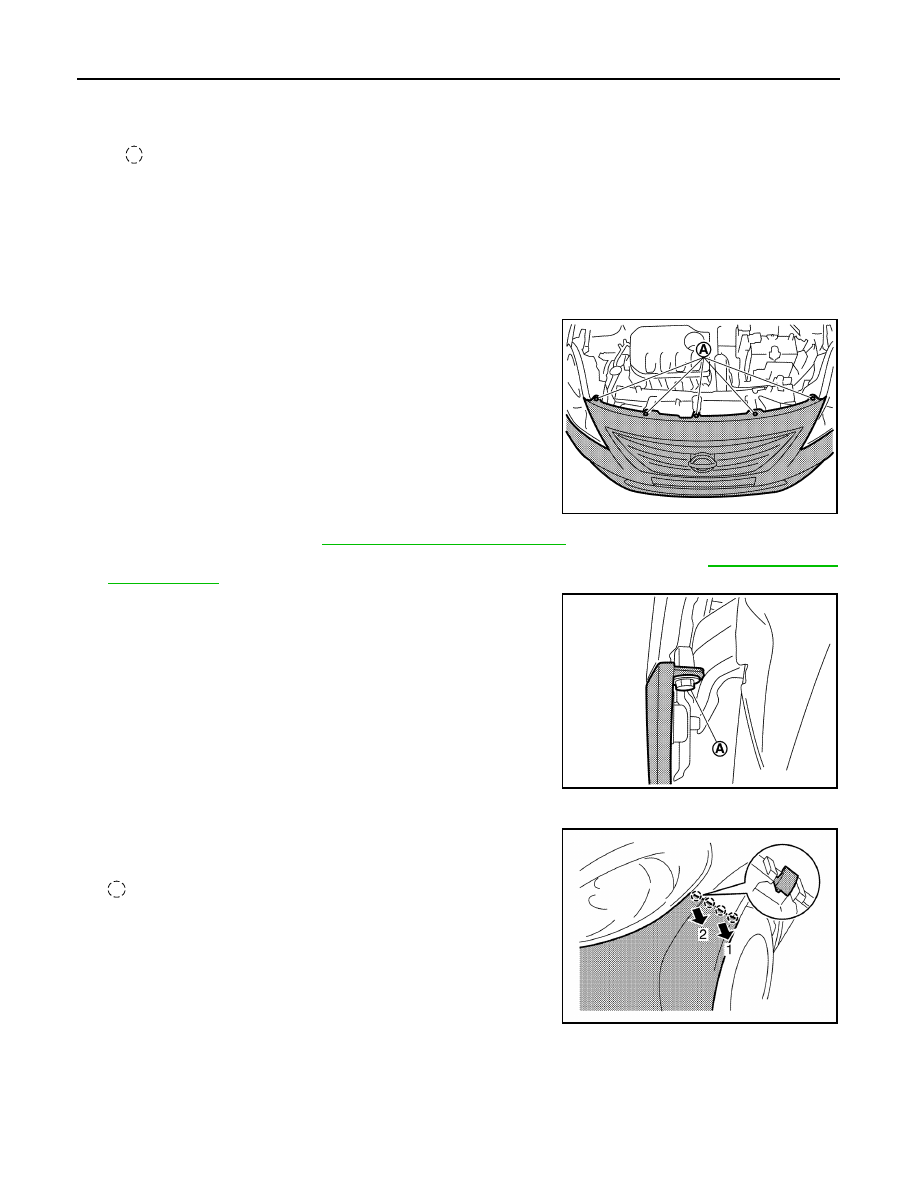

REMOVAL

CAUTION:

Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with

oil.
1. Open hood.
2. Remove front bumper fascia upper side clips (A).

3. Remove under cover. Refer to

EXT-19, "Removal and Installation"

.

4. Remove fender protector clips and screws to access bumper fascia screw. Refer to

EXT-26, "Removal

and Installation"

.

5. Remove front bumper fascia screws (A) (LH/RH).

6. Remove front bumper fascia lower side clips and screws.
7. Pull front bumper fascia away as shown by the arrows in the

illustration and then disengage front bumper fascia from front

bumper side brackets (LH/RH).

: Pawl

CAUTION:

When removing front bumper fascia, two people are

required to avoid damaging.

8. Disconnect the harness connectors from the front fog lamps (LH/RH) (If equipped).
9. Remove front bumper fascia.
10. Remove the following parts after removing front bumper fascia.

• Front bumper side brackets (LH/RH)

• Fog lamp finishers (LH/RH) (If equipped)

10. Fog lamp finisher (LH) (if

equipped)

11.

Front bumper fascia finisher (LH)
(if equipped)

12. Front bumper side bracket (LH)

13. Front spoiler

A.

Spring nut

B.

Screw grommet

Pawl

JMKIA8016ZZ

JMKIA8017ZZ

AWKIA1890ZZ

FRONT BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

• Fog lamps (LH/RH) (If equipped). Refer to

EXL-105, "Removal and Installation"

.

• Front grille. Refer to

EXT-23, "Removal and Installation"

.

• License plate bracket

11. Remove front bumper energy absorber.
12. Remove nuts and front bumper reinforcement.

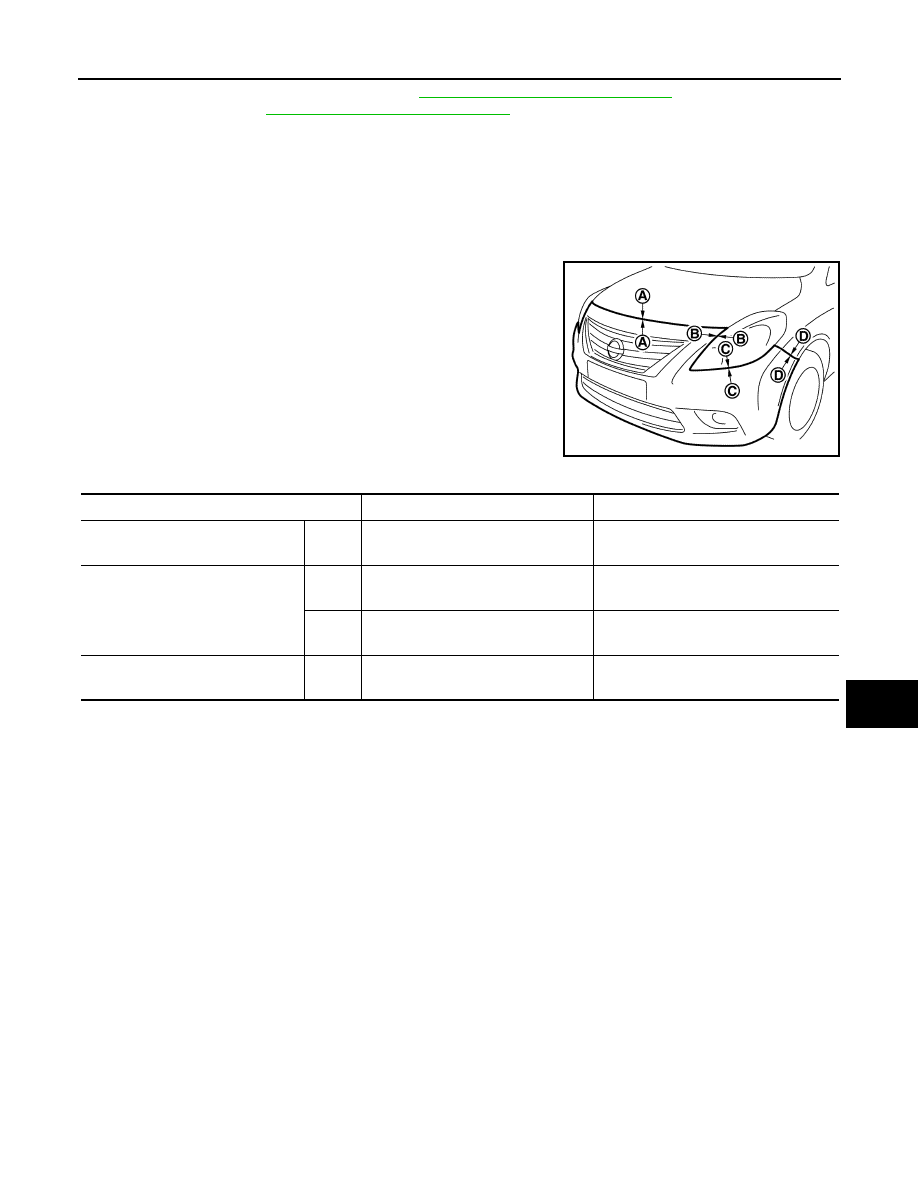

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• The following table shows the specified values for checking normal installation specifications.

• Fitting adjustment cannot be performed.

JMKIA8019ZZ

Portion

Clearance

Surface height difference

Front bumper – Hood

A – A

2.5 – 6.3 mm

(0.10 – 0.25 in)

(

−1.45) – (+2.45) mm

[(

−0.057) – (+0.096) in]

Front bumper – Headlamp

B – B

0.1 – 4.2 mm

(0.004 – 0.17 in)

—

C – C

0.1 – 3.9 mm

(0.004 – 0.15 in)

0.1 – 3.9 mm

(0.004 – 0.15 in)

Front bumper – Front fender D – D

0.0 – 1.0 mm

(0.000 – 0.04 in)

(

−0.3) – (+1.7) mm

[(

−0.01) – (+0.07) in]
