PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009269596

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

EXL-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

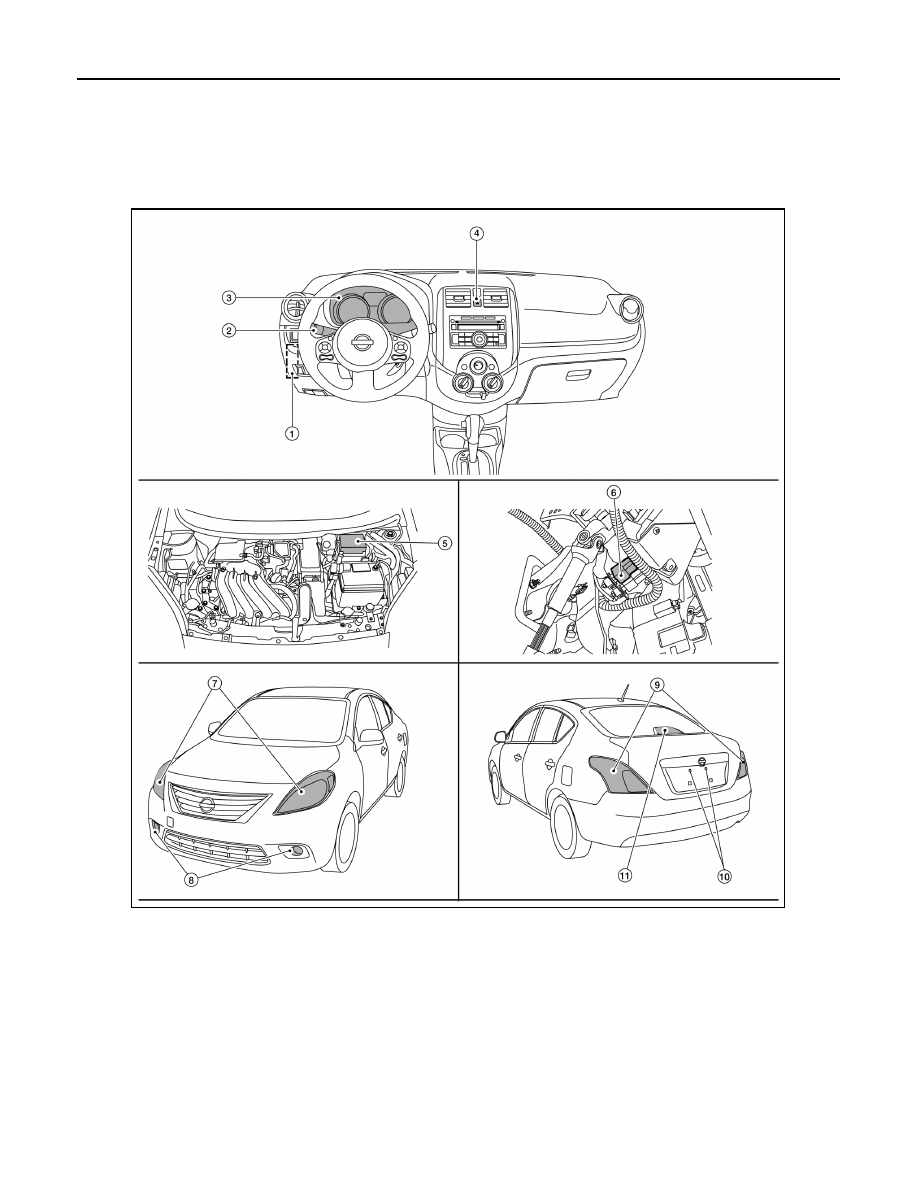

Component Parts Location

INFOID:0000000009269597

1.

BCM

2.

Combination switch (lighting and turn
signal switch)

3.

Combination meter

4.

Hazard switch

5.

IPDM E/R, Daytime light relays 1 and 2
(if equipped), Front fog lamp relay (if
equipped)

6.

Stop lamp switch

7.

Front combination lamp LH, RH

8.

Front fog lamp LH, RH (if equipped)

9.

Rear combination lamp LH, RH

10. License plate lamp LH, RH

11. High mounted stop lamp

AWLIA2022ZZ

COMPONENT PARTS

EXL-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Component Description

INFOID:0000000009269598

Part name

Description

BCM

Controls the exterior lighting system.

Combination meter

• Blinks the turn signal indicator lamp and outputs the turn signal

operating sound with integrated buzzer according to the re-
quest from BCM (via CAN communication).

• Turns the tail lamp indicator lamp and high beam indicator lamp

ON according to the request from BCM (via CAN communica-
tion).

Combination switch (lighting and turn signal switch)

Refer to

BCS-9, "COMBINATION SWITCH READING SYSTEM :

System Description"

 (with Intelligent Key) or

BCS-75, "COMBINA-

TION SWITCH READING SYSTEM : System Description"

 (with-

out Intelligent Key).

Hazard switch

Hazard flasher request signal is output to the BCM.

IPDM E/R

Controls the integrated relay, and supplies voltage to the load ac-
cording to the request from BCM (via CAN communication).

Stop lamp switch

Stop lamp signal is output to the rear combination lamps and high-
mounted stop lamp.

EXL-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

HEADLAMP SYSTEM

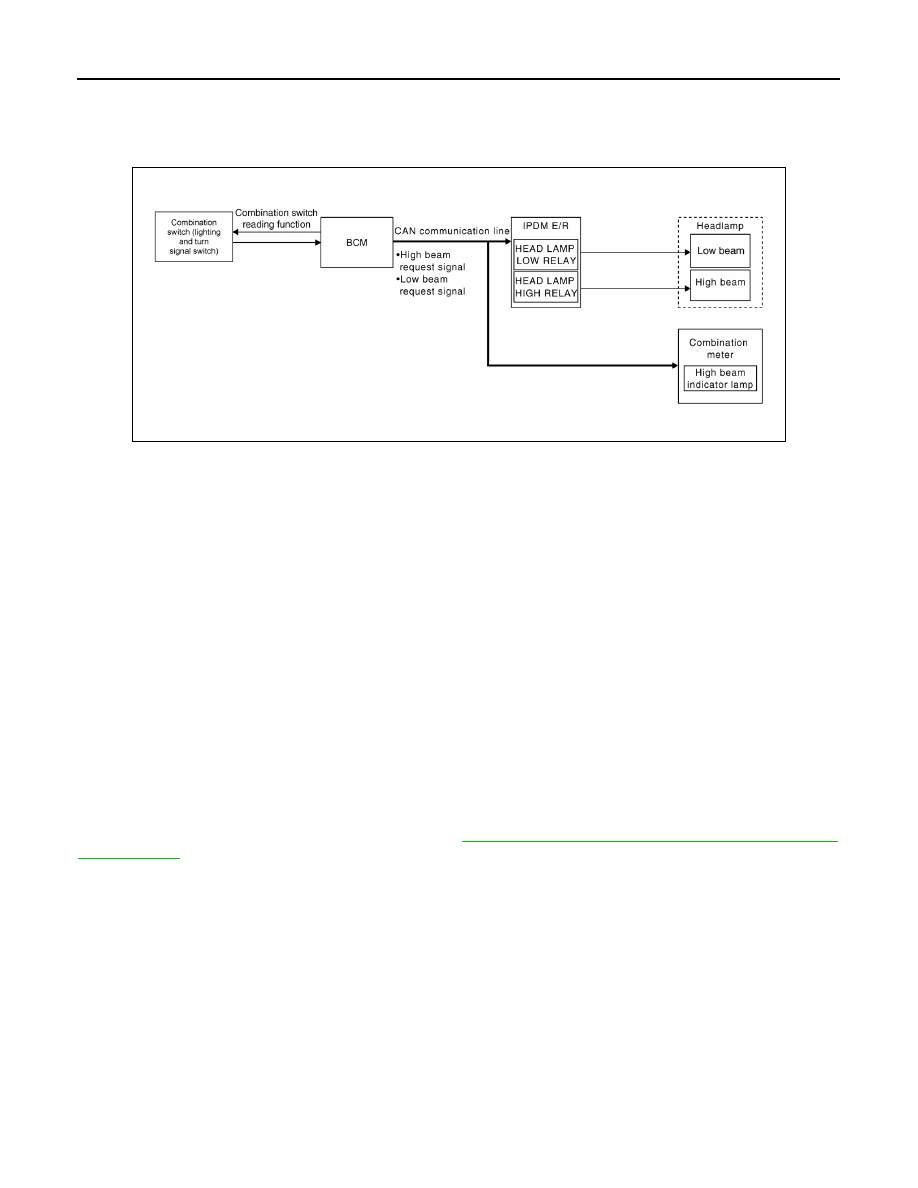

HEADLAMP SYSTEM : System Diagram

INFOID:0000000009269599

HEADLAMP SYSTEM : System Description

INFOID:0000000009269600

LOW BEAM OPERATION

When the lighting switch is in 2nd position, the BCM receives input requesting the headlamps to illuminate.

This input is communicated to the IPDM E/R across the CAN communication lines. The CPU of the IPDM E/R

controls the headlamp low relay coil which supplies power to the low beam headlamps.

HIGH BEAM OPERATION/FLASH-TO-PASS OPERATION

With the lighting switch in the 2nd position and placed in HIGH position, the BCM receives input requesting the

headlamp high beams to illuminate. The flash to pass feature can be used any time and also sends a signal to

the BCM. This input is communicated to the IPDM E/R across the CAN communication lines. The CPU of the

combination meter controls the ON/OFF status off the HIGH BEAM indicator. The CPU of the IPDM E/R con-

trols the headlamp high relay coil which supplies power to the high beam headlamps.

The combination meter receives a high beam request signal (ON) through the CAN communication lines and

turns the high beam indicator lamp ON.

EXTERIOR LAMP BATTERY SAVER CONTROL

With the combination switch (lighting and turn signal switch) in the 2nd position and the ignition switch is

turned from ON or ACC to OFF, the battery saver feature is activated.

Under this condition, the headlamps remain illuminated for 45 seconds unless the lighting switch position is

changed. If the lighting switch position is changed, then the headlamps are turned off.

This setting can be changed by CONSULT. Refer to

BCS-86, "HEADLAMP : CONSULT Function (BCM -

HEAD LAMP)"

.

WITH DAYTIME LIGHT SYSTEM

ABLIA2706GB
